1. Find "Access Point Names"
Slide your finger downwards starting from the top of the screen.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-82001f12-5ac0-4ab7-b54e-34f497279b52.png?width=214&height=454)
Press the settings icon.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-9f25ab5d-c924-433b-8496-01a61ec3eede.png?width=214&height=454)
Press Connections.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-0b7401f8-9273-4d35-a302-d5bb51a43fca.png?width=214&height=454)

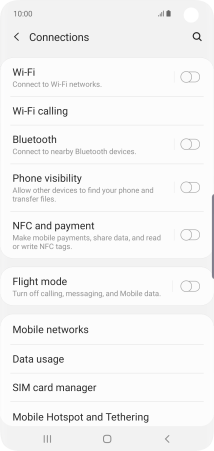

Press Mobile networks.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-0ae49a1d-83fc-4b7f-8872-72e3c678fb45.png?width=214&height=454)

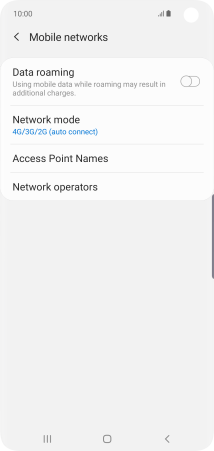

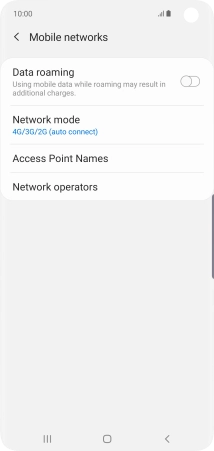

Press Access Point Names.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-e7994d65-e63c-4687-95c4-25d00bacdf5f.png?width=214&height=454)
2. Create new data connection

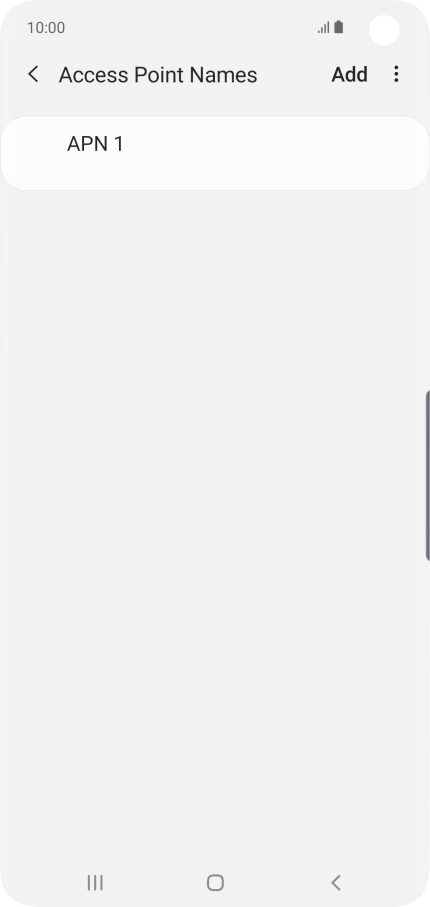

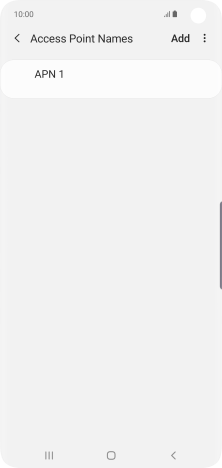

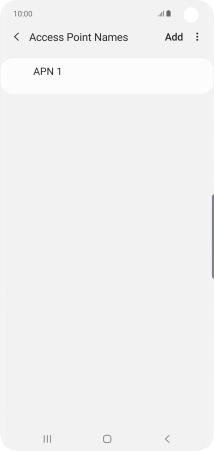

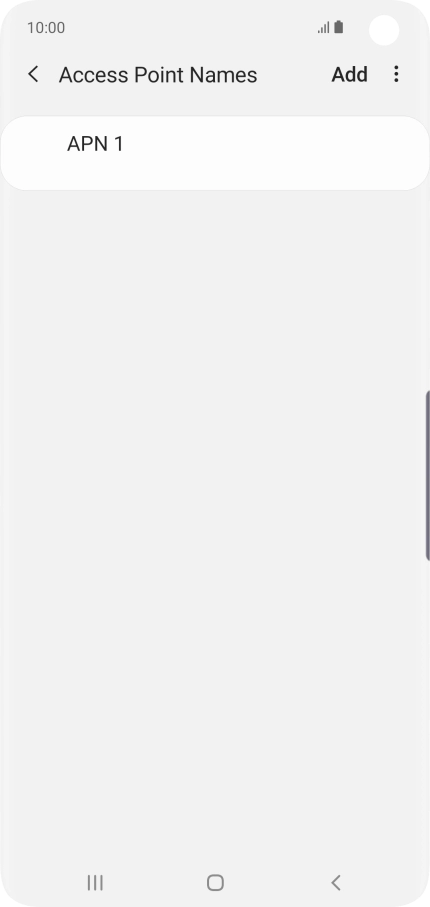

Press Add.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-0a007d42-11b3-4b12-baca-a3e09e9c5502.png?width=214&height=454)

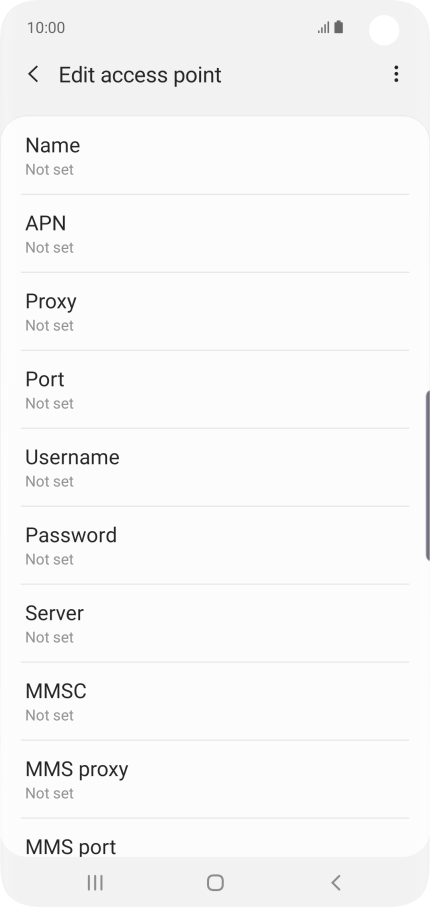

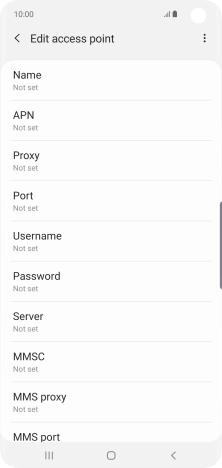

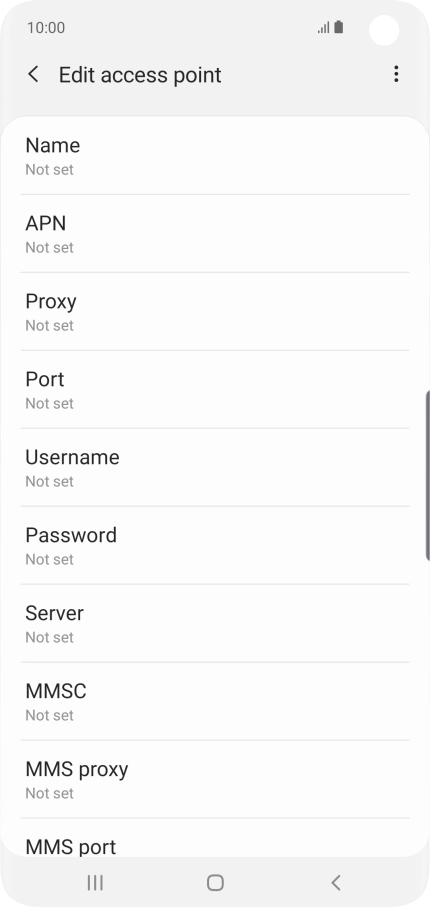

Press Name.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-9b200424-5303-4422-a901-86924bc1f775.png?width=214&height=454)

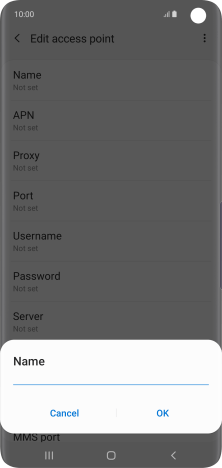

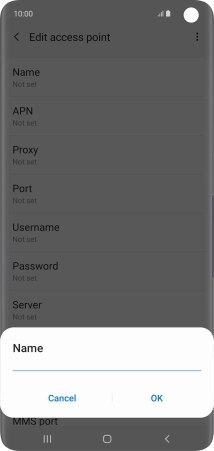

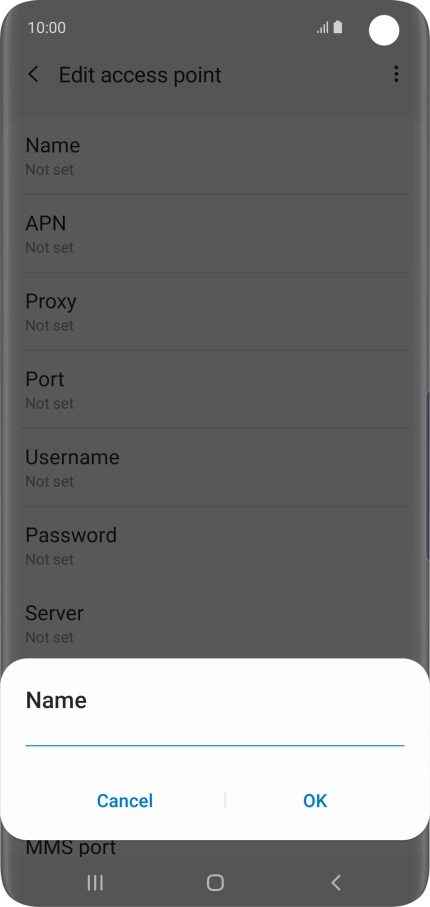

Key in Vodafone MMS and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-bb10bf3a-94d5-49f5-baa7-5c1ae1c0918b.png?width=214&height=454)
Vodafone MMS
3. Enter APN

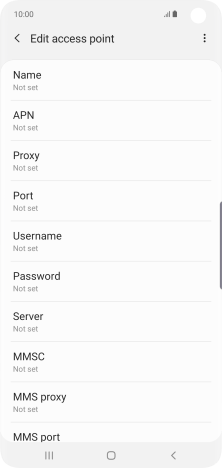

Press APN.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-9b200424-5303-4422-a901-86924bc1f775.png?width=214&height=454)

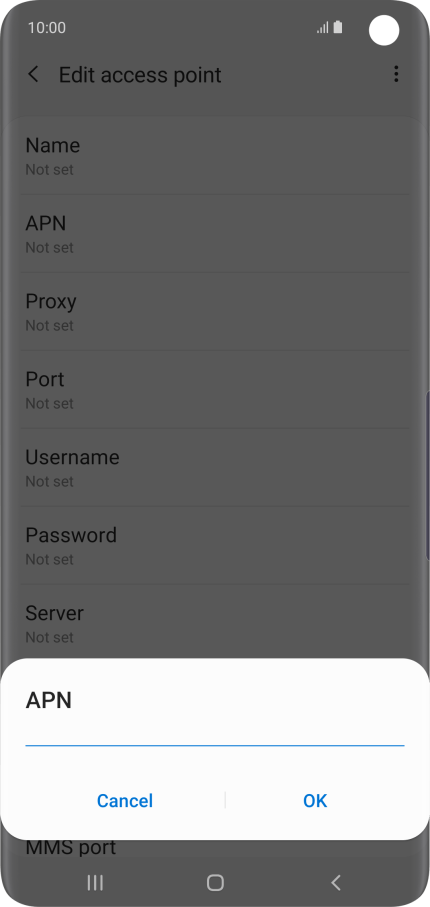

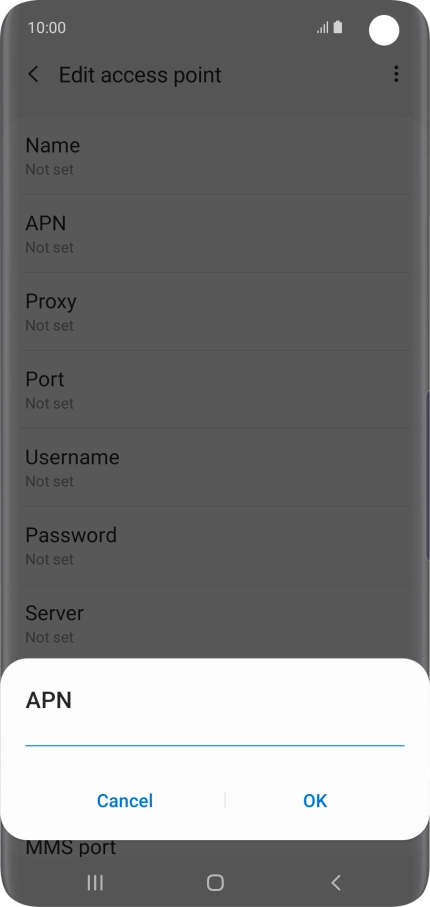

Key in mms.vodafone.net and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-b4b35796-968b-4362-9b5e-9491caafec87.png?width=214&height=454)
mms.vodafone.net
4. Enter MMSC
Press MMSC.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-9b200424-5303-4422-a901-86924bc1f775.png?width=214&height=454)

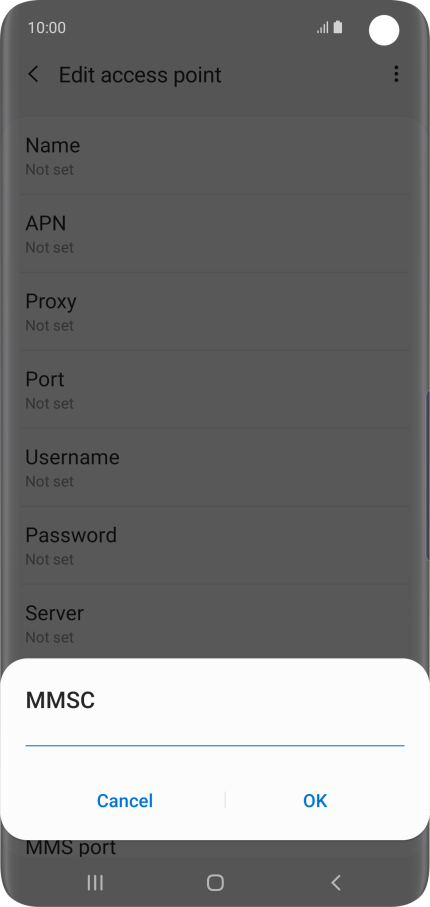

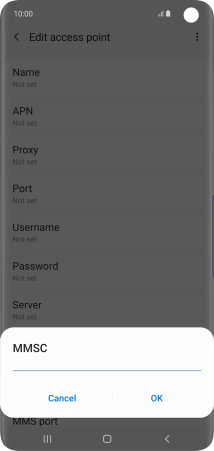

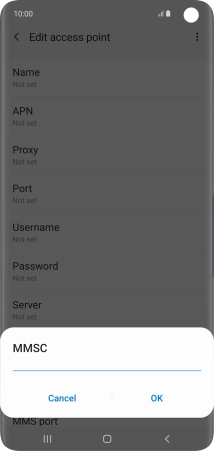

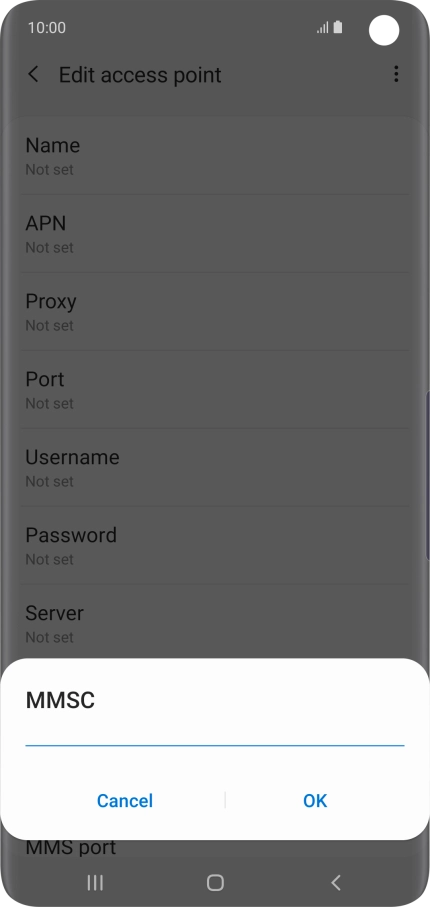

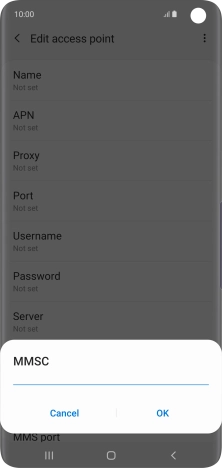

Key in http://www.vodafone.ie/mms and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-7d928827-afe1-4f49-8743-142521cf775f.png?width=214&height=454)
http://www.vodafone.ie/mms
5. Enter IP address
Press MMS proxy.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-9b200424-5303-4422-a901-86924bc1f775.png?width=214&height=454)

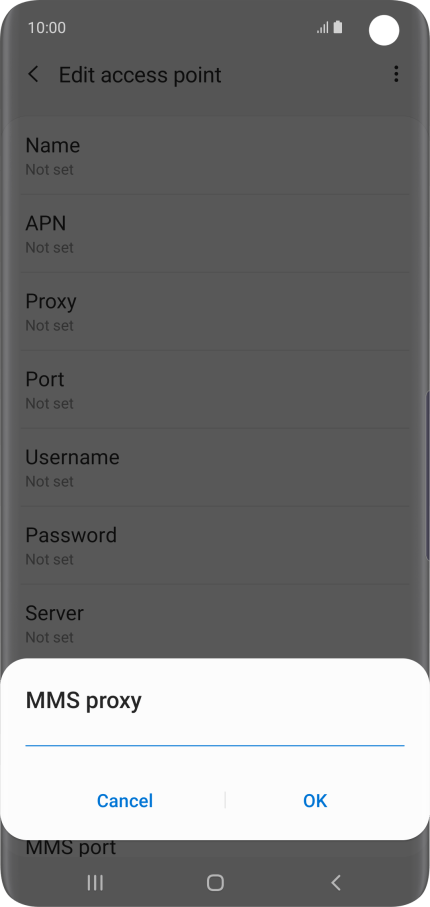

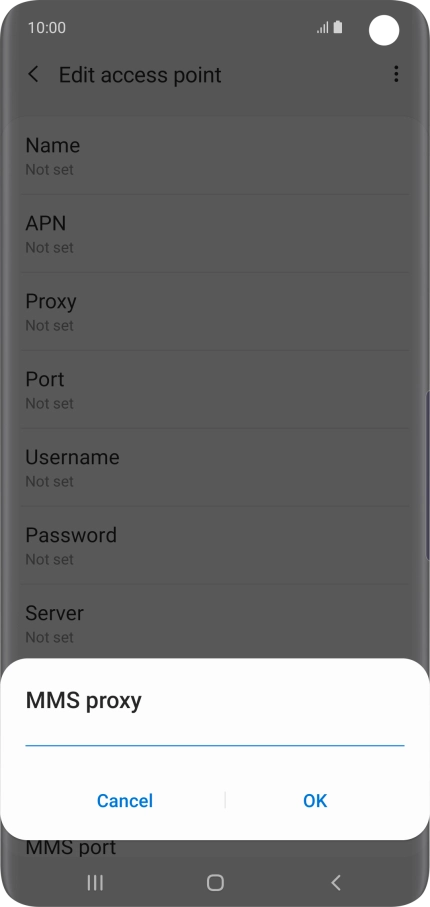

Key in 10.24.59.200 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-26ddba56-5c78-4b31-a7d2-e99adcc41c5f.png?width=214&height=454)
10.24.59.200
6. Enter port number

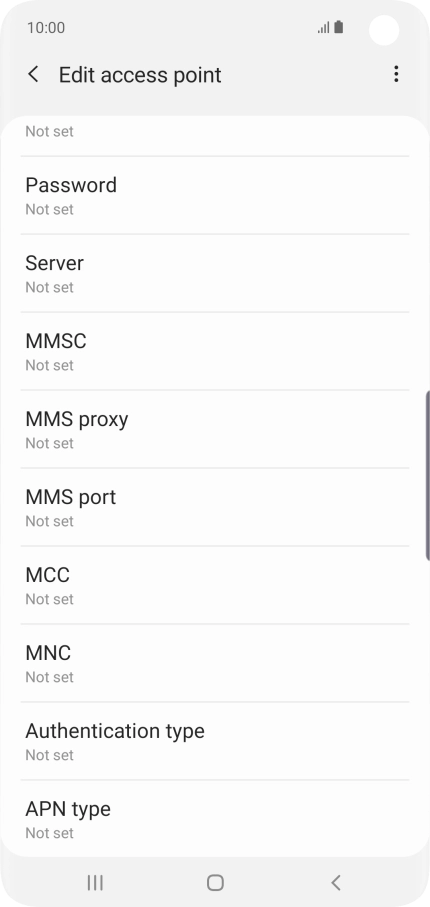

Press MMS port.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-901d3d1d-8829-4052-8062-2217e9b60929.png?width=214&height=454)

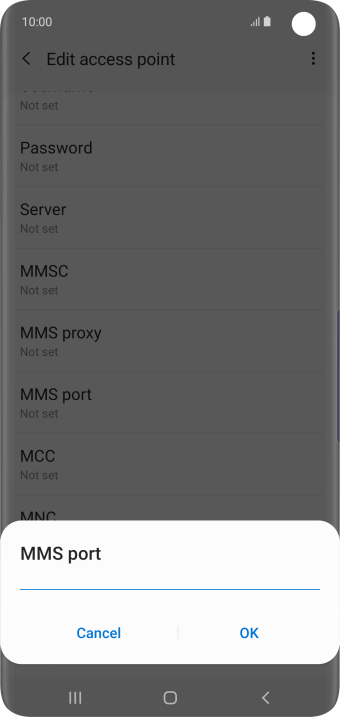

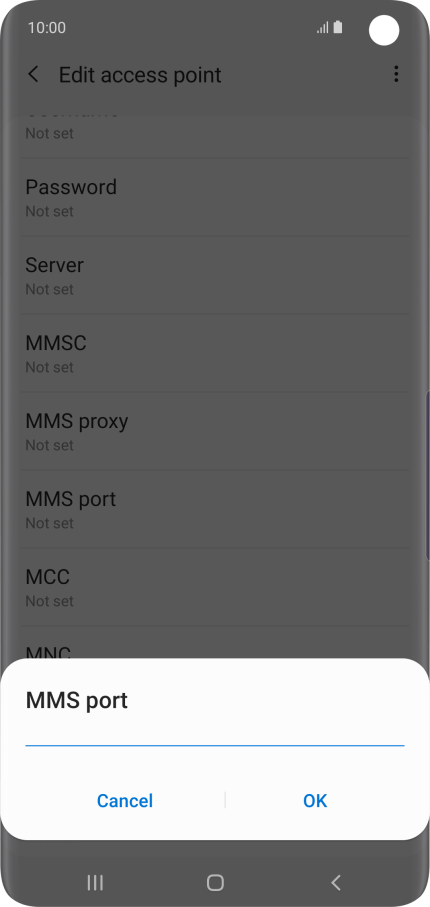

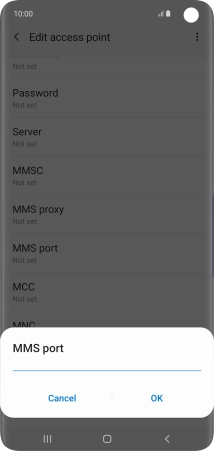

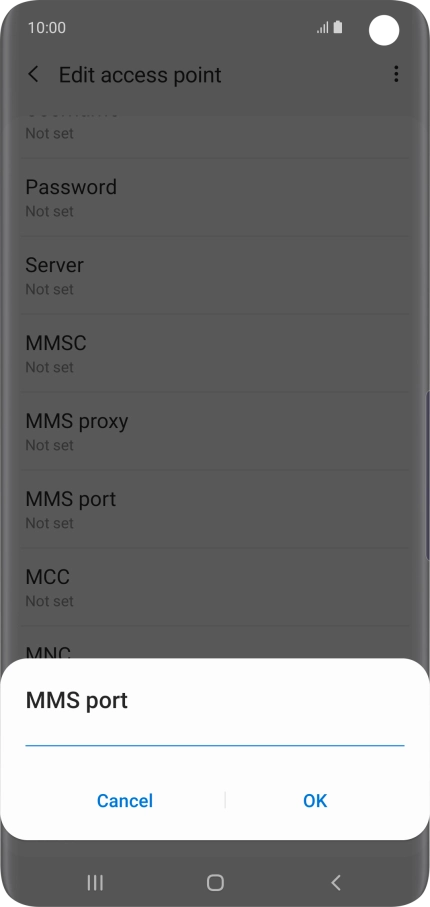

Key in 80 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-d21229b7-7b25-428a-b721-3fe2fb34f8b6.png?width=214&height=454)
80
7. Enter country code

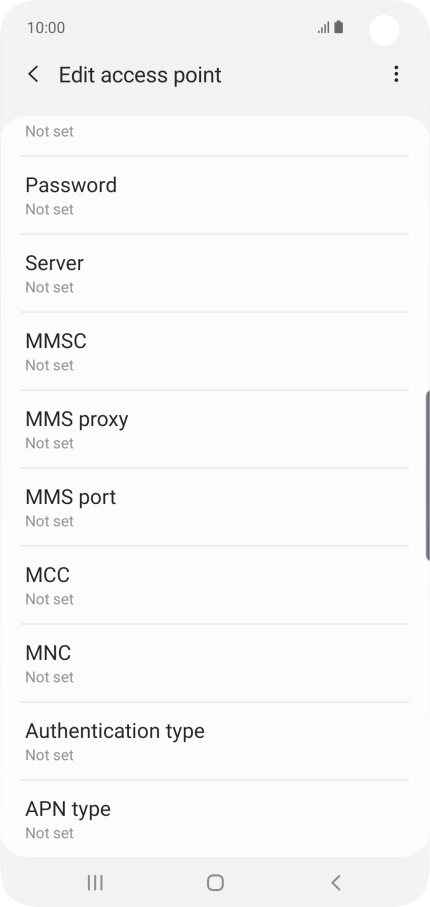

Press MCC.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-901d3d1d-8829-4052-8062-2217e9b60929.png?width=214&height=454)

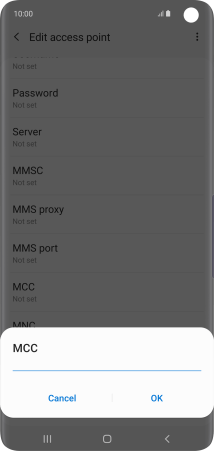

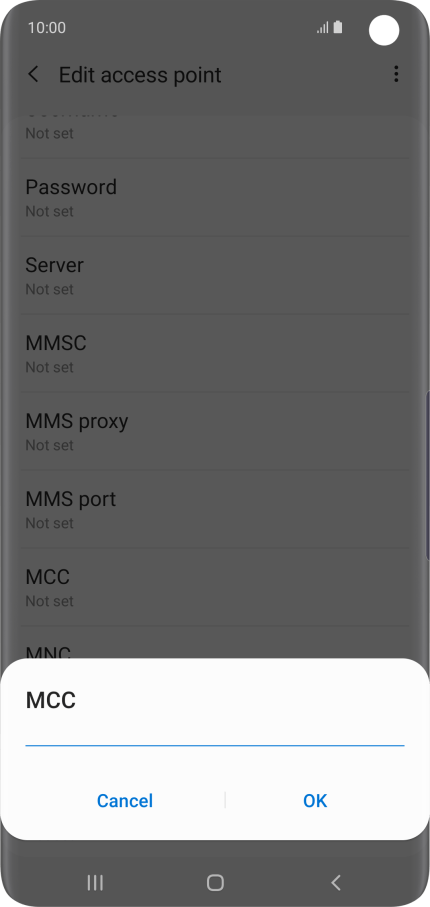

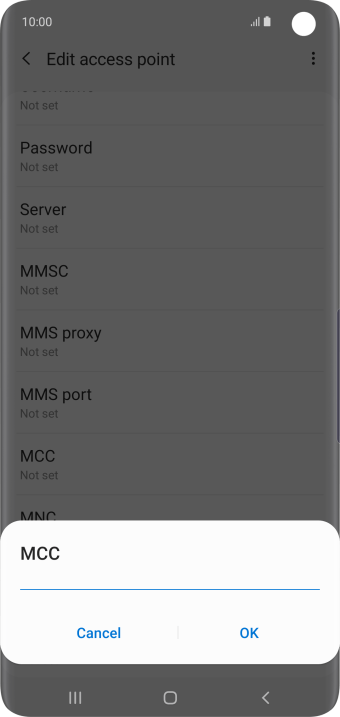

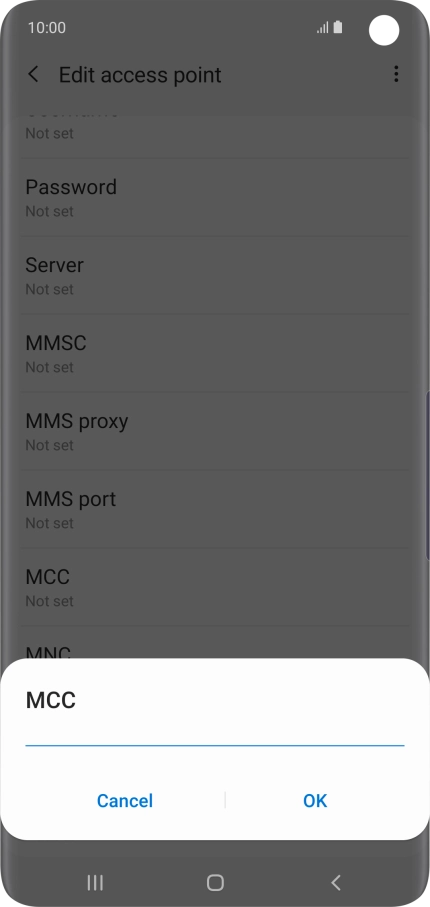

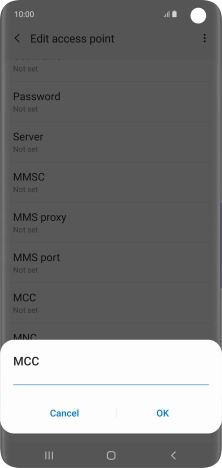

Key in 272 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-3bdc3342-5b11-4c62-92cf-e06032d4906a.png?width=214&height=454)
272
8. Enter network code
Press MNC.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-901d3d1d-8829-4052-8062-2217e9b60929.png?width=214&height=454)

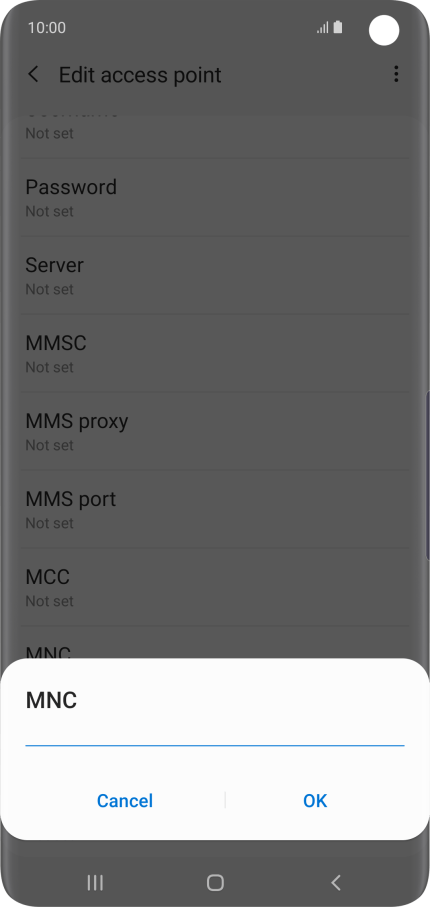

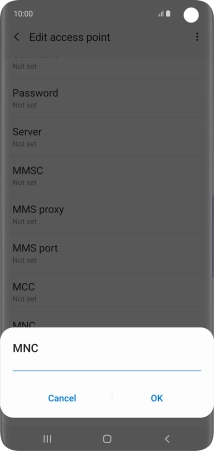

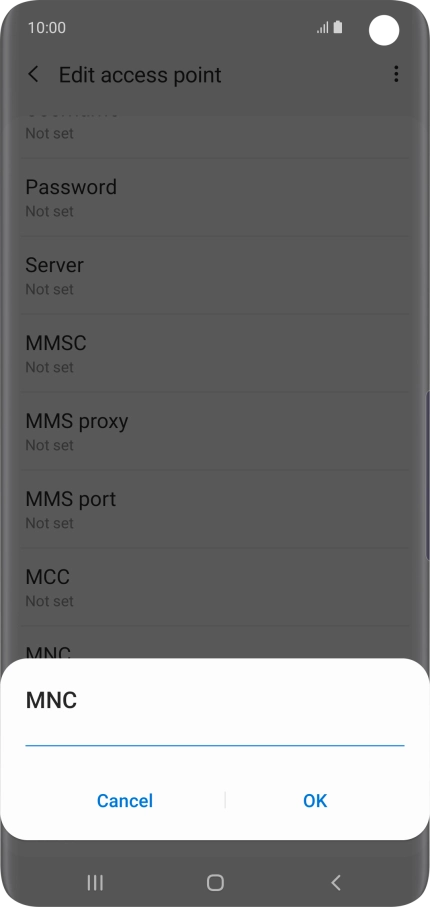

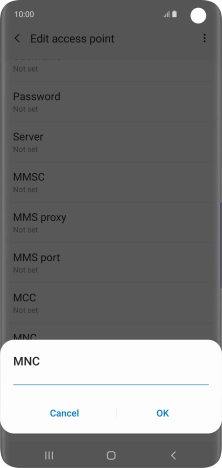

Key in 01 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-84d5cf4a-0bdc-418f-96e4-2a7b0bd8e60c.png?width=214&height=454)
01
9. Select authentication type
Press Authentication type.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-901d3d1d-8829-4052-8062-2217e9b60929.png?width=214&height=454)

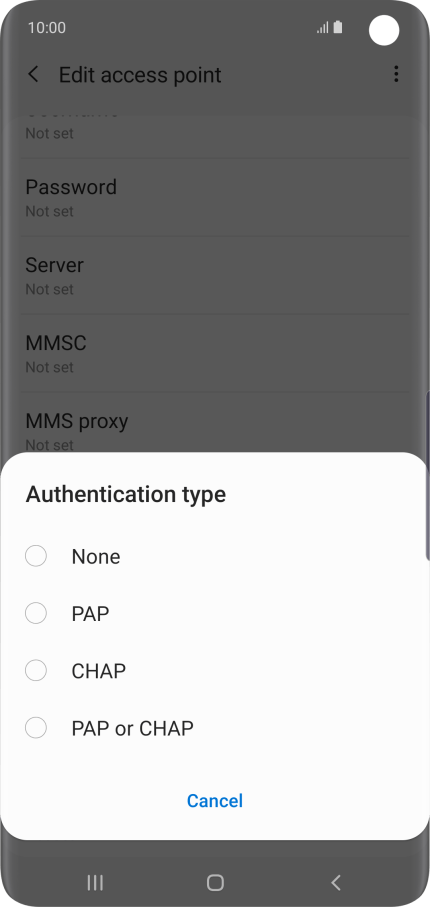

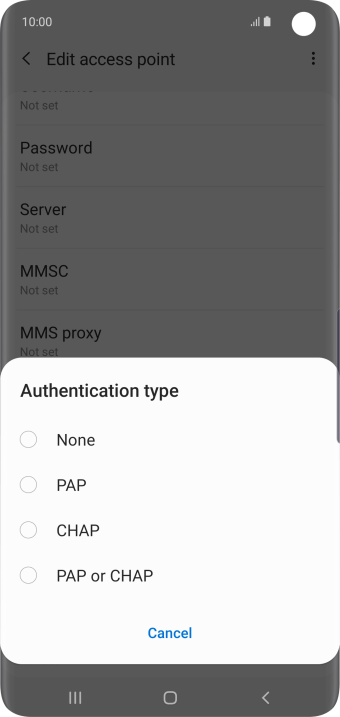

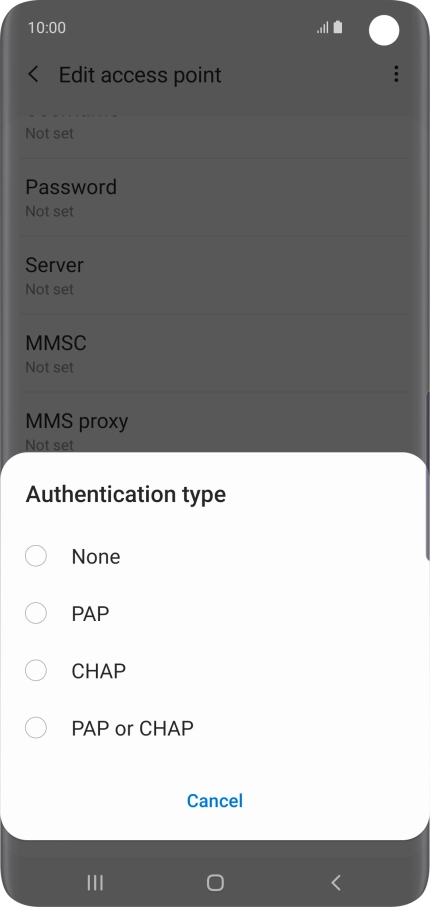

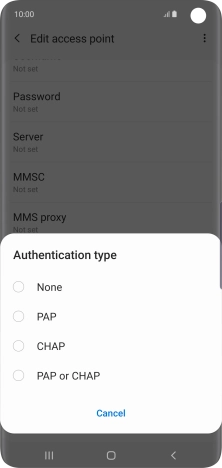

Press PAP.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-73d35e71-a0b4-4478-b88f-a382e45763a9.png?width=214&height=454)
10. Enter APN type
Press APN type.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-901d3d1d-8829-4052-8062-2217e9b60929.png?width=214&height=454)

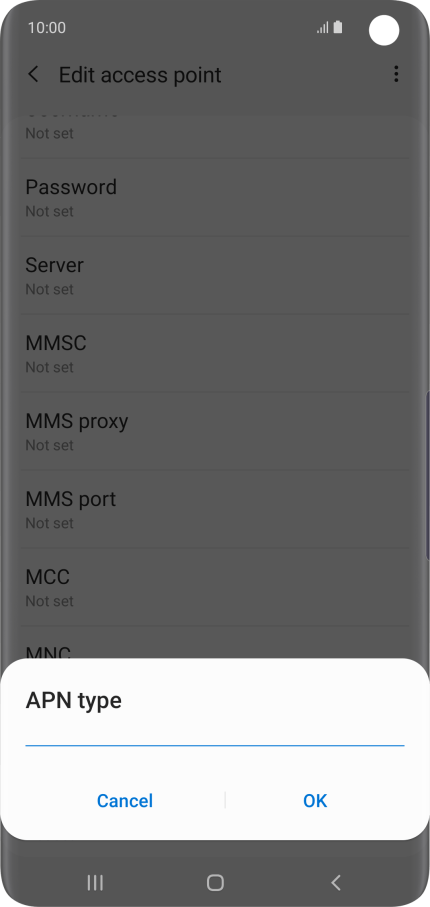

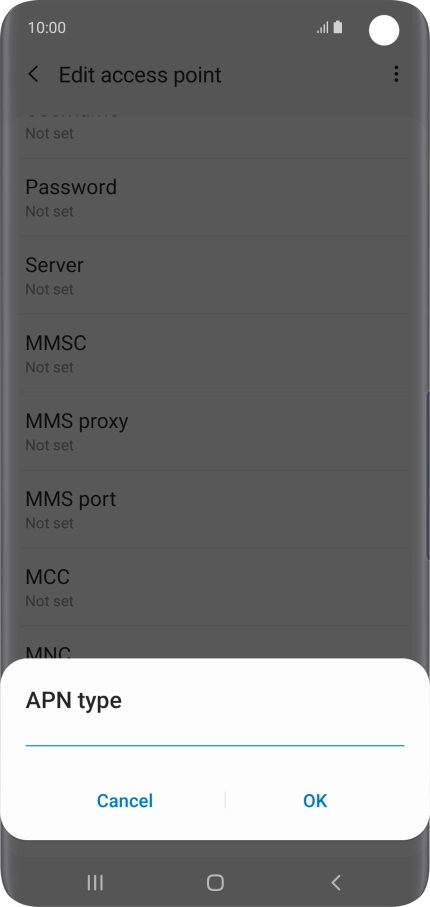

Key in mms and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-4440fc86-3075-4f60-ae65-996d3d1c704b.png?width=214&height=454)
mms
11. Save data connection
Press the menu icon.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-901d3d1d-8829-4052-8062-2217e9b60929.png?width=214&height=454)

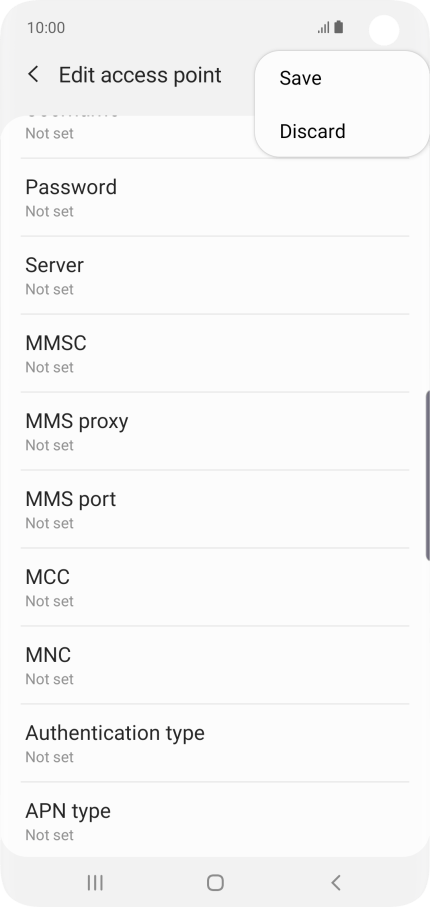

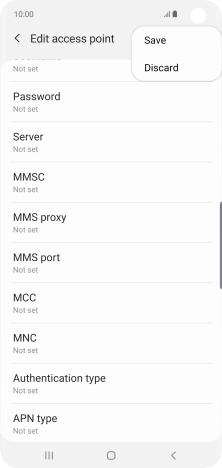

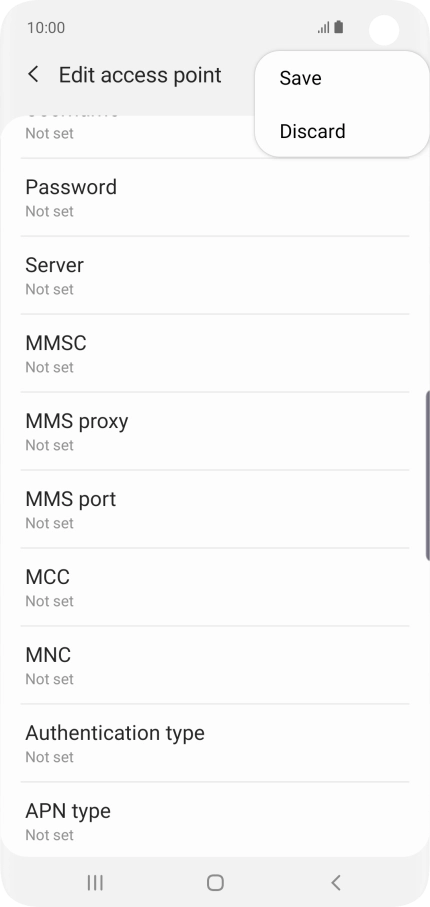

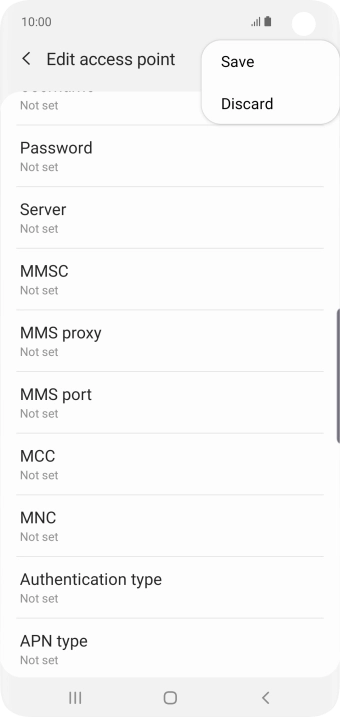

Press Save.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-eabca6eb-451c-4c69-8a42-36c2e9edbc36.png?width=214&height=454)
12. Return to the home screen

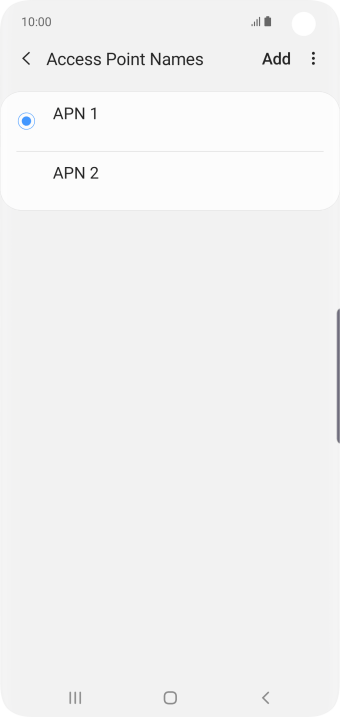

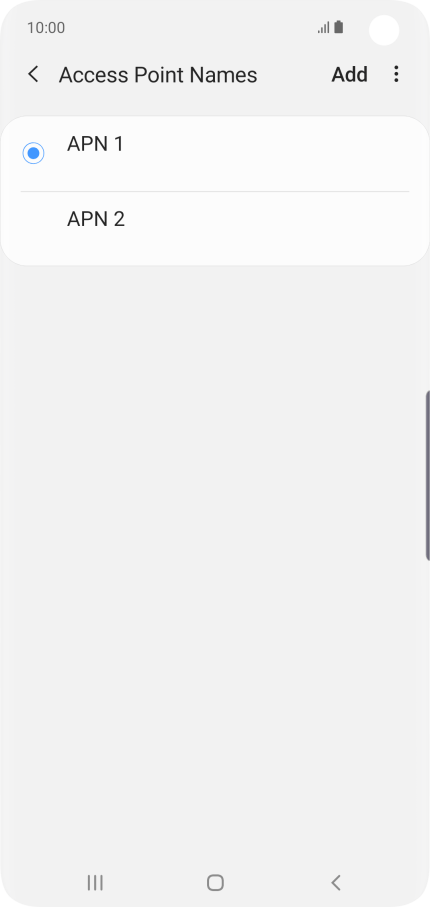

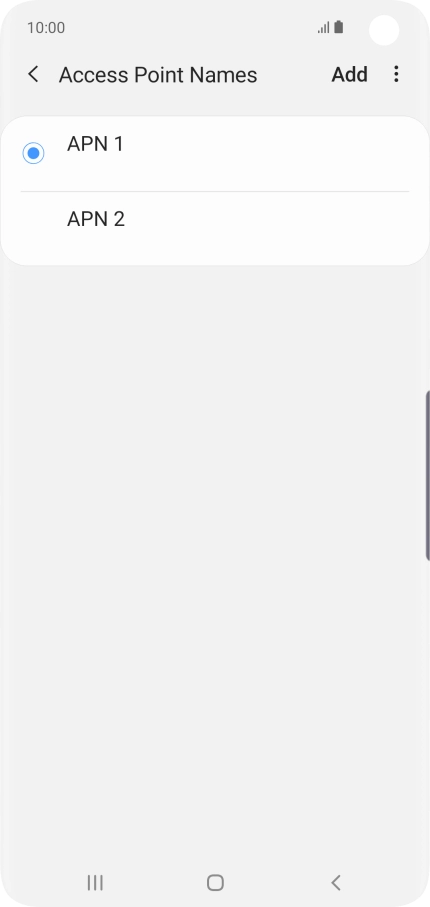

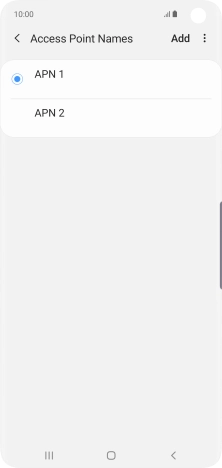

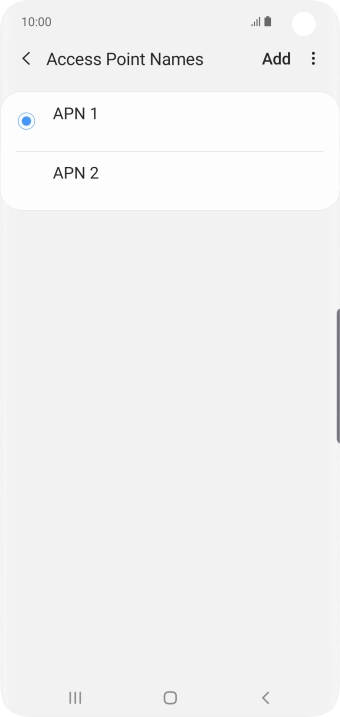

Press the Home key to return to the home screen.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-2eb87600-274d-4a9e-87c9-96644e841f1e.png?width=214&height=454)
