1. Find "Access Point Names"
Slide two fingers downwards starting from the top of the screen.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-3c58a191-ef36-44df-ac40-5e762f4e7176.png?width=378&height=456)

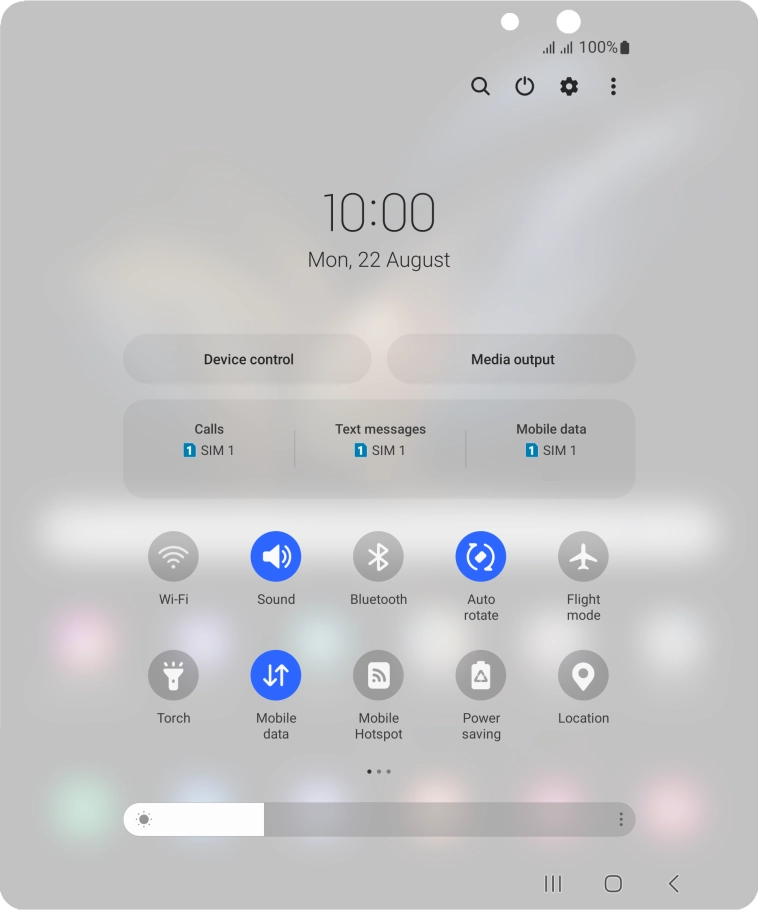

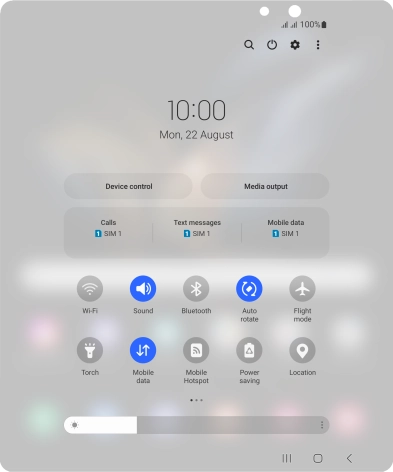

Press the settings icon.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-33e80bb5-24d6-4987-b372-9ae8f266ee47.png?width=378&height=456)

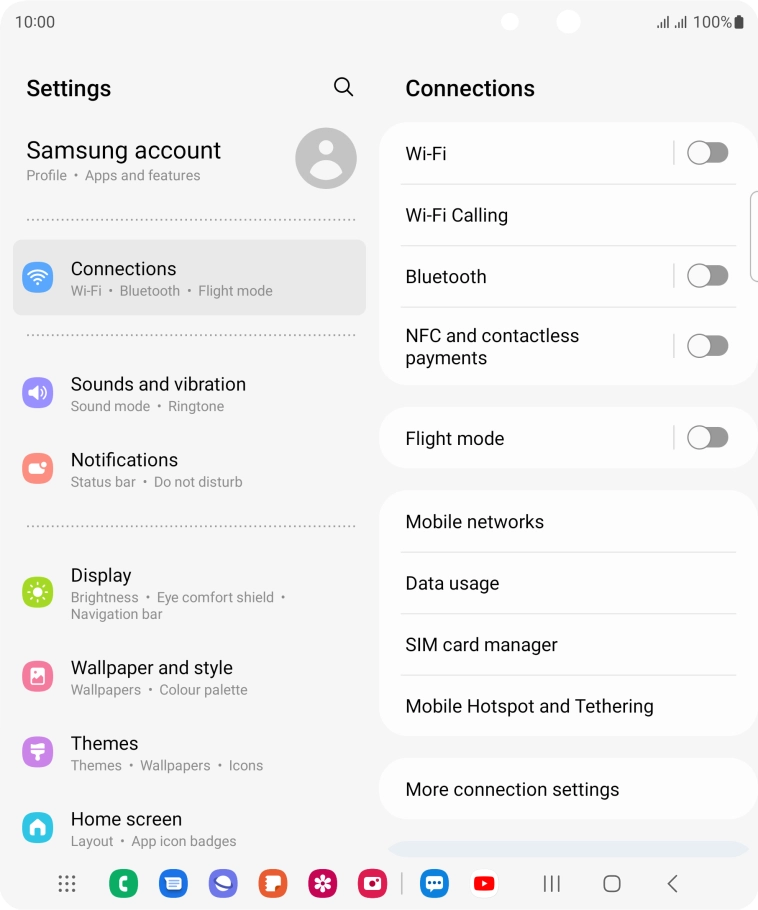

Press Connections.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-45b836f3-ce5c-4888-97bd-f689f68d6679.png?width=378&height=456)
Press Mobile networks.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-805659ee-acab-49d3-8929-fad3b1044635.png?width=378&height=456)

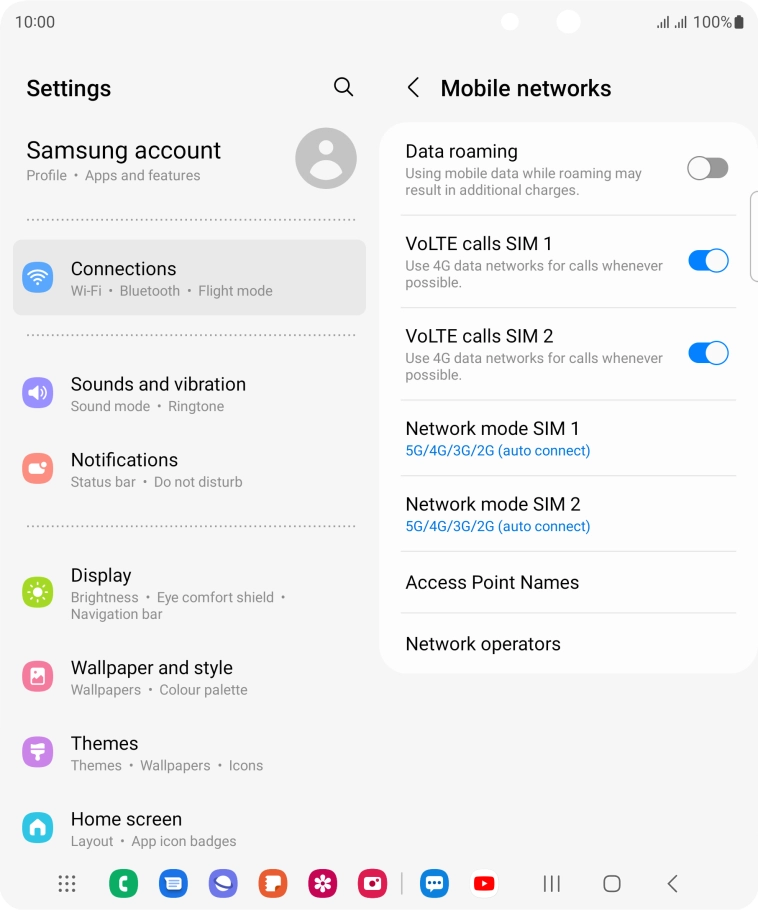

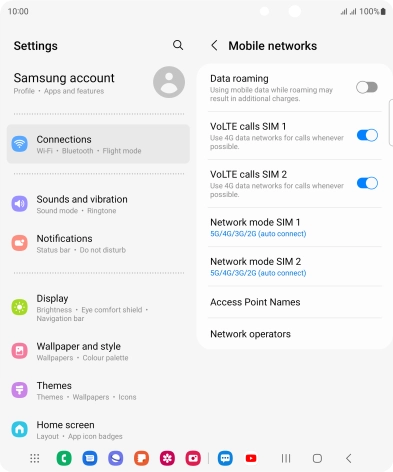

Press Access Point Names.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-c0bda580-f038-4871-ae5a-22779a80bb3d.png?width=378&height=456)
2. Create new data connection

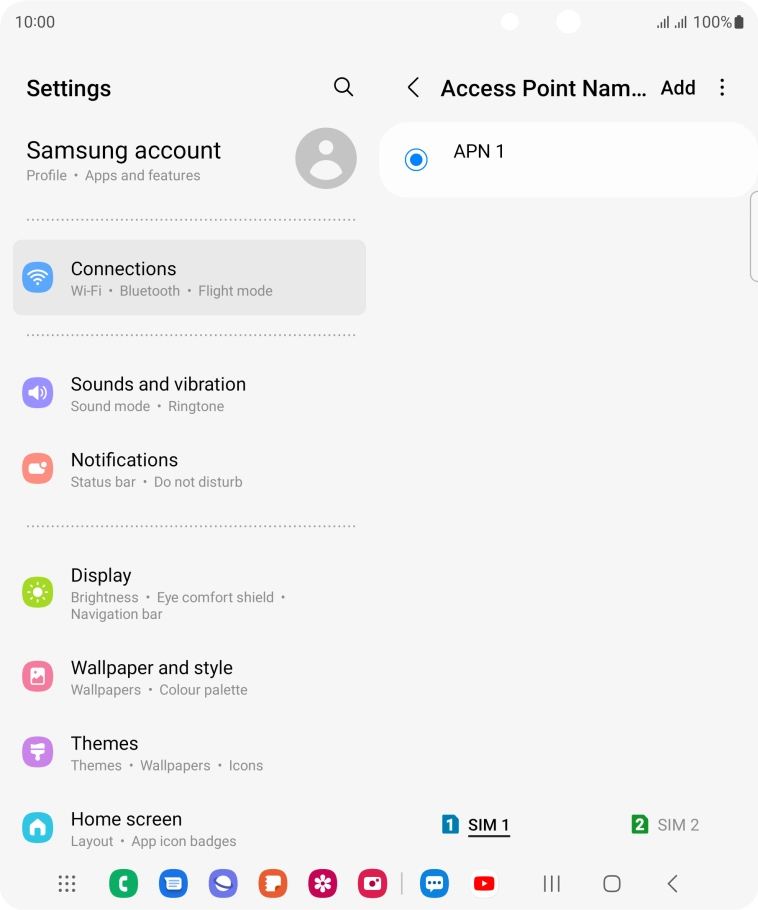

Press the required SIM.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-88b27c7c-1396-46c6-b870-a793ab6cdffd.png?width=378&height=456)
Press Add.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-88b27c7c-1396-46c6-b870-a793ab6cdffd.png?width=378&height=456)

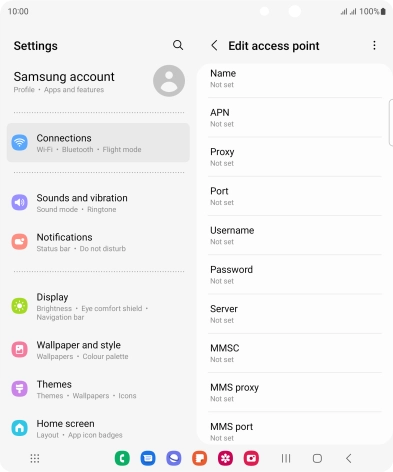

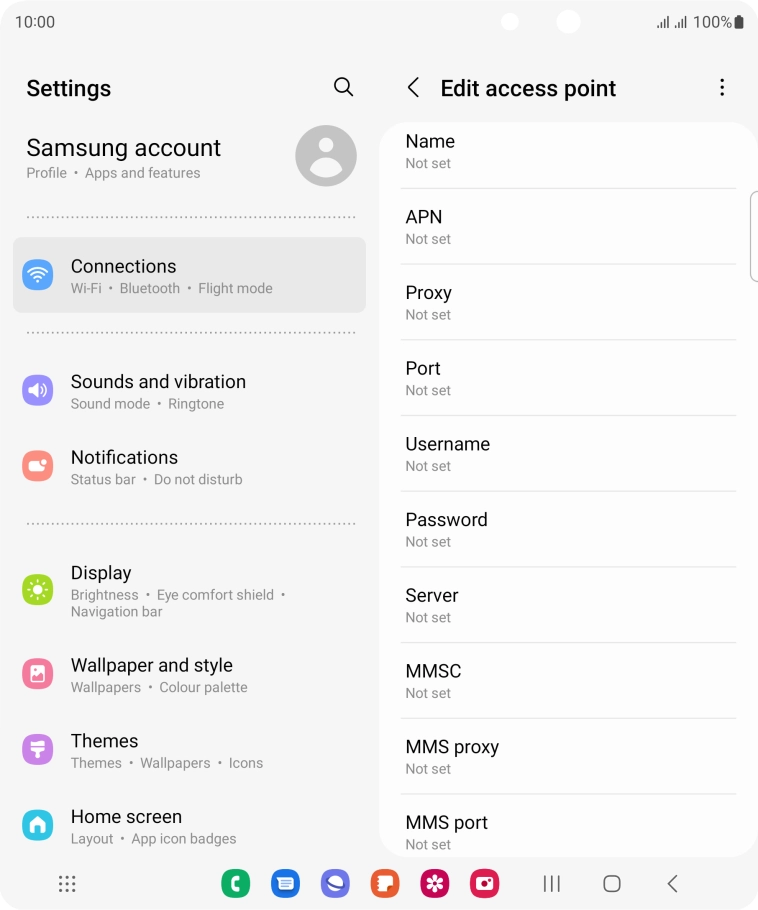

Press Name.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-96e9101c-5edf-4cf4-a6a8-a4115c9aedd9.png?width=378&height=456)

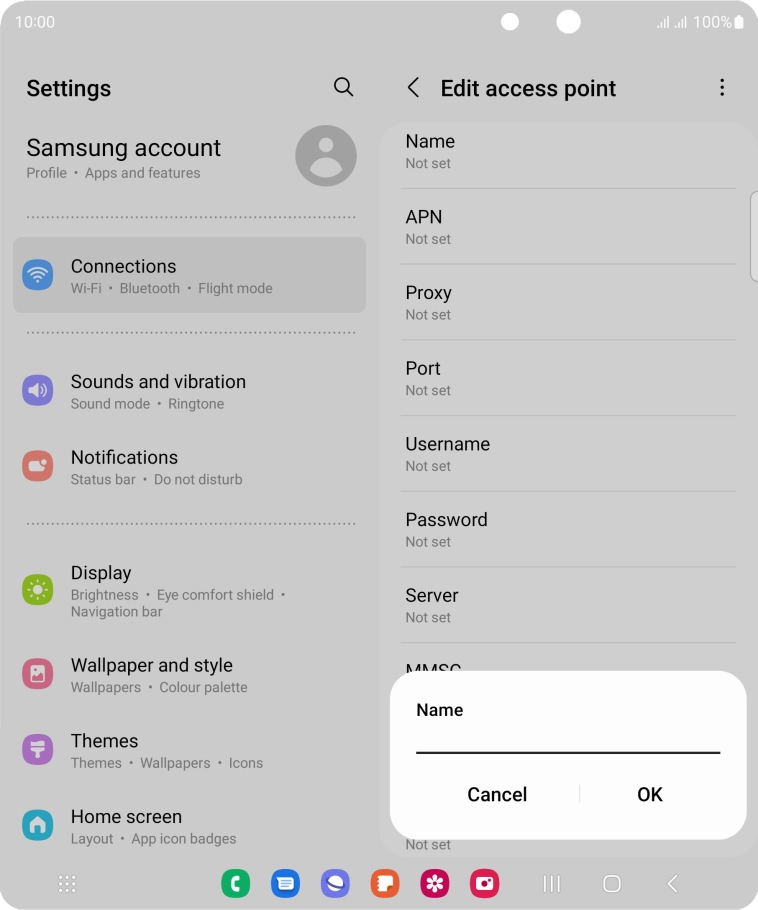

Key in Vodafone MMS and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-cf1e5feb-b6f4-4fed-8e45-3f20059654c2.png?width=378&height=456)
Vodafone MMS
3. Enter APN

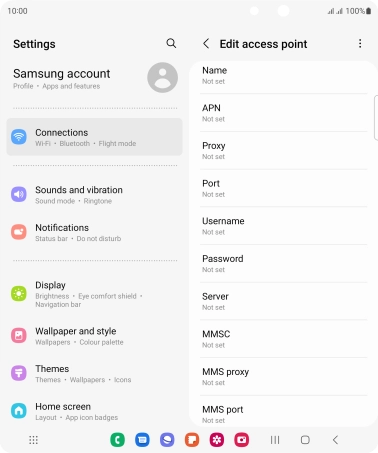

Press APN.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-96e9101c-5edf-4cf4-a6a8-a4115c9aedd9.png?width=378&height=456)

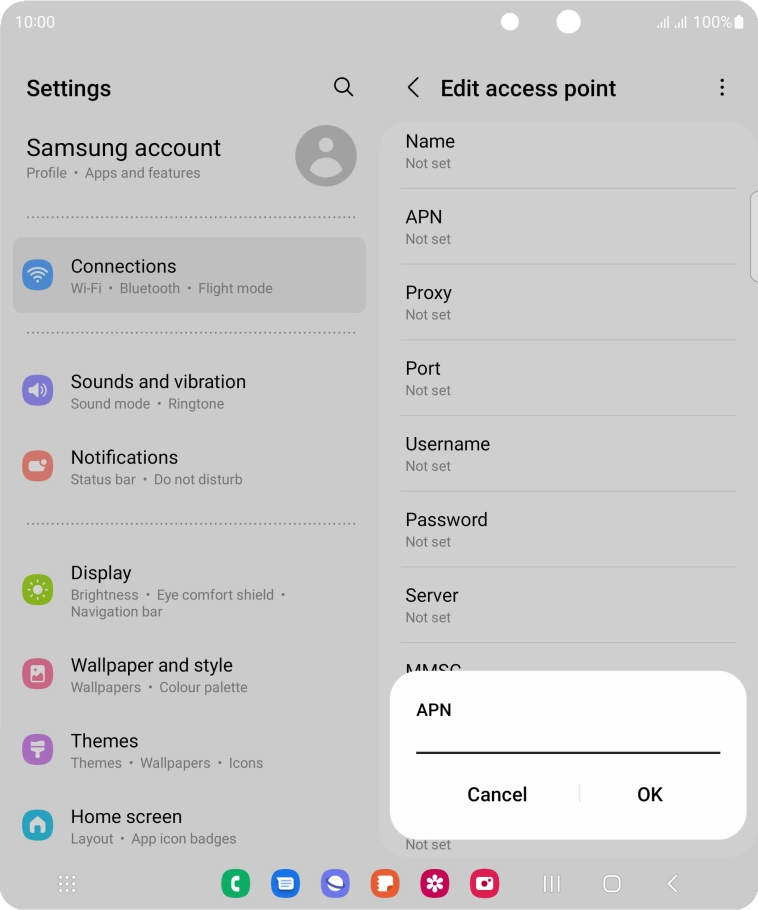

Key in mms.vodafone.net and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-bd0aa290-e22d-4523-9cbc-1cdb3de32112.png?width=378&height=456)
mms.vodafone.net
4. Enter MMSC
Press MMSC.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-96e9101c-5edf-4cf4-a6a8-a4115c9aedd9.png?width=378&height=456)
Key in http://www.vodafone.ie/mms and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-b9594b02-c044-4a3e-ab74-77cce70406d4.png?width=378&height=456)
http://www.vodafone.ie/mms
5. Enter IP address

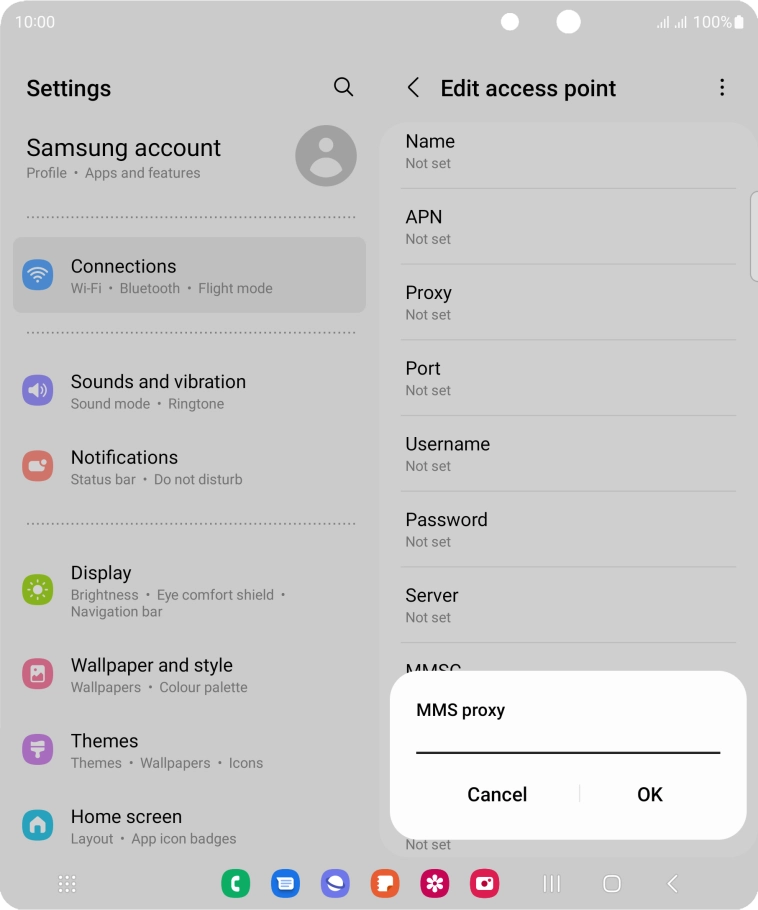

Press MMS proxy.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-96e9101c-5edf-4cf4-a6a8-a4115c9aedd9.png?width=378&height=456)
Key in 10.24.59.200 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-1936f2f5-58f6-481a-8bb7-528f0d9106a7.png?width=378&height=456)
10.24.59.200
6. Enter port number
Press MMS port.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-96e9101c-5edf-4cf4-a6a8-a4115c9aedd9.png?width=378&height=456)
Key in 80 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-88a79385-51b8-42ea-94d0-237e065ae8f9.png?width=378&height=456)
80
7. Enter country code

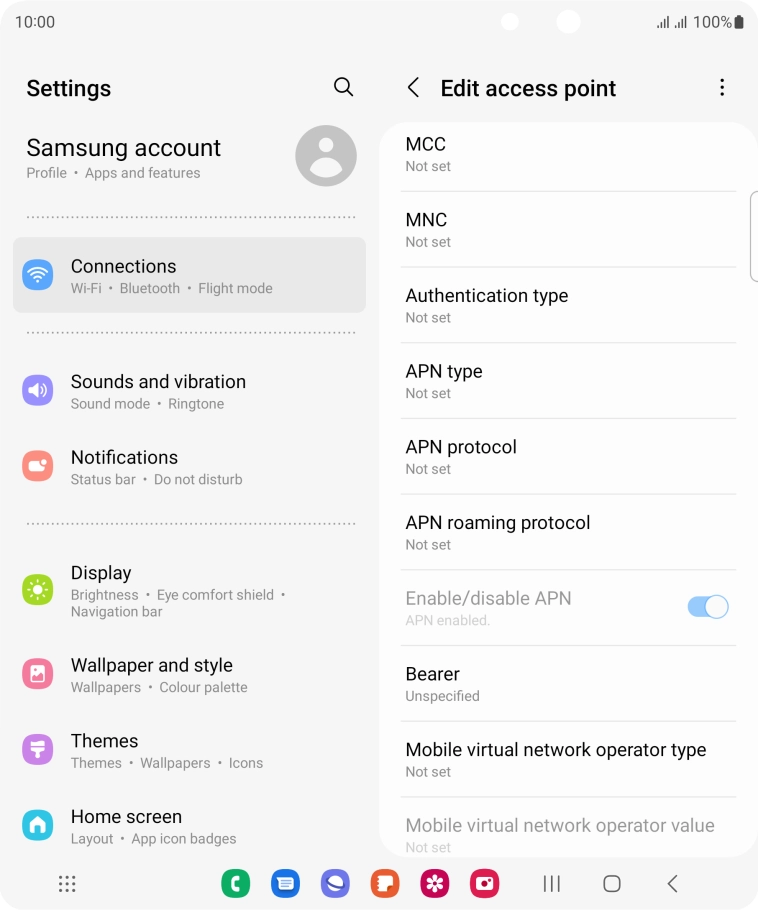

Press MCC.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-d172f946-bca5-4044-9a66-aa1cee5bfeb4.png?width=378&height=456)
Key in 272 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-c9c34a54-bc1a-483a-935d-045f378439a3.png?width=378&height=456)
272
8. Enter network code
Press MNC.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-d172f946-bca5-4044-9a66-aa1cee5bfeb4.png?width=378&height=456)

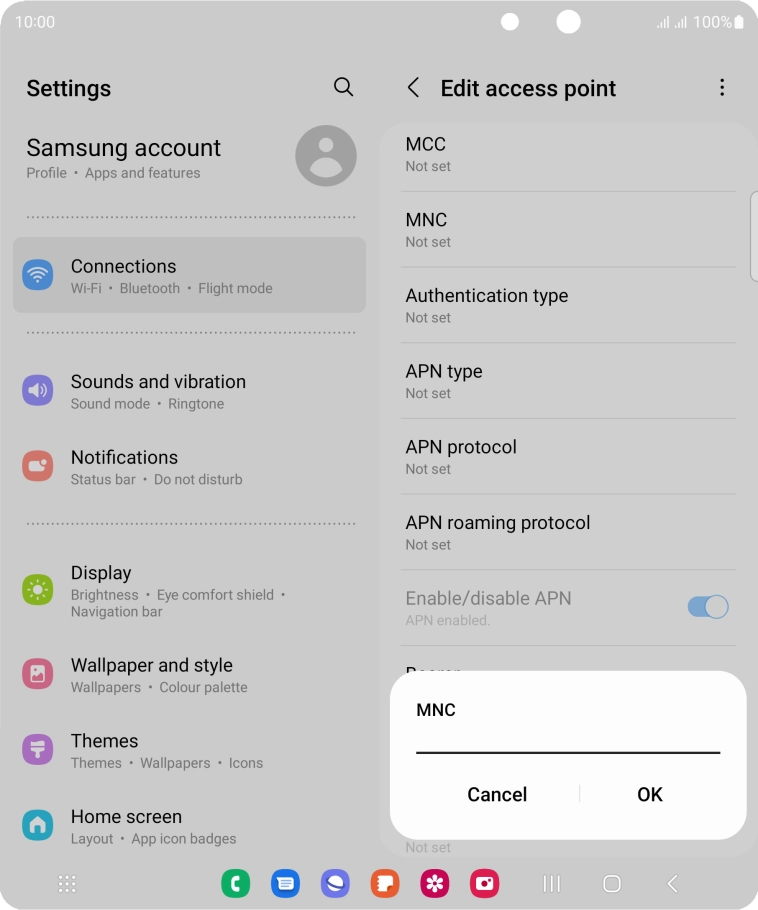

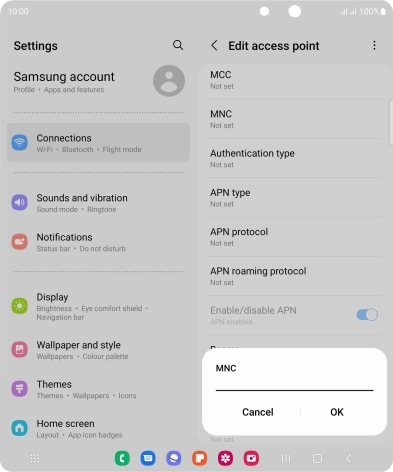

Key in 01 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-a0bf03d1-2160-491e-856c-6af7564e7907.png?width=378&height=456)
01
9. Select authentication type
Press Authentication type.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-d172f946-bca5-4044-9a66-aa1cee5bfeb4.png?width=378&height=456)

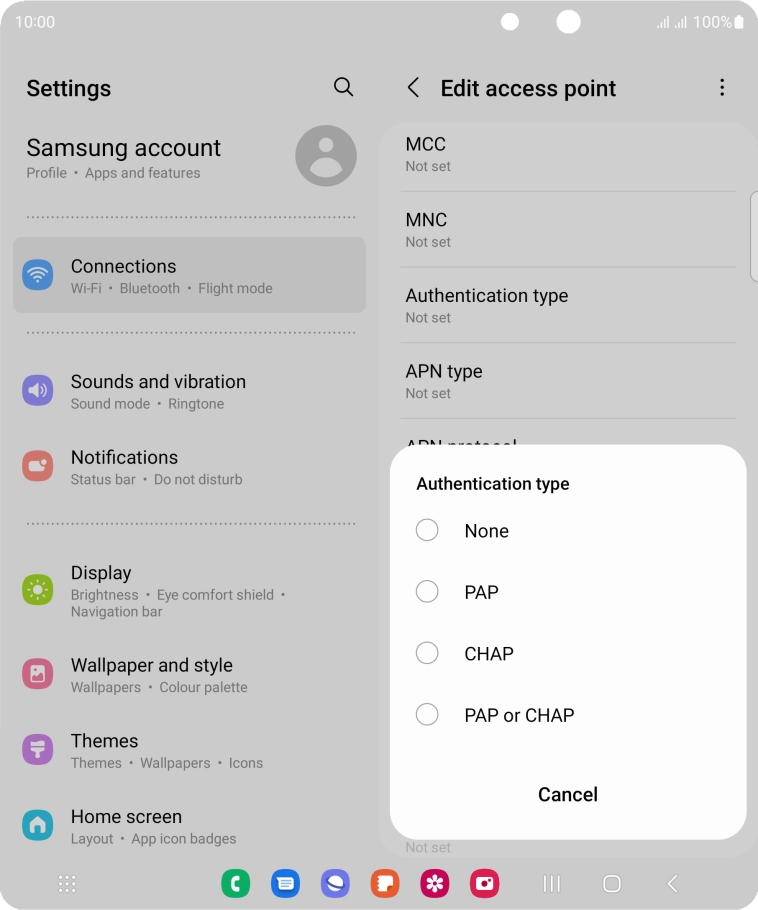

Press PAP.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-eb08b576-76a4-418d-b088-e818078fb866.png?width=378&height=456)
10. Enter APN type
Press APN type.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-d172f946-bca5-4044-9a66-aa1cee5bfeb4.png?width=378&height=456)
Key in mms and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-3477e8d6-37d2-4981-a491-7b8e7519e231.png?width=378&height=456)
mms
11. Save data connection
Press the menu icon.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-d172f946-bca5-4044-9a66-aa1cee5bfeb4.png?width=378&height=456)

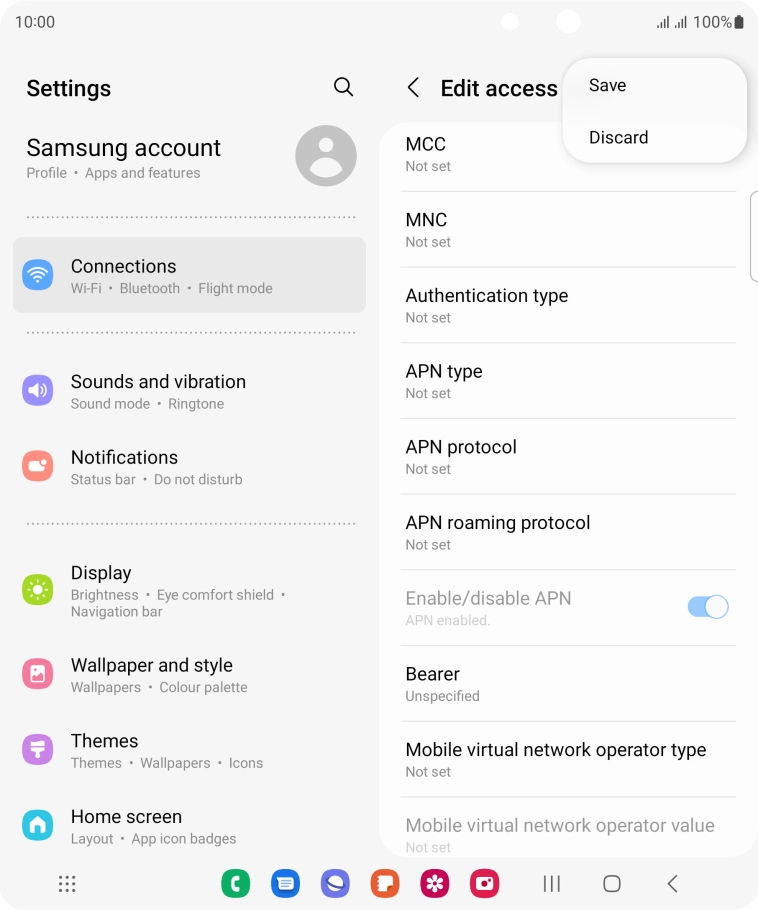

Press Save.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-9e1156ad-b9a5-403d-aa17-007f28d62cd2.png?width=378&height=456)

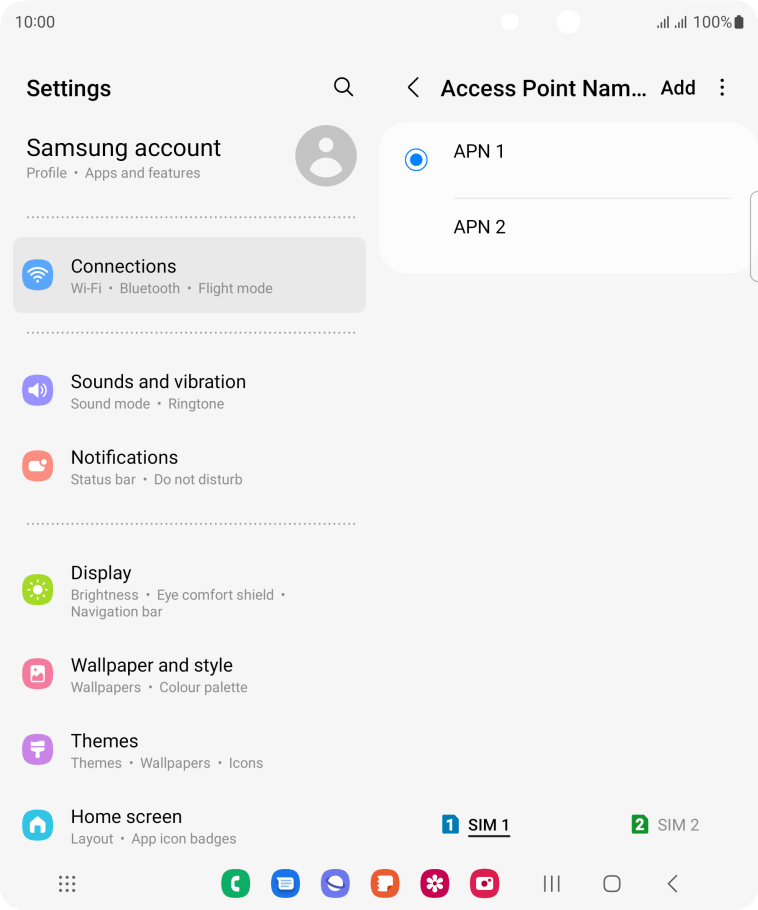

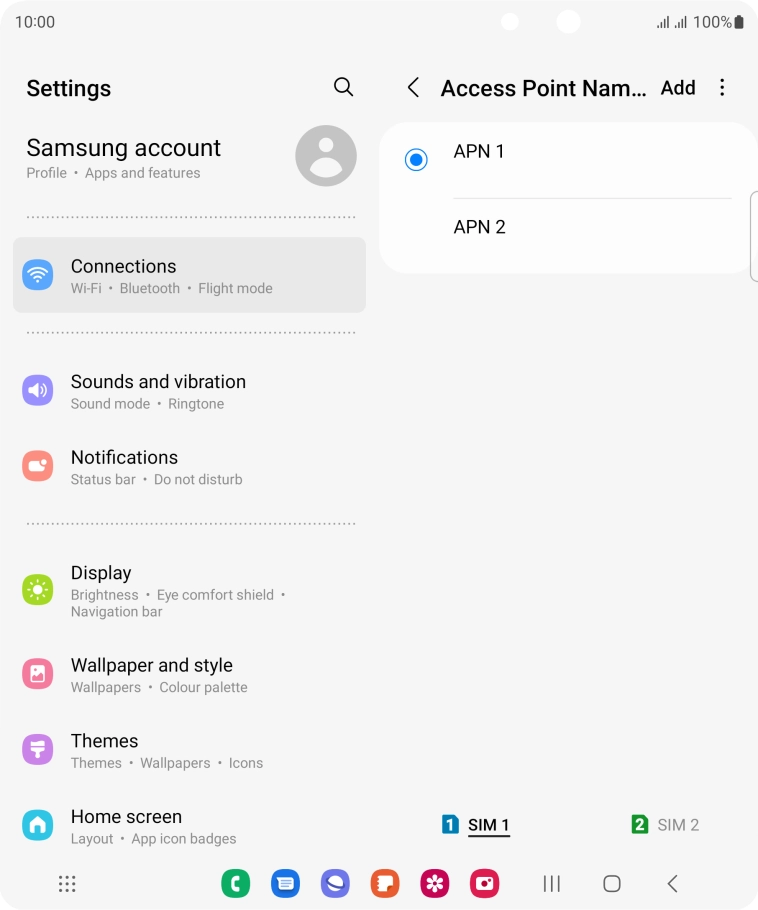

12. Return to the home screen
Press the Home key to return to the home screen.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-b4732341-989a-4dc2-996b-d44947808b17.png?width=378&height=456)
