List of display icons - Samsung Galaxy Tab 10.1

Read help info

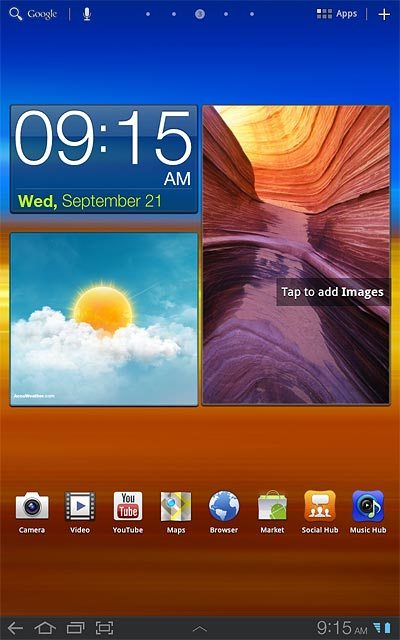

A number of icons on the standby display show different settings. Follow these instructions to see a list of display icons.

Step 1 of 11

Battery

The battery icon shows the remaining battery power. The bigger the coloured section of the icon, the more power.
Further information:
Charge the battery

Step 2 of 11

Battery charging

The battery charging icon shows that the battery is charging.
Further information:
Charge the battery

Step 3 of 11

3G

The 3G icon shows that 3G is available. If 3G isn't available, a different network mode is automatically selected.
Further information:
Select network mode

Step 4 of 11

Signal strength

The signal strength icon shows the strength of the network signal at your location. The more lines, the stronger the signal.

Step 5 of 11

Flight mode

The flight mode icon shows that flight mode is turned on.
Further information:
Turn flight mode on or off

Step 6 of 11

Text/picture message

The text/picture message icon shows that you've received a new text or picture message.
Further information:
Read text message
Read picture message

Step 7 of 11

Email message

The email message icon shows that you've received a new email message.
Further information:
Retrieve and read email messages

Step 8 of 11

Alarm

The alarm icon shows that the alarm is set.
Further information:
Set the alarm

Step 9 of 11

Active data connection

The active data connection icon shows that a data connection is active.
Further information:
Use internet browser

Step 10 of 11

HSDPA

The HSDPA icon shows that an HSDPA data connection is active.
Further information:
Select network mode

Step 11 of 11

Bluetooth

The Bluetooth icon shows that Bluetooth is turned on.
Further information:
Turn Bluetooth on or off
