Guide to device keys and sockets - Samsung Galaxy Tab 10.1

Read help info

Follow these instructions for a guide on how to use the device keys and sockets.

Step 1 of 6

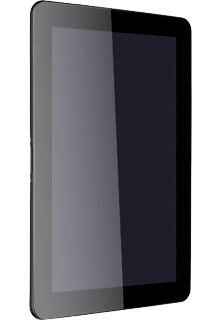

On/Off

Press On/Off to turn on your device.

Step 2 of 6

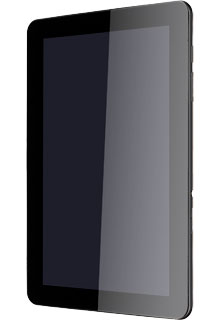

The Volume key

Press the left or right part of the Volume key to adjust the volume.

Step 3 of 6

Socket

Connect the charger or data cable to the device socket and to a wall socket or your computer's USB port.

Step 4 of 6

Headset socket

Connect the headset to the headset socket at the top of the device.

Step 5 of 6

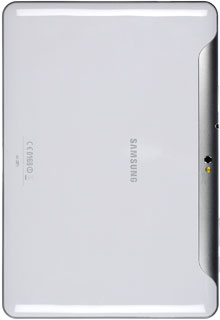

Camera lens at the back of your device

Point the back camera lens at the required object to take a picture or record a video clip.

Step 6 of 6

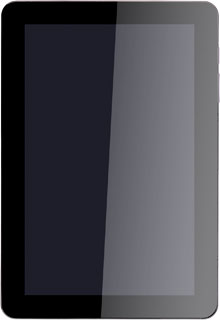

Camera lens at the front of your device

Point the front camera lens at the required object to take a picture or record a video clip.

1. On/Off

Press On/Off to turn on your device.

2. The Volume key

Press the left or right part of the Volume key to adjust the volume.

3. Socket

Connect the charger or data cable to the device socket and to a wall socket or your computer's USB port.

4. Headset socket

Connect the headset to the headset socket at the top of the device.

5. Camera lens at the back of your device

Point the back camera lens at the required object to take a picture or record a video clip.

6. Camera lens at the front of your device

Point the front camera lens at the required object to take a picture or record a video clip.
