1. Find "Access Point Names"
Slide your finger downwards starting from the top of the screen.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-c752ad55-c9d4-48f0-9468-b3a4adab67f3.png?width=208&height=426)
Press the settings icon.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-91f6e27f-19e2-4f0b-83f1-a1452941378e.png?width=208&height=426)
Press Connections.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-0606ba60-46c7-469e-9582-cfa55ef346cd.png?width=208&height=426)
Press Mobile networks.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-4704c4c4-1d1e-4fef-b28c-34c47e7a7b1f.png?width=208&height=426)
Press Access Point Names.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-608a07b5-4c30-401d-9d64-a7f092c4fb03.png?width=208&height=426)
2. Create new data connection

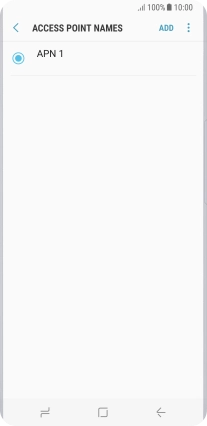

Press ADD.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-6a1afcfb-879f-4870-819a-8f0f542849b4.png?width=208&height=426)

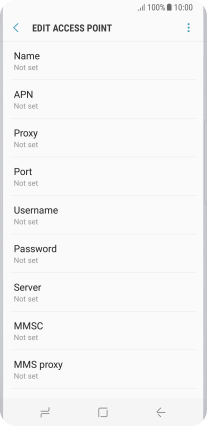

Press Name.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-4ae1f588-a1f4-4da5-a9c6-7ac38c9a7c15.png?width=208&height=426)

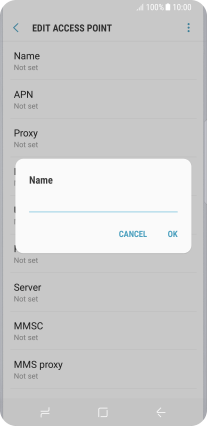

Key in Vodafone MMS and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-8a14dab8-cd0d-4f06-9d7f-94a9be699e10.png?width=208&height=426)
Vodafone MMS
3. Enter APN
Press APN.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-4ae1f588-a1f4-4da5-a9c6-7ac38c9a7c15.png?width=208&height=426)
Key in mms.vodafone.net and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-5c22d981-d37b-4e66-b6fc-637cb9c8ae52.png?width=208&height=426)
mms.vodafone.net
4. Enter MMSC
Press MMSC.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-4ae1f588-a1f4-4da5-a9c6-7ac38c9a7c15.png?width=208&height=426)

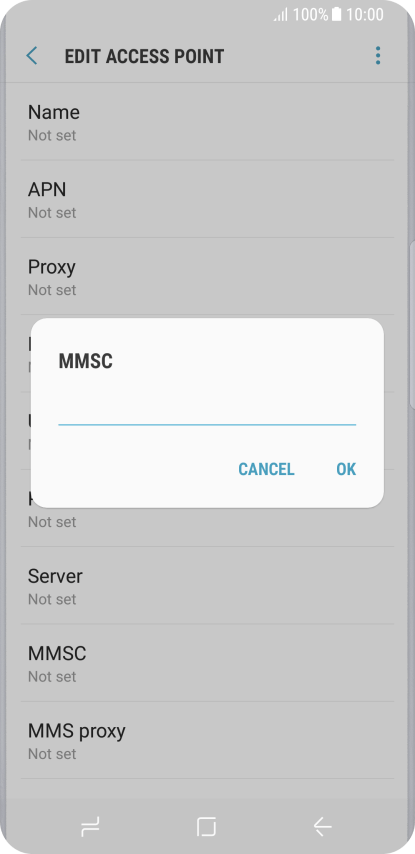

Key in http://www.vodafone.ie/mms and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-afd00378-8b31-4d12-ac56-92dbb0943619.png?width=208&height=426)
http://www.vodafone.ie/mms
5. Enter IP address
Press MMS proxy.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-4ae1f588-a1f4-4da5-a9c6-7ac38c9a7c15.png?width=208&height=426)

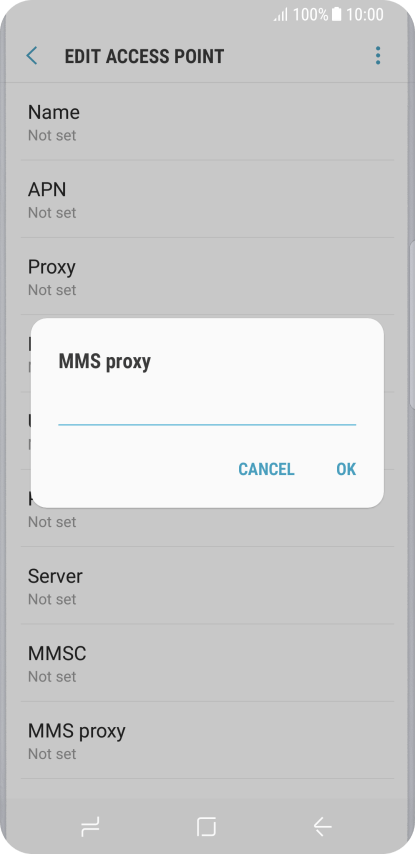

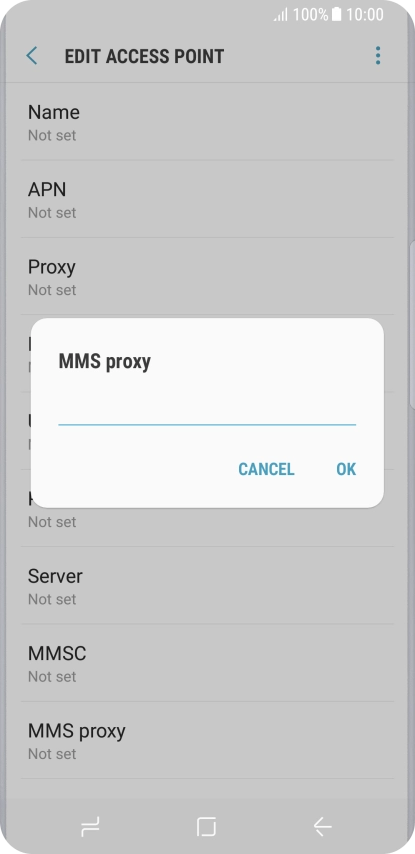

Key in 10.24.59.200 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-0dd2fdc2-096a-458d-979f-5dff73bae5fd.png?width=208&height=426)
10.24.59.200
6. Enter port number

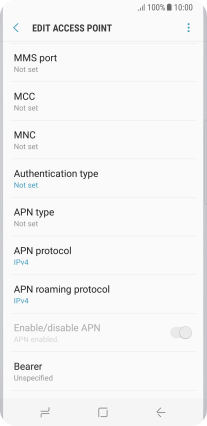

Press MMS port.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-7438420a-92dd-4caf-b6e8-85132cc03a1d.png?width=208&height=426)

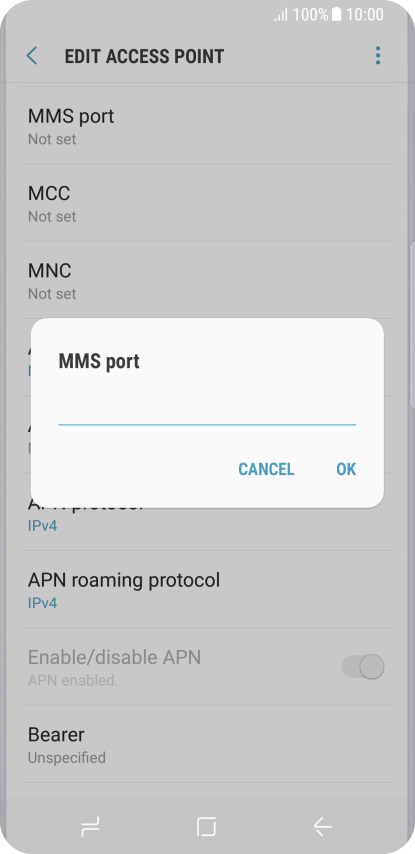

Key in 80 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-937c5b2c-1804-4dc6-86a9-c78cd5117eaa.png?width=208&height=426)
80
7. Enter country code
Press MCC.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-7438420a-92dd-4caf-b6e8-85132cc03a1d.png?width=208&height=426)

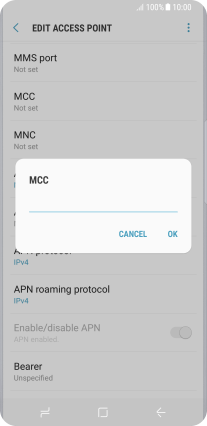

Key in 272 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-b38abe5a-8d93-4786-8901-d49ef62a9239.png?width=208&height=426)
272
8. Enter network code
Press MNC.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-7438420a-92dd-4caf-b6e8-85132cc03a1d.png?width=208&height=426)
Key in 01 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-764a9b83-78ff-4fe7-b015-d1d935b8e515.png?width=208&height=426)
01
9. Select authentication type
Press Authentication type.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-7438420a-92dd-4caf-b6e8-85132cc03a1d.png?width=208&height=426)

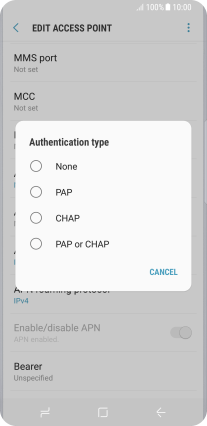

Press PAP.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-a5809d55-eff3-4f11-b7c7-f3c8ba092694.png?width=208&height=426)
10. Select APN type
Press APN type.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-7438420a-92dd-4caf-b6e8-85132cc03a1d.png?width=208&height=426)

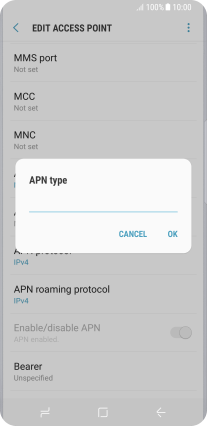

Key in mms and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-50205f3b-150c-4ff3-bbc6-1aaa250bfbed.png?width=208&height=426)
mms
11. Save data connection
Press the menu icon.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-7438420a-92dd-4caf-b6e8-85132cc03a1d.png?width=208&height=426)

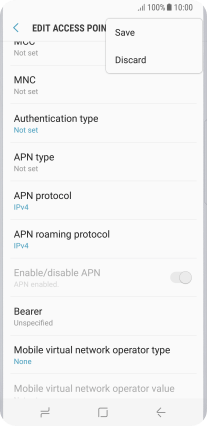

Press Save.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-f0e6109a-ce61-4673-9ab9-166d5448e4d1.png?width=208&height=426)
12. Return to the home screen

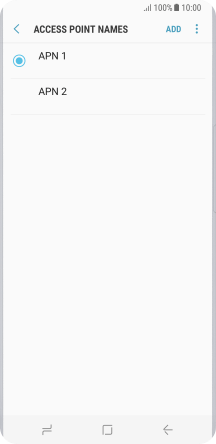

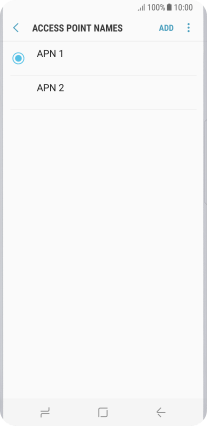

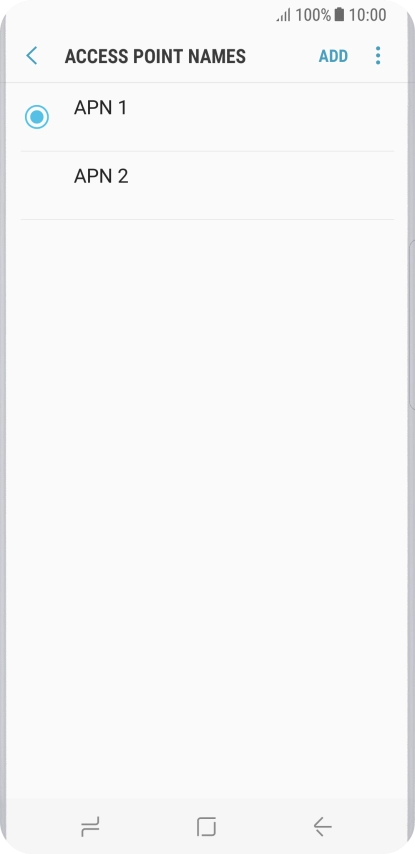

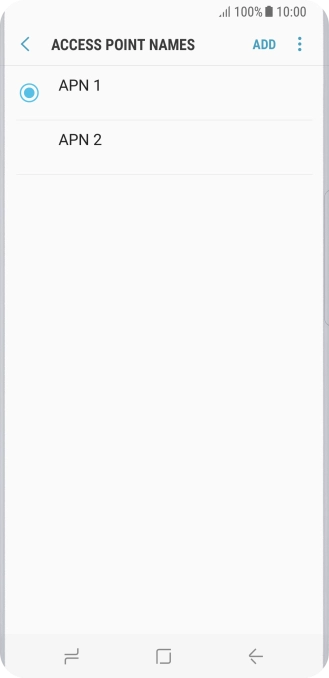

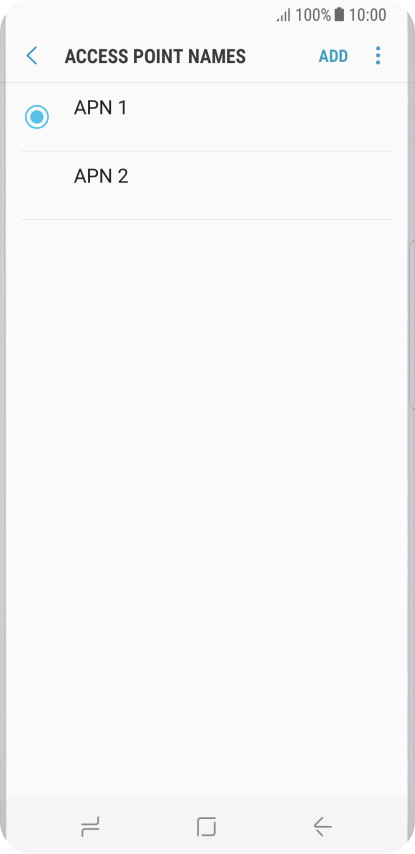

Press the Home key to return to the home screen.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-c1046280-843a-469e-ab47-ac194de1c44a.png?width=208&height=426)
