1. Find "Access Point Names"
Slide two fingers downwards starting from the top of the screen.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-9056d521-9f09-48e8-a282-7e7c1a536210.png?width=200&height=448)
Press the settings icon.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-40fcd549-bfae-4bb9-accf-5350fe575643.png?width=200&height=448)
Press Connections.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-82f3faaf-cc2b-4fbc-8332-558bd7c9da68.png?width=200&height=448)
Press Mobile networks.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-b8845493-71ee-41f6-a44c-abbdc4d9e50e.png?width=200&height=448)
Press Access Point Names.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-a323e16e-0f6e-4b27-a986-5ef343780413.png?width=200&height=448)
2. Create new data connection

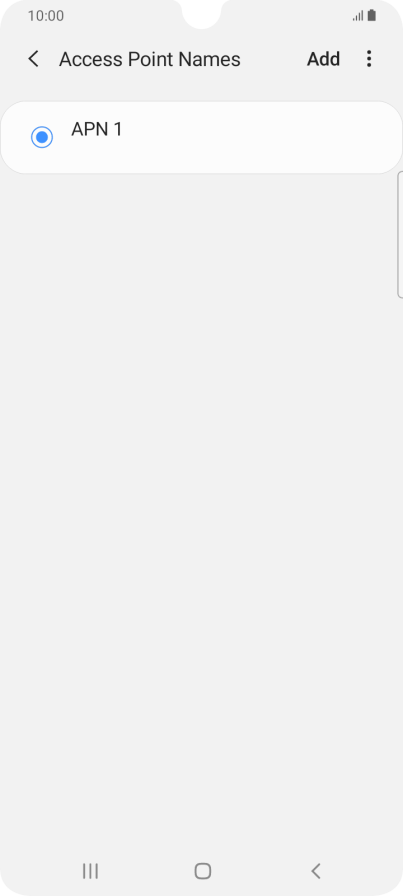

Press Add.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-e91554d1-d98a-4f27-bc24-c0c23ec8a8d5.png?width=200&height=448)

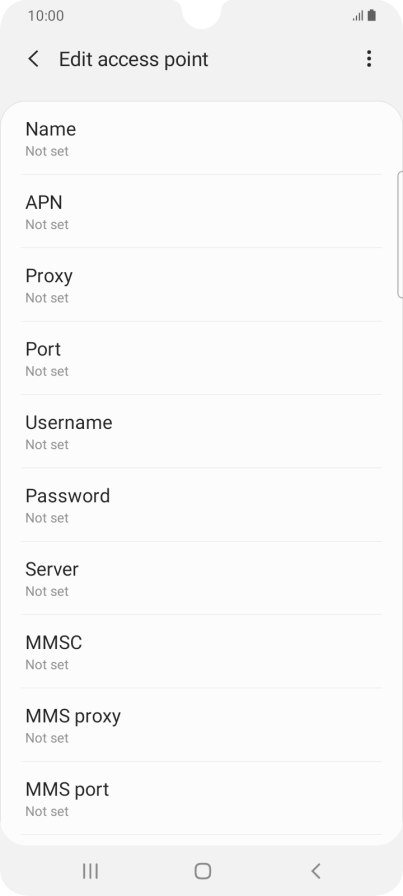

Press Name.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-7fade2ee-5093-4d07-a0c7-ddb893c83df7.png?width=200&height=448)

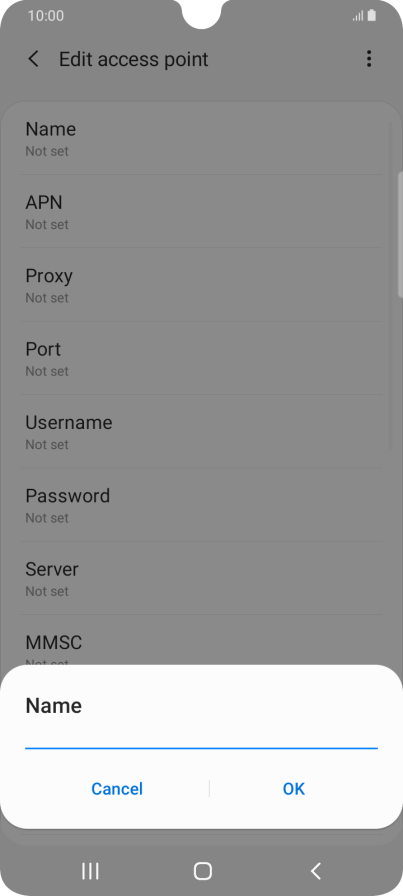

Key in Vodafone Internet and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-13daaf24-5aa7-43d8-8f10-5b01fe83ddec.png?width=200&height=448)
Vodafone Internet
3. Enter APN
Press APN.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-7fade2ee-5093-4d07-a0c7-ddb893c83df7.png?width=200&height=448)

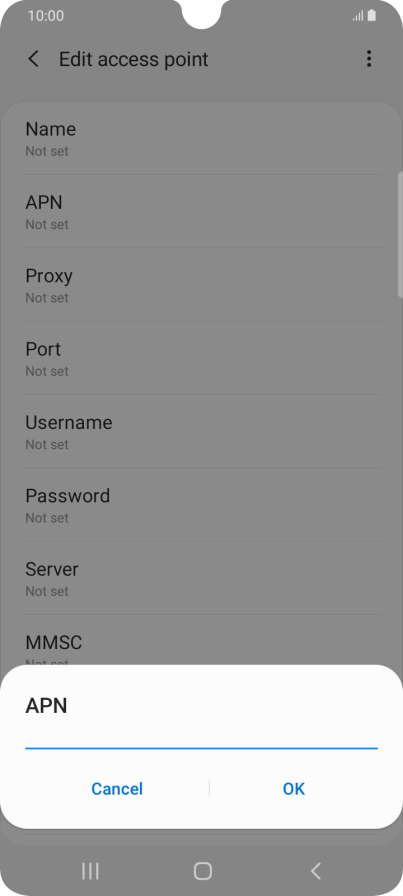

Key in live.vodafone.com and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-cfa722e3-049c-4d68-a1b6-ad37082ef384.png?width=200&height=448)
live.vodafone.com
4. Enter country code

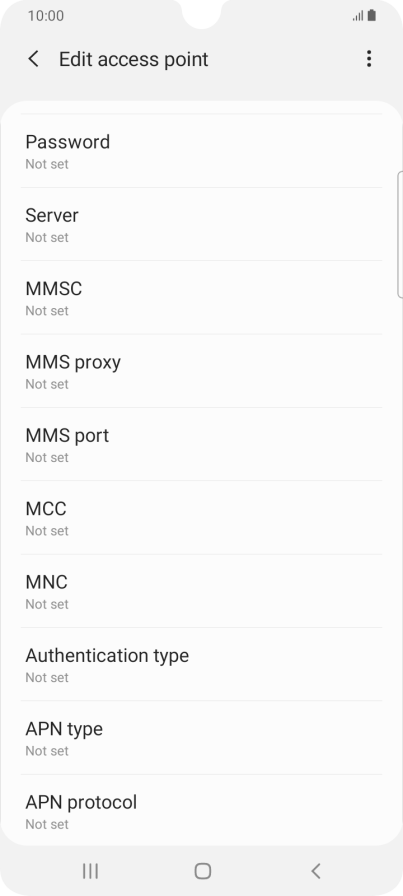

Press MCC.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-4da2d85f-8050-4a70-bdc2-00d005f7b8c0.png?width=200&height=448)
Key in 272 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-53b90385-1a66-4d61-9649-de04ea2eda73.png?width=200&height=448)
272
5. Enter network code
Press MNC.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-4da2d85f-8050-4a70-bdc2-00d005f7b8c0.png?width=200&height=448)

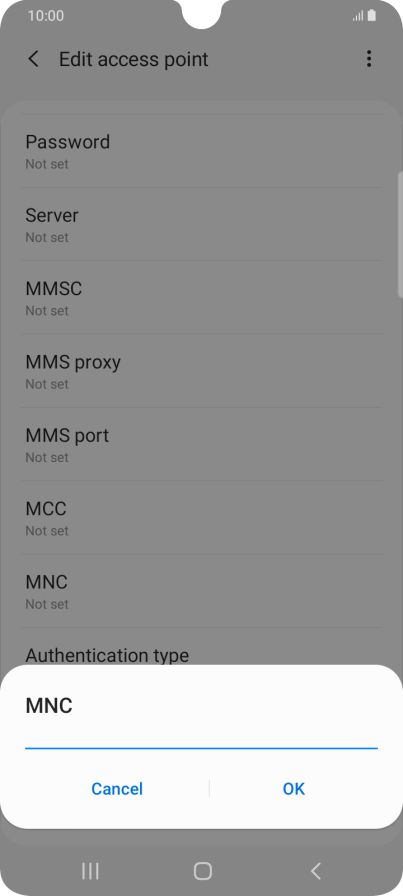

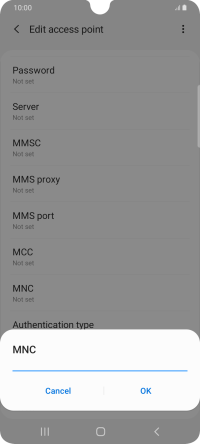

Key in 01 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-850be280-ecf1-40bf-b760-aca9f2ff6d60.png?width=200&height=448)
01
6. Select authentication type
Press Authentication type.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-4da2d85f-8050-4a70-bdc2-00d005f7b8c0.png?width=200&height=448)

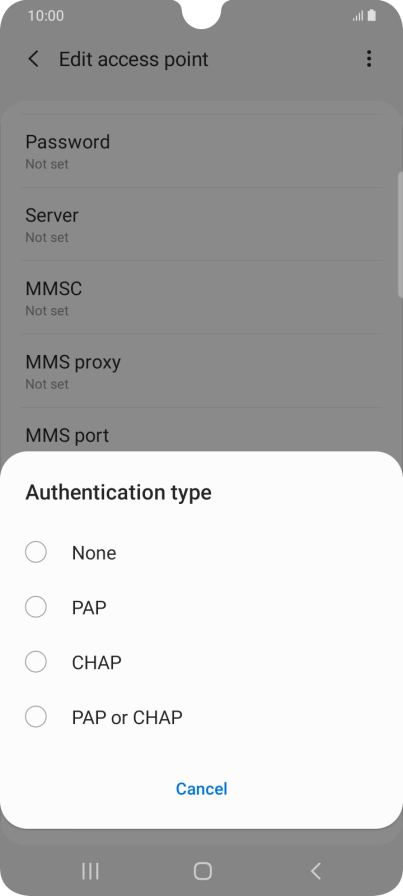

Press PAP.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-6dd4e641-b3e7-4024-9ccb-14b7307df073.png?width=200&height=448)
7. Enter APN type
Press APN type.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-4da2d85f-8050-4a70-bdc2-00d005f7b8c0.png?width=200&height=448)

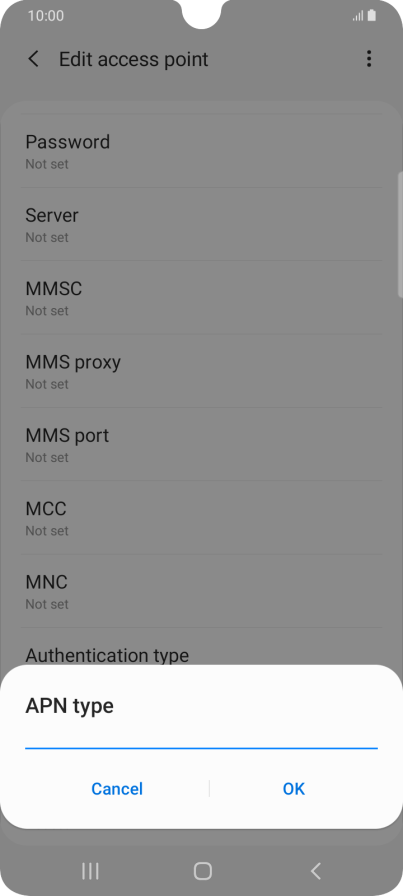

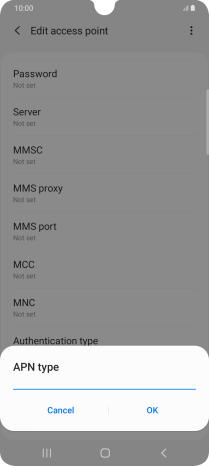

Key in default and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-529dd701-688f-4892-9ec5-dbdaccf12b7f.png?width=200&height=448)
default
8. Save data connection
Press the menu icon.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-4da2d85f-8050-4a70-bdc2-00d005f7b8c0.png?width=200&height=448)

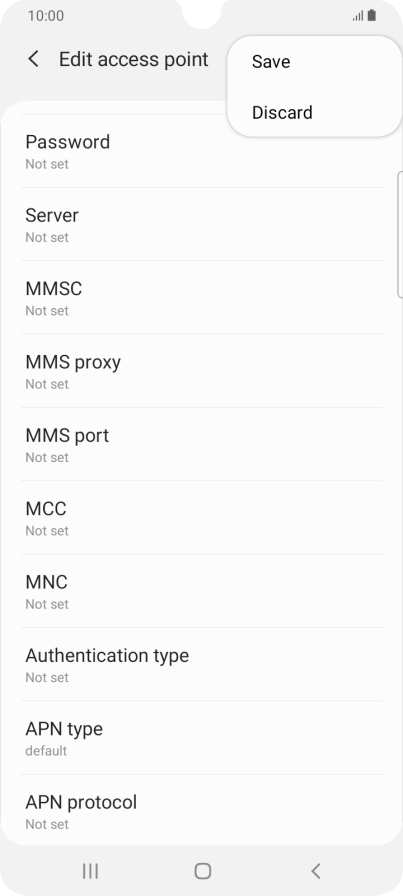

Press Save.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-f1335735-87c7-4de3-baad-66e2c48172a8.png?width=200&height=448)

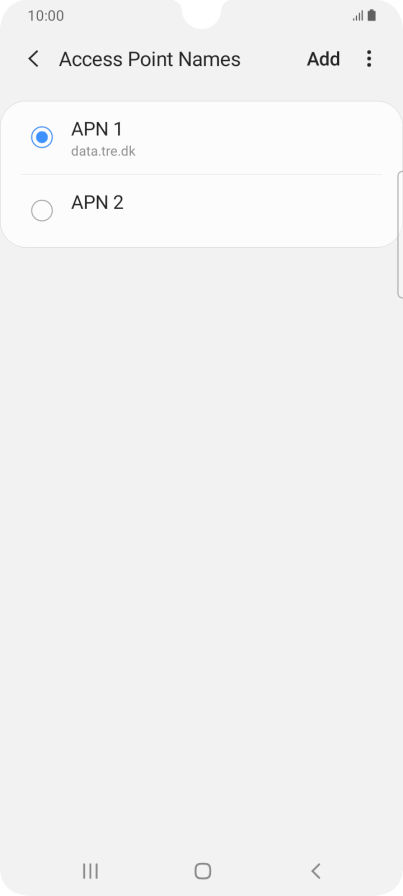

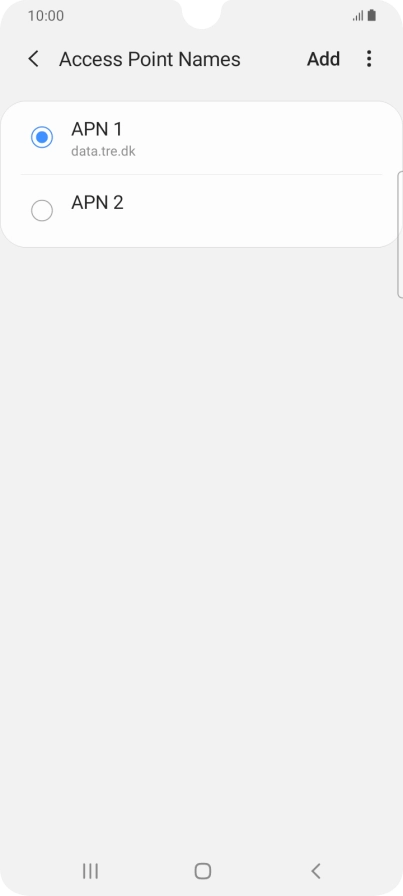

Press the field next to the data connection to activate it.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-ba7e4327-a49f-4462-9ef2-bac6af74ecab.png?width=200&height=448)
9. Return to the home screen

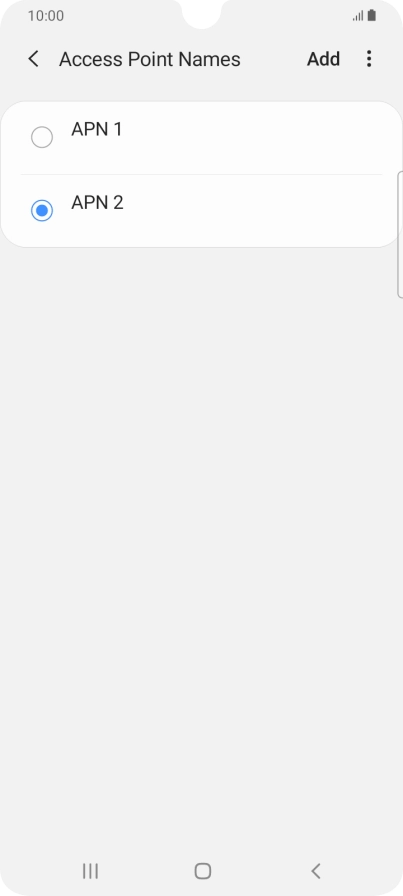

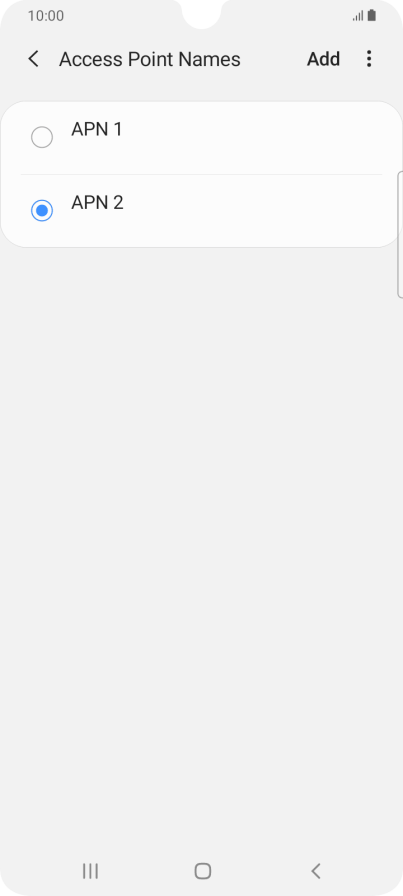

Press the Home key to return to the home screen.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-2734f5ea-9545-4985-8c71-6a383a767854.png?width=200&height=448)
