Huawei P40 lite

Huawei P40 lite

Android 10.0

Set up your Huawei P40 lite Android 10.0 for IMAP email

Read help info

You can set up your phone to send and receive email messages from your email accounts. Using IMAP, your email messages are kept on the server and are synchronised between all of your devices. You're then able to access your email messages from other devices. To set up your phone for IMAP email, you need to set up your phone for internet.

Step 1 of 36

1. Find "Users & accounts"

Press Settings.

Step 2 of 36

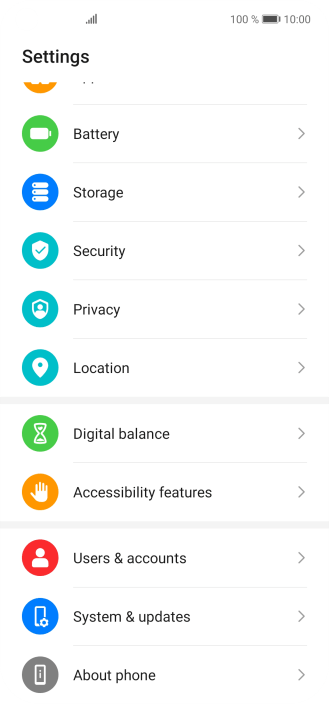

1. Find "Users & accounts"

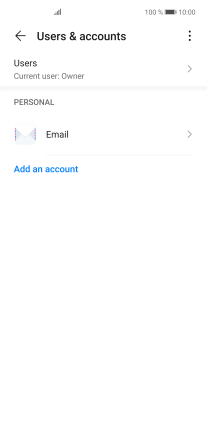

Press Users & accounts.

Step 3 of 36

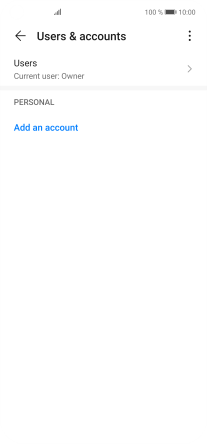

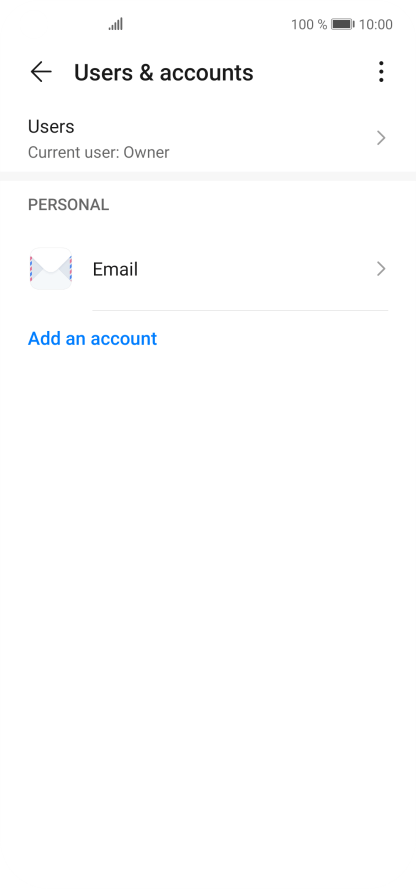

2. Create new email account

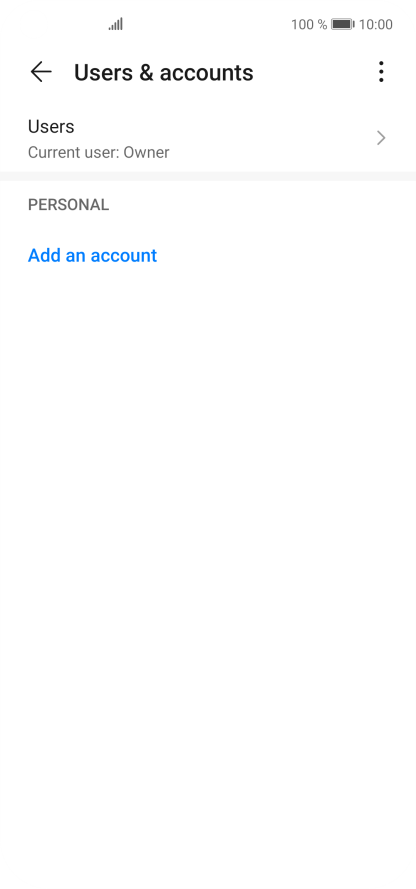

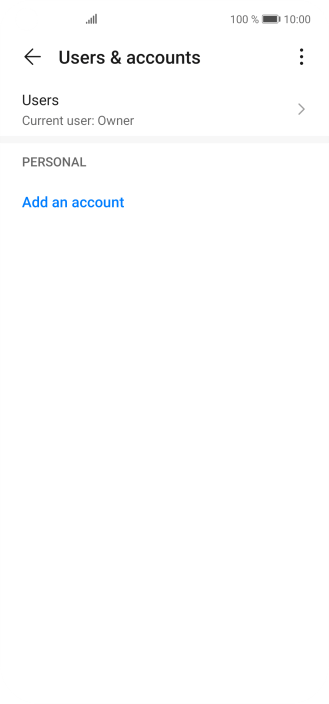

Press Add an account.

Step 4 of 36

2. Create new email account

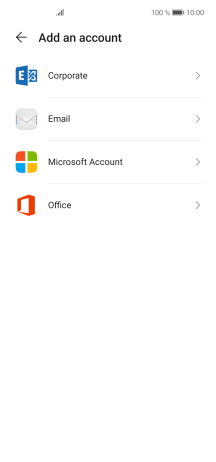

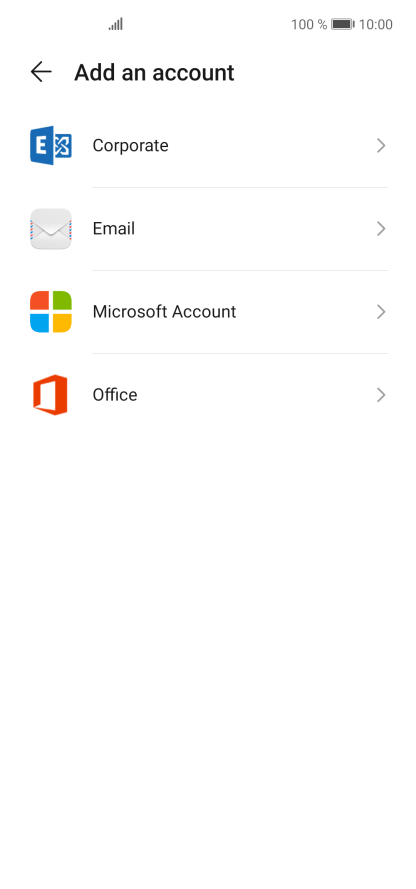

Press Email.

Step 5 of 36

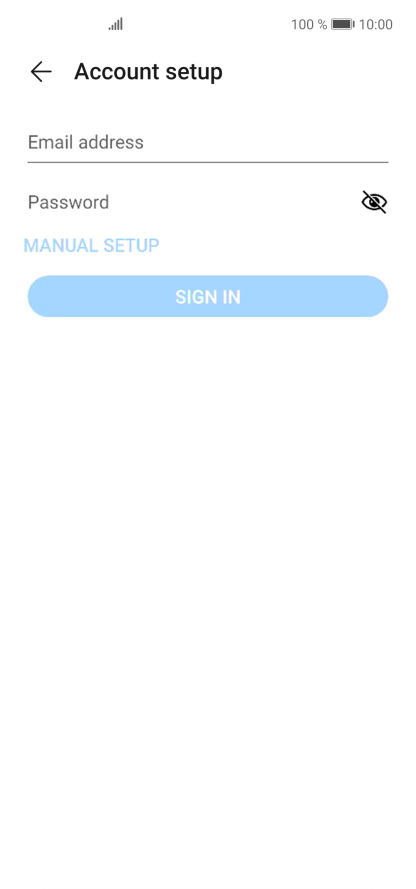

3. Enter email address

Press Email address and key in your email address.

Step 6 of 36

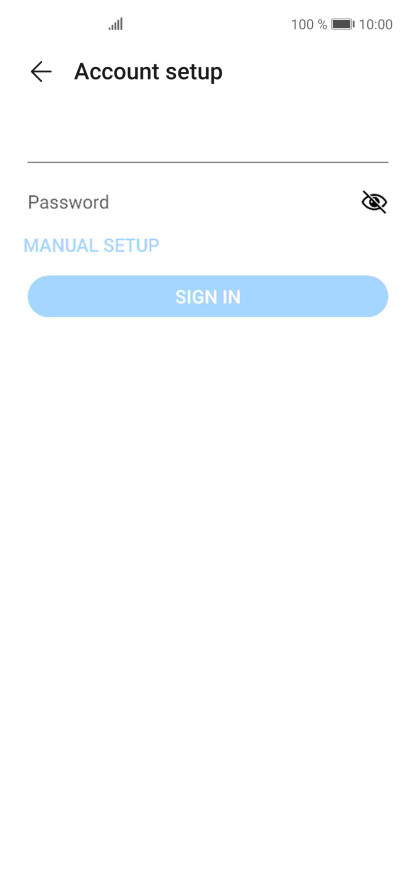

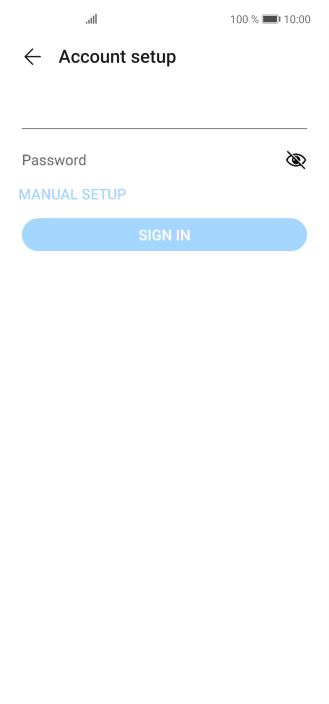

4. Enter password

Press Password and key in the password for your email account.

Step 7 of 36

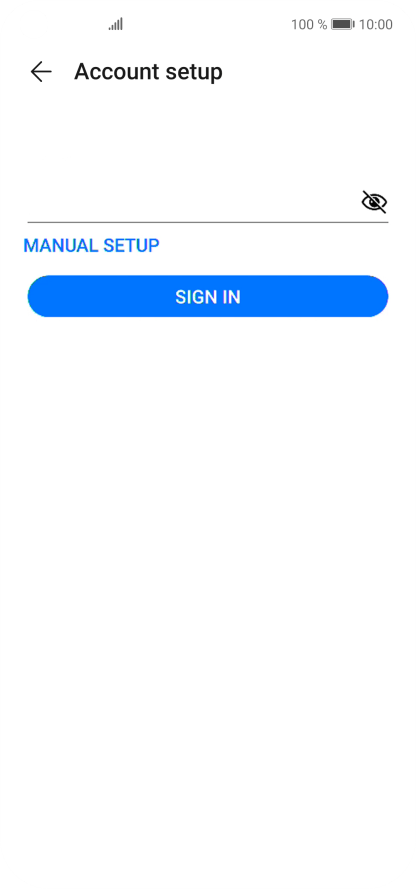

4. Enter password

Press SIGN IN.

Step 8 of 36

4. Enter password

If this screen is displayed, you email account has been recognised and set up automatically. Follow the instructions on the screen to key in more information and finish setting up your phone.

Step 9 of 36

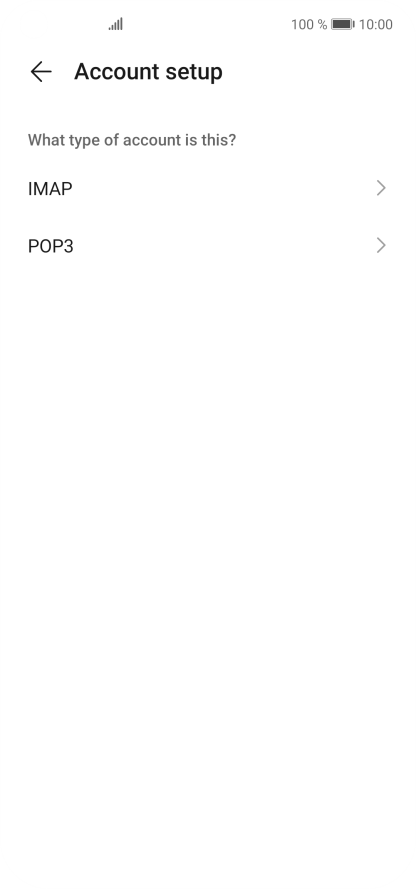

5. Select server type

Press IMAP.

Step 10 of 36

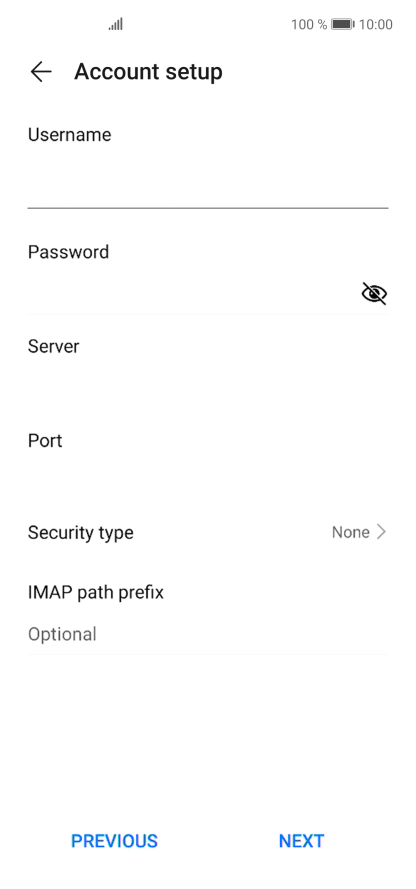

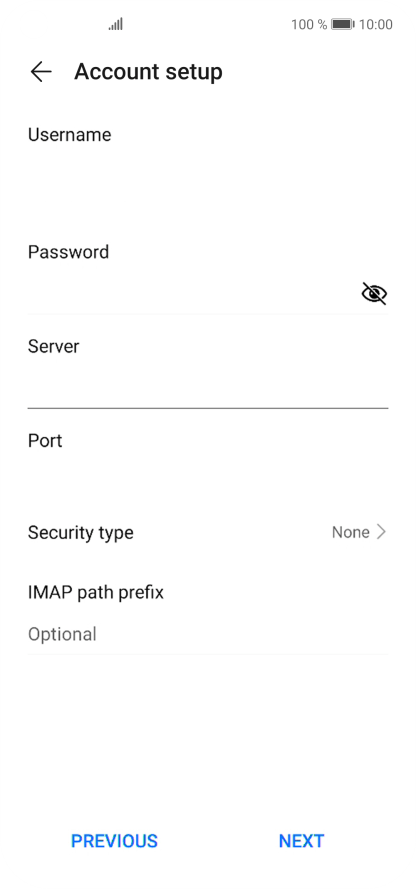

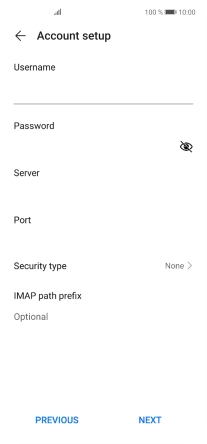

6. Enter username

Press the field below "Username" and key in the username for your email account.

Step 11 of 36

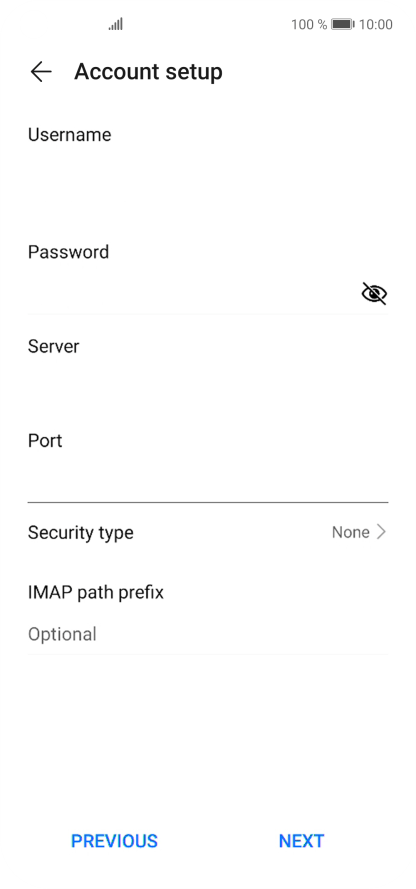

7. Enter incoming server

Press the field below "Server" and key in the name of your email provider's incoming server.

143
Step 12 of 36

8. Enter incoming port

Press the field below "Port" and key in 143.

Step 13 of 36

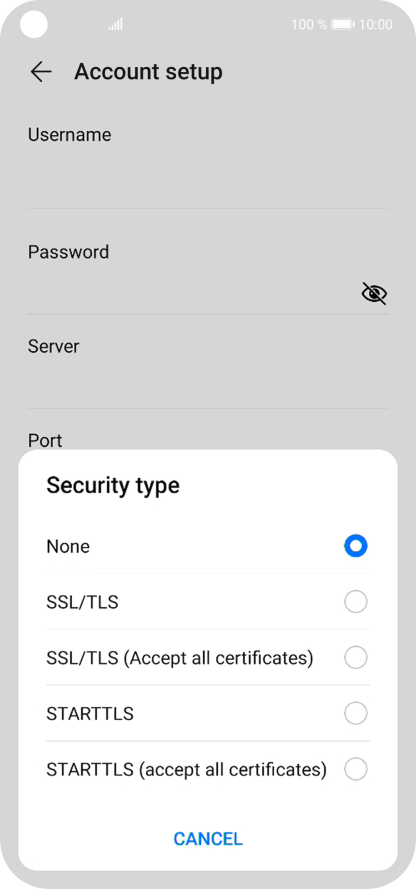

9. Turn off encryption of incoming email messages

Press Security type.

Step 14 of 36

9. Turn off encryption of incoming email messages

Press None.

Step 15 of 36

9. Turn off encryption of incoming email messages

Press NEXT.

mail.vodafone.ie
Step 16 of 36

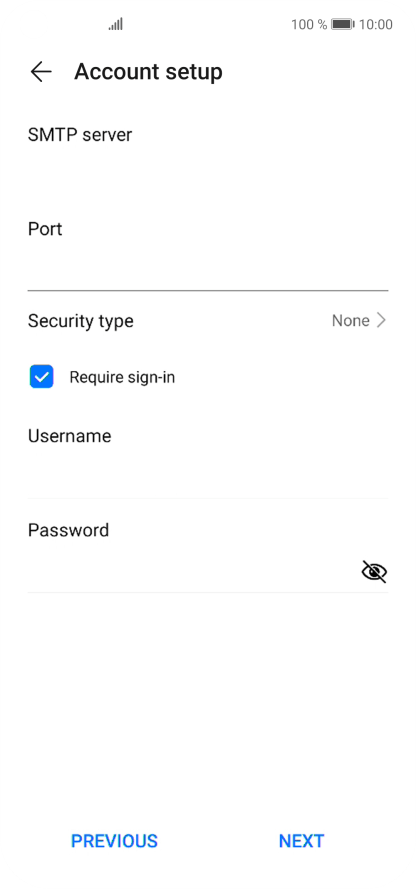

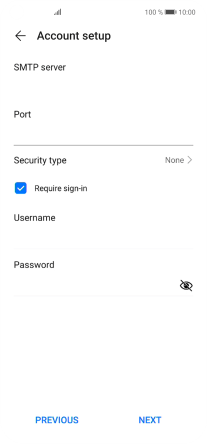

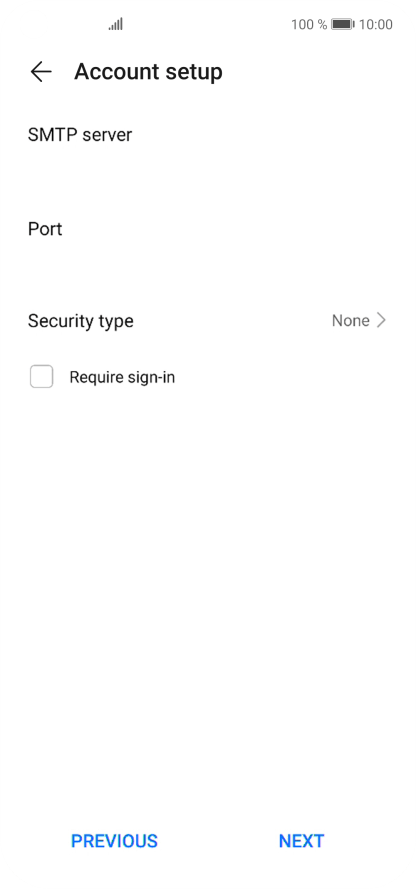

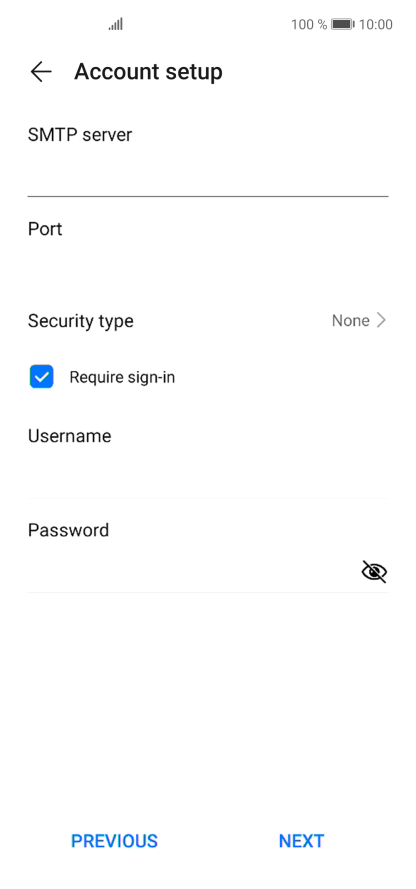

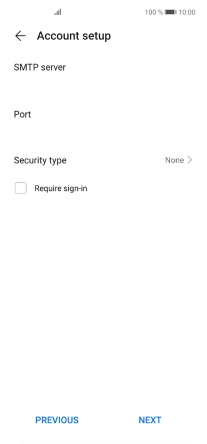

10. Enter outgoing server

Press the field below "SMTP server" and key in mail.vodafone.ie.

25
Step 17 of 36

11. Enter outgoing port

Press the field below "Port" and key in 25.

Step 18 of 36

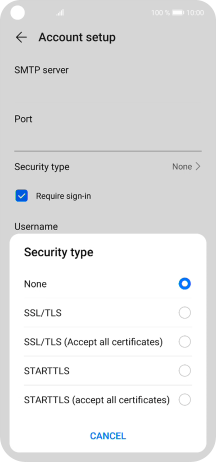

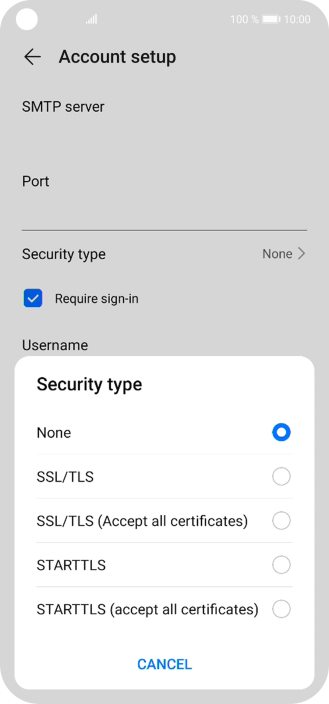

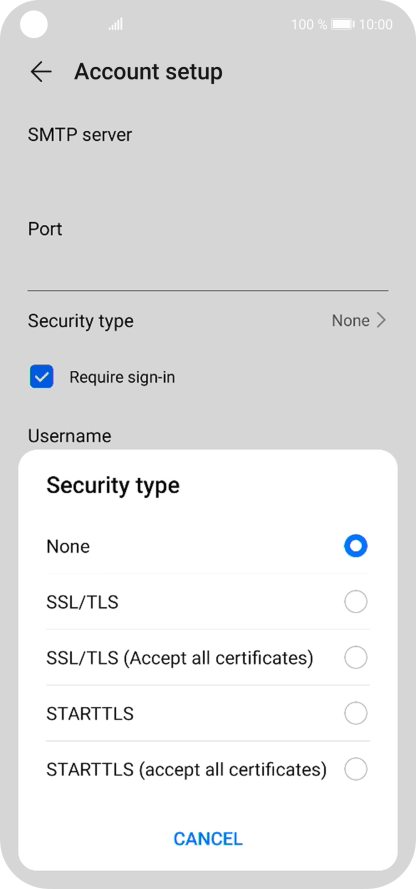

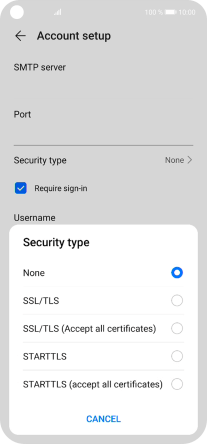

12. Turn off encryption of outgoing email messages

Press Security type.

Step 19 of 36

12. Turn off encryption of outgoing email messages

Press None.

Step 20 of 36

13. Turn off SMTP authentication

Press the field next to "Require sign-in" to turn off the function.

Step 21 of 36

13. Turn off SMTP authentication

Press NEXT.

Step 22 of 36

14. Select setting for retrieval of new email messages

Press Sync frequency.

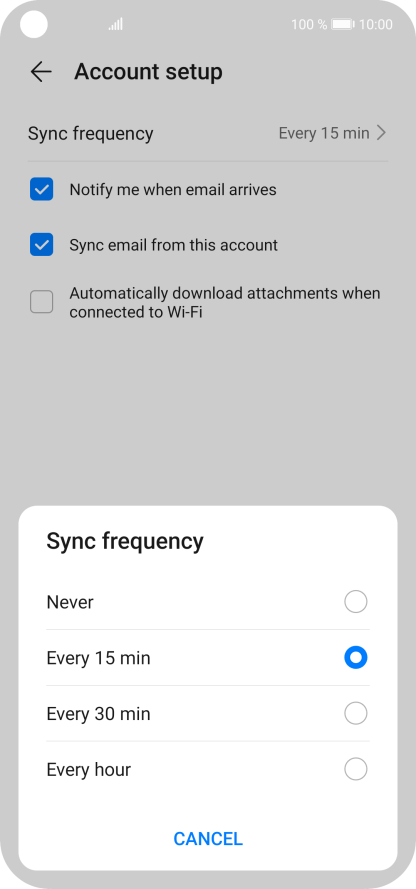

Step 23 of 36

14. Select setting for retrieval of new email messages

Press the required setting.

Step 24 of 36

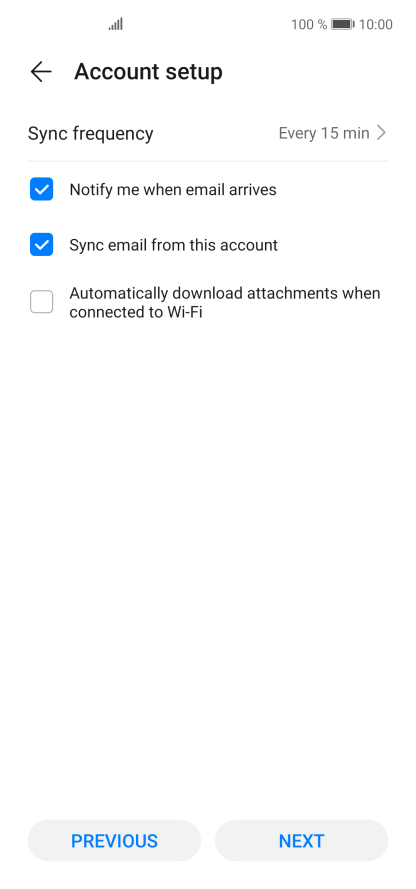

15. Turn email message notifications on or off

Press the field next to "Notify me when email arrives" to turn the function on or off.

Step 25 of 36

16. Turn on email message synchronisation

Press the field next to "Sync email from this account" to turn on the function.

Step 26 of 36

16. Turn on email message synchronisation

Press NEXT.

Step 27 of 36

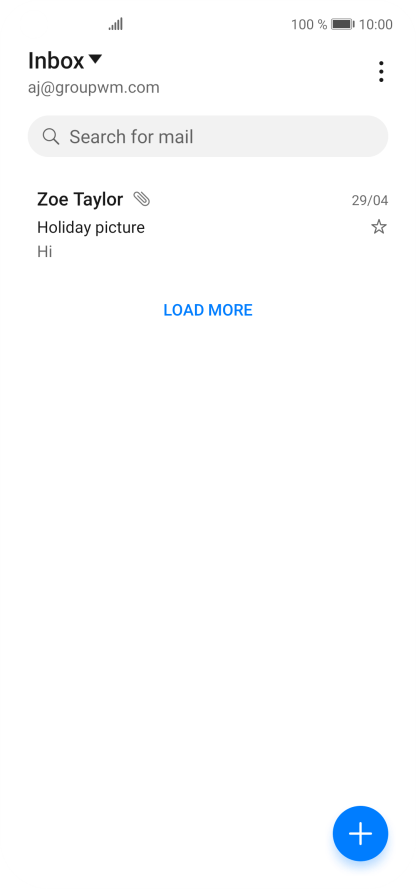

17. Return to the home screen

Slide your finger upwards starting from the bottom of the screen to return to the home screen.

Step 28 of 36

18. Find "Settings"

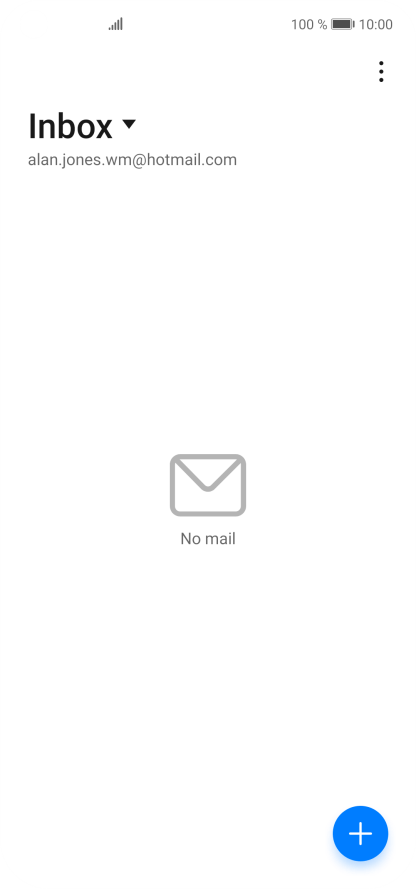

Press Email.

Step 29 of 36

18. Find "Settings"

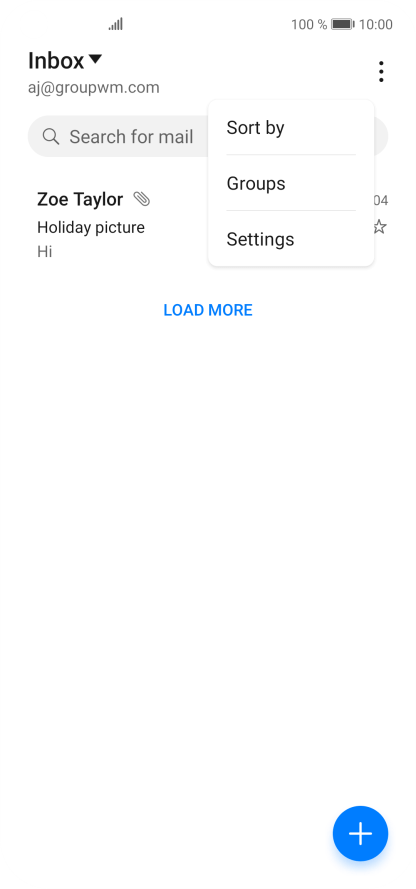

Press the menu icon.

Step 30 of 36

18. Find "Settings"

Press Settings.

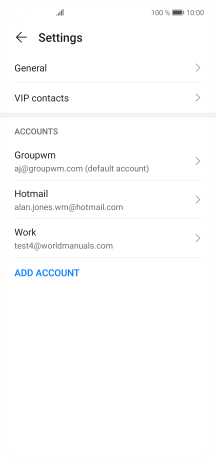

Step 31 of 36

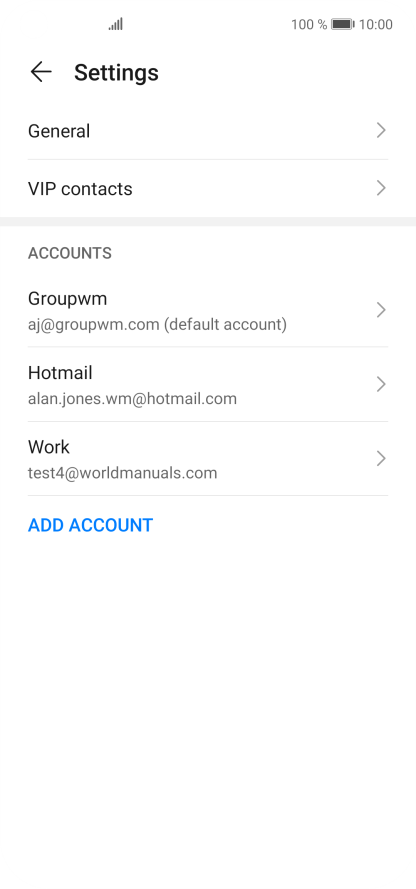

19. Enter email account name

Press the required email account.

Step 32 of 36

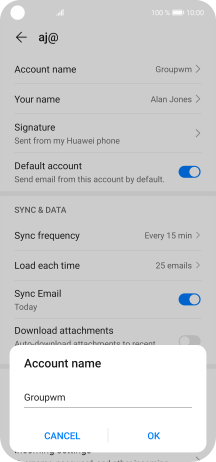

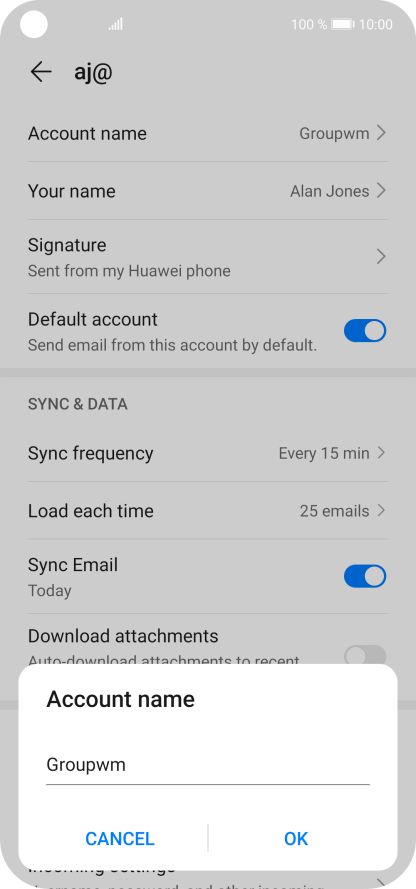

19. Enter email account name

Press Account name and key in the required name.

Step 33 of 36

19. Enter email account name

Press OK.

Step 34 of 36

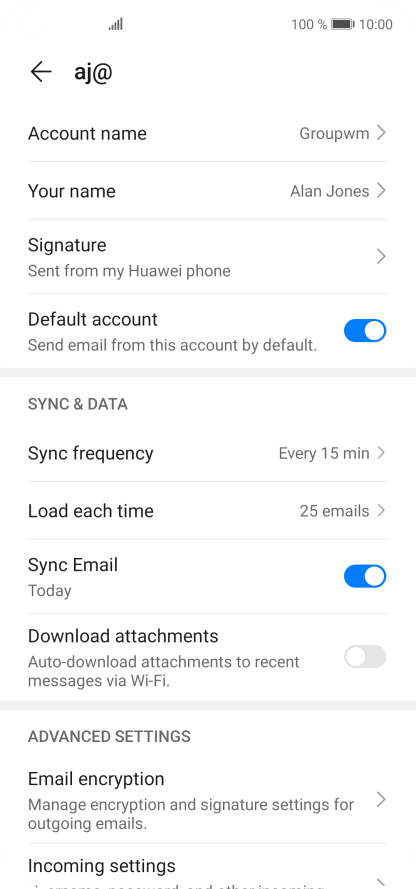

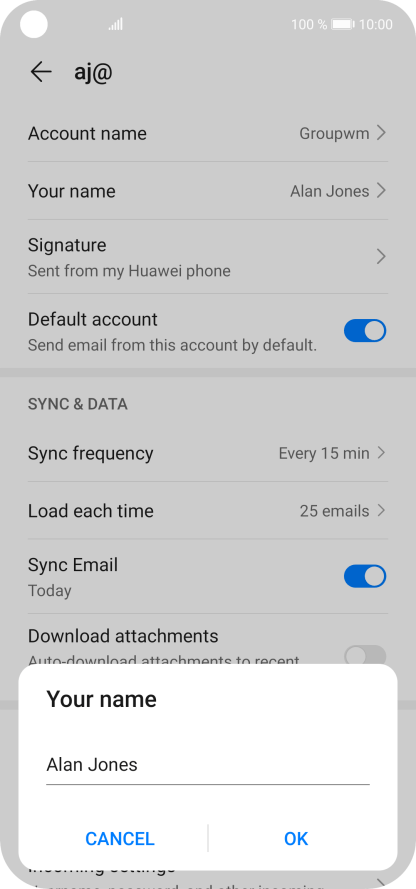

20. Enter sender name

Press Your name and key in the required sender name.

Step 35 of 36

20. Enter sender name

Press OK.

Step 36 of 36

21. Return to the home screen

Slide your finger upwards starting from the bottom of the screen to return to the home screen.

1. Find "Users & accounts"

Press Settings.
Press Users & accounts.

2. Create new email account

Press Add an account.
Press Email.

3. Enter email address

Press Email address and key in your email address.

4. Enter password

Press Password and key in the password for your email account.
Press SIGN IN.
If this screen is displayed, you email account has been recognised and set up automatically. Follow the instructions on the screen to key in more information and finish setting up your phone.

5. Select server type

Press IMAP.

6. Enter username

Press the field below "Username" and key in the username for your email account.

7. Enter incoming server

Press the field below "Server" and key in the name of your email provider's incoming server.

8. Enter incoming port

Press the field below "Port" and key in 143.
143

9. Turn off encryption of incoming email messages

Press Security type.
Press None.
Press NEXT.

10. Enter outgoing server

Press the field below "SMTP server" and key in mail.vodafone.ie.
mail.vodafone.ie

11. Enter outgoing port

Press the field below "Port" and key in 25.
25

12. Turn off encryption of outgoing email messages

Press Security type.
Press None.

13. Turn off SMTP authentication

Press the field next to "Require sign-in" to turn off the function.
Press NEXT.

14. Select setting for retrieval of new email messages

Press Sync frequency.
Press the required setting.

15. Turn email message notifications on or off

Press the field next to "Notify me when email arrives" to turn the function on or off.

16. Turn on email message synchronisation

Press the field next to "Sync email from this account" to turn on the function.
Press NEXT.

17. Return to the home screen

Slide your finger upwards starting from the bottom of the screen to return to the home screen.

18. Find "Settings"

Press Email.
Press the menu icon.
Press Settings.

19. Enter email account name

Press the required email account.
Press Account name and key in the required name.
Press OK.

20. Enter sender name

Press Your name and key in the required sender name.
Press OK.

21. Return to the home screen

Slide your finger upwards starting from the bottom of the screen to return to the home screen.
