1. Find "Access Point Names (APNs)"
Press Settings.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-b044fe16-2c2c-4b87-964e-8c299d401988.png?width=208&height=444)

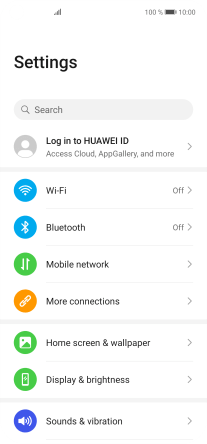

Press Mobile network.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-d20f5322-435a-4904-b79c-cac71e5d089d.png?width=208&height=444)

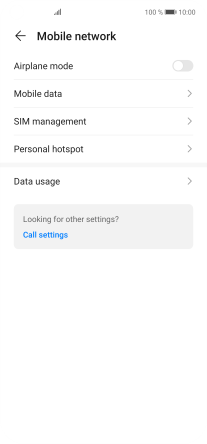

Press Mobile data.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-6353f1ec-a66f-4391-b738-6e3e3c3c7602.png?width=208&height=444)

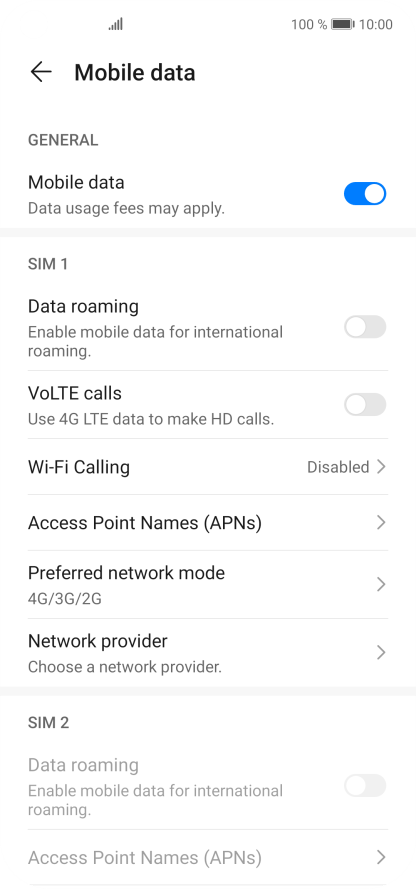

Press Access Point Names (APNs).
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-f404bc44-8bff-44ff-a4a4-48c6a469fbc3.png?width=208&height=444)
2. Create new data connection

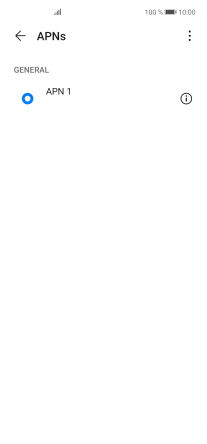

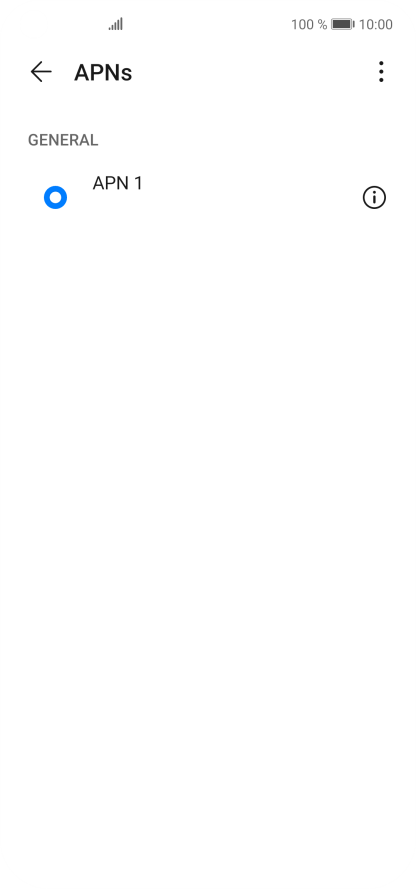

Press the menu icon.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-036eb343-221e-4b9f-bd4f-0fc71f0964f7.png?width=208&height=444)

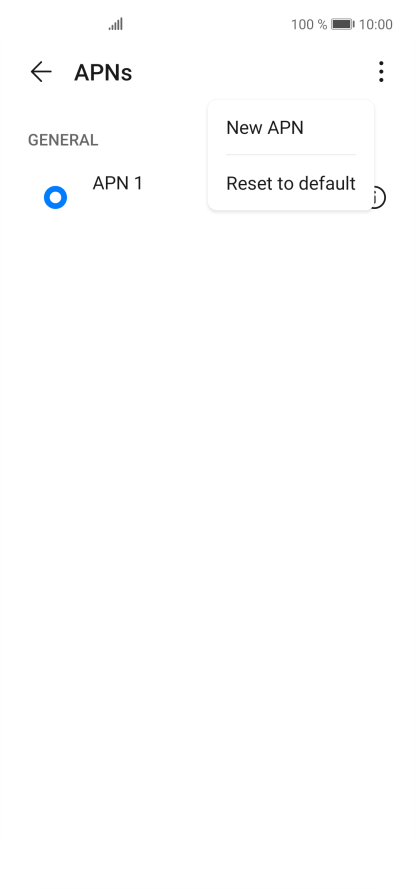

Press New APN.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-8b75f8a0-135d-4fb5-ac98-2388a3c7fe58.png?width=208&height=444)
3. Enter a name for the connection

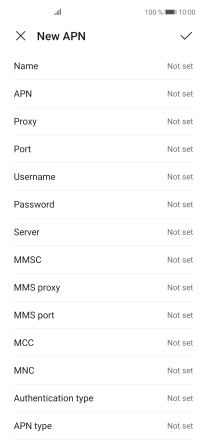

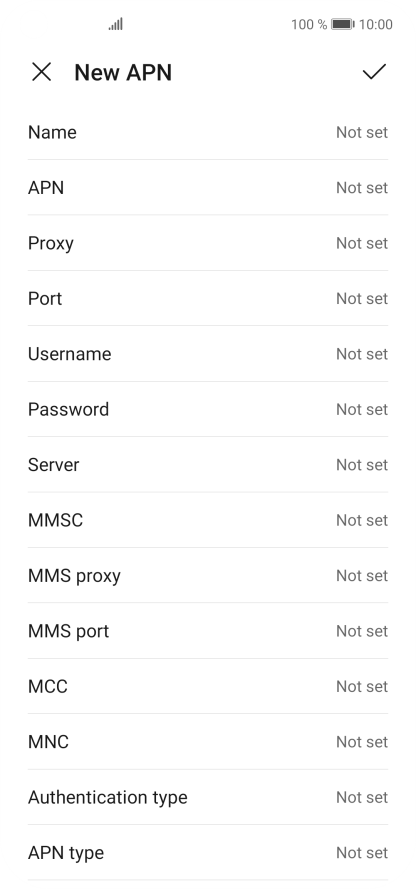

Press Name.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-1d43a6c3-600d-4c67-9ad2-20ed73fc715a.png?width=208&height=444)

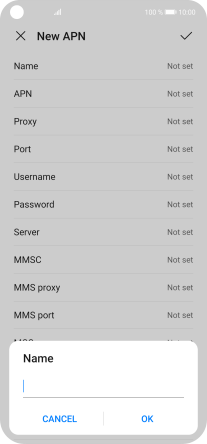

Key in Vodafone Internet and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-027b920b-d48f-4671-a471-a90cfca277a3.png?width=208&height=444)
Vodafone Internet
4. Enter APN

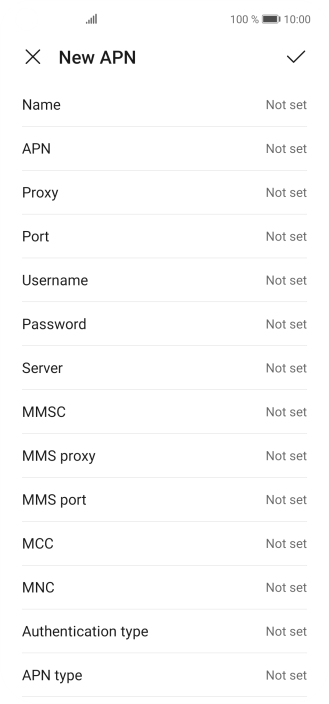

Press APN.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-1d43a6c3-600d-4c67-9ad2-20ed73fc715a.png?width=208&height=444)

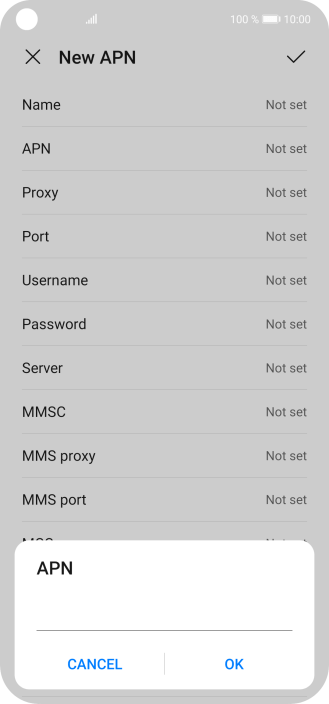

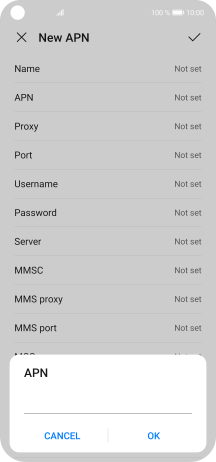

Key in live.vodafone.com and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-2763d5bc-37bb-43f5-8f93-763357c7e156.png?width=208&height=444)
live.vodafone.com
5. Enter country code
Press MCC.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-1d43a6c3-600d-4c67-9ad2-20ed73fc715a.png?width=208&height=444)

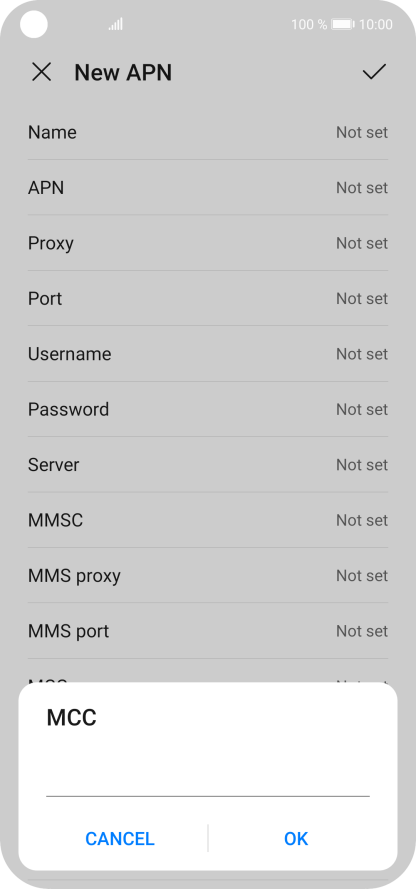

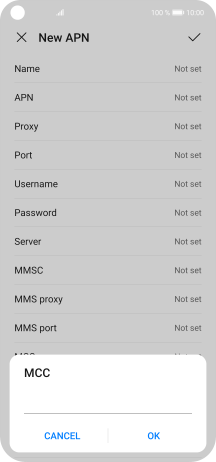

Key in 272 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-60d4cf01-7afa-4be9-974a-1f15bf05b2f7.png?width=208&height=444)
272
6. Enter network code
Press MNC.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-1d43a6c3-600d-4c67-9ad2-20ed73fc715a.png?width=208&height=444)

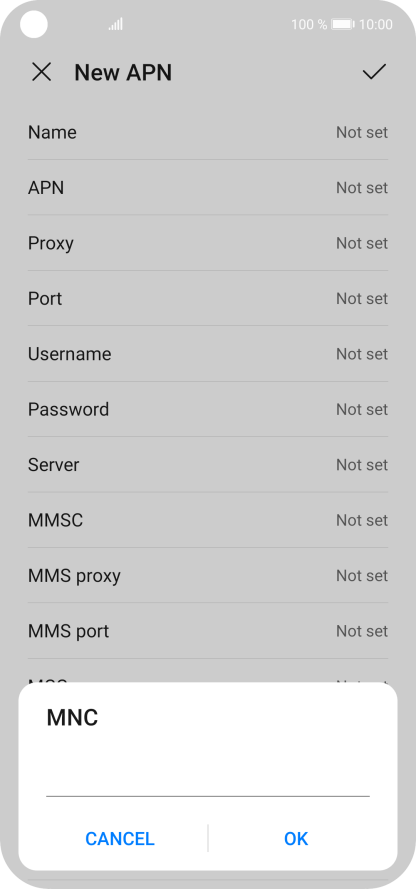

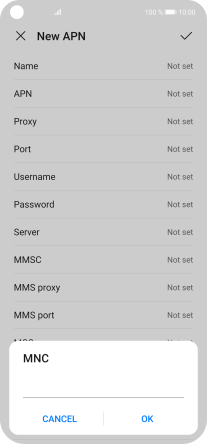

Key in 01 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-34db64ac-6ea5-4864-b811-6cfd15be5d48.png?width=208&height=444)
01
7. Select authentication type
Press Authentication type.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-1d43a6c3-600d-4c67-9ad2-20ed73fc715a.png?width=208&height=444)

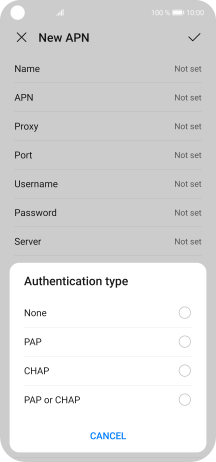

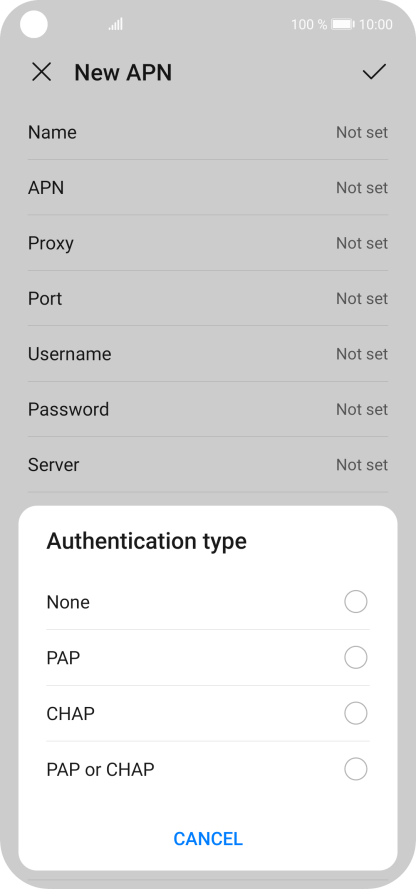

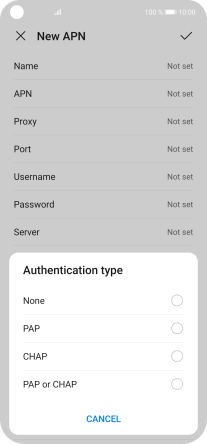

Press PAP.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-477aa847-2a33-4c40-aa9b-f6b0eeec07c6.png?width=208&height=444)
8. Enter APN type
Press APN type.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-1d43a6c3-600d-4c67-9ad2-20ed73fc715a.png?width=208&height=444)

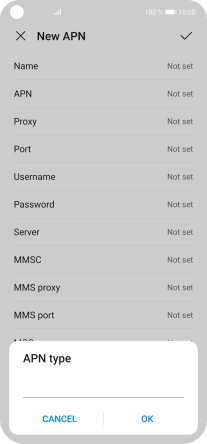

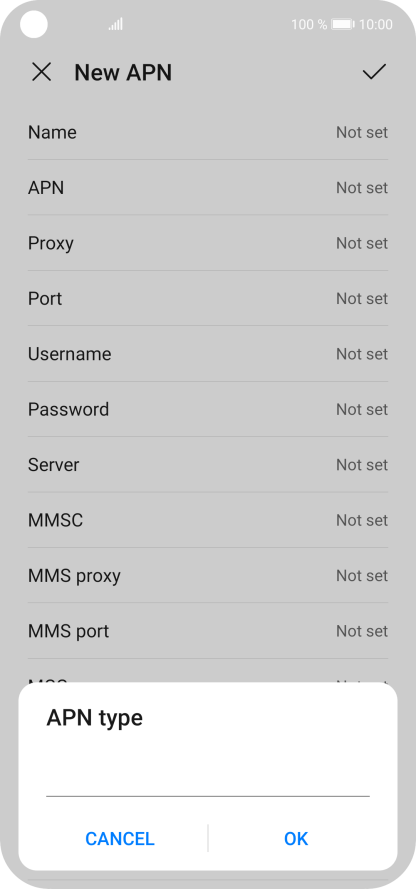

Key in default and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-ac0c1b7f-1160-4e2a-abc8-1f62d76df4a7.png?width=208&height=444)
default
9. Save data connection
Press the confirm icon.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-1d43a6c3-600d-4c67-9ad2-20ed73fc715a.png?width=208&height=444)

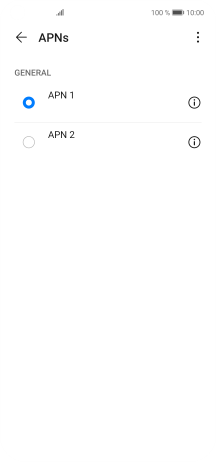

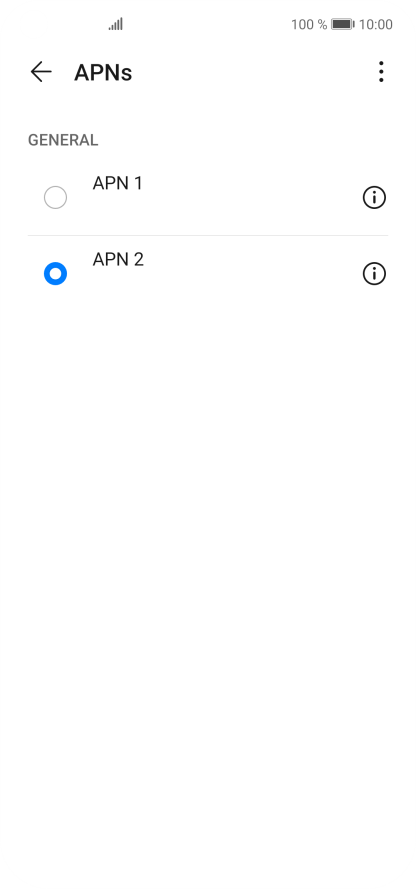

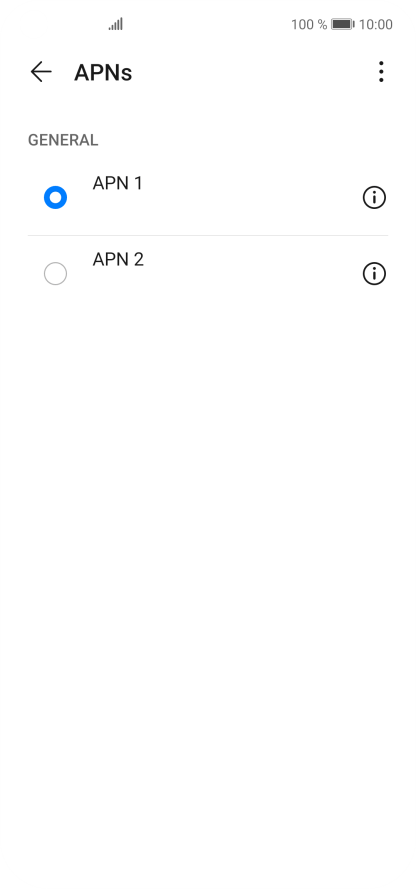

Press the field next to the required data connection to activate it.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-49b08387-47a9-402e-a240-2c17a52f3107.png?width=208&height=444)
10. Return to the home screen

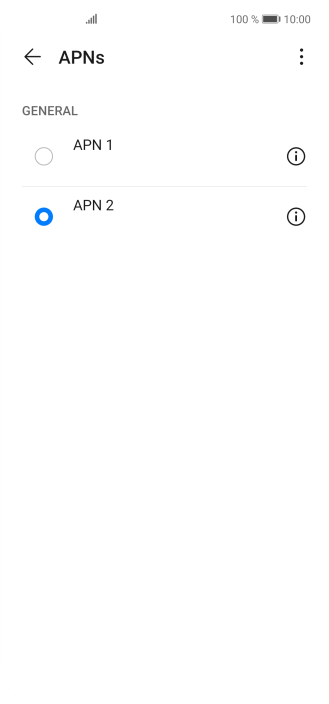

Slide your finger upwards starting from the bottom of the screen to return to the home screen.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-477d82d2-62a0-4a13-8544-27e64100dd79.png?width=208&height=444)
