1. Find "Access point names"
Slide two fingers downwards starting from the top of the screen.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-6931f341-63a4-4506-9e03-fdac9749ff73.png?width=206&height=450)
Press the settings icon.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-f4b974ae-81d7-4050-a19f-8679a7cce2ab.png?width=206&height=450)
Press Network and Internet.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-390e43a4-4e68-4fa9-94d0-c3893b777fa4.png?width=206&height=450)
Press Mobile network.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-7f35e701-8efc-4a01-9362-056d67608c3b.png?width=206&height=450)
Press Advanced.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-fff8424e-0e9c-4a00-8454-41dc1499b56c.png?width=206&height=450)
Press Access point names.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-fe249b91-8d9f-483c-b61a-cf910288bc76.png?width=206&height=450)
2. Create new data connection

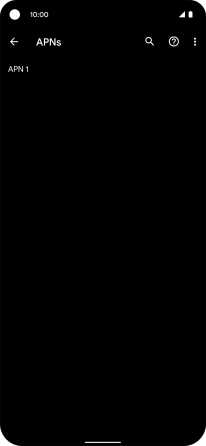

Press the menu icon.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-457ae3a8-4e11-419b-8f2b-4cada3a40987.png?width=206&height=450)

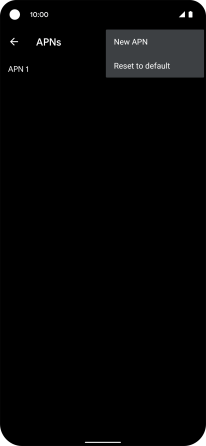

Press New APN.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-022f10a5-f03e-430a-a6ef-08209535ac51.png?width=206&height=450)
3. Enter a name for the connection

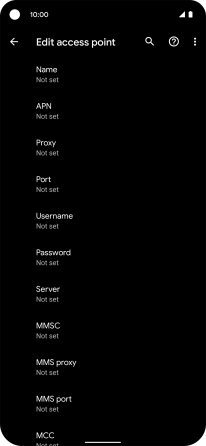

Press Name.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-6e20117d-4cba-4703-8bb0-a39a5ade6ebf.png?width=206&height=450)

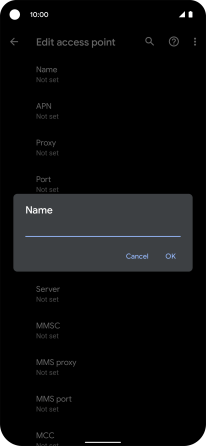

Key in Vodafone MMS and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-c915858f-2f4c-44ce-9f5b-efad6333dad8.png?width=206&height=450)
Vodafone MMS
4. Enter APN
Press APN.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-6e20117d-4cba-4703-8bb0-a39a5ade6ebf.png?width=206&height=450)

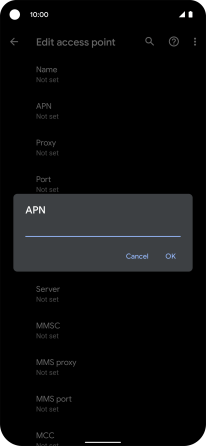

Key in mms.vodafone.net and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-5052afab-8b0f-46e9-889e-6cdece23db61.png?width=206&height=450)
mms.vodafone.net
5. Enter picture messaging server
Press MMSC.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-6e20117d-4cba-4703-8bb0-a39a5ade6ebf.png?width=206&height=450)

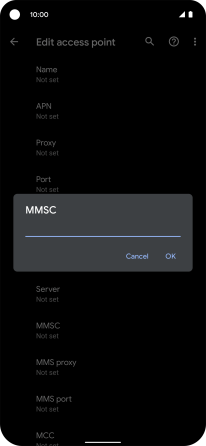

Key in http://www.vodafone.ie/mms and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-c909d0d7-6af6-4d7d-8706-e16cfe7ae621.png?width=206&height=450)
http://www.vodafone.ie/mms
6. Enter IP address
Press MMS proxy.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-6e20117d-4cba-4703-8bb0-a39a5ade6ebf.png?width=206&height=450)

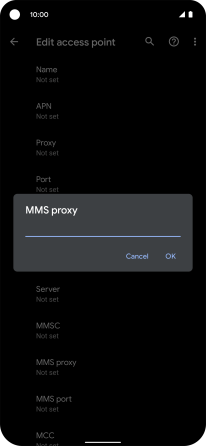

Key in 10.24.59.200 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-d75202c5-0fdc-46da-8027-a25c0cd4995f.png?width=206&height=450)
10.24.59.200
7. Enter port number
Press MMS port.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-6e20117d-4cba-4703-8bb0-a39a5ade6ebf.png?width=206&height=450)

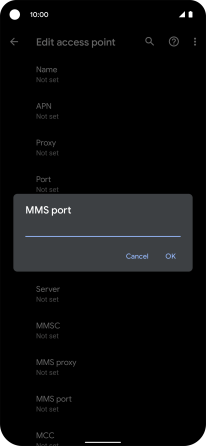

Key in 80 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-5cd2d2c6-b371-426a-91c3-e767d51ee702.png?width=206&height=450)
80
8. Enter country code

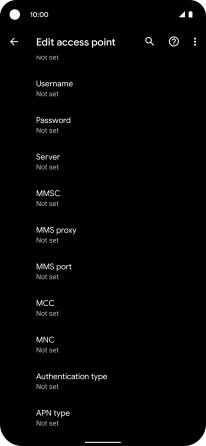

Press MCC.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-5d1dc586-1f90-43cb-9b9d-c8adf487a461.png?width=206&height=450)

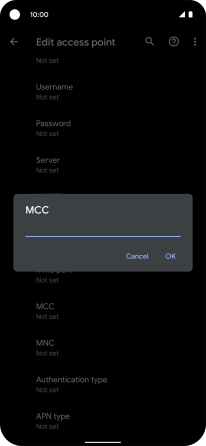

Key in 272 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-80e36487-ea75-4b4e-a04d-c9b4c2d16593.png?width=206&height=450)
272
9. Enter network code
Press MNC.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-5d1dc586-1f90-43cb-9b9d-c8adf487a461.png?width=206&height=450)

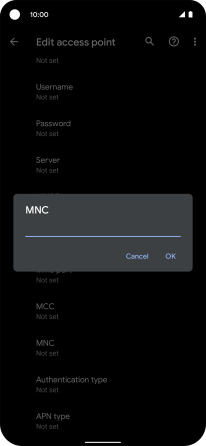

Key in 01 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-56016bf9-177d-4f8a-b8ed-ccef6909e9ec.png?width=206&height=450)
01
10. Select authentication type
Press Authentication type.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-5d1dc586-1f90-43cb-9b9d-c8adf487a461.png?width=206&height=450)

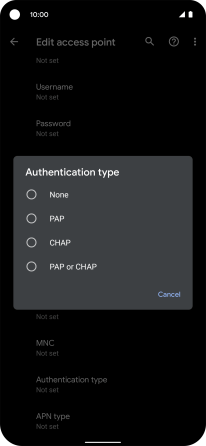

Press PAP.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-e42d30fa-5a16-4d6a-bd08-fc8ce8114b23.png?width=206&height=450)
11. Enter APN type
Press APN type.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-5d1dc586-1f90-43cb-9b9d-c8adf487a461.png?width=206&height=450)

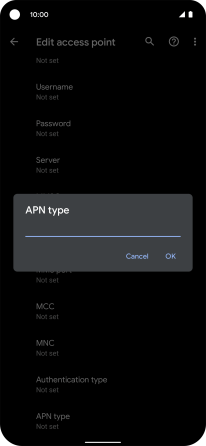

Key in mms and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-7d9365da-0648-4dfd-97e4-a61cd87c659d.png?width=206&height=450)
mms
12. Save data connection
Press the menu icon.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-5d1dc586-1f90-43cb-9b9d-c8adf487a461.png?width=206&height=450)

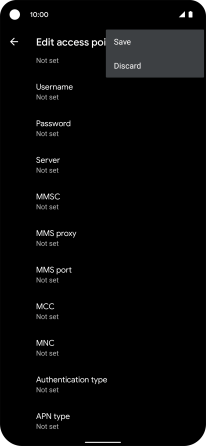

Press Save.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-827357b9-3587-400b-83e8-68e005c5d852.png?width=206&height=450)
13. Return to the home screen

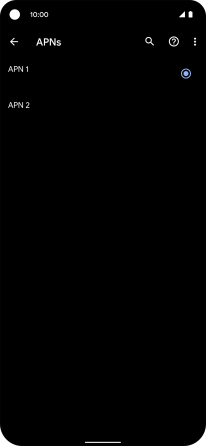

Slide your finger upwards starting from the bottom of the screen to return to the home screen.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-4c82e94c-5f7b-4e81-9d17-e29f88fc3be0.png?width=206&height=450)
