Set up your ZTE F320 Proprietary OS for picture messaging

Read help info

A picture message is a message which can contain pictures and other media files and can be sent to other mobile phones. You can send and receive picture messages as soon as you've inserted your SIM. If this isn't the case, you can set up your phone for picture messaging manually.

Step 1 of 15

1. Find "Network account"

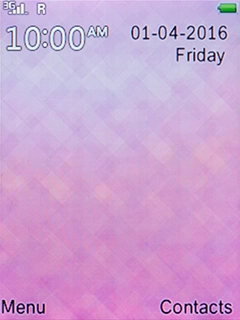

Press the Left selection key.

Step 2 of 15

1. Find "Network account"

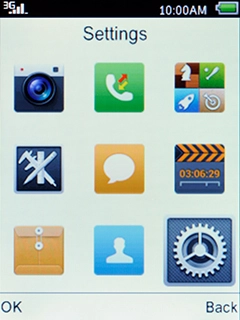

Select Settings and press the Left selection key.

Step 3 of 15

1. Find "Network account"

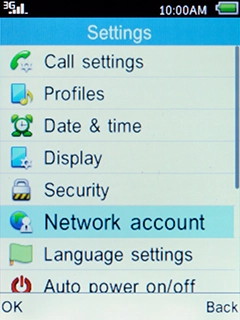

Select Network account and press the Left selection key.

Step 4 of 15

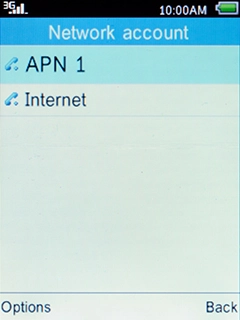

2. Create new data connection

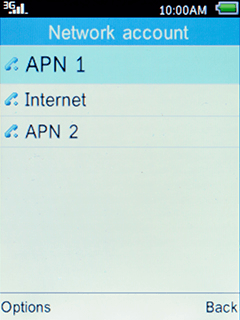

Press the Left selection key.

Step 5 of 15

2. Create new data connection

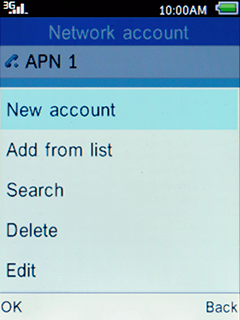

Select New account and press the Left selection key.

Step 6 of 15

2. Create new data connection

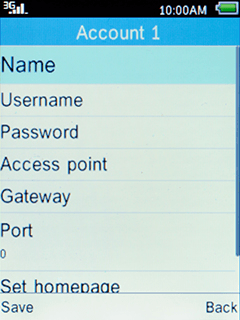

Select Name and press the Navigation key.

Vodafone MMS
Step 7 of 15

2. Create new data connection

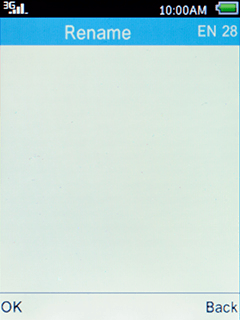

Key in Vodafone MMS and press the Left selection key.

Step 8 of 15

3. Enter APN

Select Access point and press the Navigation key.

mms.vodafone.net
Step 9 of 15

3. Enter APN

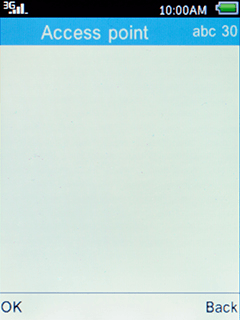

Key in mms.vodafone.net and press the Left selection key.

Step 10 of 15

4. Enter IP address

Select Gateway and press the Navigation key.

10.24.59.200
Step 11 of 15

4. Enter IP address

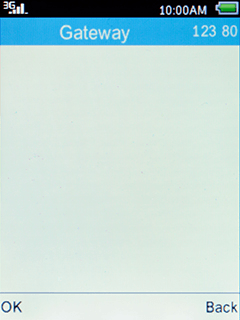

Key in 10.24.59.200 and press the Left selection key.

Step 12 of 15

5. Enter port number

Select Port and press the Navigation key.

80
Step 13 of 15

5. Enter port number

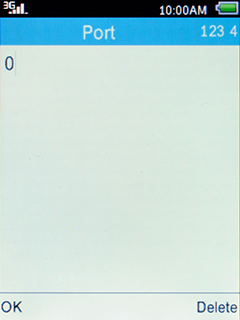

Key in 80 and press the Left selection key.

Step 14 of 15

6. Save data connection

Press the Left selection key.

Step 15 of 15

7. Return to the home screen

Press the Home key to return to the home screen.

1. Find "Network account"

Press the Left selection key.
Select Settings and press the Left selection key.
Select Network account and press the Left selection key.

2. Create new data connection

Press the Left selection key.
Select New account and press the Left selection key.
Select Name and press the Navigation key.
Key in Vodafone MMS and press the Left selection key.
Vodafone MMS

3. Enter APN

Select Access point and press the Navigation key.
Key in mms.vodafone.net and press the Left selection key.
mms.vodafone.net

4. Enter IP address

Select Gateway and press the Navigation key.
Key in 10.24.59.200 and press the Left selection key.
10.24.59.200

5. Enter port number

Select Port and press the Navigation key.
Key in 80 and press the Left selection key.
80

6. Save data connection

Press the Left selection key.

7. Return to the home screen

Press the Home key to return to the home screen.
