1. Find "Access Point Names"
Press Settings.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-846f314a-ff76-4cdb-83a4-54c089633530.png?width=204&height=446)

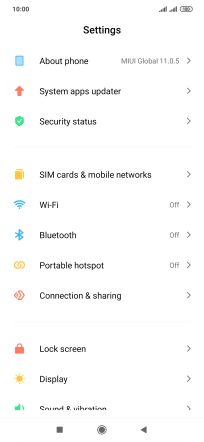

Press SIM cards & mobile networks.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-3b5d26d2-1e6d-4848-9e48-8c2bea5a1fa4.png?width=204&height=446)

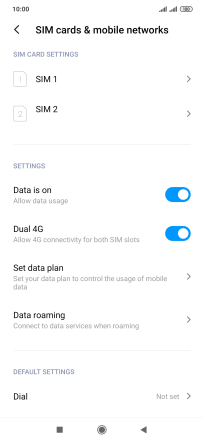

Press the required SIM.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-645e8e3e-a58d-4a75-ac87-328b311f3520.png?width=204&height=446)
Press Access Point Names.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-d4352ef4-a7a9-4b51-a91c-279c5e34e3bc.png?width=204&height=446)
2. Create new data connection

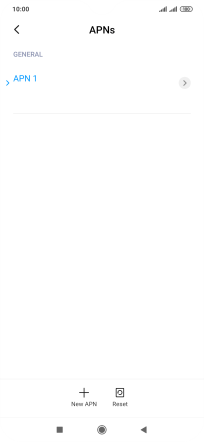

Press New APN.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-7600cbd0-1222-4bc3-b8da-9fcd34674fbe.png?width=204&height=446)
3. Enter a name for the connection

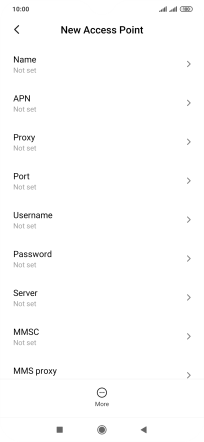

Press Name.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-b8ef0ab4-02ad-4b5d-b33d-743edd400fe9.png?width=204&height=446)
Key in Vodafone MMS and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-99e6abc8-310e-49d7-b72e-b36984ed18fd.png?width=204&height=446)
Vodafone MMS
4. Enter APN
Press APN.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-b8ef0ab4-02ad-4b5d-b33d-743edd400fe9.png?width=204&height=446)
Key in mms.vodafone.net and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-ed0f0776-1190-4a4b-9252-63dcc4894df5.png?width=204&height=446)
mms.vodafone.net
5. Enter picture messaging server
Press MMSC.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-b8ef0ab4-02ad-4b5d-b33d-743edd400fe9.png?width=204&height=446)

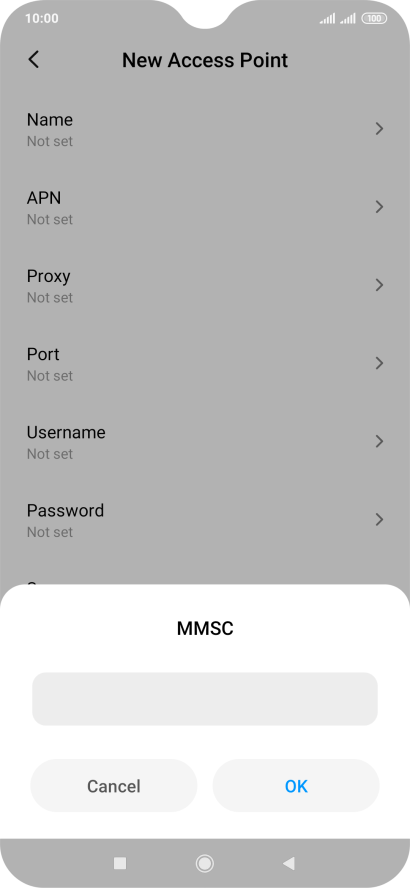

Key in http://www.vodafone.ie/mms and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-4bf60649-5094-453c-bafe-6f183eba04ee.png?width=204&height=446)
http://www.vodafone.ie/mms
6. Enter IP address

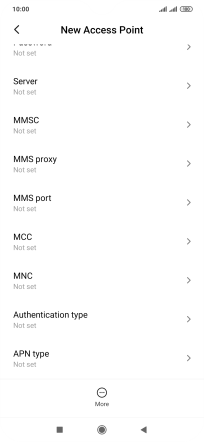

Press MMS proxy.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-b0d083f2-c291-46e1-8ee9-3ec1051c15e8.png?width=204&height=446)

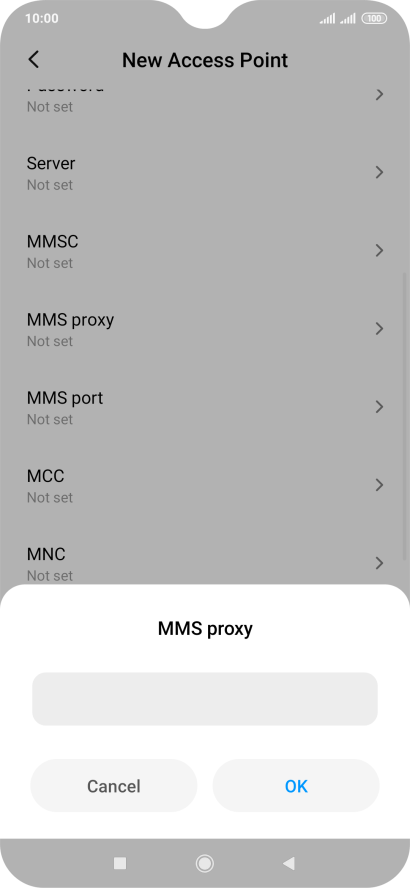

Key in 10.24.59.200 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-37913523-0b62-4053-8455-17d19711d7b5.png?width=204&height=446)
10.24.59.200
7. Enter port number
Press MMS port.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-b0d083f2-c291-46e1-8ee9-3ec1051c15e8.png?width=204&height=446)

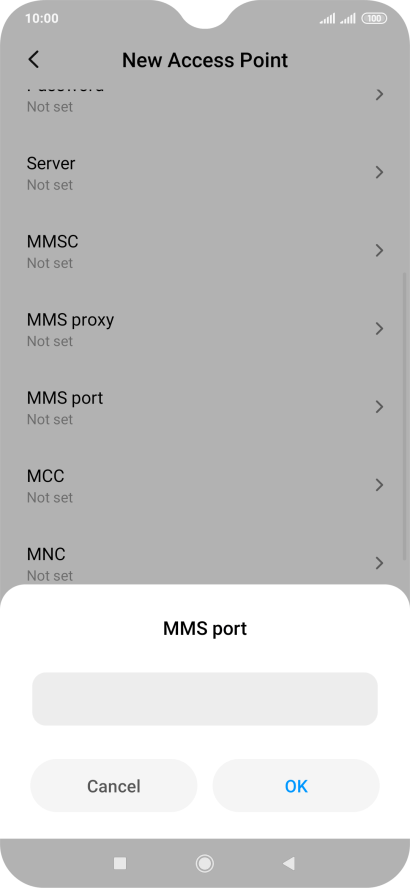

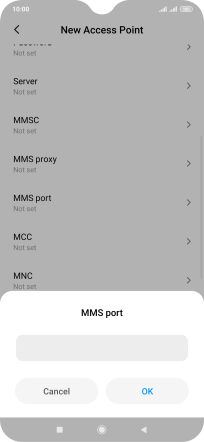

Key in 80 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-e7419f64-3ba1-45b4-9948-83bd147eeb7e.png?width=204&height=446)
80
8. Enter country code
Press MCC.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-b0d083f2-c291-46e1-8ee9-3ec1051c15e8.png?width=204&height=446)

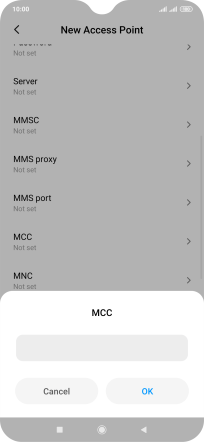

Key in 272 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-c44cdd35-a2bb-4e62-aba8-6cf89d78e20a.png?width=204&height=446)
272
9. Enter network code
Press MNC.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-b0d083f2-c291-46e1-8ee9-3ec1051c15e8.png?width=204&height=446)

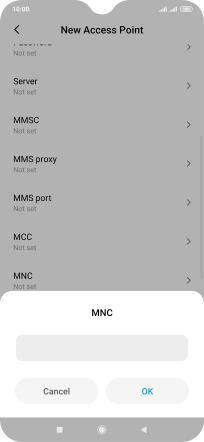

Key in 01 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-1a1acf8a-5d07-428d-871e-0838cc58f53d.png?width=204&height=446)
01
10. Select authentication type
Press Authentication type.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-b0d083f2-c291-46e1-8ee9-3ec1051c15e8.png?width=204&height=446)

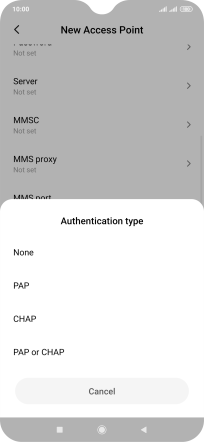

Press PAP.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-abed6aba-ad7b-40fd-81f6-1aa4cb470fed.png?width=204&height=446)
11. Enter APN type
Press APN type.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-b0d083f2-c291-46e1-8ee9-3ec1051c15e8.png?width=204&height=446)
Key in mms and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-a0ce9937-4972-4aa2-ac8f-6a4ab2fe0bed.png?width=204&height=446)
mms
12. Save data connection
Press More.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-b0d083f2-c291-46e1-8ee9-3ec1051c15e8.png?width=204&height=446)

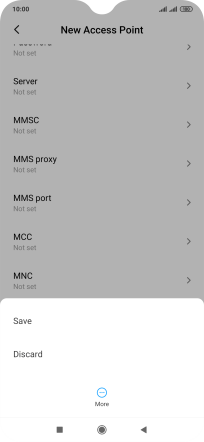

Press Save.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-46b4239d-1e8a-4eb6-acae-cb3e8116de59.png?width=204&height=446)
13. Return to the home screen

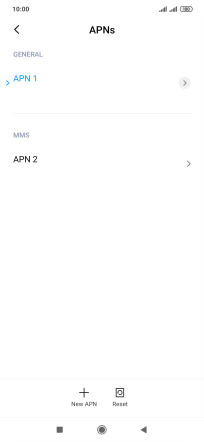

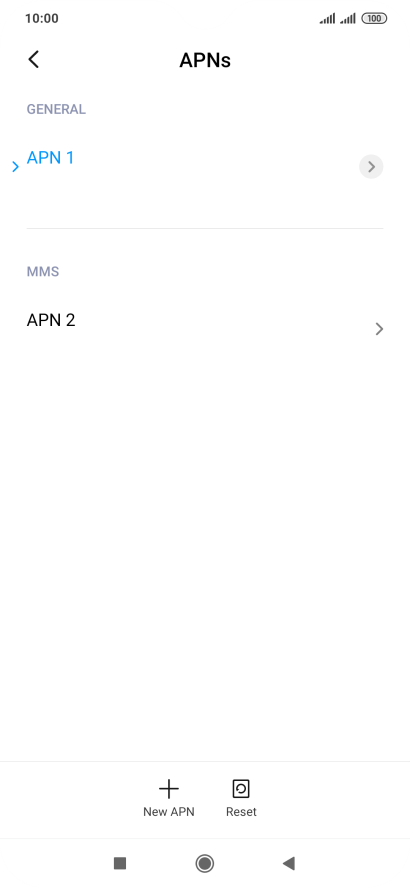

Press the Home key to return to the home screen.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-1f8b9d30-6ea1-4a4a-bf40-7541517462c7.png?width=204&height=446)
