1. Find "Access point names"
Press Settings.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-09b897bf-4484-4c8b-a1ba-264eead1a7e0.png?width=200&height=448)

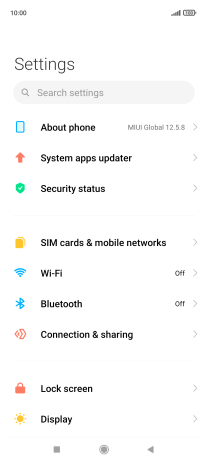

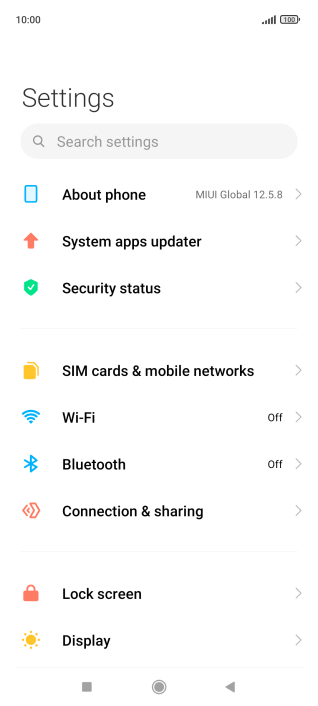

Press SIM cards & mobile networks.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-f4297ad4-4fa4-4e45-82db-5490c294d059.png?width=200&height=448)

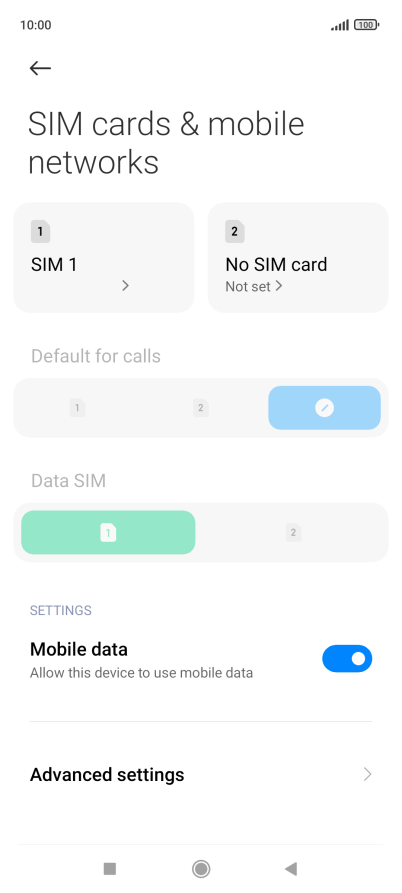

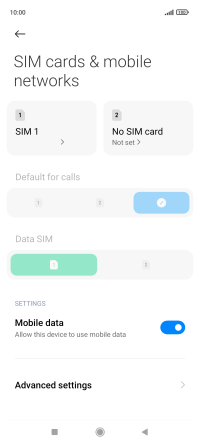

Press the name of the SIM.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-197feca8-a3d5-4a48-920a-fbb9d7eee783.png?width=200&height=448)

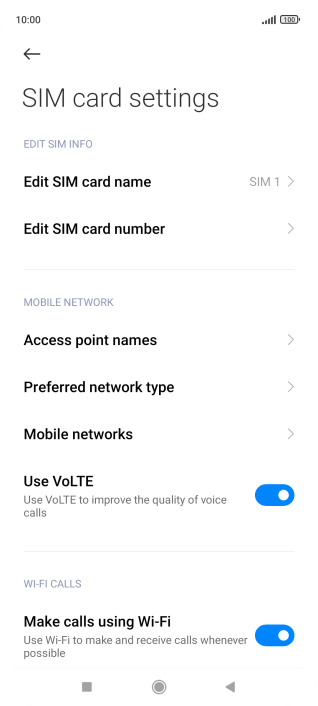

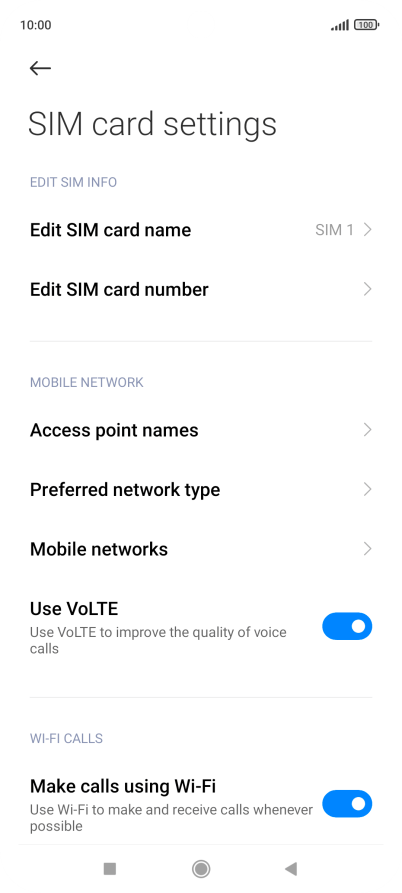

Press Access point names.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-31bc85be-319d-4d53-bc32-5e46d33cacb9.png?width=200&height=448)
2. Create new data connection

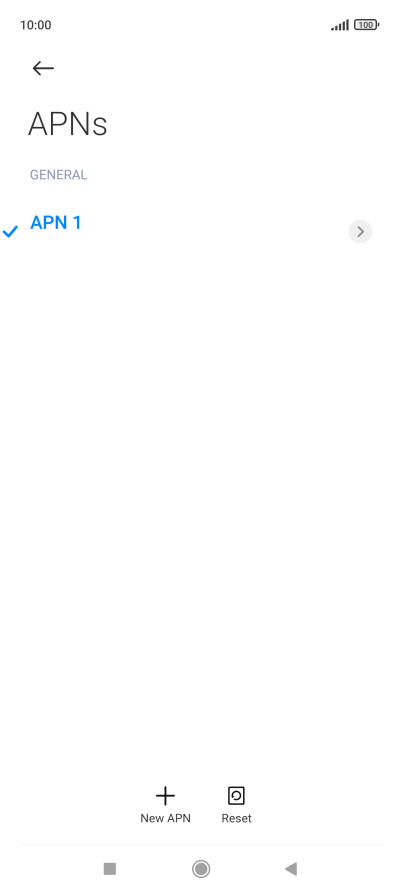

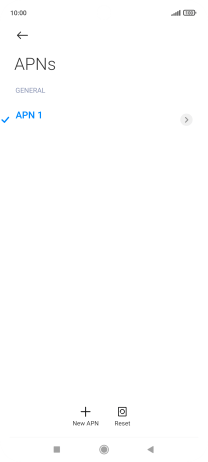

Press New APN.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-99d2762e-c344-45ca-a7bd-7a04053de055.png?width=200&height=448)
3. Enter a name for the connection

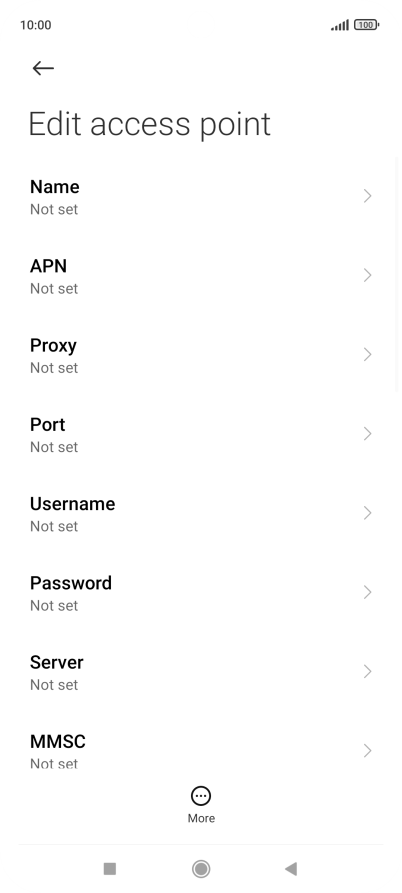

Press Name.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-03a81ca7-bb2d-4d52-9738-110f49f99b69.png?width=200&height=448)

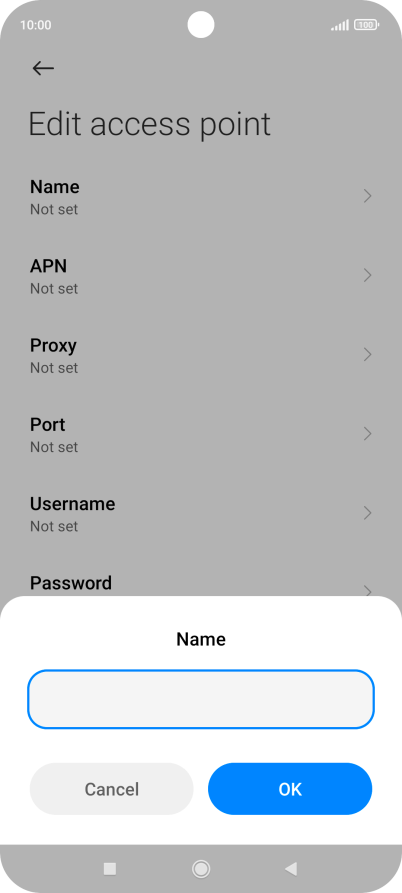

Key in Vodafone MMS and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-5e4b47b6-297c-4076-b018-b70c4afc88e5.png?width=200&height=448)
Vodafone MMS
4. Enter APN
Press APN.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-03a81ca7-bb2d-4d52-9738-110f49f99b69.png?width=200&height=448)
Key in mms.vodafone.net and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-f2b4b772-7e14-4a0a-b9b5-85fa1a7bb308.png?width=200&height=448)
mms.vodafone.net
5. Enter picture messaging server
Press MMSC.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-03a81ca7-bb2d-4d52-9738-110f49f99b69.png?width=200&height=448)
Key in http://www.vodafone.ie/mms and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-b792914f-d46f-4e01-95d7-64f24933917a.png?width=200&height=448)
http://www.vodafone.ie/mms
6. Enter IP address

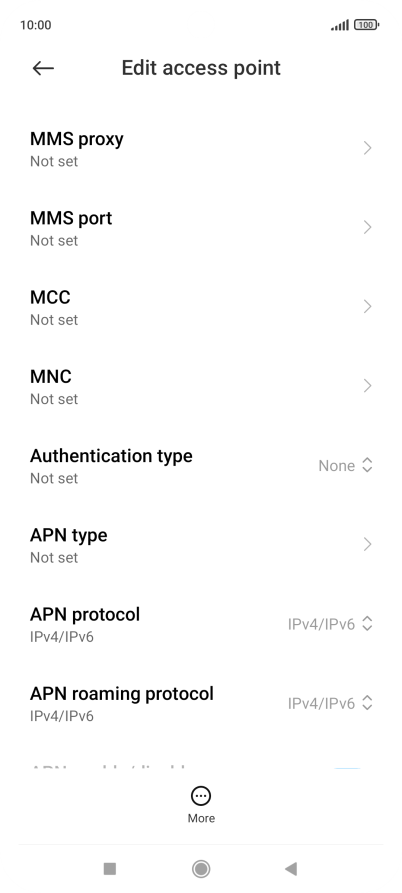

Press MMS proxy.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-1623a7fa-ea4a-4090-b30f-a55b45b5d73c.png?width=200&height=448)

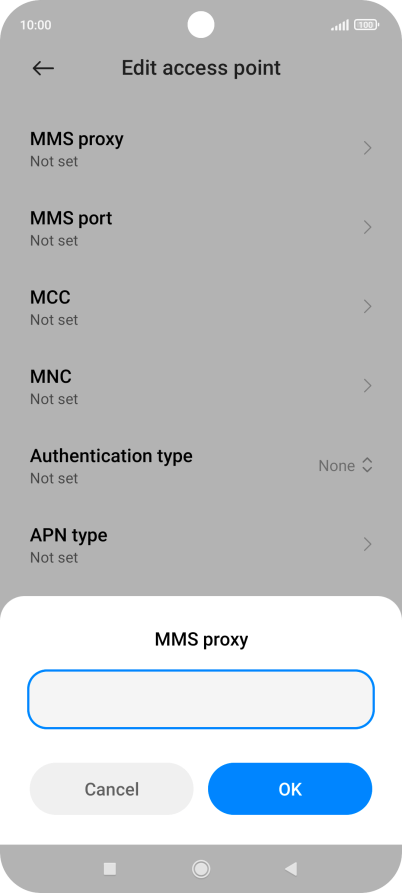

Key in 10.24.59.200 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-fe0ec01a-1b0c-4f0f-988d-8000a9dbe3f5.png?width=200&height=448)
10.24.59.200
7. Enter port number
Press MMS port.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-1623a7fa-ea4a-4090-b30f-a55b45b5d73c.png?width=200&height=448)
Key in 80 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-df4b6243-67e4-4243-8d12-596f794f6dcb.png?width=200&height=448)
80
8. Enter country code
Press MCC.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-1623a7fa-ea4a-4090-b30f-a55b45b5d73c.png?width=200&height=448)

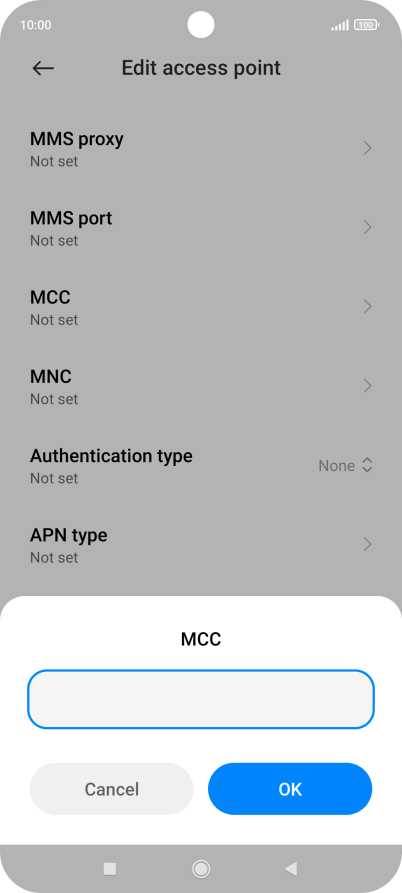

Key in 272 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-7930ea63-5349-4502-b839-03cf921f3a62.png?width=200&height=448)
272
9. Enter network code
Press MNC.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-1623a7fa-ea4a-4090-b30f-a55b45b5d73c.png?width=200&height=448)
Key in 01 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-dbeafe5e-8265-462e-adef-c74ce020ab50.png?width=200&height=448)
01
10. Select authentication type
Press Authentication type.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-1623a7fa-ea4a-4090-b30f-a55b45b5d73c.png?width=200&height=448)

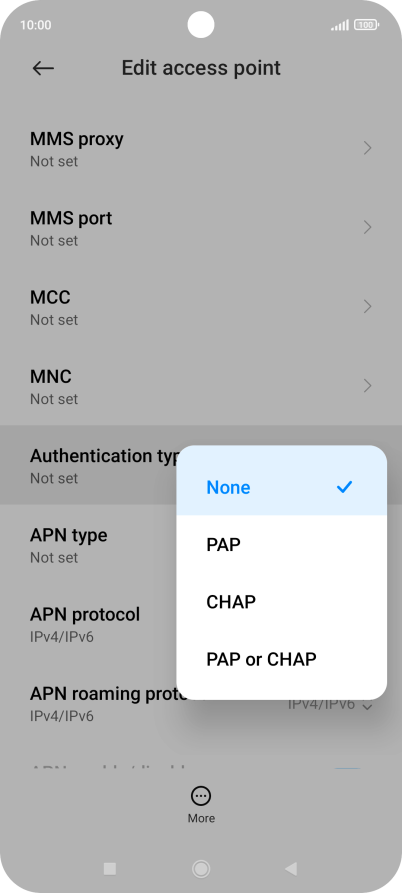

Press PAP.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-73c59ef6-abbe-4859-adbe-3d5c4fca0af7.png?width=200&height=448)
11. Enter APN type
Press APN type.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-1623a7fa-ea4a-4090-b30f-a55b45b5d73c.png?width=200&height=448)

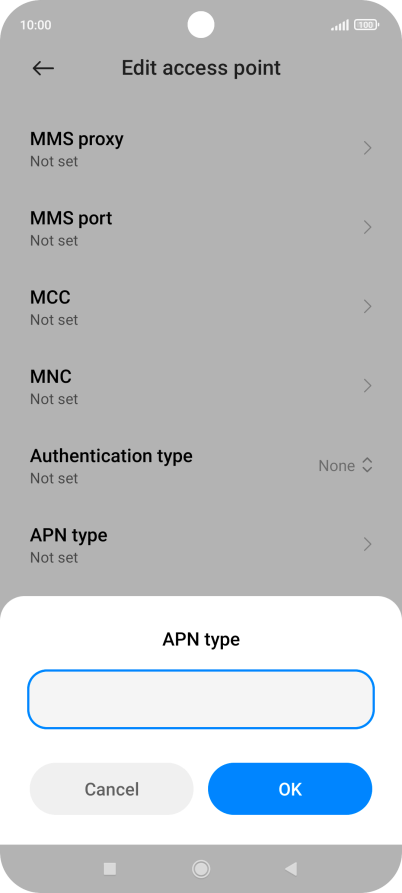

Key in mms and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-779b99d9-f766-4bed-83fd-165503f54bd2.png?width=200&height=448)
mms
12. Save data connection
Press More.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-1623a7fa-ea4a-4090-b30f-a55b45b5d73c.png?width=200&height=448)

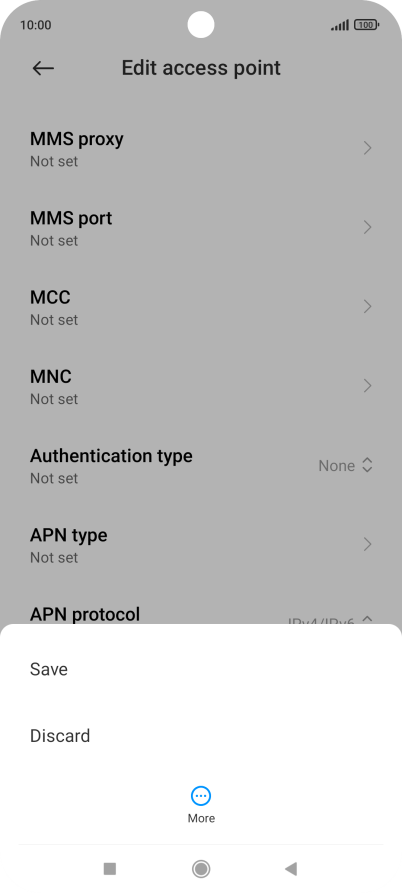

Press Save.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-6b4e428d-18e1-40d9-a736-f246f9fd3f75.png?width=200&height=448)
13. Return to the home screen

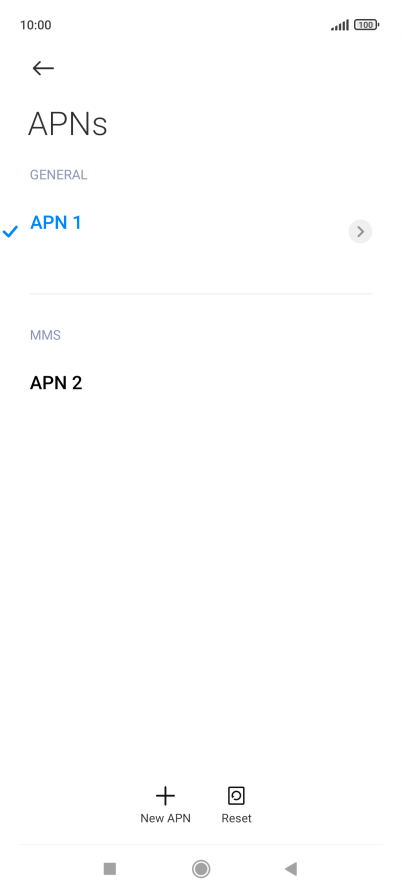

Press the Home key to return to the home screen.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-51701572-e30a-4684-bc22-89b743eeaea9.png?width=200&height=448)
