1. Find "Access point names"
Press Settings.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-32c75d03-10b2-4797-abef-3a36148e6379.png?width=204&height=456)
Press SIM cards & mobile networks.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-c253491f-3c4b-44f7-8417-2e98a85cf4a0.png?width=204&height=456)
Press the name of the SIM.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-8feff3d8-e1b1-44f2-aa00-1169ac2a034b.png?width=204&height=456)

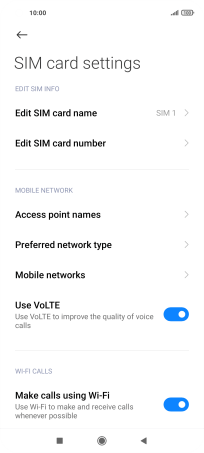

Press Access point names.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-a9b7f91e-6f83-4ca4-9ce5-b6b6ea4eb61b.png?width=204&height=456)
2. Create new data connection

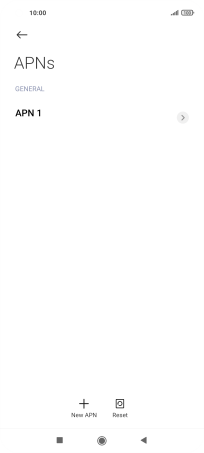

Press New APN.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-735c755f-9179-4cbf-8a04-73ef21239c6d.png?width=204&height=456)
3. Enter a name for the connection

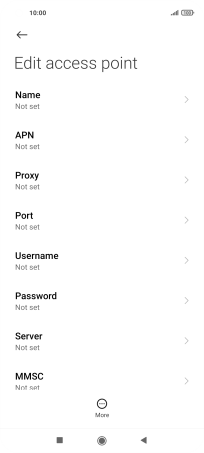

Press Name.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-ca5a9e8f-3b58-4162-8f28-8e8b8d07dfe4.png?width=204&height=456)
Key in Vodafone Internet and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-69e37f34-ad3b-460d-a673-024fdccf8250.png?width=204&height=456)
Vodafone Internet
4. Enter APN
Press APN.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-ca5a9e8f-3b58-4162-8f28-8e8b8d07dfe4.png?width=204&height=456)

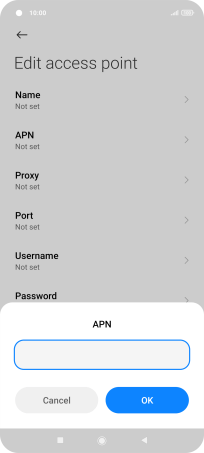

Key in live.vodafone.com and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-086bb4d8-90f5-481c-b01b-f59ea26553c4.png?width=204&height=456)
live.vodafone.com
5. Enter IP address
Press Proxy.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-ca5a9e8f-3b58-4162-8f28-8e8b8d07dfe4.png?width=204&height=456)

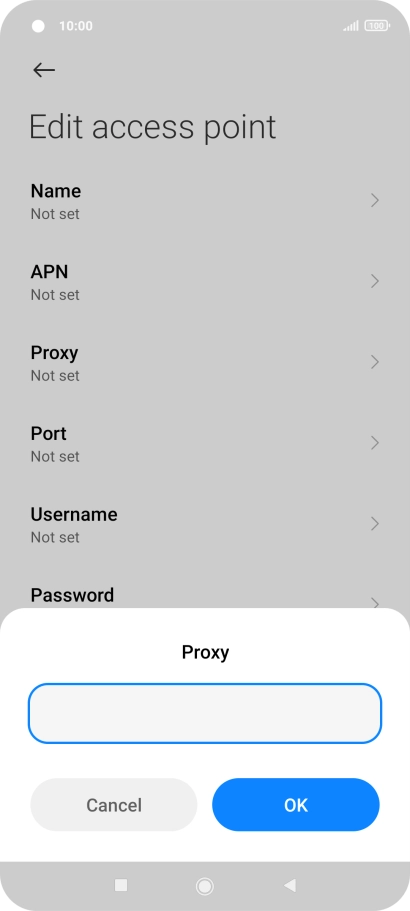

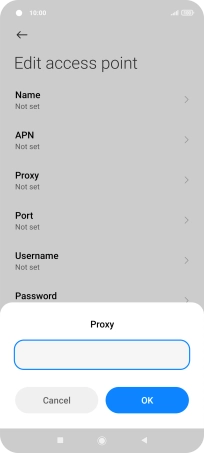

Key in 10.24.59.100 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-912864ad-f67b-44d7-956a-54f9fc873038.png?width=204&height=456)
10.24.59.100
6. Enter port number
Press Port.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-ca5a9e8f-3b58-4162-8f28-8e8b8d07dfe4.png?width=204&height=456)

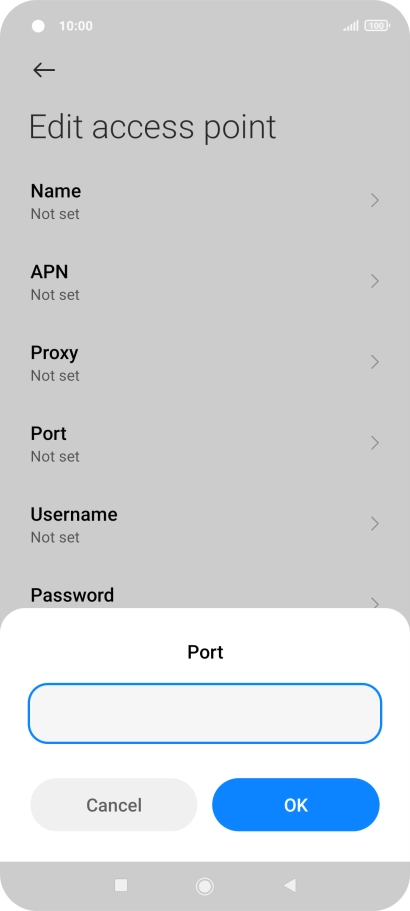

Key in 80 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-1f6c416b-720b-4094-9754-36391abdeda6.png?width=204&height=456)
80
7. Enter country code

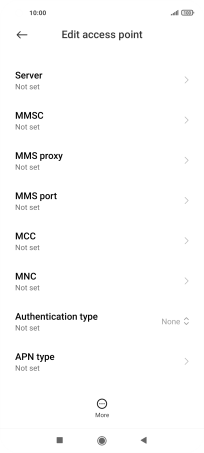

Press MCC.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-1f6e2779-c54e-4dd6-9a5f-8f01f742eca7.png?width=204&height=456)

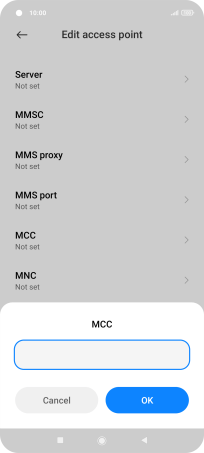

Key in 272 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-d76d7d5c-abe8-4a08-81a3-3bbb31294434.png?width=204&height=456)
272
8. Enter network code
Press MNC.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-1f6e2779-c54e-4dd6-9a5f-8f01f742eca7.png?width=204&height=456)
Key in 01 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-6824bc01-2a2f-4f28-aea1-f517c5538909.png?width=204&height=456)
01
9. Select authentication type
Press Authentication type.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-1f6e2779-c54e-4dd6-9a5f-8f01f742eca7.png?width=204&height=456)
Press PAP.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-4dd03996-5a14-4a57-90f7-6b02fab53f13.png?width=204&height=456)
10. Enter APN type
Press APN type.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-1f6e2779-c54e-4dd6-9a5f-8f01f742eca7.png?width=204&height=456)

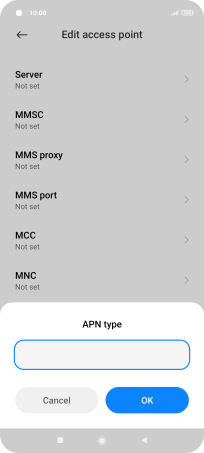

Key in default and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-27e41c96-85cc-49c2-b17b-e7ecc8cef2b1.png?width=204&height=456)
default
11. Save data connection
Press More.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-1f6e2779-c54e-4dd6-9a5f-8f01f742eca7.png?width=204&height=456)

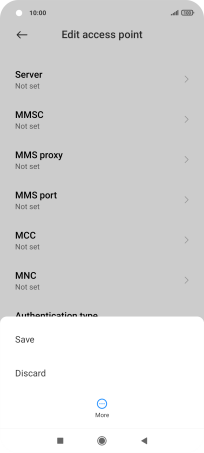

Press Save.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-fc950f1a-ba9f-42ff-9ec8-80147598791a.png?width=204&height=456)

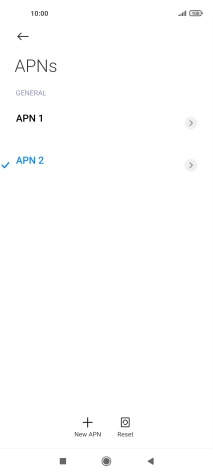

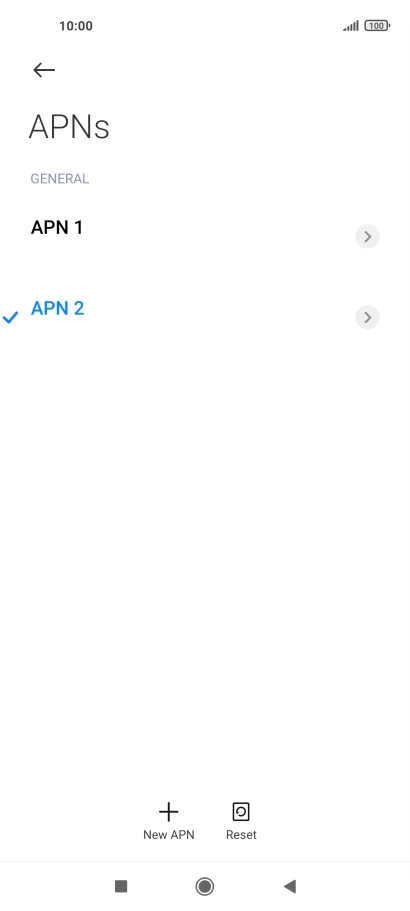

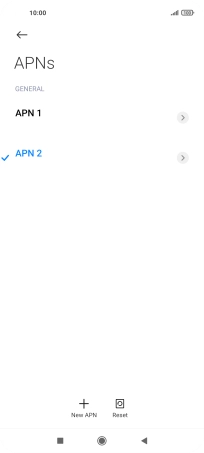

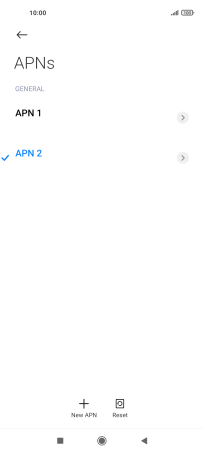

Press the required data connection to activate it.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-947ffad7-933d-4d53-b6d1-3596e96e0548.png?width=204&height=456)
12. Return to the home screen
Press the Home key to return to the home screen.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-947ffad7-933d-4d53-b6d1-3596e96e0548.png?width=204&height=456)
