1. Find "Access Point Names"
Press Settings.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-2591fca6-db59-4b91-9cd2-79749458ce00.png?width=202&height=448)
Press SIM cards & mobile networks.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-89607216-1560-4dc4-9e85-d790c6102fb6.png?width=202&height=448)
Press the required SIM.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-69bbdf8f-9cb4-4a82-890f-3b6106031533.png?width=202&height=448)

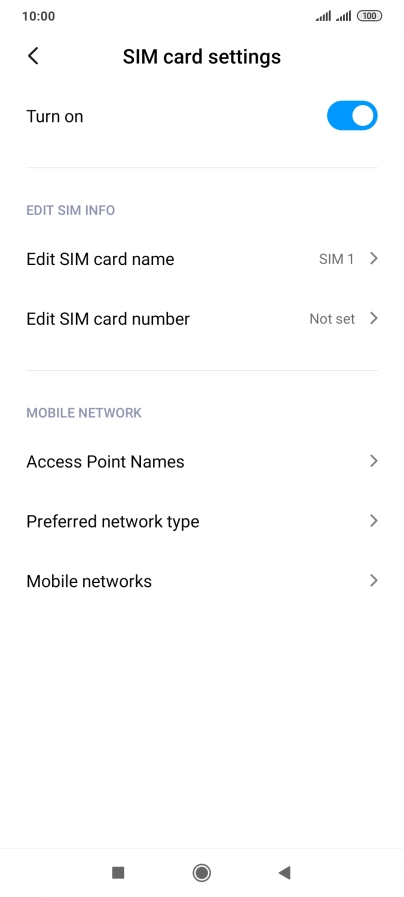

Press Access Point Names.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-e1c1fc5b-88ab-46ee-b8b3-35242be507f8.png?width=202&height=448)
2. Create new data connection

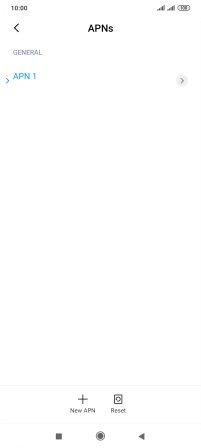

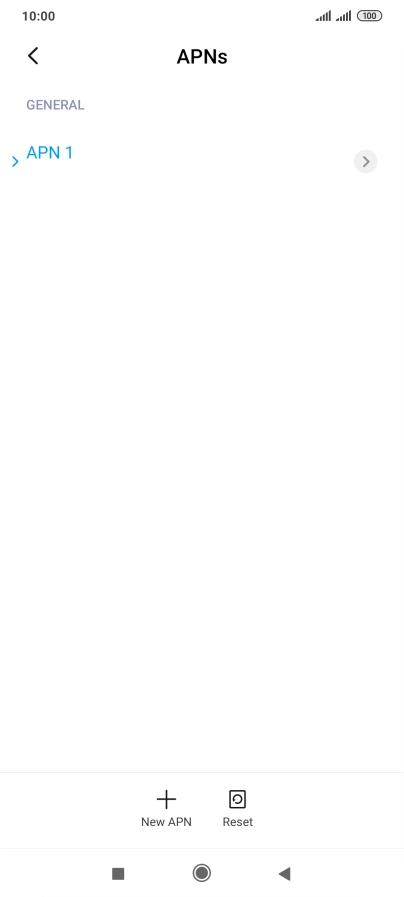

Press New APN.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-233f69a9-0dcd-48b2-8d98-6cbdbe9981fe.png?width=202&height=448)
3. Enter a name for the connection

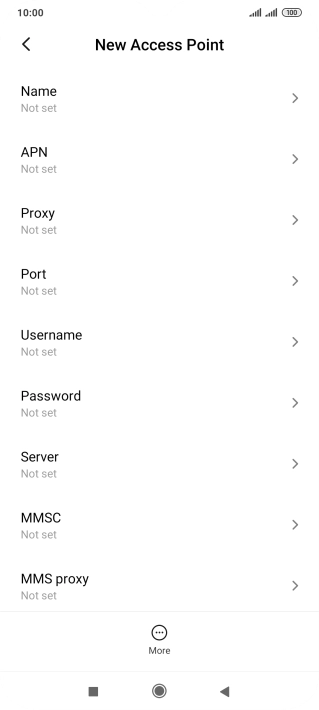

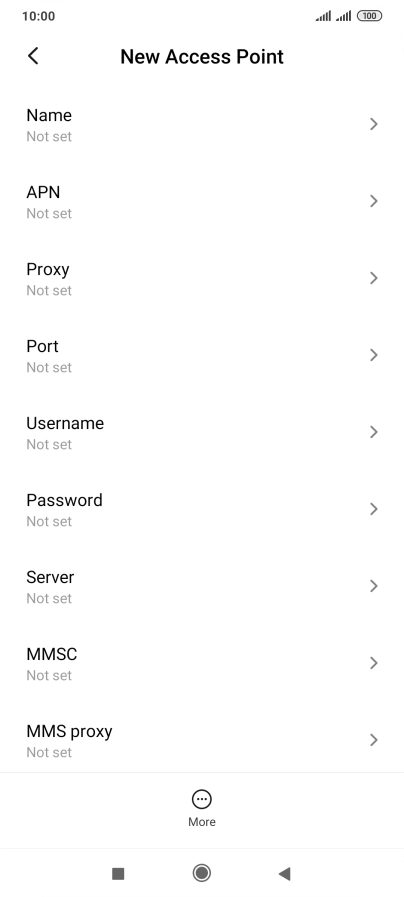

Press Name.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-ff2a010b-c76f-4709-b153-af742af9da4a.png?width=202&height=448)

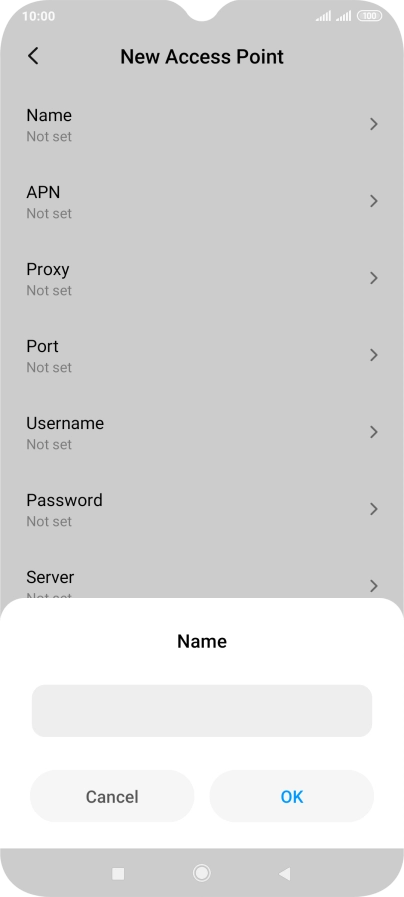

Key in Vodafone Internet and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-c3cdc4b6-73fe-4d4a-94f3-7e5a2fe40e81.png?width=202&height=448)
Vodafone Internet
4. Enter APN

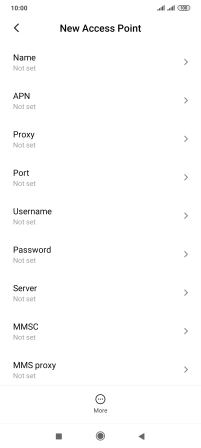

Press APN.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-ff2a010b-c76f-4709-b153-af742af9da4a.png?width=202&height=448)

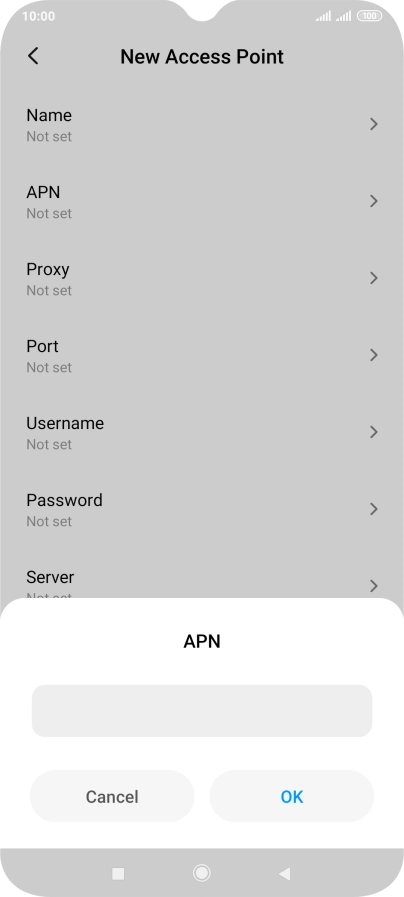

Key in live.vodafone.com and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-adab5a9e-caec-47cd-a0b8-11172c818594.png?width=202&height=448)
live.vodafone.com
5. Enter country code

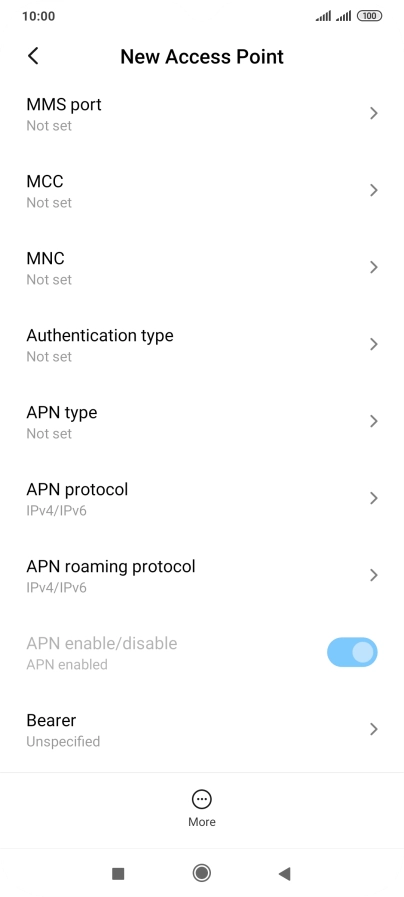

Press MCC.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-21de249e-e493-4c38-aa9f-fd3451c5d244.png?width=202&height=448)

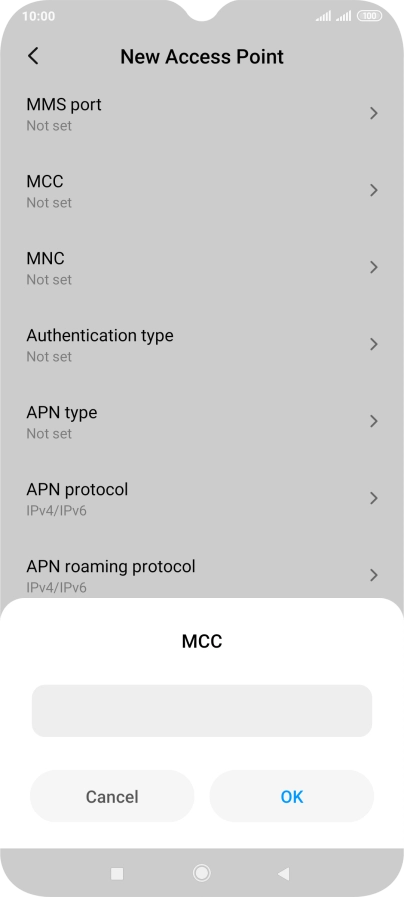

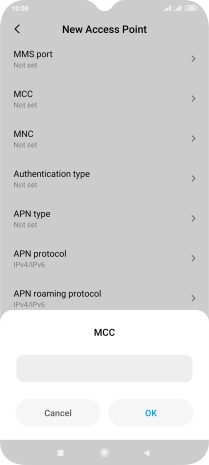

Key in 272 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-18e3482b-201e-406e-b009-9fb73828eec4.png?width=202&height=448)
272
6. Enter network code
Press MNC.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-21de249e-e493-4c38-aa9f-fd3451c5d244.png?width=202&height=448)

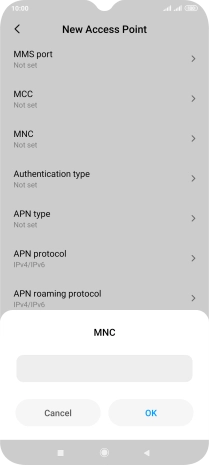

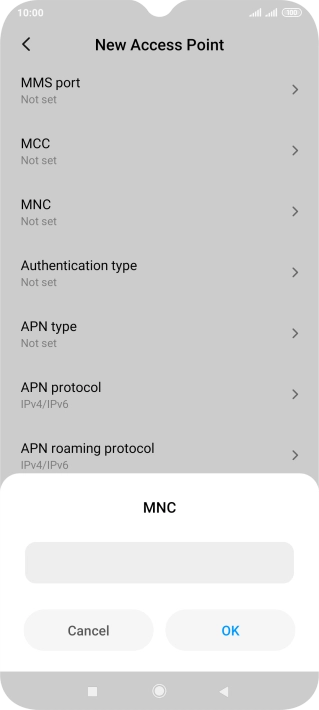

Key in 01 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-7555b3cf-9263-4ba4-917d-913f3c12d76b.png?width=202&height=448)
01
7. Select authentication type
Press Authentication type.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-21de249e-e493-4c38-aa9f-fd3451c5d244.png?width=202&height=448)

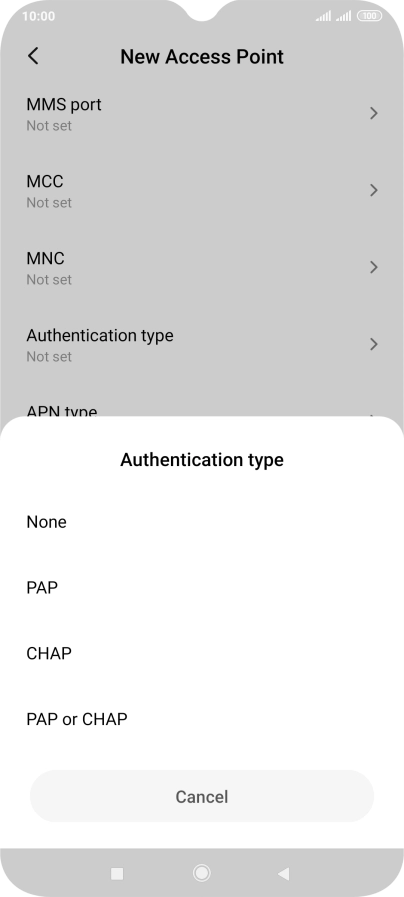

Press PAP.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-c5efff6b-c51f-4486-a677-c118398051f4.png?width=202&height=448)
8. Enter APN type
Press APN type.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-21de249e-e493-4c38-aa9f-fd3451c5d244.png?width=202&height=448)

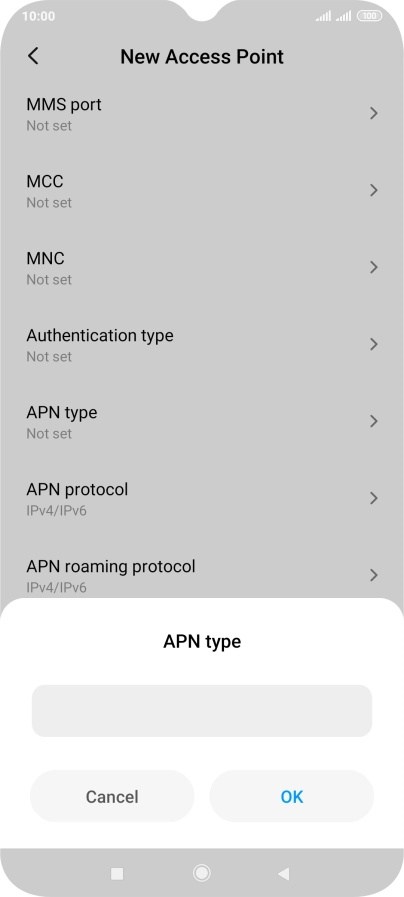

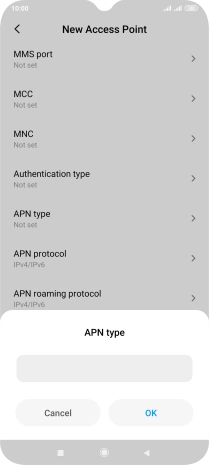

Key in default and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-aa773576-5e8c-45b2-97d3-3e2828545801.png?width=202&height=448)
default
9. Save data connection
Press More.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-21de249e-e493-4c38-aa9f-fd3451c5d244.png?width=202&height=448)

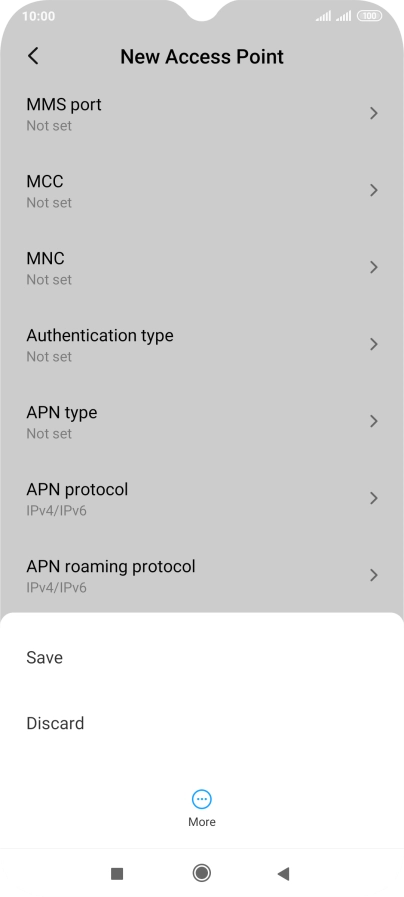

Press Save.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-09381e68-2494-4cb0-8154-9d664c00a348.png?width=202&height=448)

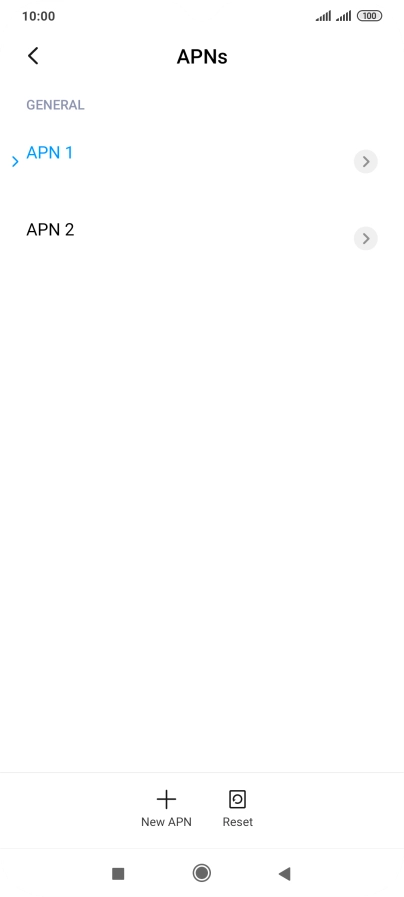

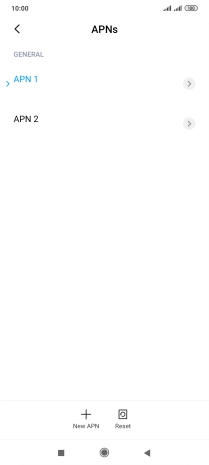

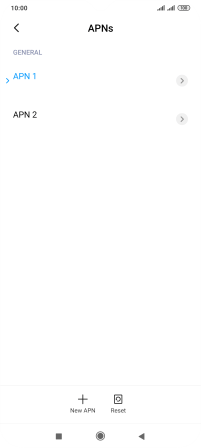

Press the required data connection to activate it.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-5e8ee7d8-3399-4904-b84f-e4ebe213f445.png?width=202&height=448)
10. Return to the home screen

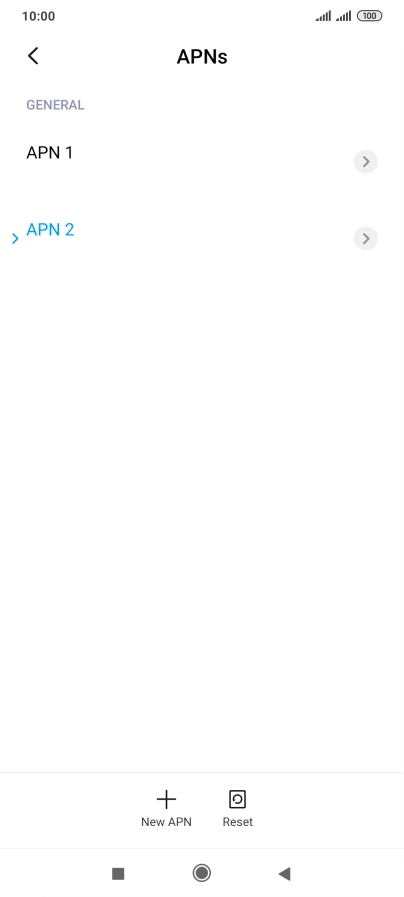

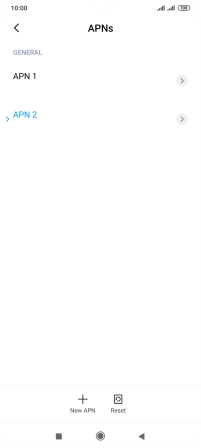

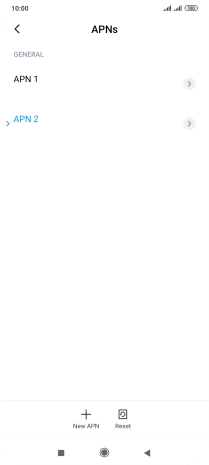

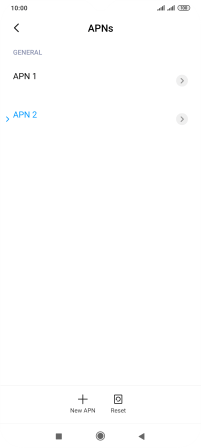

Press the Home key to return to the home screen.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-003696be-62e8-48d2-9a0a-b1aa72a64b3d.png?width=202&height=448)
