Set up the phone for Exchange email - Vodafone Smart

Read help info

Follow these instructions to set up the phone for Exchange email.

Step 1 of 54

Find "Access Point Names"

Press the menu icon.

Step 2 of 54

Find "Access Point Names"

Press Settings.

Step 3 of 54

Find "Access Point Names"

Press Wireless & network.

Step 4 of 54

Find "Access Point Names"

Press Mobile networks.

Step 5 of 54

Find "Access Point Names"

Press Access Point Names.

Step 6 of 54

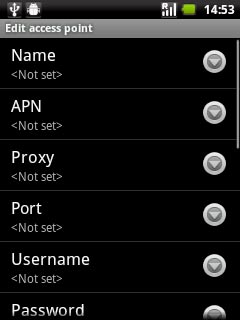

Create new data connection

Press the Menu key.

Step 7 of 54

Create new data connection

Press New APN.

Step 8 of 54

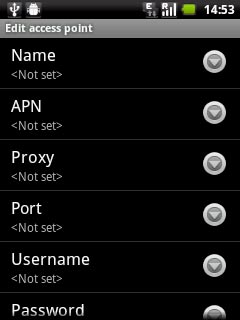

Enter data connection name

Press Name.

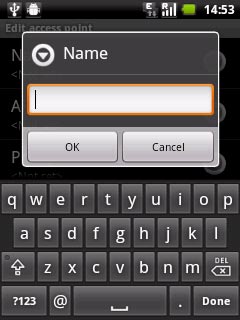

Step 9 of 54

Enter data connection name

Key in Vodafone Mail and press OK.

Step 10 of 54

Enter APN

Press APN.
Key in live.vodafone.com

Step 11 of 54

Enter APN

Press OK.

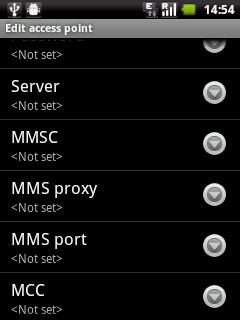

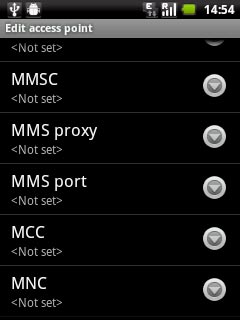

Step 12 of 54

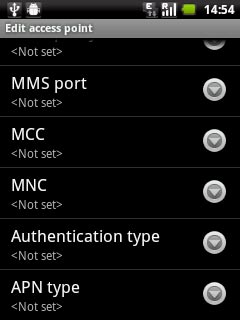

Enter country code

Press MCC.

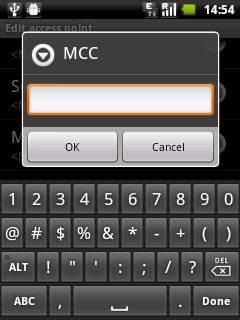

Step 13 of 54

Enter country code

Key in 272 and press OK.

Step 14 of 54

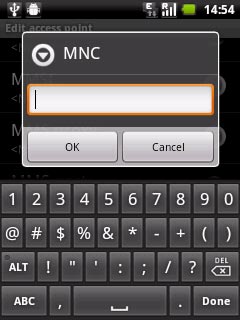

Enter network code

Press MNC.

Step 15 of 54

Enter network code

Key in 01 and press OK.

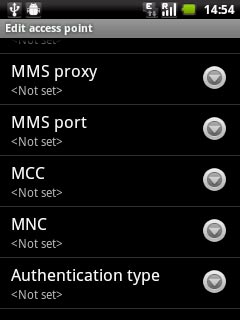

Step 16 of 54

Select authentication type

Press Authentication type.

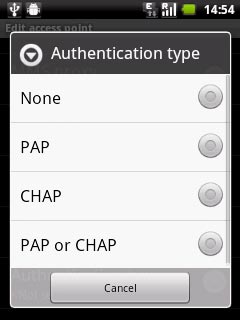

Step 17 of 54

Select authentication type

Press PAP.

Step 18 of 54

Select APN type

Press APN type.

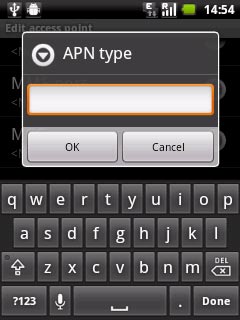

Step 19 of 54

Select APN type

Key in default and press OK.

Step 20 of 54

Save and activate data connection

Press the Menu key.

Step 21 of 54

Save and activate data connection

Press Save.

Step 22 of 54

Save and activate data connection

Press the field next to Vodafone Mail to fill in the field.

Step 23 of 54

Save and activate data connection

Press the Home key to return to standby mode.

Step 24 of 54

Find "Corporate"

Press the menu icon.

Step 25 of 54

Find "Corporate"

Press Settings.

Step 26 of 54

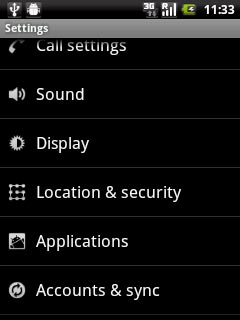

Find "Corporate"

Press Accounts & sync.

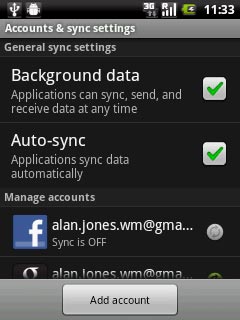

Step 27 of 54

Find "Corporate"

Press Add account.

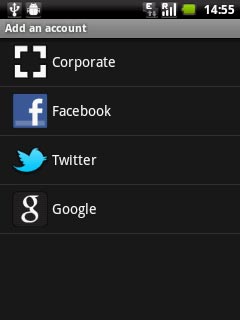

Step 28 of 54

Find "Corporate"

Press Corporate.

Step 29 of 54

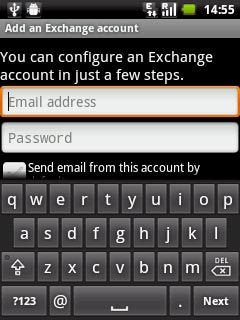

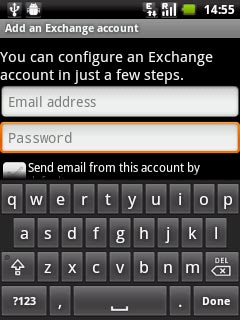

Enter email address

Press Email address and key in your email address.

Step 30 of 54

Enter password

Press Password and key in the password.

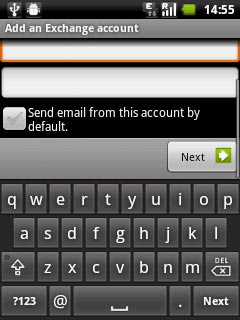

Step 31 of 54

Enter password

Press Next.

Step 32 of 54

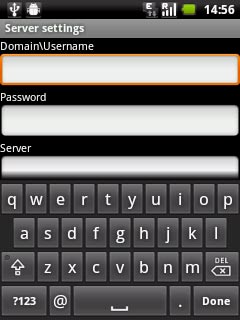

Enter domain name and username

Press the field below Domain\Username and key in the domain name and username separated by a "\".

Step 33 of 54

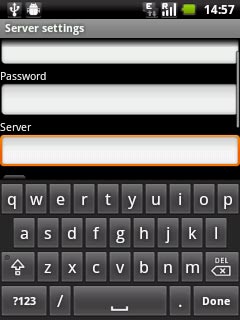

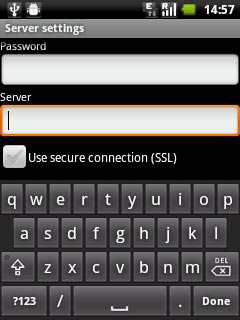

Enter server address

Press the field below Server and key in the server address.

Step 34 of 54

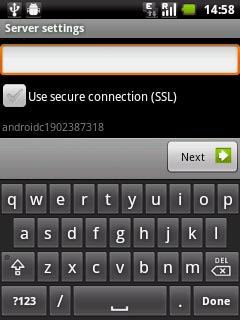

Activate or deactivate SSL encryption

Press Use secure connection (SSL) to activate or deactivate SSL encryption.

Step 35 of 54

Activate or deactivate SSL encryption

When the box next to the menu item is ticked (V), the function is activated.

Step 36 of 54

Activate or deactivate SSL encryption

Press Next.

Step 37 of 54

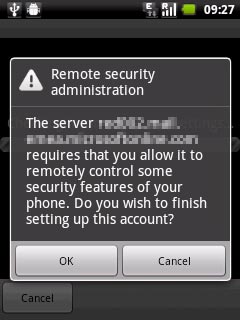

Activate or deactivate SSL encryption

Press OK to confirm.

Step 38 of 54

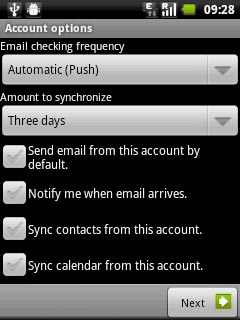

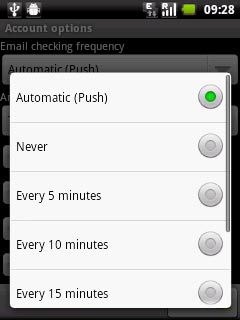

Select interval for synchronisation

Press Email checking frequency.

Step 39 of 54

Select interval for synchronisation

Press Automatic (Push), Never or the required frequency.
Please note:
The phone makes a call for which you will be charged every time the phone connects to the server to synchronise.

Step 40 of 54

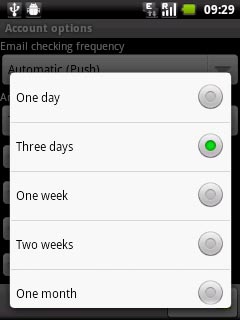

Select interval

Press Amount to synchronize.

Step 41 of 54

Select interval

Press the required setting.

Step 42 of 54

Select default email account

Press Send email from this account by default to activate or deactivate the function.

Step 43 of 54

Select default email account

When the box next to the menu item is ticked (V), the function is activated.

Step 44 of 54

Activate or deactivate email message notification

Press Notify me when email arrives to activate or deactivate the function.

Step 45 of 54

Activate or deactivate email message notification

When the box next to the menu item is ticked (V), the function is activated.

Step 46 of 54

Activate or deactivate automatic contacts synchronisation

Press Sync contacts from this account to activate or deactivate the function.

Step 47 of 54

Activate or deactivate automatic contacts synchronisation

When the box next to the menu item is ticked (V), the function is activated.

Step 48 of 54

Activate or deactivate automatic calendar synchronisation

Press Sync calendar from this account to activate or deactivate the function.

Step 49 of 54

Activate or deactivate automatic calendar synchronisation

When the box next to the menu item is ticked (V), the function is activated.

Step 50 of 54

Activate or deactivate automatic calendar synchronisation

Press Next.

Step 51 of 54

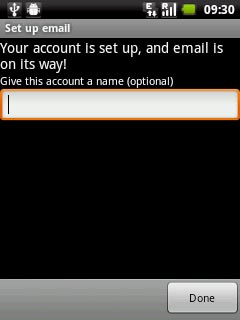

Enter account name

Press the field below Give this account a name (optional) and key in the required name of the email account.

Step 52 of 54

Enter account name

Press Done.

Step 53 of 54

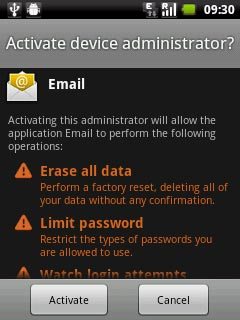

Finish setup

Press Activate.

Step 54 of 54

Exit

Press the Home key to return to standby mode.

Find "Access Point Names"

Press the menu icon.
Press Settings.
Press Wireless & network.
Press Mobile networks.
Press Access Point Names.

Create new data connection

Press the Menu key.
Press New APN.

Enter data connection name

Press Name.
Key in Vodafone Mail and press OK.

Enter APN

Press APN.
Key in live.vodafone.com
Press OK.

Enter country code

Press MCC.
Key in 272 and press OK.

Enter network code

Press MNC.
Key in 01 and press OK.

Select authentication type

Press Authentication type.
Press PAP.

Select APN type

Press APN type.
Key in default and press OK.

Save and activate data connection

Press the Menu key.
Press Save.
Press the field next to Vodafone Mail to fill in the field.
Press the Home key to return to standby mode.

Find "Corporate"

Press the menu icon.
Press Settings.
Press Accounts & sync.
Press Add account.
Press Corporate.

Enter email address

Press Email address and key in your email address.

Enter password

Press Password and key in the password.
Press Next.

Enter domain name and username

Press the field below Domain\Username and key in the domain name and username separated by a "\".

Enter server address

Press the field below Server and key in the server address.

Activate or deactivate SSL encryption

Press Use secure connection (SSL) to activate or deactivate SSL encryption.
When the box next to the menu item is ticked (V), the function is activated.
Press Next.
Press OK to confirm.

Select interval for synchronisation

Press Email checking frequency.
Press Automatic (Push), Never or the required frequency.
Please note:
The phone makes a call for which you will be charged every time the phone connects to the server to synchronise.

Select interval

Press Amount to synchronize.
Press the required setting.

Select default email account

Press Send email from this account by default to activate or deactivate the function.
When the box next to the menu item is ticked (V), the function is activated.

Activate or deactivate email message notification

Press Notify me when email arrives to activate or deactivate the function.
When the box next to the menu item is ticked (V), the function is activated.

Activate or deactivate automatic contacts synchronisation

Press Sync contacts from this account to activate or deactivate the function.
When the box next to the menu item is ticked (V), the function is activated.

Activate or deactivate automatic calendar synchronisation

Press Sync calendar from this account to activate or deactivate the function.
When the box next to the menu item is ticked (V), the function is activated.
Press Next.

Enter account name

Press the field below Give this account a name (optional) and key in the required name of the email account.
Press Done.

Finish setup

Press Activate.

Exit

Press the Home key to return to standby mode.
