1. Find "Access point names"
Slide two fingers downwards starting from the top of the screen.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-ce409a18-7d60-452d-8cb4-900f2f3ea610.png?width=208&height=416)
Press the settings icon.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-f0013c2d-fb4e-4ab0-abbe-58547da14758.png?width=208&height=416)
Press Network & Internet.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-47369a8c-31ca-4852-834b-b808e4124c29.png?width=208&height=416)
Press Mobile network.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-7954b979-0b37-4bc9-898f-a86f39d6ccec.png?width=208&height=416)
Press Access point names.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-8dc28bf1-33fa-4b32-9795-6496507f691e.png?width=208&height=416)
2. Create new data connection

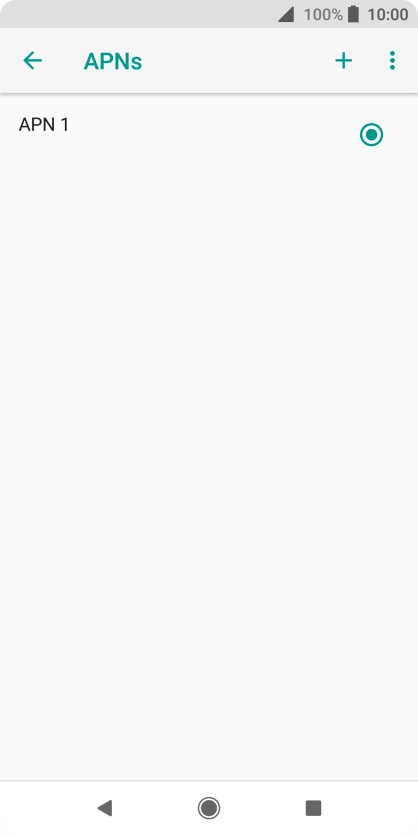

Press the new data connection icon.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-51862fad-4ed5-4550-a98f-e26756e9bd09.png?width=208&height=416)

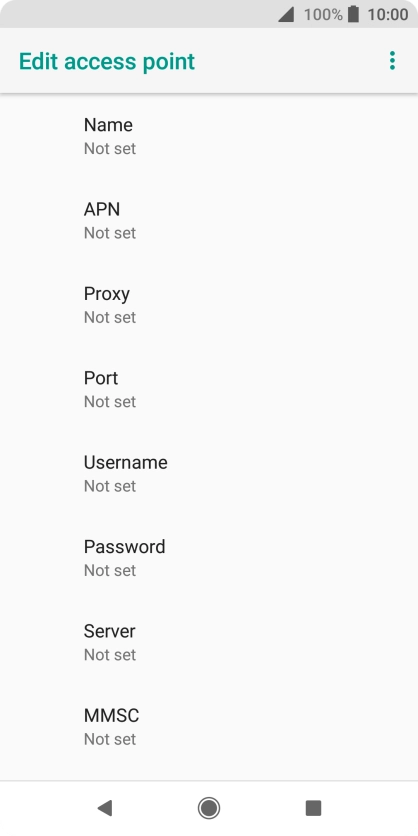

Press Name.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-c246f52f-1f47-46fe-a557-6a4042f064ef.png?width=208&height=416)
Key in Vodafone MMS and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-ce7058c4-42e3-4b2b-82ea-1fc0be9851cd.png?width=208&height=416)
Vodafone MMS
3. Enter APN
Press APN.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-c246f52f-1f47-46fe-a557-6a4042f064ef.png?width=208&height=416)

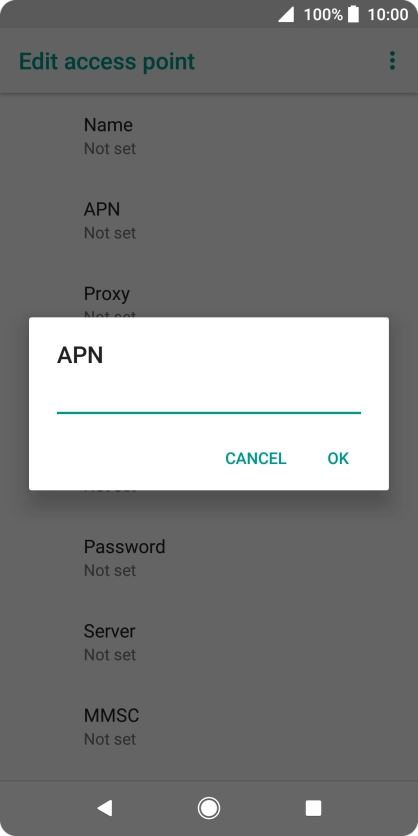

Key in mms.vodafone.net and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-bd019428-70a7-412f-b79a-0b8d4ddbe815.png?width=208&height=416)
mms.vodafone.net
4. Enter MMSC
Press MMSC.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-c246f52f-1f47-46fe-a557-6a4042f064ef.png?width=208&height=416)

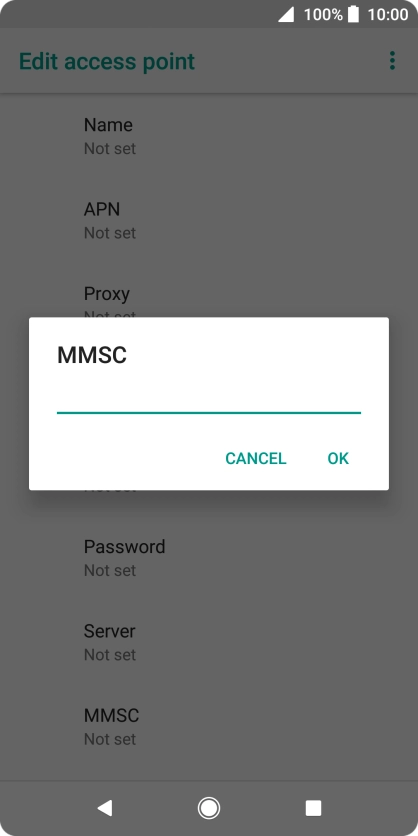

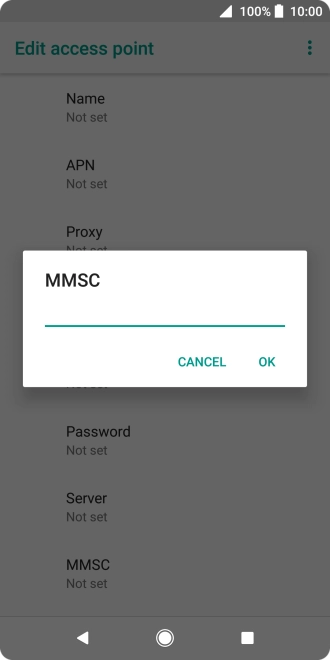

Key in http://www.vodafone.ie/mms and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-9e1a8017-cae1-4c2e-a368-4994e7b467f1.png?width=208&height=416)
http://www.vodafone.ie/mms
5. Enter IP address

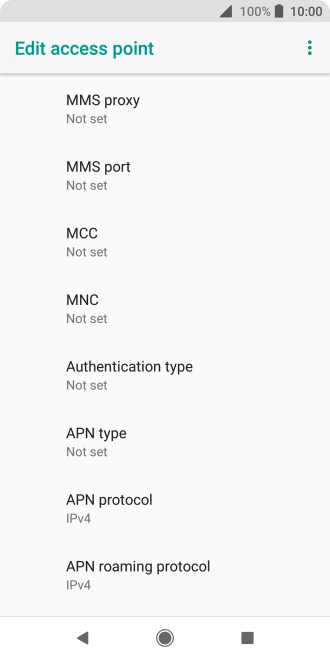

Press MMS proxy.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-512b5cfc-b53a-4e00-9b0b-cc15d4742b75.png?width=208&height=416)

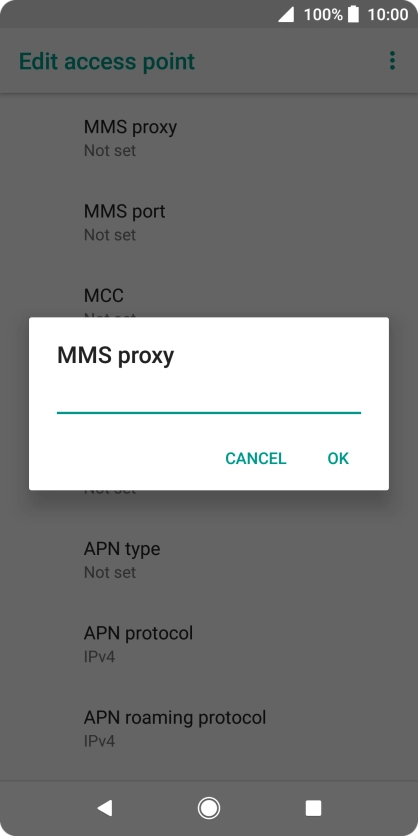

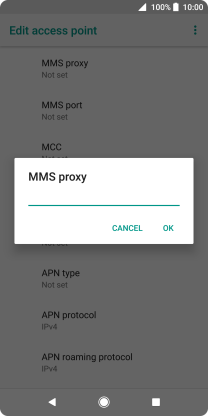

Key in 10.24.59.200 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-de9067c4-73bf-423a-803b-7141af10c346.png?width=208&height=416)
10.24.59.200
6. Enter port number
Press MMS port.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-512b5cfc-b53a-4e00-9b0b-cc15d4742b75.png?width=208&height=416)

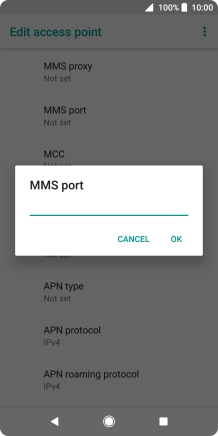

Key in 80 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-10760813-bc41-4547-8f2d-58eb3087b2c2.png?width=208&height=416)
80
7. Enter country code

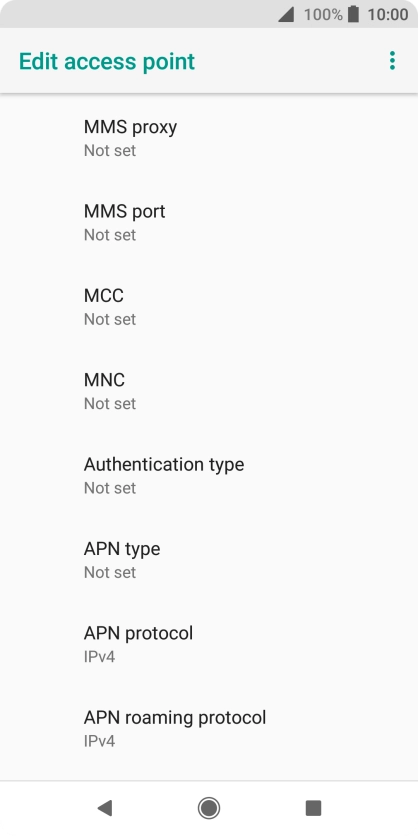

Press MCC.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-512b5cfc-b53a-4e00-9b0b-cc15d4742b75.png?width=208&height=416)
Key in 272 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-99739181-ab2c-4faa-a747-cb6bedd7521b.png?width=208&height=416)
272
8. Enter network code
Press MNC.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-512b5cfc-b53a-4e00-9b0b-cc15d4742b75.png?width=208&height=416)

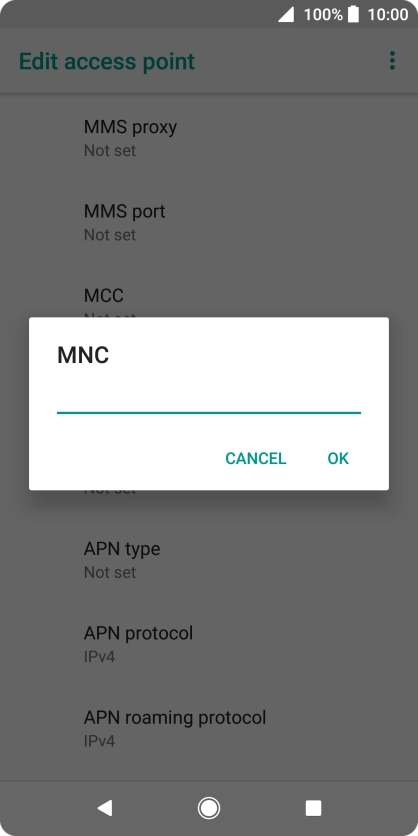

Key in 01 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-7fd34619-217c-4730-8fbc-bac56b4246fa.png?width=208&height=416)
01
9. Select authentication type

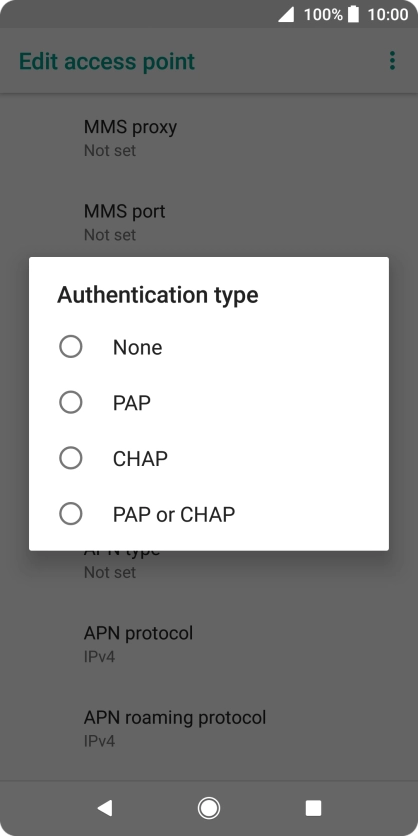

Press Authentication type.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-512b5cfc-b53a-4e00-9b0b-cc15d4742b75.png?width=208&height=416)
Press PAP.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-c69aa4f2-aa2e-4e6e-b510-cf4511c9ebb2.png?width=208&height=416)
10. Enter APN type
Press APN type.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-512b5cfc-b53a-4e00-9b0b-cc15d4742b75.png?width=208&height=416)

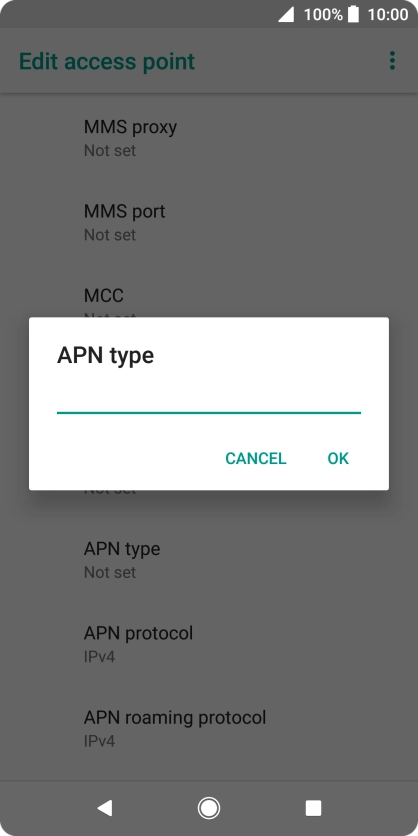

Key in mms and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-a5da90a0-70dc-40eb-bf17-e00c11d50c70.png?width=208&height=416)
mms
11. Save data connection
Press the menu icon.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-512b5cfc-b53a-4e00-9b0b-cc15d4742b75.png?width=208&height=416)

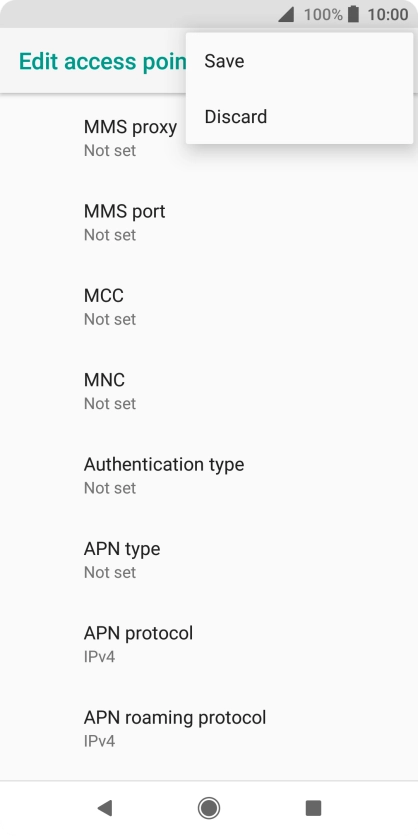

Press Save.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-b5e93077-586a-42b4-b40d-9bff4fa34698.png?width=208&height=416)
12. Return to the home screen

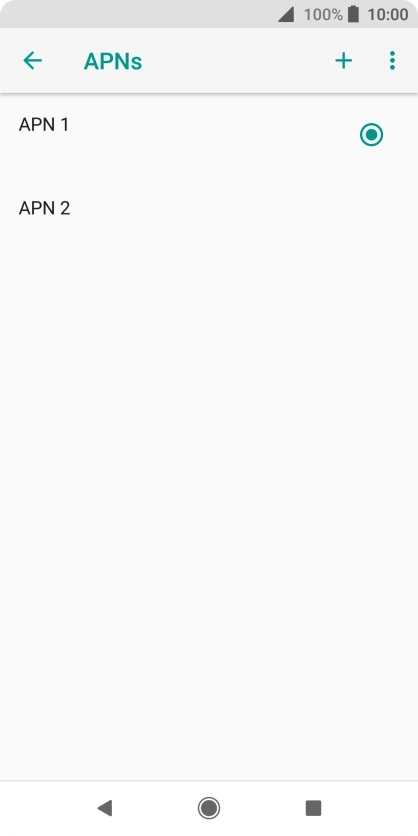

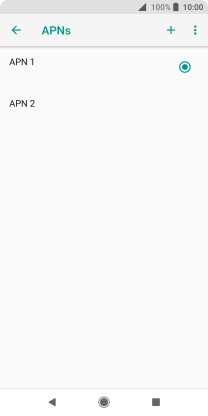

Press the Home key to return to the home screen.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-22cbd627-9eae-4d66-92ab-bb3d1c610f3a.png?width=208&height=416)
