1. Find "Access point names"

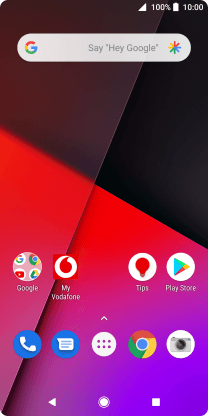

Slide two fingers downwards starting from the top of the screen.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-ce409a18-7d60-452d-8cb4-900f2f3ea610.png?width=208&height=416)

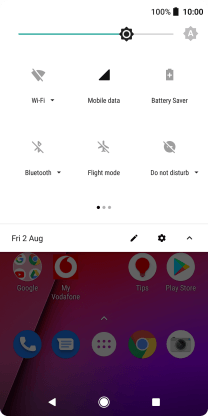

Press the settings icon.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-f0013c2d-fb4e-4ab0-abbe-58547da14758.png?width=208&height=416)

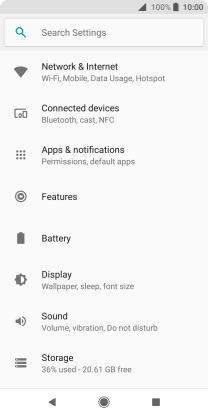

Press Network & Internet.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-47369a8c-31ca-4852-834b-b808e4124c29.png?width=208&height=416)

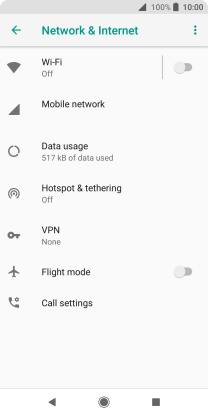

Press Mobile network.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-7954b979-0b37-4bc9-898f-a86f39d6ccec.png?width=208&height=416)

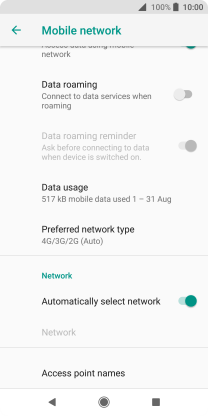

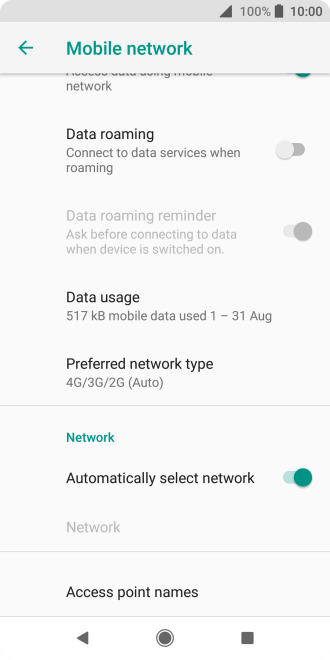

Press Access point names.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-8dc28bf1-33fa-4b32-9795-6496507f691e.png?width=208&height=416)
2. Create new data connection

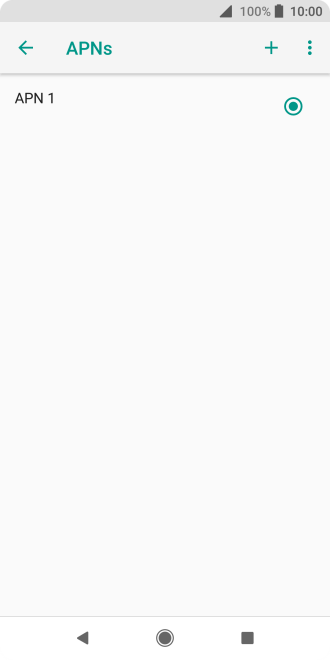

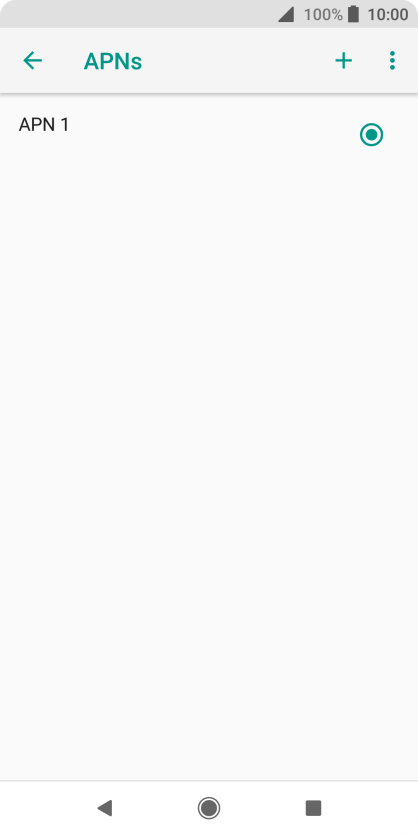

Press the new data connection icon.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-51862fad-4ed5-4550-a98f-e26756e9bd09.png?width=208&height=416)

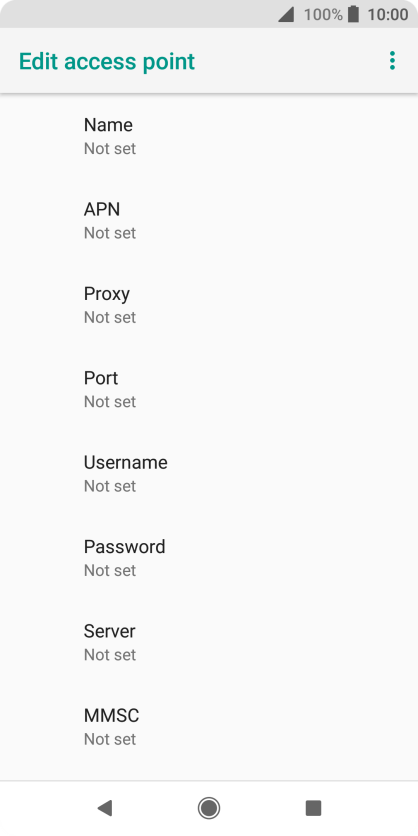

Press Name.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-c246f52f-1f47-46fe-a557-6a4042f064ef.png?width=208&height=416)

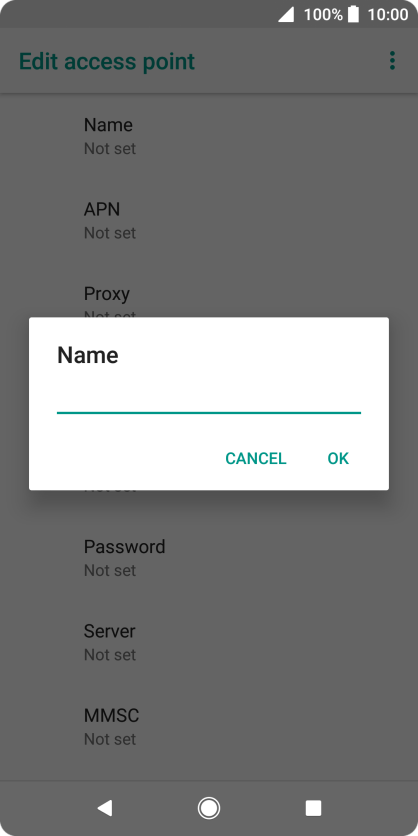

Key in Vodafone Internet and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-ce7058c4-42e3-4b2b-82ea-1fc0be9851cd.png?width=208&height=416)
Vodafone Internet
3. Enter APN
Press APN.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-c246f52f-1f47-46fe-a557-6a4042f064ef.png?width=208&height=416)

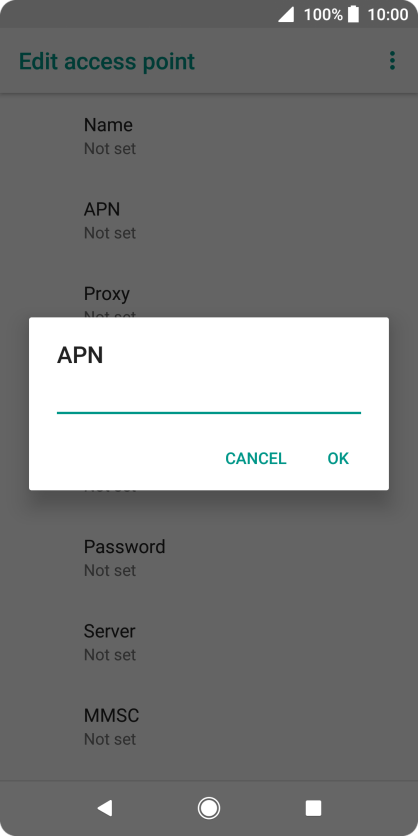

Key in live.vodafone.com and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-bd019428-70a7-412f-b79a-0b8d4ddbe815.png?width=208&height=416)
live.vodafone.com
4. Enter country code

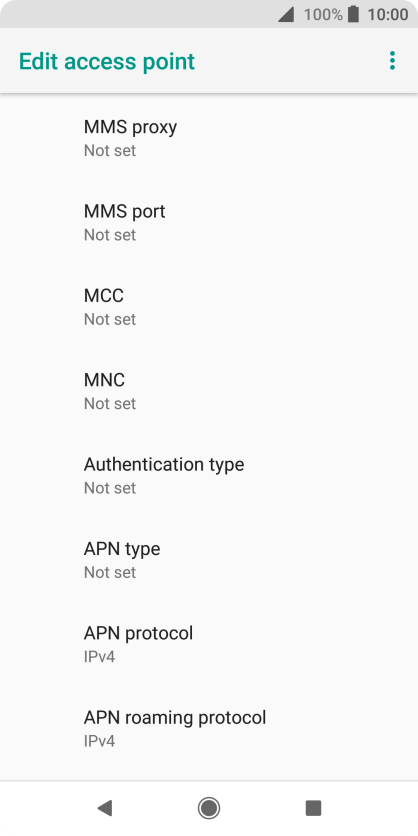

Press MCC.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-512b5cfc-b53a-4e00-9b0b-cc15d4742b75.png?width=208&height=416)

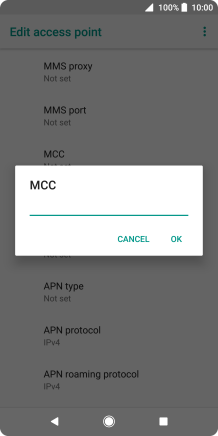

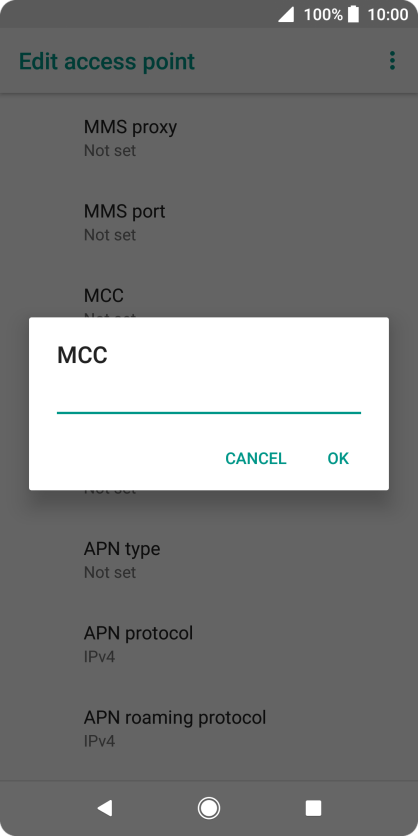

Key in 272 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-99739181-ab2c-4faa-a747-cb6bedd7521b.png?width=208&height=416)
272
5. Enter network code
Press MNC.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-512b5cfc-b53a-4e00-9b0b-cc15d4742b75.png?width=208&height=416)
Key in 01 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-7fd34619-217c-4730-8fbc-bac56b4246fa.png?width=208&height=416)
01
6. Select authentication type
Press Authentication type.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-512b5cfc-b53a-4e00-9b0b-cc15d4742b75.png?width=208&height=416)

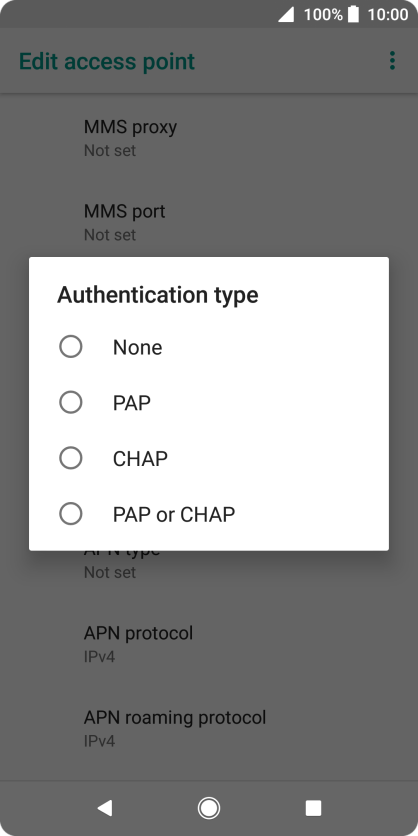

Press PAP.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-c69aa4f2-aa2e-4e6e-b510-cf4511c9ebb2.png?width=208&height=416)
7. Enter APN type
Press APN type.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-512b5cfc-b53a-4e00-9b0b-cc15d4742b75.png?width=208&height=416)

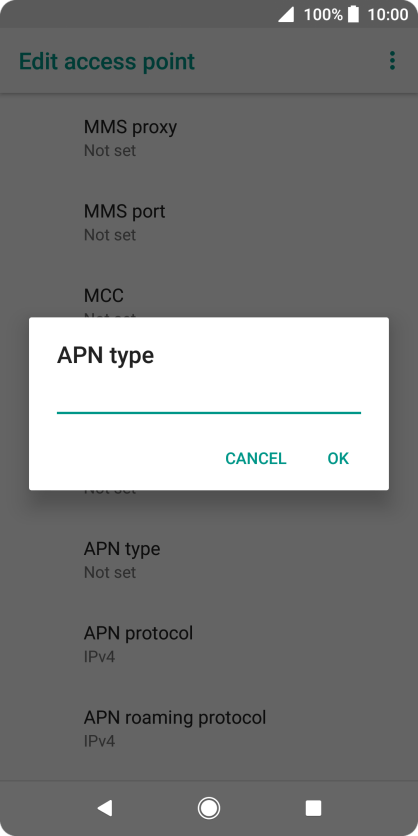

Key in default and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-a5da90a0-70dc-40eb-bf17-e00c11d50c70.png?width=208&height=416)
default
8. Save data connection
Press the menu icon.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-512b5cfc-b53a-4e00-9b0b-cc15d4742b75.png?width=208&height=416)

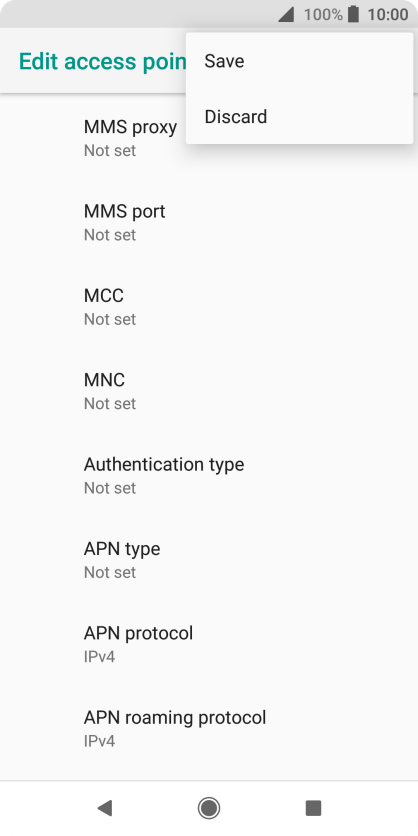

Press Save.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-b5e93077-586a-42b4-b40d-9bff4fa34698.png?width=208&height=416)

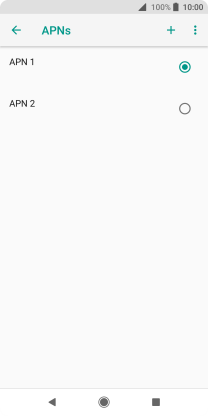

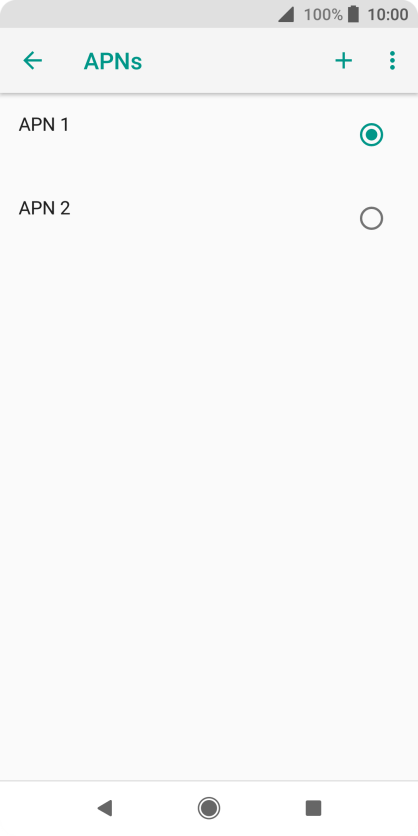

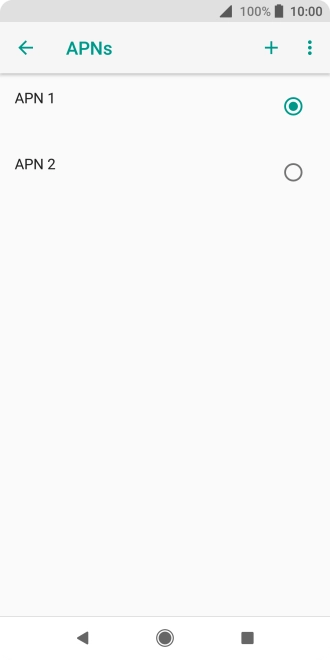

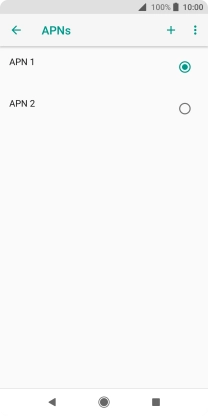

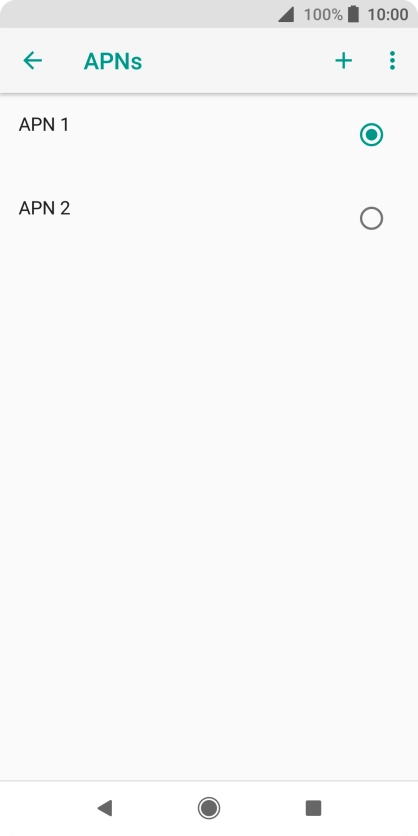

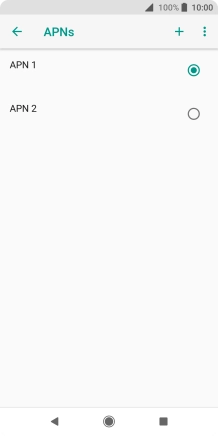

Press the field next to the data connection to activate it.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-b12e6edf-ea31-4764-8b88-6e9a109583b0.png?width=208&height=416)
9. Return to the home screen

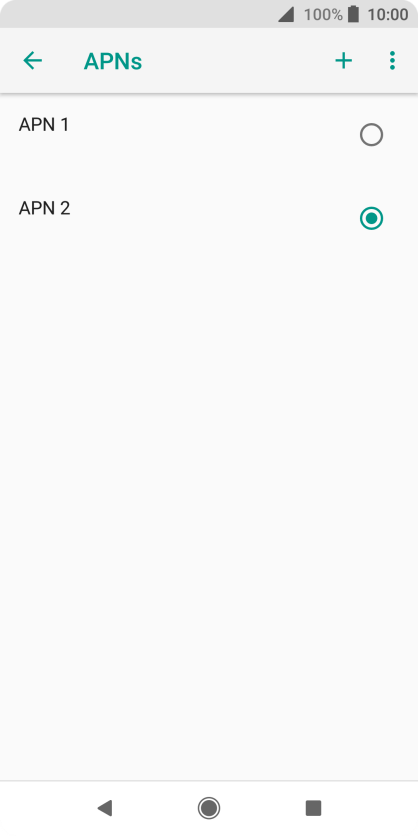

Press the Home key to return to the home screen.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-49d9ff94-2293-4476-aeab-cecf1d5b1495.png?width=208&height=416)
