1. Find "Access Point Names"
Slide your finger downwards starting from the top of the screen.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-be836463-f469-48c5-acf4-7320a9682983.png?width=208&height=372)

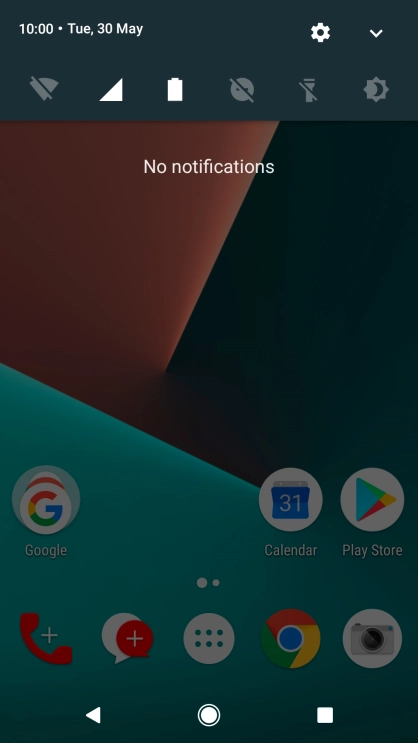

Press the settings icon.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-3e66e467-d56a-42ff-930c-3129d9b372a5.png?width=208&height=372)

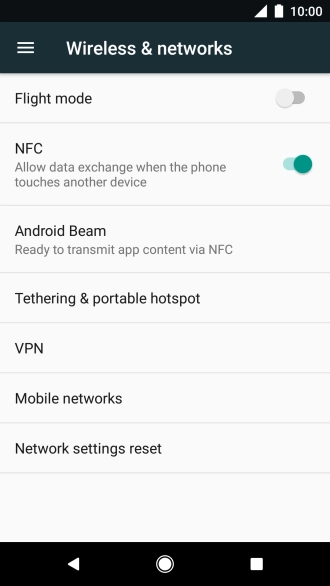

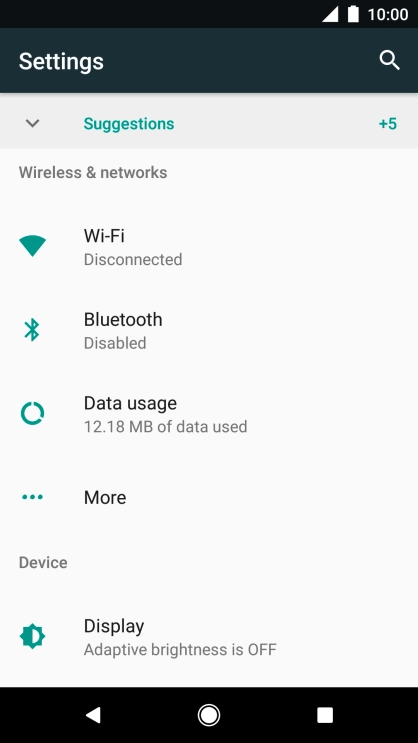

Press More.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-881626df-99cf-479f-ae16-b34c8aefc4eb.png?width=208&height=372)

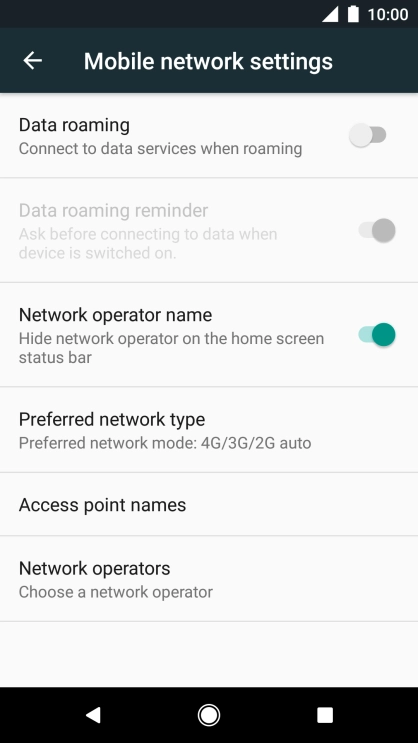

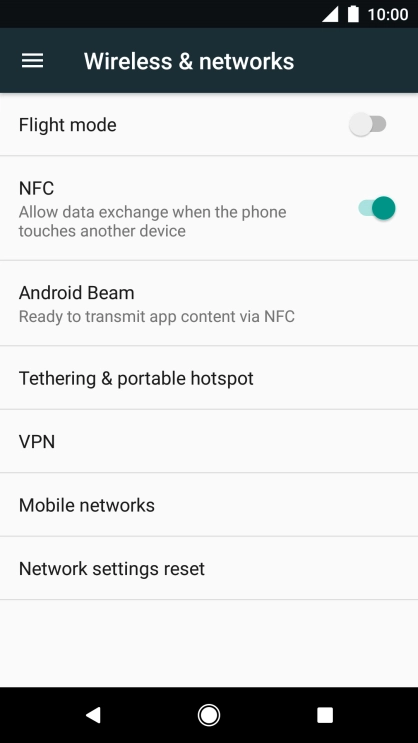

Press Mobile networks.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-8c0f91f0-9136-48dc-a2b5-ddc6b8da42ec.png?width=208&height=372)

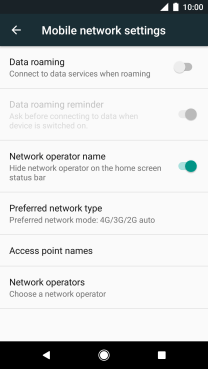

Press Access Point Names.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-4f60e55b-112a-4e2e-9b27-0f33aa82cfe7.png?width=208&height=372)
2. Create new data connection

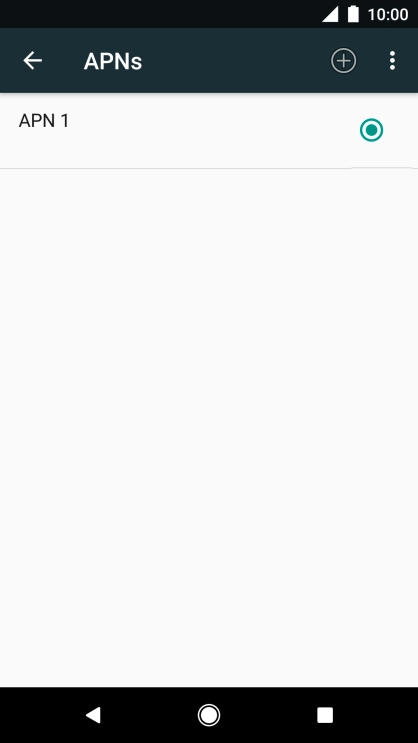

Press the new data connection icon.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-ad705a73-dacf-4399-9766-8265beb7aff6.png?width=208&height=372)

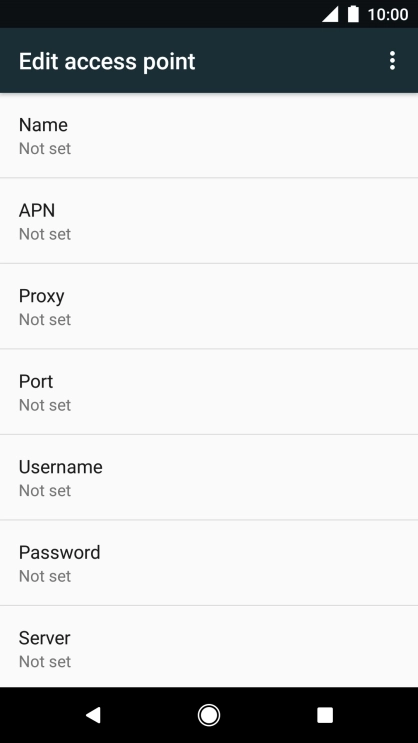

Press Name.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-69dadc13-edce-4976-8205-78190c973ef3.png?width=208&height=372)

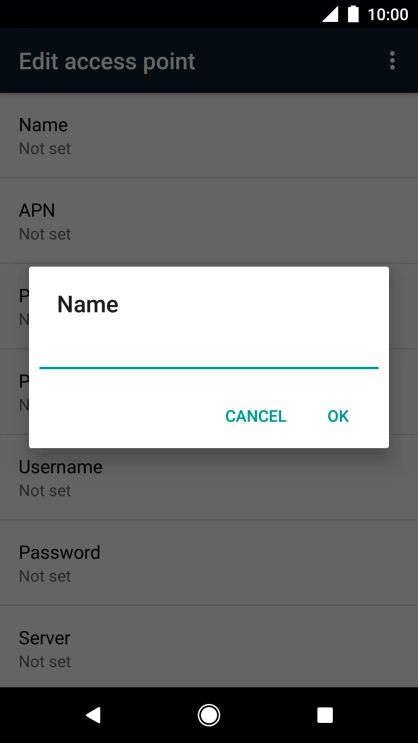

Key in Vodafone Internet and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-bbd6de50-520e-4127-b58a-41e6be494f45.png?width=208&height=372)
Vodafone Internet
3. Enter APN
Press APN.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-69dadc13-edce-4976-8205-78190c973ef3.png?width=208&height=372)

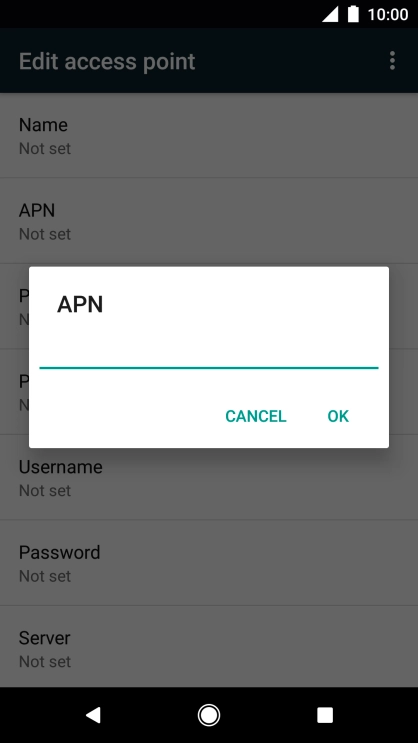

Key in live.vodafone.com and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-63821fe6-c1f6-440c-95d6-d4e6f39573e7.png?width=208&height=372)
live.vodafone.com
4. Enter country code

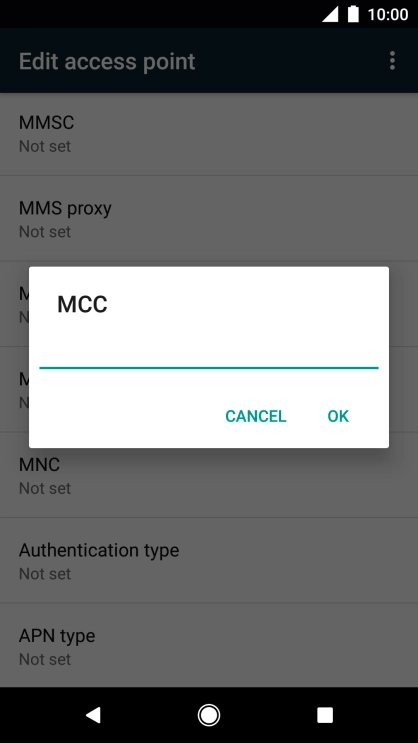

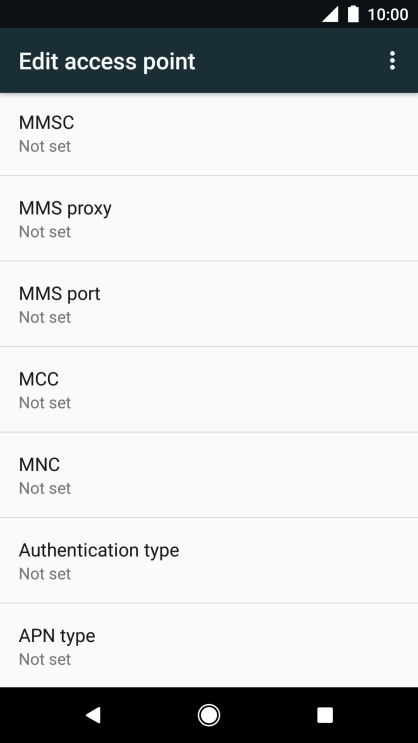

Press MCC.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-14b585ea-3089-4217-8a55-81c9b0716d85.png?width=208&height=372)
Key in 272 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-5de856b0-fa53-44fb-9d00-b3d70cbeea5b.png?width=208&height=372)
272
5. Enter network code
Press MNC.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-14b585ea-3089-4217-8a55-81c9b0716d85.png?width=208&height=372)
Key in 01 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-60798c48-928d-4d1b-9028-577df43cef29.png?width=208&height=372)
01
6. Select authentication type

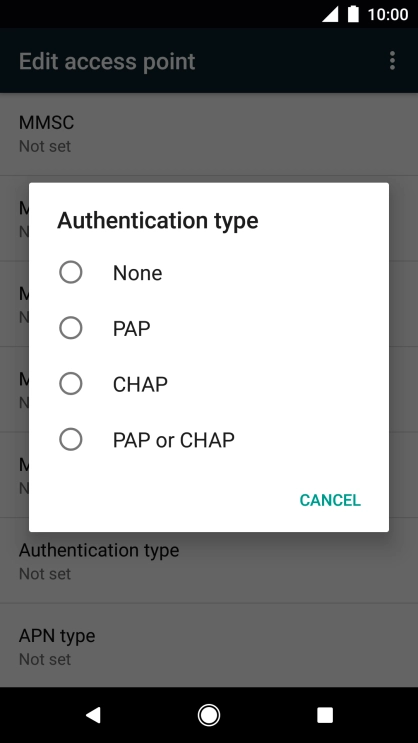

Press Authentication type.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-14b585ea-3089-4217-8a55-81c9b0716d85.png?width=208&height=372)
Press PAP.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-1d86ddd3-015d-4473-9e20-0f80e5c94cf2.png?width=208&height=372)
7. Select APN type

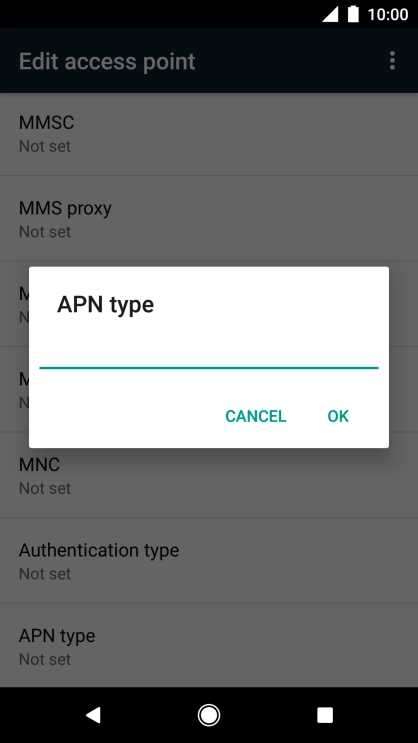

Press APN type.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-14b585ea-3089-4217-8a55-81c9b0716d85.png?width=208&height=372)
Key in default and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-c0fb045b-cb14-47ad-b4d6-69129ed41eb9.png?width=208&height=372)
default
8. Save data connection

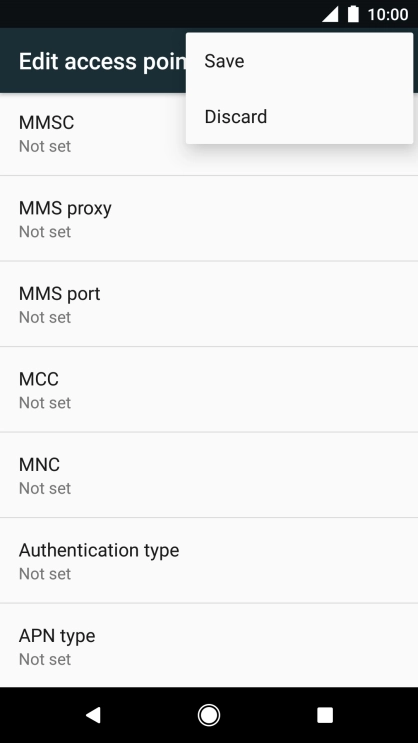

Press the menu icon.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-14b585ea-3089-4217-8a55-81c9b0716d85.png?width=208&height=372)
Press Save.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-5fe5d435-5b36-4d0d-aceb-4307386a2f87.png?width=208&height=372)

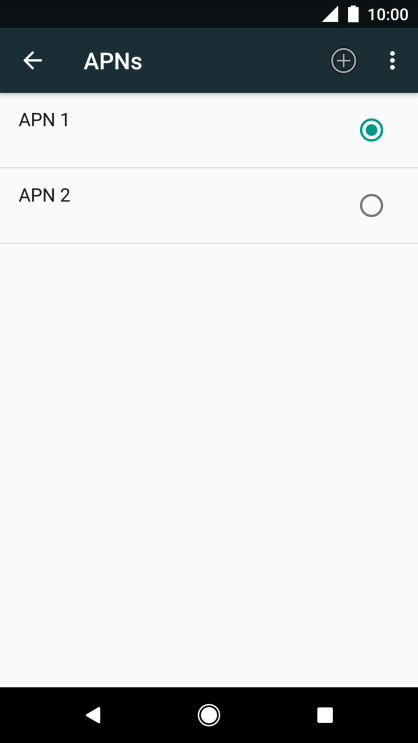

Press the field next to the data connection to activate it.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-d8c8e808-6c98-4ec1-a312-3fc4bb71ed5d.png?width=208&height=372)
9. Return to the home screen

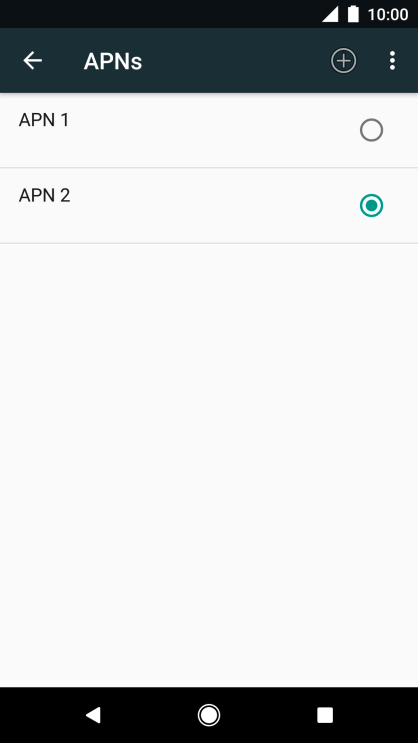

Press the Home key to return to the home screen.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-377f772b-57ec-4a68-81ac-383cde27b5ca.png?width=208&height=372)
