Set up your Vodafone Smart turbo 7 Android 6.0 for internet

Read help info

The internet connection is shared by many functions on your phone such as internet browsing, receiving email messages and installing apps. You can access the internet as soon as you've inserted your SIM. If this isn't the case, you can set up your phone for internet manually.

Step 1 of 23

1. Find "Access Point Names"

Slide two fingers downwards starting from the top the screen.

Step 2 of 23

1. Find "Access Point Names"

Press the settings icon.

Step 3 of 23

1. Find "Access Point Names"

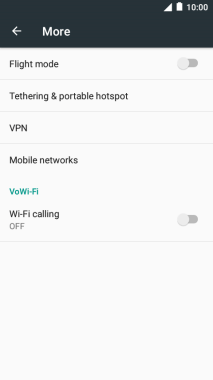

Press More.

Step 4 of 23

1. Find "Access Point Names"

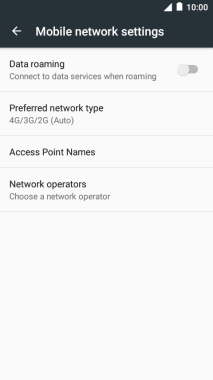

Press Mobile networks.

Step 5 of 23

1. Find "Access Point Names"

Press Access Point Names.

Step 6 of 23

2. Create new data connection

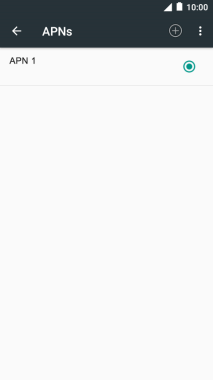

Press the new data connection icon.

Step 7 of 23

2. Create new data connection

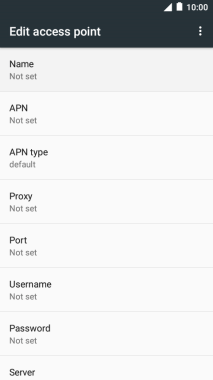

Press Name.

Vodafone Internet
Step 8 of 23

2. Create new data connection

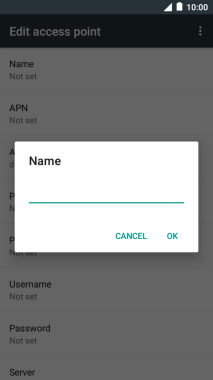

Key in Vodafone Internet and press OK.

Step 9 of 23

3. Enter APN

Press APN.

live.vodafone.com
Step 10 of 23

3. Enter APN

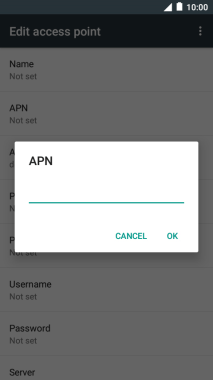

Key in live.vodafone.com and press OK.

Step 11 of 23

4. Select APN type

Press APN type.

Step 12 of 23

4. Select APN type

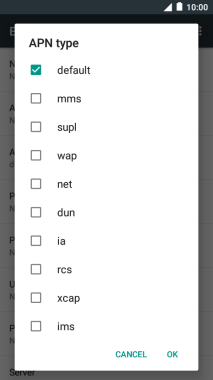

Make sure only default is selected.

Step 13 of 23

4. Select APN type

Press OK.

Step 14 of 23

5. Enter country code

Press MCC.

272
Step 15 of 23

5. Enter country code

Key in 272 and press OK.

Step 16 of 23

6. Enter network code

Press MNC.

01
Step 17 of 23

6. Enter network code

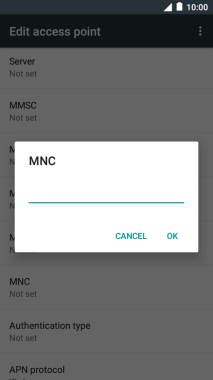

Key in 01 and press OK.

Step 18 of 23

7. Select authentication type

Press Authentication type.

Step 19 of 23

7. Select authentication type

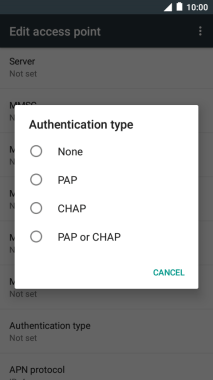

Press PAP.

Step 20 of 23

8. Save data connection

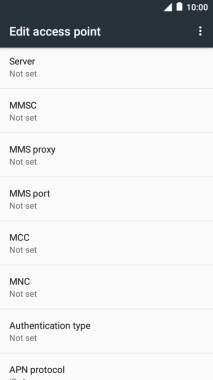

Press the menu icon.

Step 21 of 23

8. Save data connection

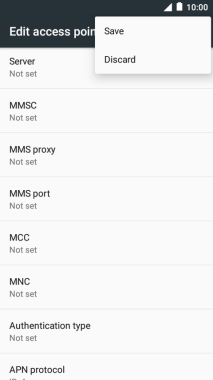

Press Save.

Step 22 of 23

8. Save data connection

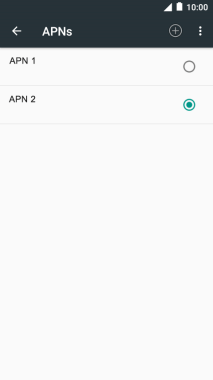

Press the field next to the data connection to activate it.

Step 23 of 23

9. Return to the home screen

Press the Home key to return to the home screen.

1. Find "Access Point Names"

Slide two fingers downwards starting from the top the screen.
Press the settings icon.
Press More.
Press Mobile networks.
Press Access Point Names.

2. Create new data connection

Press the new data connection icon.
Press Name.
Key in Vodafone Internet and press OK.
Vodafone Internet

3. Enter APN

Press APN.
Key in live.vodafone.com and press OK.
live.vodafone.com

4. Select APN type

Press APN type.
Make sure only default is selected.
Press OK.

5. Enter country code

Press MCC.
Key in 272 and press OK.
272

6. Enter network code

Press MNC.
Key in 01 and press OK.
01

7. Select authentication type

Press Authentication type.
Press PAP.

8. Save data connection

Press the menu icon.
Press Save.
Press the field next to the data connection to activate it.

9. Return to the home screen

Press the Home key to return to the home screen.
