Vodafone Smart Tab 4 8.0

Find "Access Point Names"

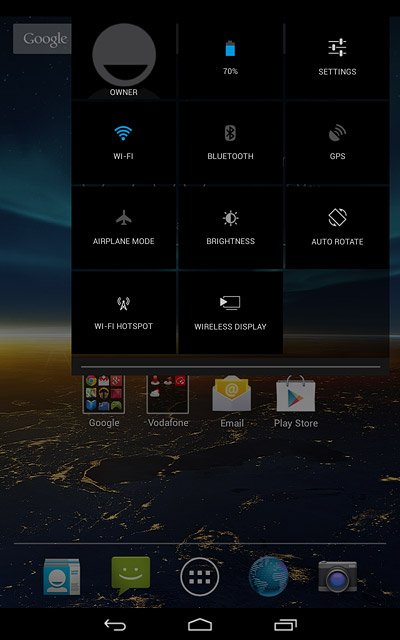

Slide your finger downwards starting from the top right side of the display.
Press SETTINGS.

Find "Access Point Names"

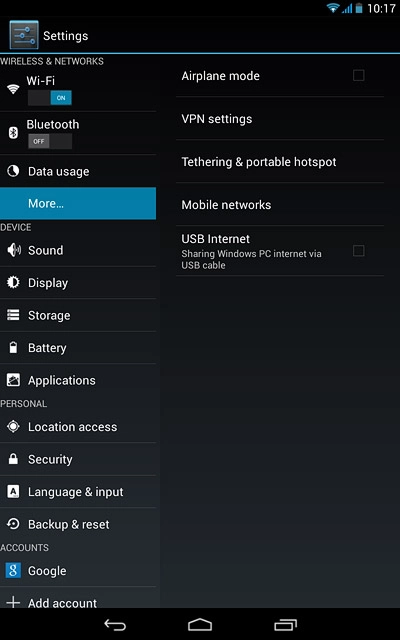

Press More....

Find "Access Point Names"

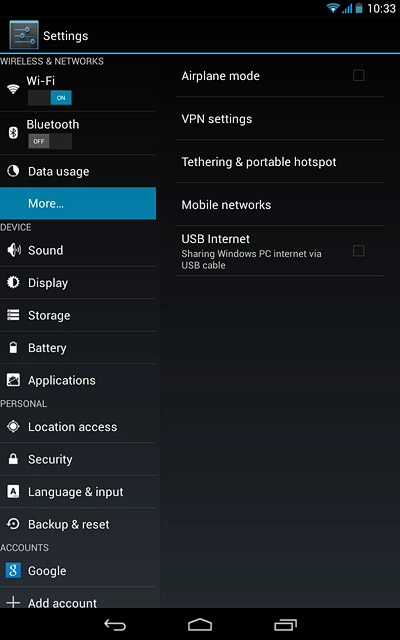

Press Mobile networks.

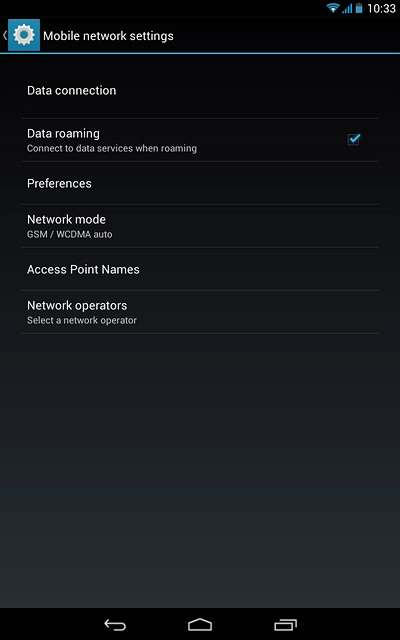

Find "Access Point Names"

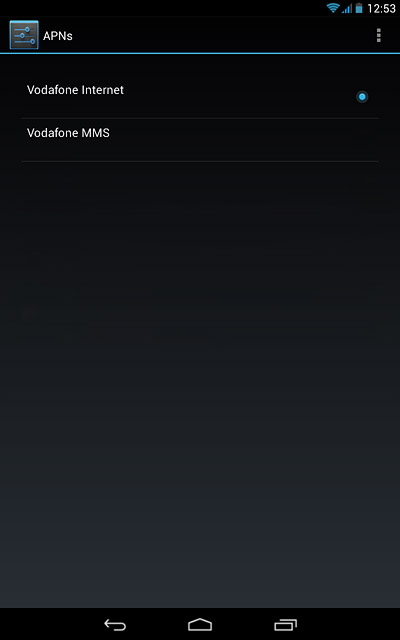

Press Access Point Names.

Create new data connection

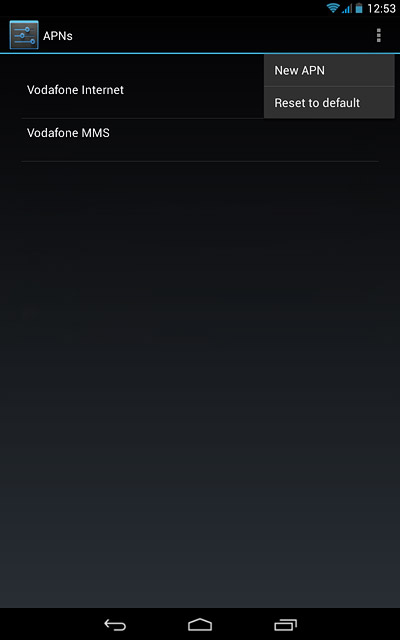

Press the menu icon.

Create new data connection

Press New APN.

Enter data connection name

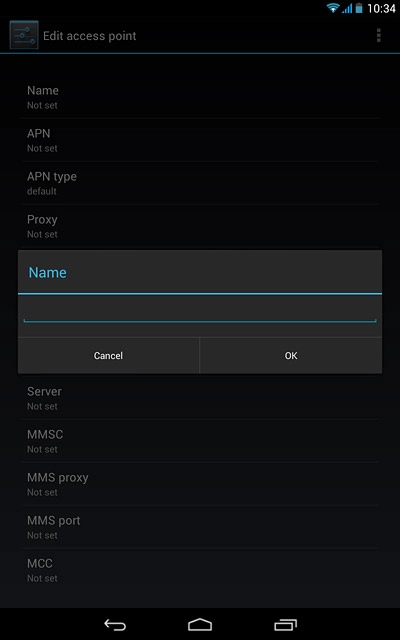

Press Name.

Enter data connection name

Key in Vodafone MMS and press OK.

Enter APN

Press APN.

Enter APN

Key in mms.vodafone.net and press OK.

Select APN type

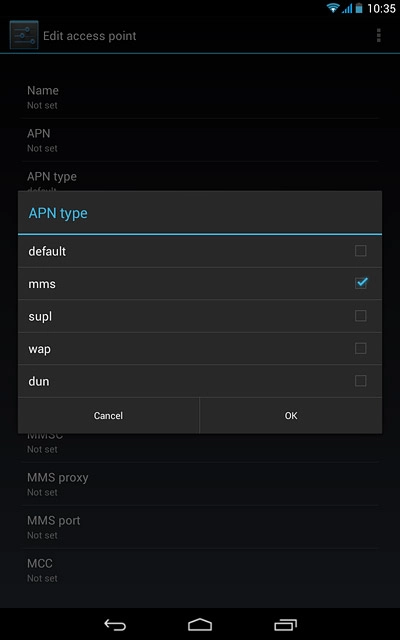

Press APN type.

Select APN type

Press mms until the APN type has been selected.

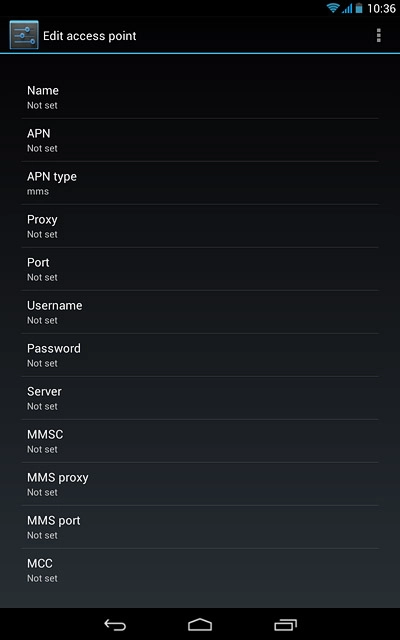

Select APN type

Press OK.

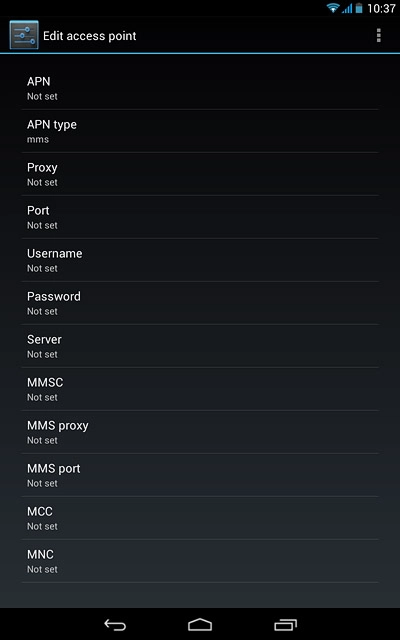

Enter picture messaging server

Press MMSC.

Enter picture messaging server

Key in http://www.vodafone.ie/mms and press OK.

Enter IP address

Press MMS proxy.

Enter IP address

Key in 10.24.59.200 and press OK.

Enter port number

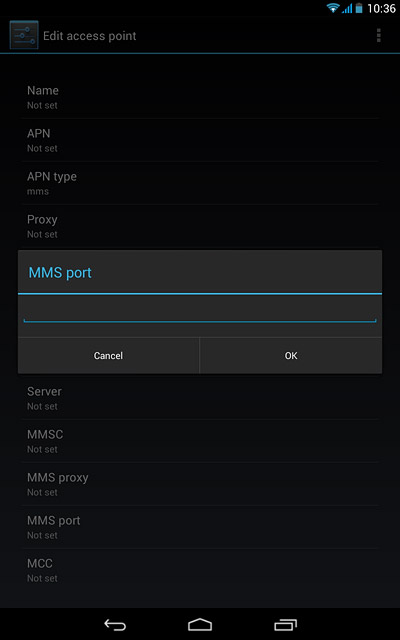

Press MMS port.

Enter port number

Key in 80 and press OK.

Enter country code

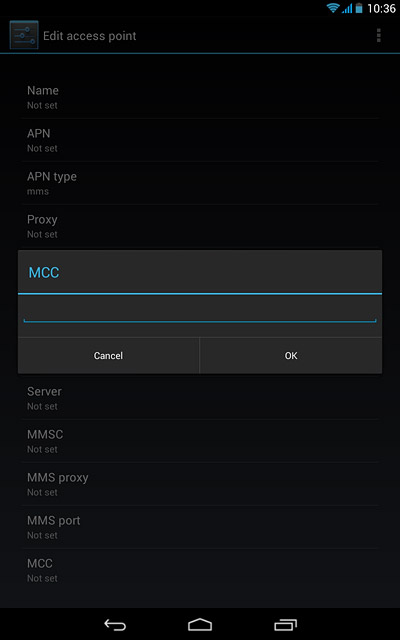

Press MCC.

Enter country code

Key in 272 and press OK.

Enter network code

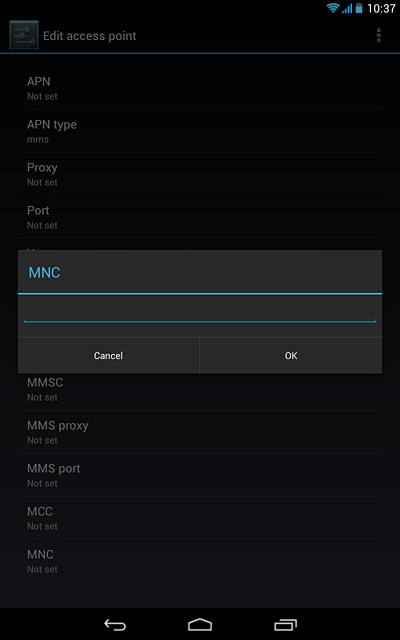

Press MNC.

Enter network code

Key in 01 and press OK.

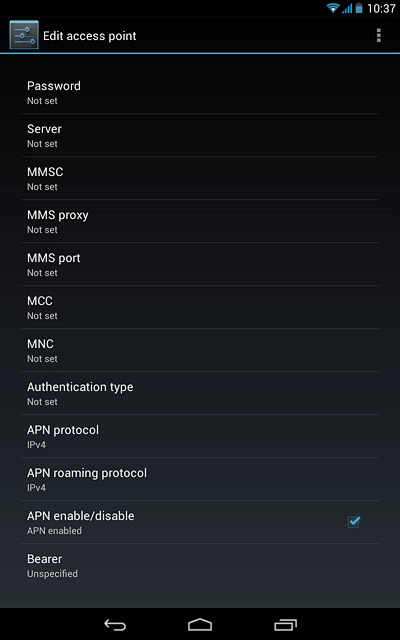

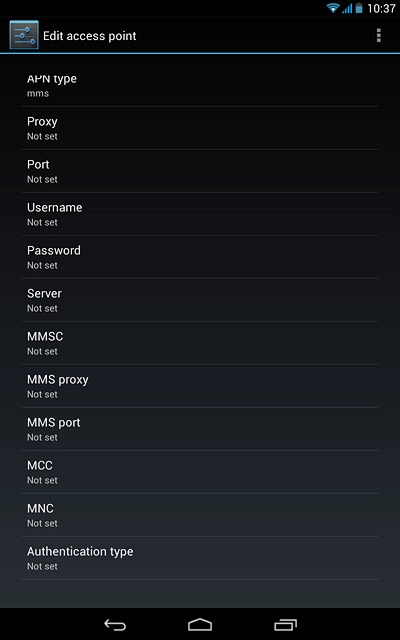

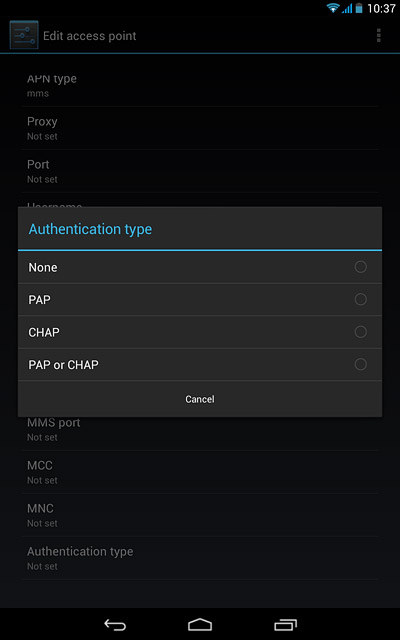

Select authentication type

Press Authentication type.

Select authentication type

Press PAP.

Select data bearer

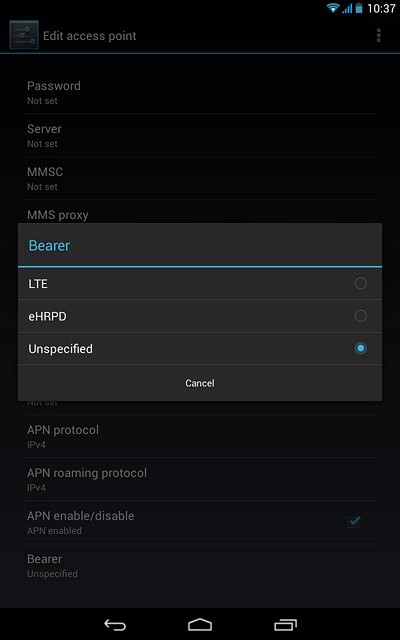

Press Bearer.

Select data bearer

Press Unspecified.

Save data connection

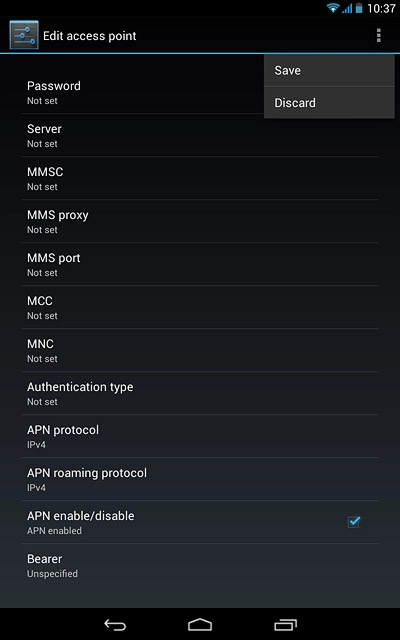

Press the menu icon.

Save data connection

Press Save.

Return to the home screen

Press the home icon to return to the home screen.
