1. Find "Access point names"
Slide two fingers downwards starting from the top the screen.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-9dcfd406-83cd-4634-8bfe-363ac3a80acb.png?width=204&height=362)
Press the settings icon.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-92144ebe-2e0d-49e9-97b7-2ed154711151.png?width=204&height=362)

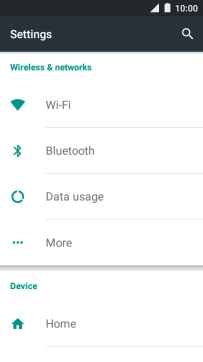

Press More.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-4e4420b1-05d0-48f8-bed8-66899d0f5dcd.png?width=204&height=362)

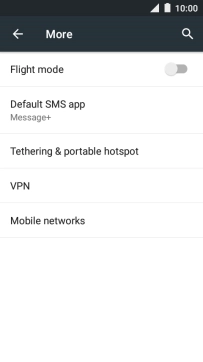

Press Mobile networks.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-b1eaf124-f578-4f32-b417-b3ab18e3abc5.png?width=204&height=362)

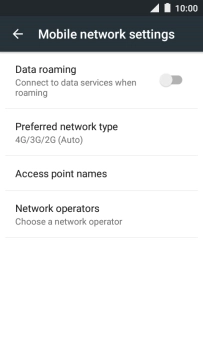

Press Access point names.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-1a040633-0213-4aeb-a00d-a3e0fd9ab313.png?width=204&height=362)
2. Create new data connection

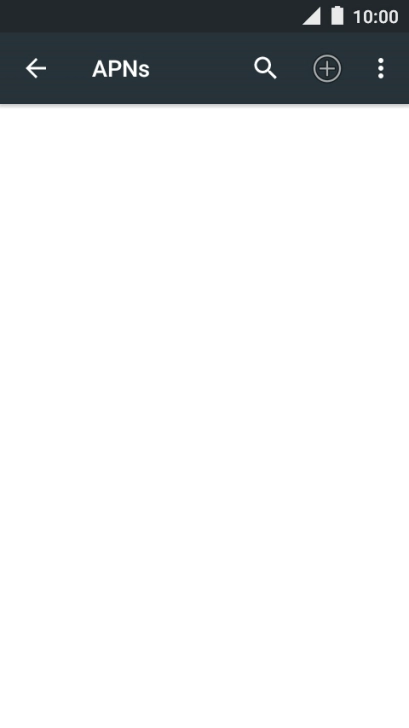

Press the new data connection icon.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-002b479e-f82b-43bd-a965-cdb52e124b91.png?width=204&height=362)

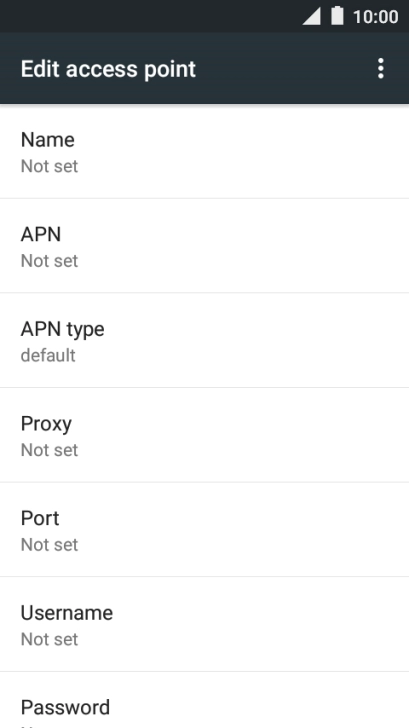

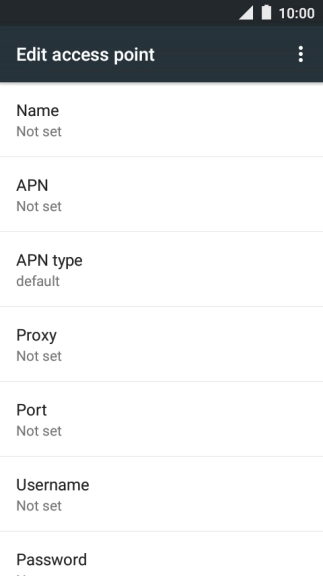

Press Name.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-b63508b9-50f1-4f7c-a610-6a49ca7ae175.png?width=204&height=362)
Key in Vodafone MMS and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-5b09a0dc-d907-4b2e-9044-10faae7258e3.png?width=204&height=362)
Vodafone MMS
3. Enter APN
Press APN.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-b63508b9-50f1-4f7c-a610-6a49ca7ae175.png?width=204&height=362)

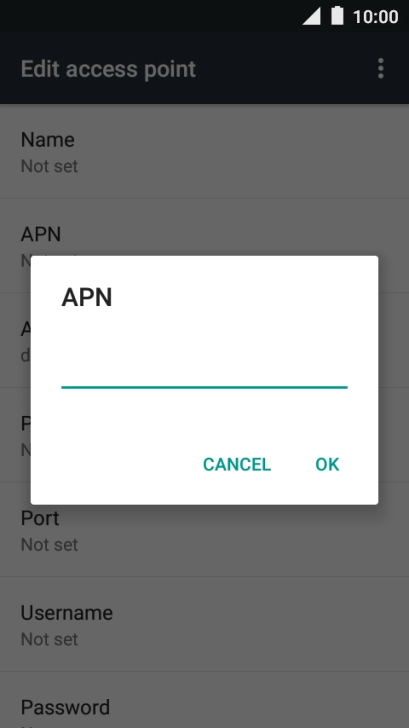

Key in mms.vodafone.net and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-ab4870db-1a76-4160-a6a9-cebd97321ffb.png?width=204&height=362)
mms.vodafone.net
4. Enter MMSC

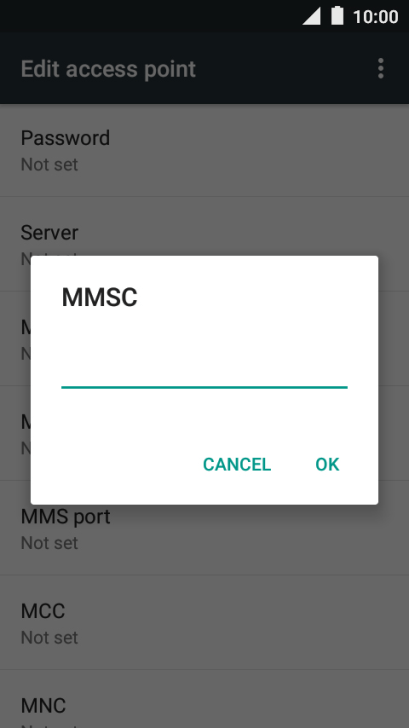

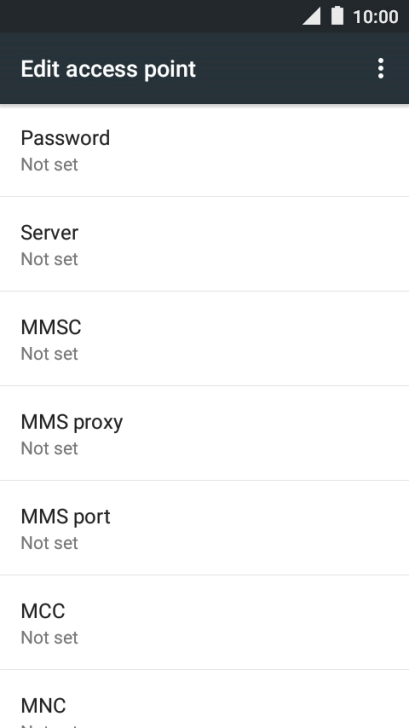

Press MMSC.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-f03ee24f-7d6e-4cd7-a96b-8c0c928ab8d4.png?width=204&height=362)
Key in http://www.vodafone.ie/mms and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-06f3cded-f7da-4aff-a294-005dab71949b.png?width=204&height=362)
http://www.vodafone.ie/mms
5. Enter IP address

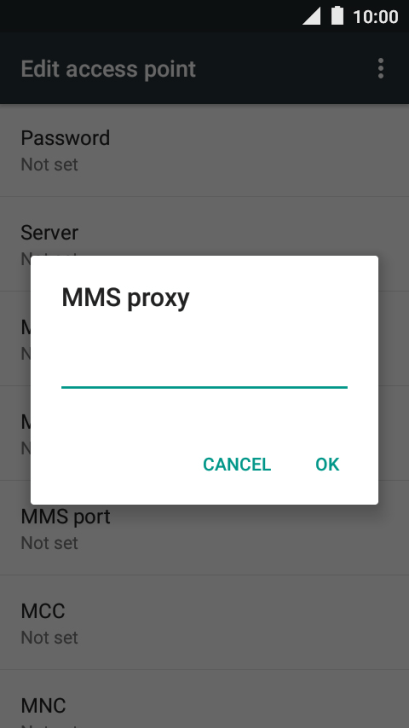

Press MMS proxy.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-f03ee24f-7d6e-4cd7-a96b-8c0c928ab8d4.png?width=204&height=362)

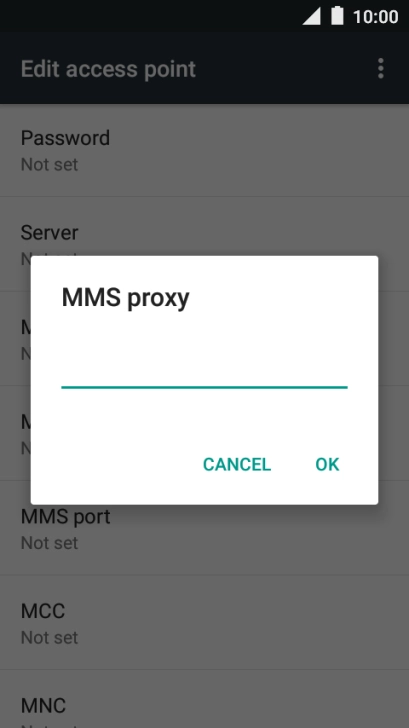

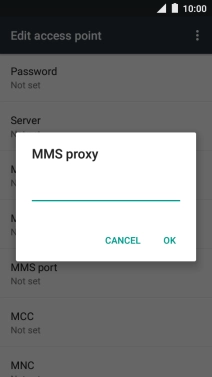

Key in 10.24.59.200 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-71cdebfe-4f11-4428-8767-eb3b5c3d54e5.png?width=204&height=362)
10.24.59.200
6. Enter port number
Press MMS port.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-f03ee24f-7d6e-4cd7-a96b-8c0c928ab8d4.png?width=204&height=362)
Key in 80 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-77ae5f00-4aef-4535-9f7a-f14f99d0f872.png?width=204&height=362)
80
7. Enter country code
Press MCC.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-f03ee24f-7d6e-4cd7-a96b-8c0c928ab8d4.png?width=204&height=362)

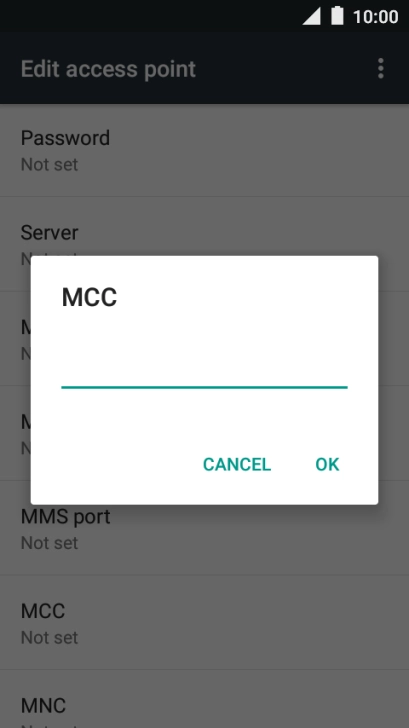

Key in 272 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-901b6b5d-df8d-43d6-a685-89b0ef148241.png?width=204&height=362)
272
8. Enter network code
Press MNC.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-f03ee24f-7d6e-4cd7-a96b-8c0c928ab8d4.png?width=204&height=362)

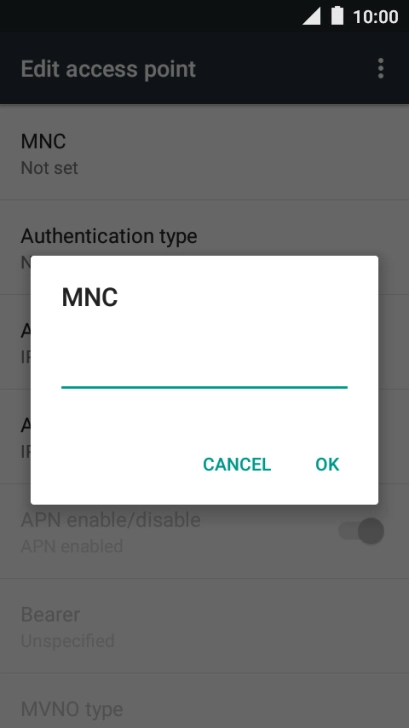

Key in 01 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-b7bf8915-b1d6-4caa-a1d3-82a53bf67ef8.png?width=204&height=362)
01
9. Select authentication type

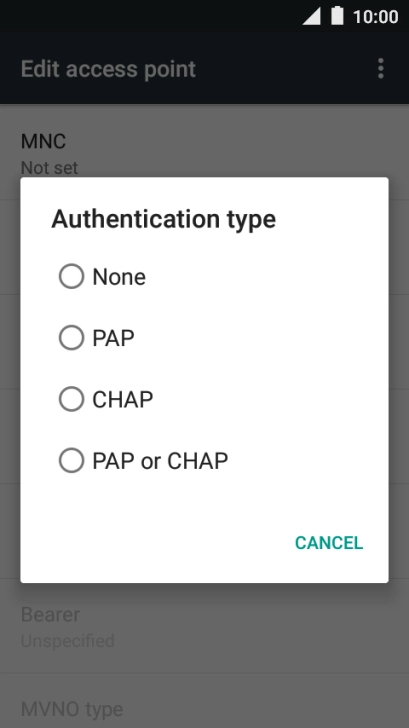

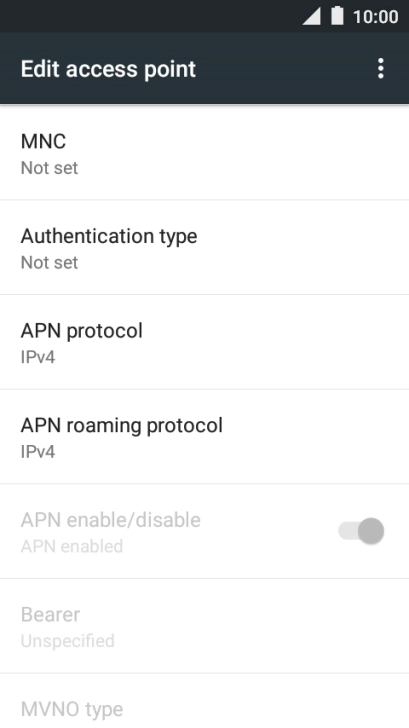

Press Authentication type.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-21f32280-1716-4bd0-8878-1a85db31112d.png?width=204&height=362)
Press PAP.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-f7bbc04a-ba3d-4549-b542-8712f370630a.png?width=204&height=362)
10. Select APN type

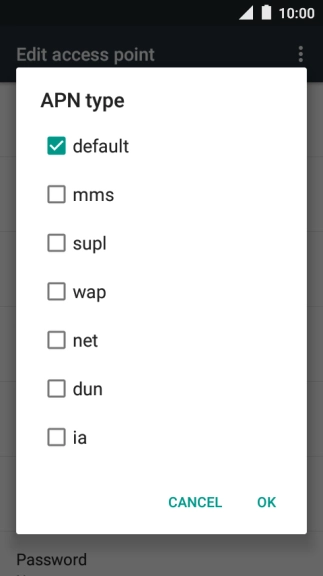

Press APN type.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-b63508b9-50f1-4f7c-a610-6a49ca7ae175.png?width=204&height=362)

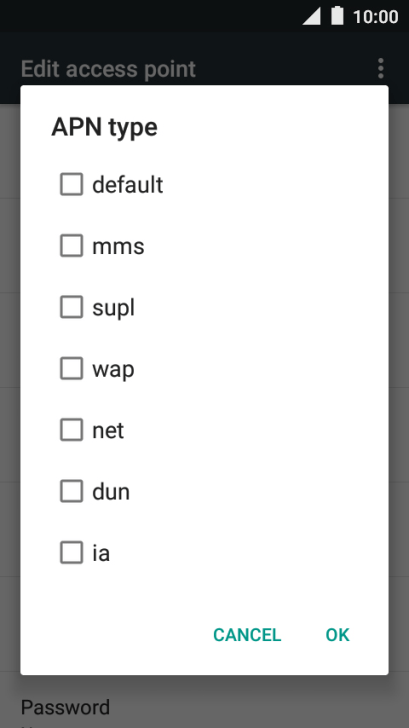

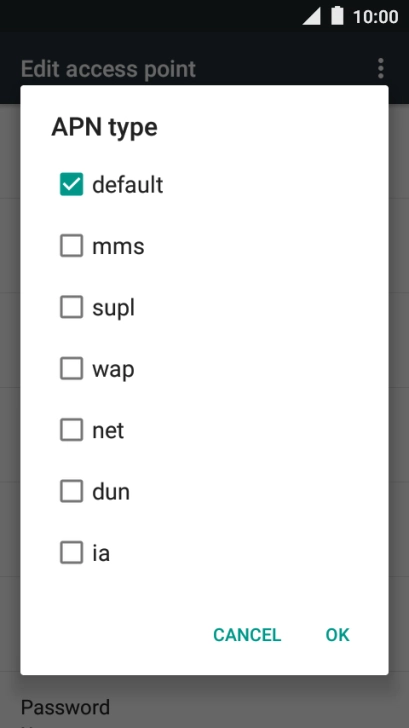

Press default to turn off the function.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-caf2befb-a401-45a3-8f93-cfd01a03febd.png?width=204&height=362)

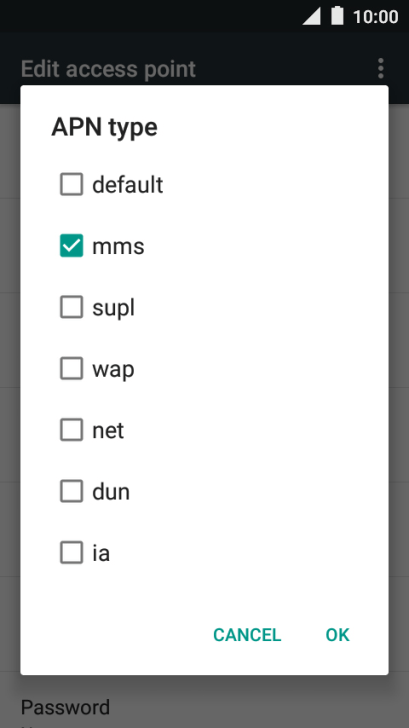

Press mms to turn on the function.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-5bb74d94-137a-4f68-ba50-c8380b626432.png?width=204&height=362)
Press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-6b3339b8-f428-4ca1-ba16-aa628caa3889.png?width=204&height=362)
11. Save data connection
Press the menu icon.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-21f32280-1716-4bd0-8878-1a85db31112d.png?width=204&height=362)

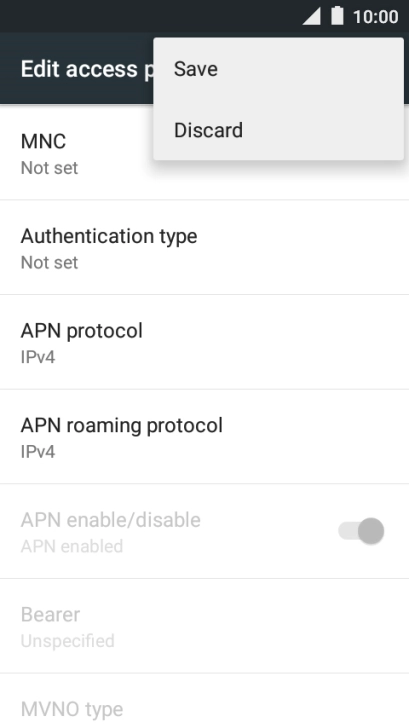

Press Save.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-9503d44e-bb0d-433a-b96d-d9969dd3f81e.png?width=204&height=362)
12. Return to the home screen

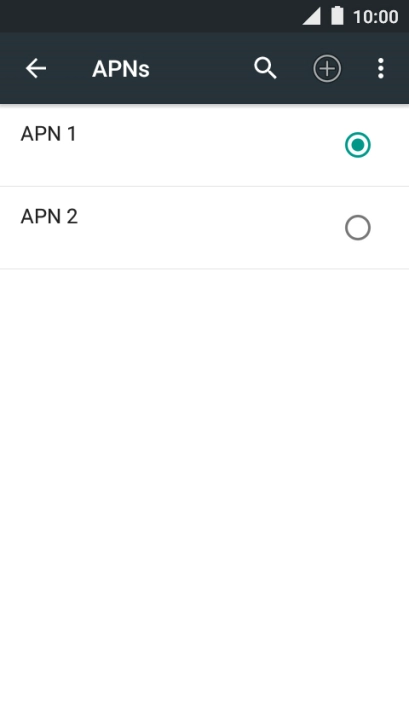

Press the Home key to return to the home screen.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-f9ede168-a5f9-4977-ad93-ea554050e65e.png?width=204&height=362)
