Vodafone Smart N9

Vodafone Smart N9

Android 8.1

Set up your Vodafone Smart N9 Android 8.1 for picture messaging

Read help info

A picture message is a message which can contain pictures and other media files and can be sent to other mobile phones. You can send and receive picture messages as soon as you've inserted your SIM. If this isn't the case, you can set up your phone for picture messaging manually.

Step 1 of 27

1. Find "Access point names"

Slide your finger downwards starting from the top of the screen.

Step 2 of 27

1. Find "Access point names"

Press the settings icon.

Step 3 of 27

1. Find "Access point names"

Press Network & Internet.

Step 4 of 27

1. Find "Access point names"

Press Mobile network.

Step 5 of 27

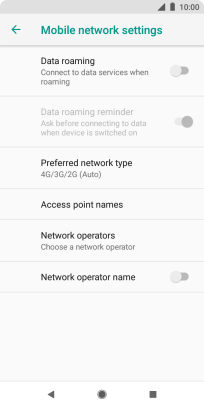

1. Find "Access point names"

Press Access point names.

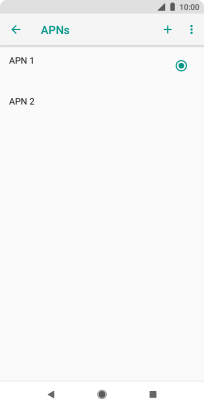

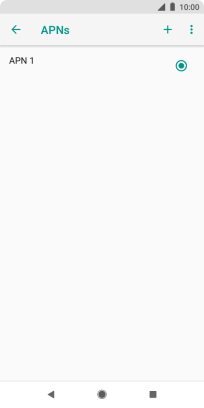

Step 6 of 27

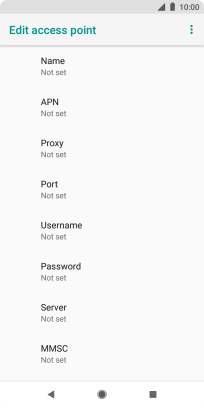

2. Create new data connection

Press the new data connection icon.

Step 7 of 27

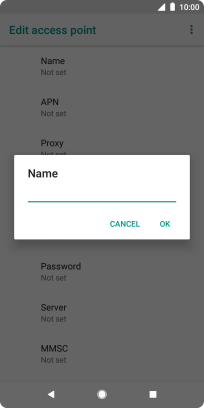

2. Create new data connection

Press Name.

Vodafone MMS
Step 8 of 27

2. Create new data connection

Key in Vodafone MMS and press OK.

Step 9 of 27

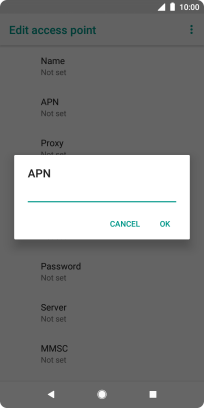

3. Enter APN

Press APN.

mms.vodafone.net
Step 10 of 27

3. Enter APN

Key in mms.vodafone.net and press OK.

Step 11 of 27

4. Enter MMSC

Press MMSC.

http://www.vodafone.ie/mms

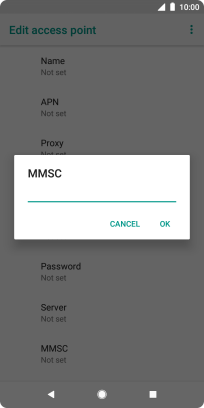

Step 12 of 27

4. Enter MMSC

Key in http://www.vodafone.ie/mms and press OK.

Step 13 of 27

5. Enter IP address

Press MMS proxy.

10.24.59.200

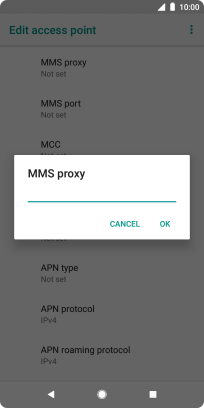

Step 14 of 27

5. Enter IP address

Key in 10.24.59.200 and press OK.

Step 15 of 27

6. Enter port number

Press MMS port.

80

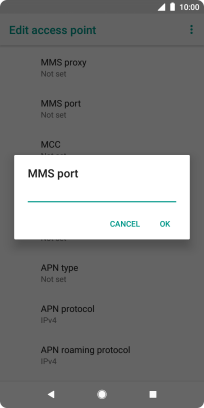

Step 16 of 27

6. Enter port number

Key in 80 and press OK.

Step 17 of 27

7. Enter country code

Press MCC.

272
Step 18 of 27

7. Enter country code

Key in 272 and press OK.

Step 19 of 27

8. Enter network code

Press MNC.

01

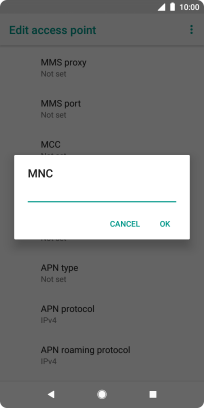

Step 20 of 27

8. Enter network code

Key in 01 and press OK.

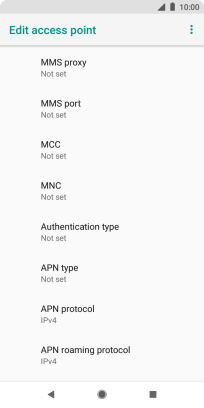

Step 21 of 27

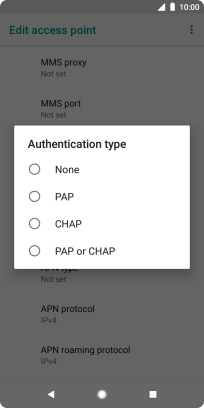

9. Select authentication type

Press Authentication type.

Step 22 of 27

9. Select authentication type

Press PAP.

Step 23 of 27

10. Enter APN type

Press APN type.

mms
Step 24 of 27

10. Enter APN type

Key in mms and press OK.

Step 25 of 27

11. Save data connection

Press the menu icon.

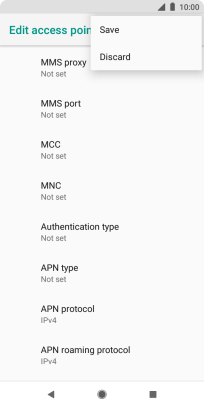

Step 26 of 27

11. Save data connection

Press Save.

Step 27 of 27

12. Return to the home screen

Press the Home key to return to the home screen.

1. Find "Access point names"

Slide your finger downwards starting from the top of the screen.
Press the settings icon.
Press Network & Internet.
Press Mobile network.
Press Access point names.

2. Create new data connection

Press the new data connection icon.
Press Name.
Key in Vodafone MMS and press OK.
Vodafone MMS

3. Enter APN

Press APN.
Key in mms.vodafone.net and press OK.
mms.vodafone.net

4. Enter MMSC

Press MMSC.
Key in http://www.vodafone.ie/mms and press OK.
http://www.vodafone.ie/mms

5. Enter IP address

Press MMS proxy.
Key in 10.24.59.200 and press OK.
10.24.59.200

6. Enter port number

Press MMS port.
Key in 80 and press OK.
80

7. Enter country code

Press MCC.
Key in 272 and press OK.
272

8. Enter network code

Press MNC.
Key in 01 and press OK.
01

9. Select authentication type

Press Authentication type.
Press PAP.

10. Enter APN type

Press APN type.
Key in mms and press OK.
mms

11. Save data connection

Press the menu icon.
Press Save.

12. Return to the home screen

Press the Home key to return to the home screen.
