1. Find "Access point names"
Slide your finger downwards starting from the top of the screen.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-59283ed6-de8d-4590-9da2-1d670e5a977d.png?width=204&height=408)
Press the settings icon.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-57db14f7-4305-4ba4-872b-db7e22bd95c6.png?width=204&height=408)
Press Network & Internet.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-0d00a899-2141-4887-a438-298730e388ef.png?width=204&height=408)

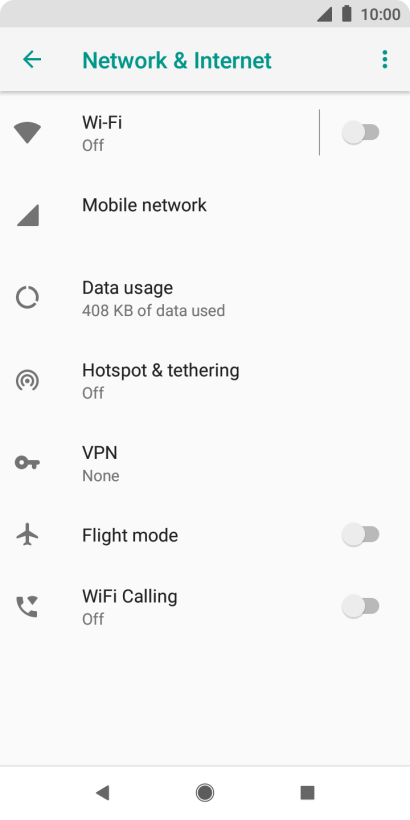

Press Mobile network.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-343fd773-34c4-4621-ac52-913273f6b83c.png?width=204&height=408)

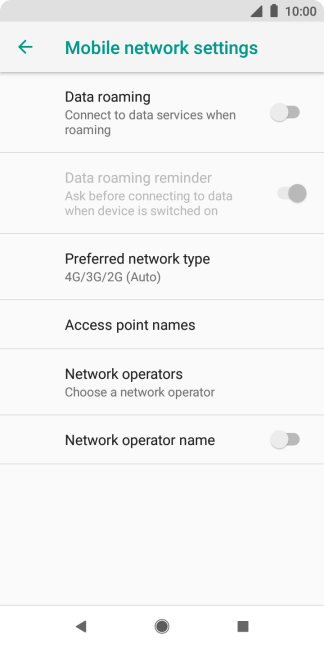

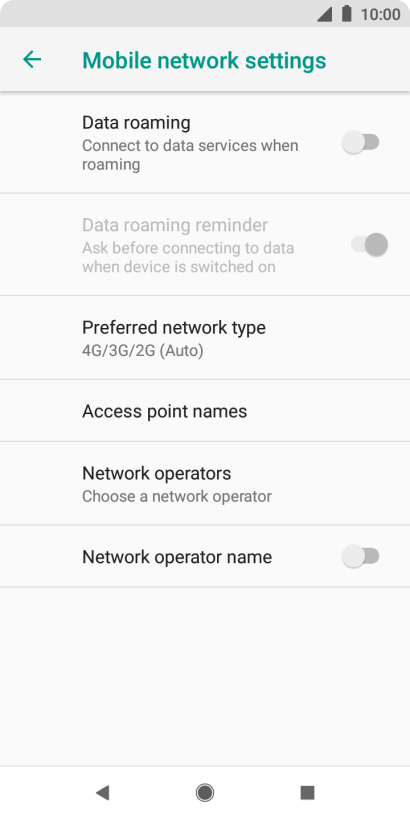

Press Access point names.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-7933bd3c-7949-4120-9589-106cfb1ea15f.png?width=204&height=408)
2. Create new data connection

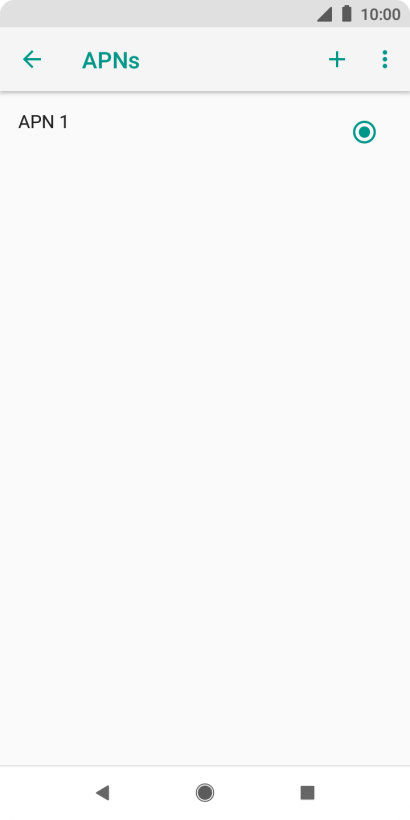

Press the new data connection icon.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-9e784860-ff32-49ae-9a4f-1702e62709bc.png?width=204&height=408)

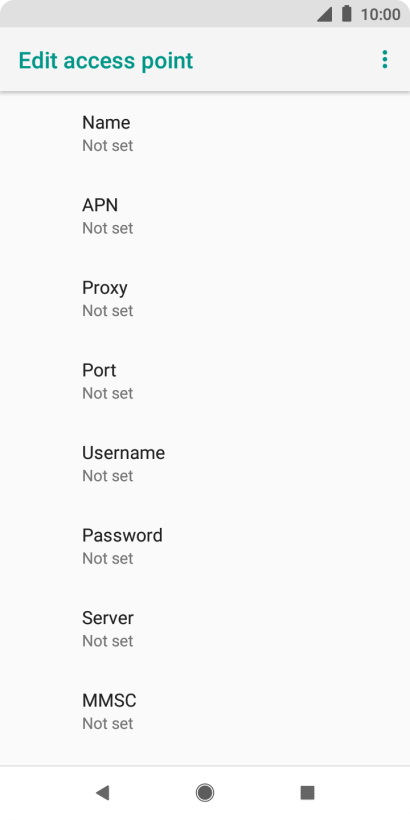

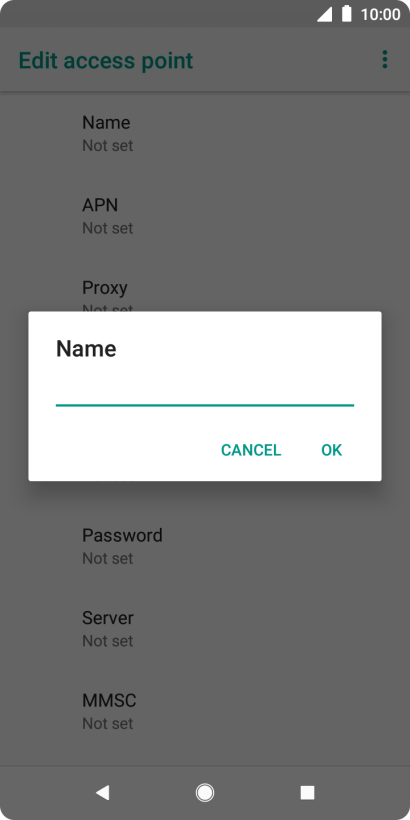

Press Name.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-9e907e16-ecb1-4b3b-b11f-81bad4362dc3.png?width=204&height=408)
Key in Vodafone Internet and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-56f43932-cec0-44f1-913f-90bbd68e17c6.png?width=204&height=408)
Vodafone Internet
3. Enter APN
Press APN.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-9e907e16-ecb1-4b3b-b11f-81bad4362dc3.png?width=204&height=408)

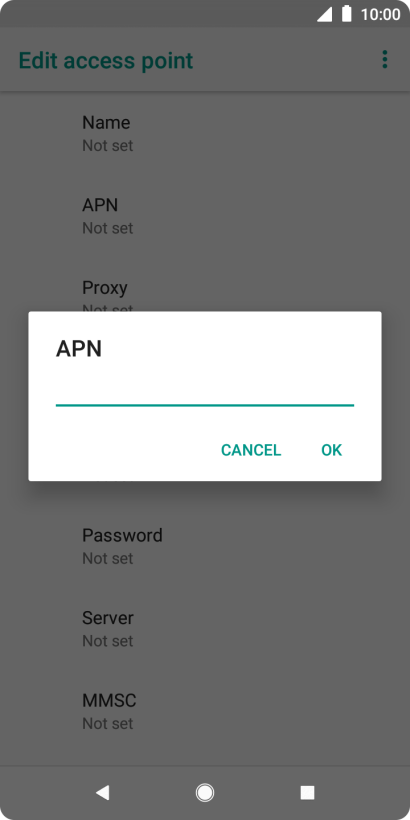

Key in live.vodafone.com and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-69629c14-148c-4b6a-ab71-142407c0bcc7.png?width=204&height=408)
live.vodafone.com
4. Enter country code

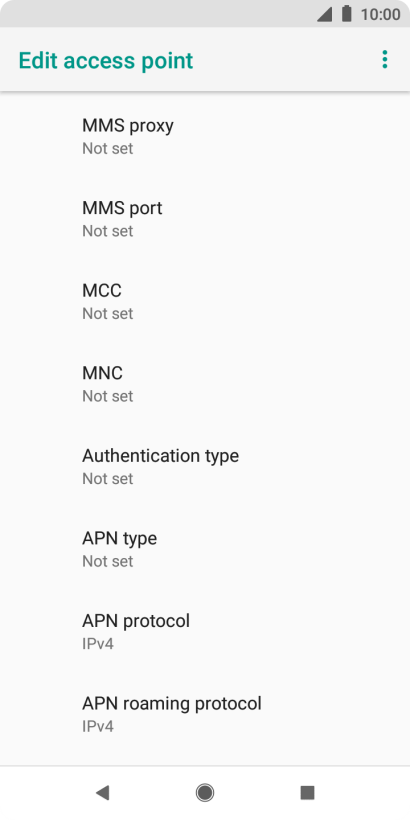

Press MCC.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-5791a9fe-6063-49d2-b316-f5e54fd21ded.png?width=204&height=408)

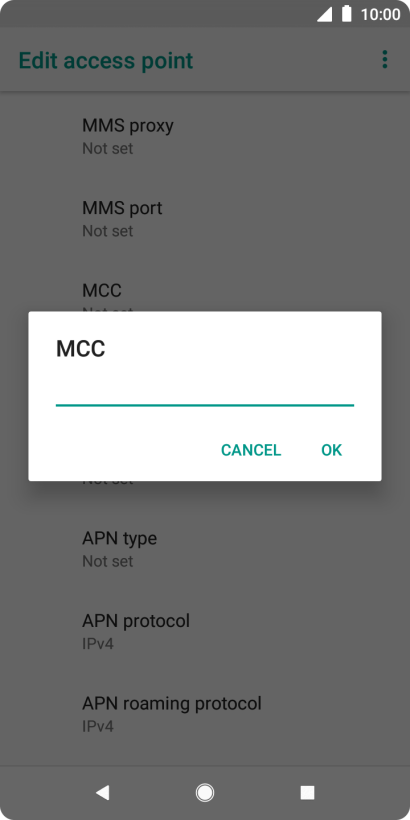

Key in 272 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-11527649-e6dd-4758-b553-50241e3ca716.png?width=204&height=408)
272
5. Enter network code
Press MNC.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-5791a9fe-6063-49d2-b316-f5e54fd21ded.png?width=204&height=408)
Key in 01 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-9562d649-3650-4989-b3c7-dffce09da9e5.png?width=204&height=408)
01
6. Select authentication type

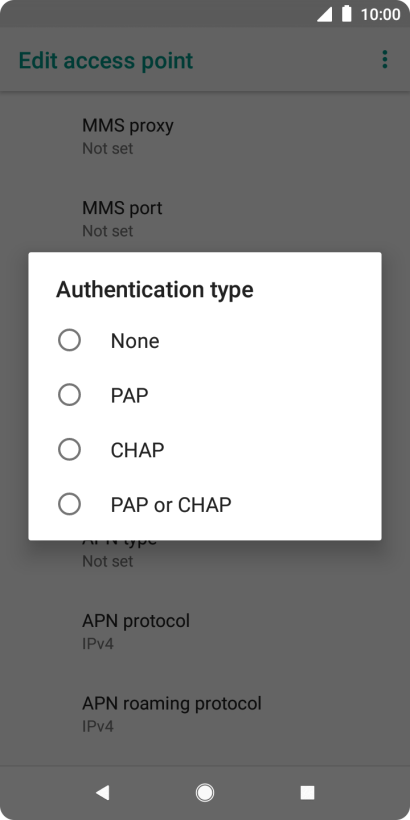

Press Authentication type.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-5791a9fe-6063-49d2-b316-f5e54fd21ded.png?width=204&height=408)
Press PAP.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-2bc14450-2576-4047-80ba-6784b302e1d9.png?width=204&height=408)
7. Enter APN type
Press APN type.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-5791a9fe-6063-49d2-b316-f5e54fd21ded.png?width=204&height=408)

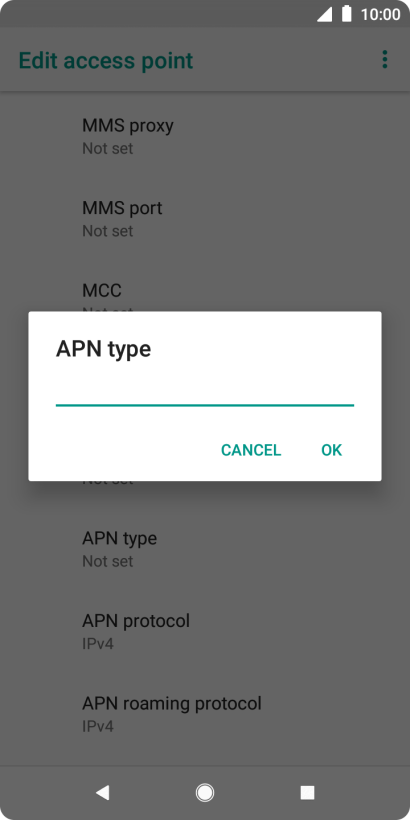

Key in default and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-60d9c608-bf7c-4185-94a9-881d6c527a55.png?width=204&height=408)
default
8. Save data connection

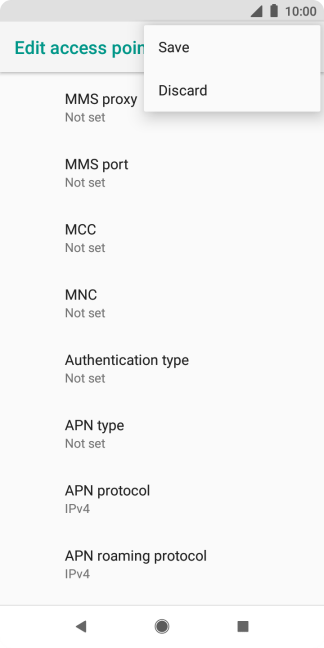

Press the menu icon.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-5791a9fe-6063-49d2-b316-f5e54fd21ded.png?width=204&height=408)

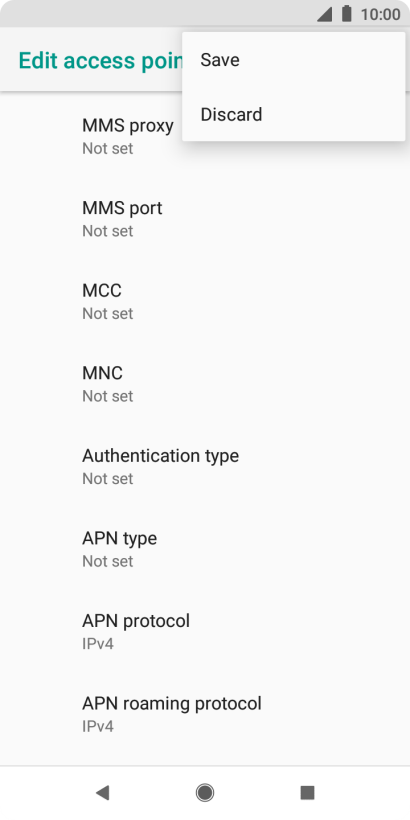

Press Save.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-cf8d2531-a56a-4679-9cc0-a42a419eea30.png?width=204&height=408)

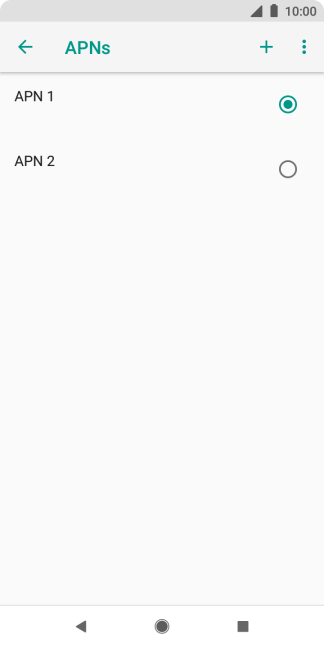

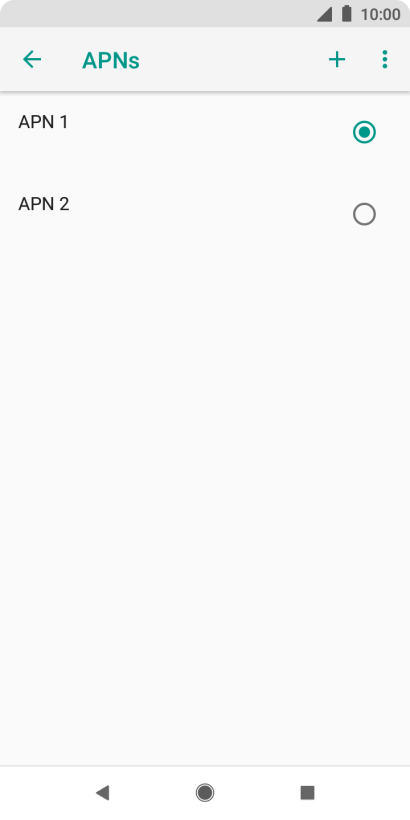

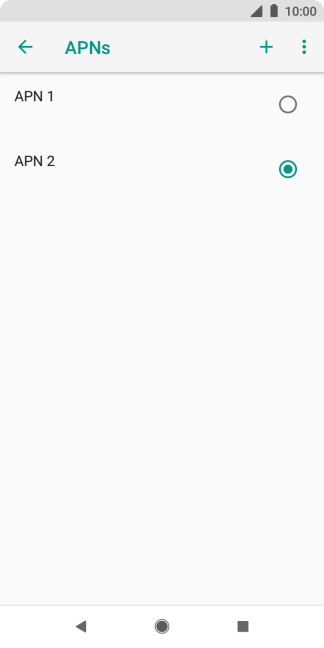

Press the field next to the data connection to activate it.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-59ce6eb4-db79-4a52-8603-dcaaa83253aa.png?width=204&height=408)
9. Return to the home screen

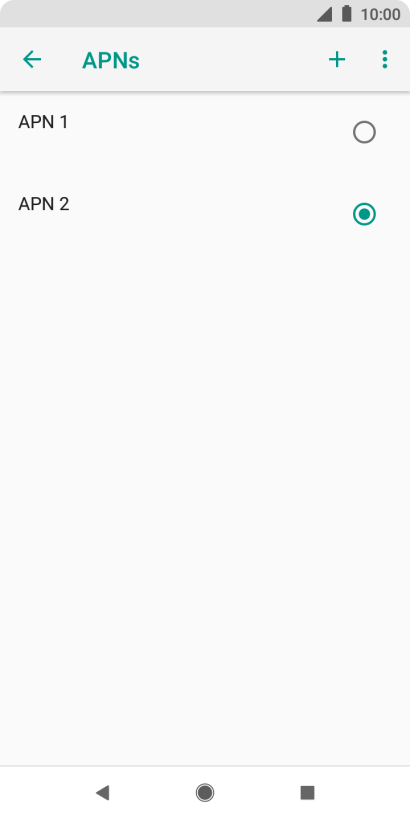

Press the Home key to return to the home screen.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-7fad46fd-47d8-4a0a-a0d7-f4a544776bf1.png?width=204&height=408)
