1. Find "Access point names"
Slide two fingers downwards starting from the top of the screen.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-9f080bf9-dfcd-4cf3-9881-0b23c891ca45.png?width=206&height=368)
Press the settings icon.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-ccf9b0e9-11e3-4df5-8975-892f3e871d72.png?width=206&height=368)

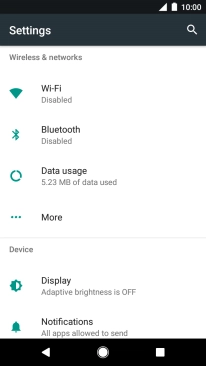

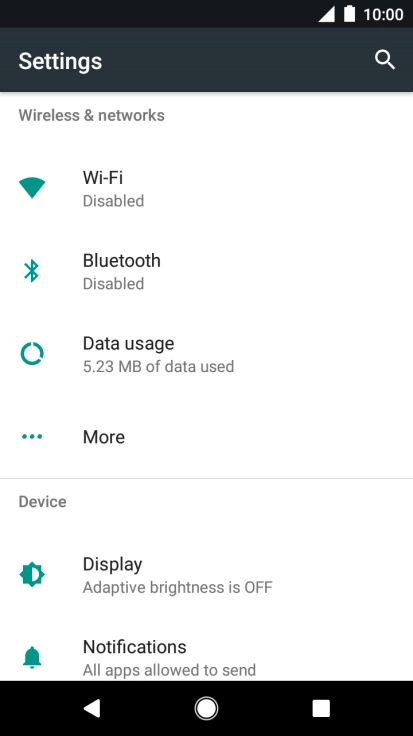

Press More.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-43a2a0e9-a2ef-48a3-ab3c-5efb02ddc2a5.png?width=206&height=368)

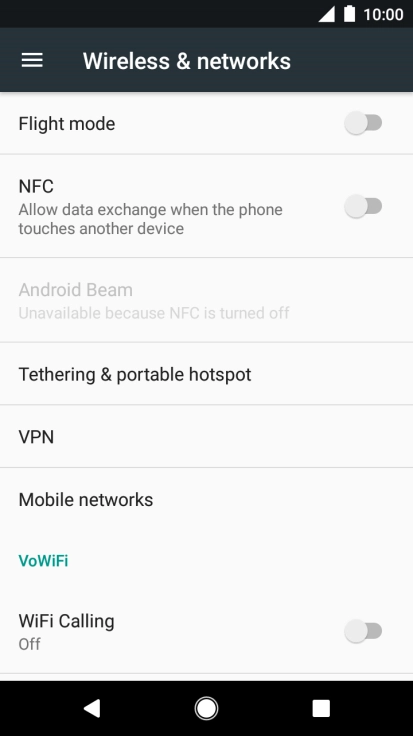

Press Mobile networks.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-f9bbb4d4-31d9-4f53-b0d9-fd9d2507f163.png?width=206&height=368)

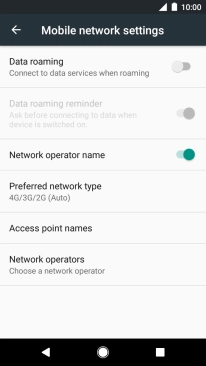

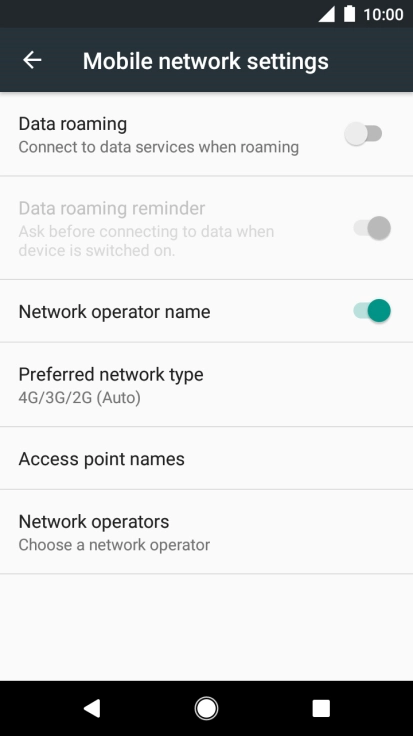

Press Access point names.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-88dceddb-a41c-4a95-b15d-4c807c4ab83e.png?width=206&height=368)
2. Create new data connection
Press the new data connection icon.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-1fdf602c-7102-430d-b134-1f2543af553c.png?width=206&height=368)

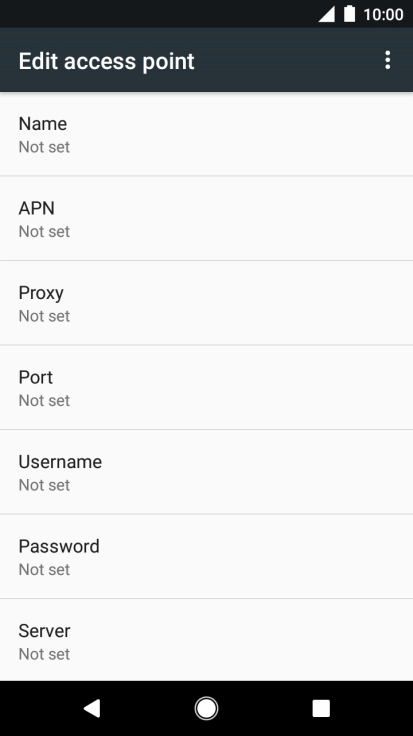

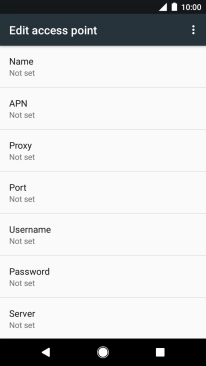

Press Name.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-c5d76cbc-4a6b-406e-a381-d550c29177e7.png?width=206&height=368)

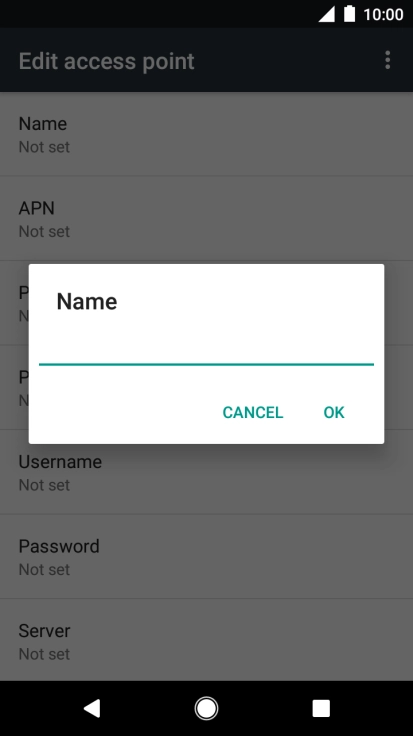

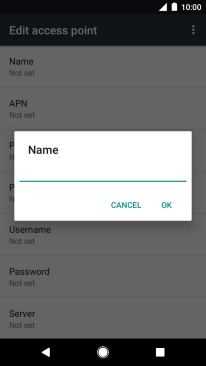

Key in Vodafone MMS and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-ae7804ac-9437-48b6-be34-e8d033fe8b96.png?width=206&height=368)
Vodafone MMS
3. Enter APN
Press APN.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-c5d76cbc-4a6b-406e-a381-d550c29177e7.png?width=206&height=368)
Key in mms.vodafone.net and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-d6d9b345-4829-4de2-bcca-df4846c9578b.png?width=206&height=368)
mms.vodafone.net
4. Select APN type

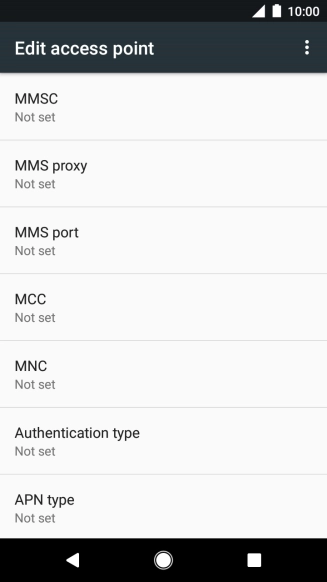

Press APN type.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-ba9f9070-e885-4286-a72e-88eb6a97b44e.png?width=206&height=368)

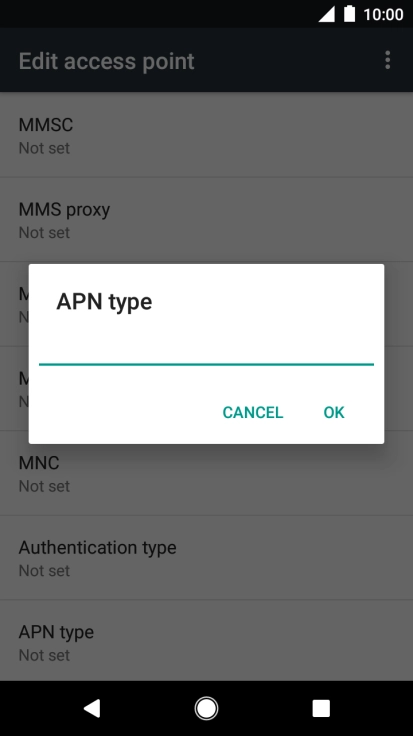

Key in mms and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-d8c1defc-baa9-426c-bc25-1ec54d07e36a.png?width=206&height=368)
mms
5. Enter MMSC

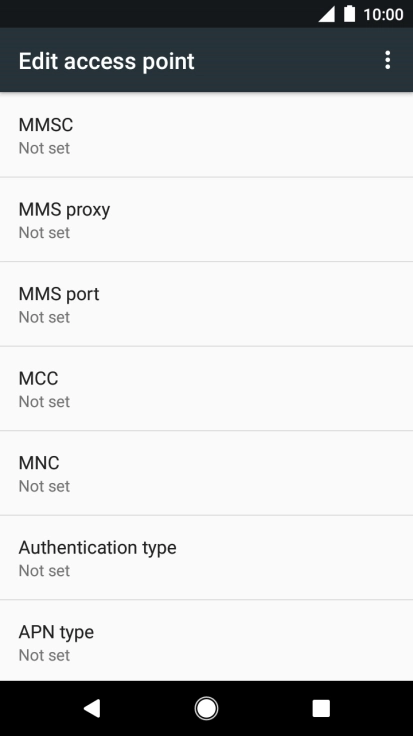

Press MMSC.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-ba9f9070-e885-4286-a72e-88eb6a97b44e.png?width=206&height=368)

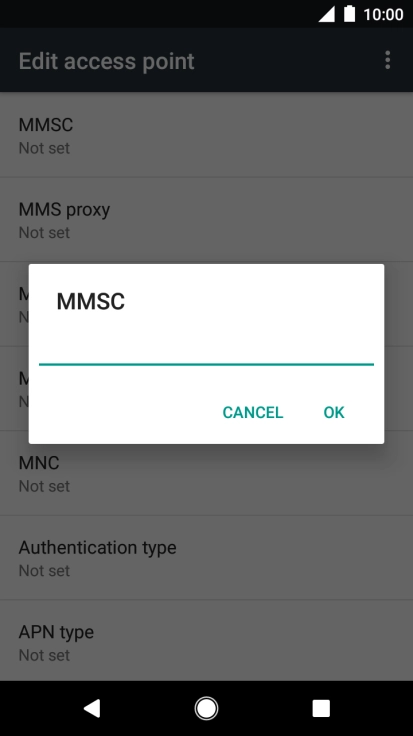

Key in http://www.vodafone.ie/mms and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-b7d53102-b8b2-441a-9e97-0ef1b608cec7.png?width=206&height=368)
http://www.vodafone.ie/mms
6. Enter IP address
Press MMS proxy.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-ba9f9070-e885-4286-a72e-88eb6a97b44e.png?width=206&height=368)

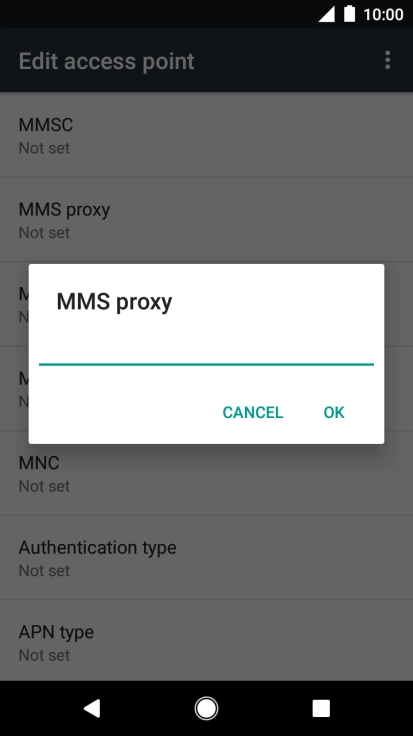

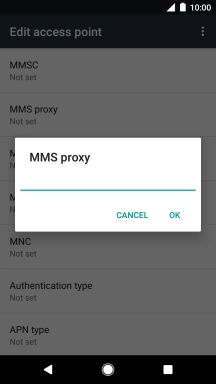

Key in 10.24.59.200 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-88fc4e89-cb9c-4e7a-b7a6-34631fbb17af.png?width=206&height=368)
10.24.59.200
7. Enter port number
Press MMS port.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-ba9f9070-e885-4286-a72e-88eb6a97b44e.png?width=206&height=368)

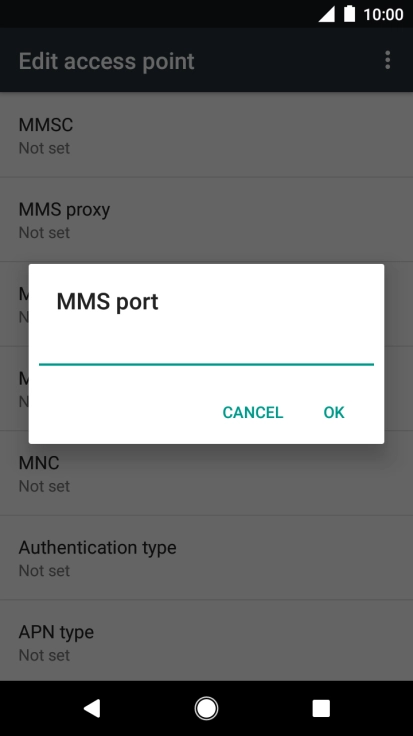

Key in 80 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-cb346492-eb18-4c9b-ae92-802b47344398.png?width=206&height=368)
80
8. Enter country code
Press MCC.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-ba9f9070-e885-4286-a72e-88eb6a97b44e.png?width=206&height=368)

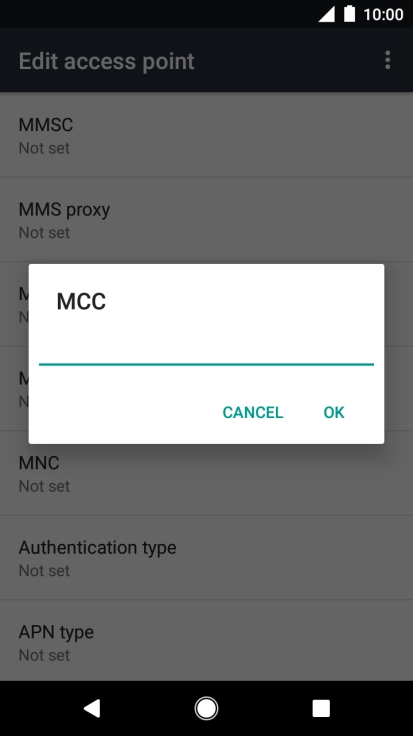

Key in 272 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-5dd8571a-4915-4043-8059-fe4640ae1d11.png?width=206&height=368)
272
9. Enter network code
Press MNC.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-ba9f9070-e885-4286-a72e-88eb6a97b44e.png?width=206&height=368)
Key in 01 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-3cf8f994-d68b-4642-a532-14dfc4f778b8.png?width=206&height=368)
01
10. Select authentication type
Press Authentication type.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-ba9f9070-e885-4286-a72e-88eb6a97b44e.png?width=206&height=368)

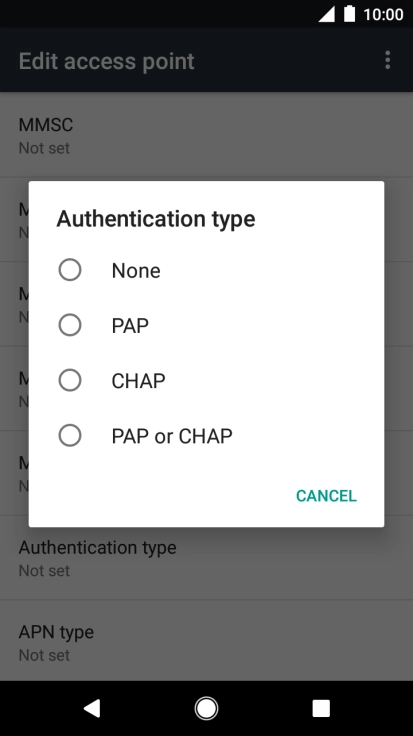

Press PAP.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-14a7ff4a-0842-4258-a5f1-95532d143a53.png?width=206&height=368)
11. Save data connection
Press the menu icon.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-ba9f9070-e885-4286-a72e-88eb6a97b44e.png?width=206&height=368)

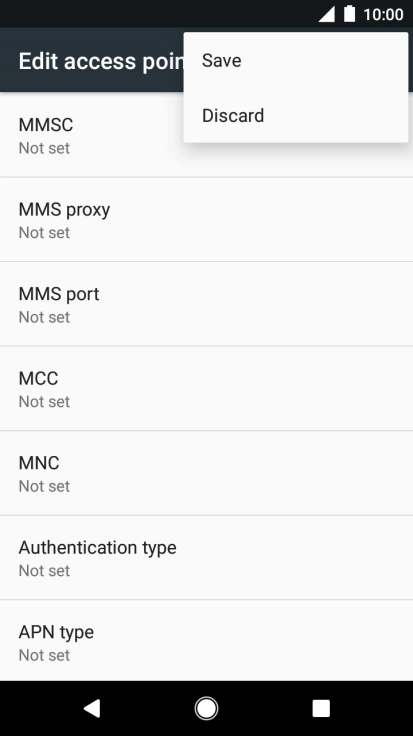

Press Save.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-3f58e58e-4311-449b-b777-b7cc387c3fa4.png?width=206&height=368)
12. Return to the home screen

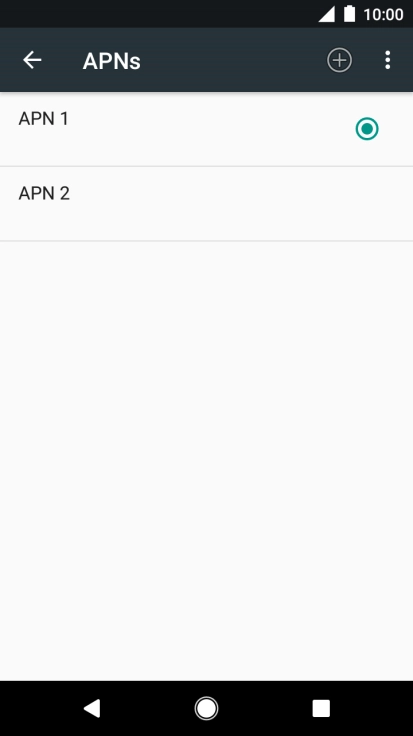

Press the Home key to return to the home screen.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-d03bcd3f-7063-4793-9e1f-297454018d08.png?width=206&height=368)
13. Find "Settings"
Press the main menu icon.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-9f080bf9-dfcd-4cf3-9881-0b23c891ca45.png?width=206&height=368)

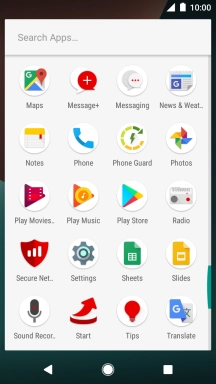

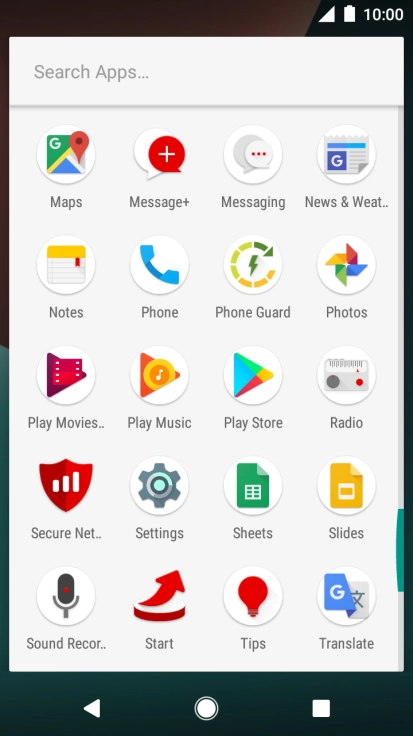

Press Messaging.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-80f2d83f-1264-4dfe-8ded-5bdf4282bd45.png?width=206&height=368)

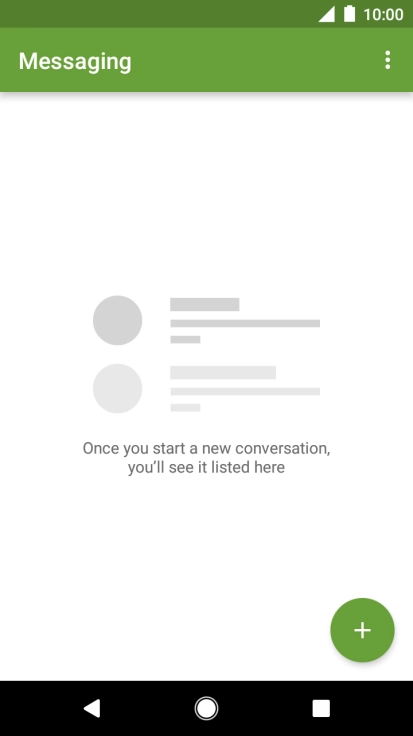

Press the menu icon.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-e19eafde-fd5b-4714-9781-7d2f188a2cb6.png?width=206&height=368)

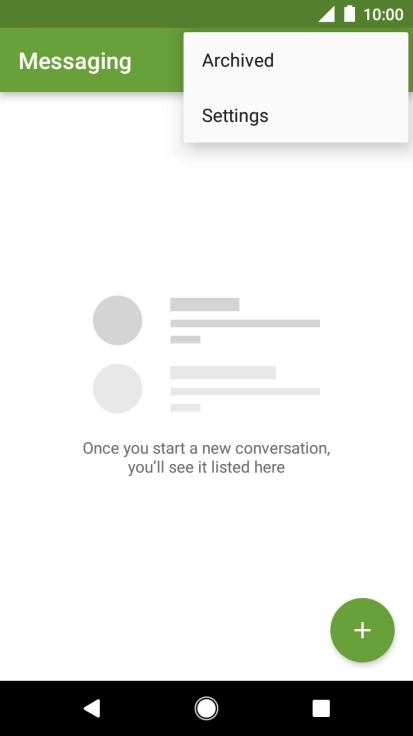

Press Settings.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-93f452b5-4261-4018-9a05-914d47e2ec6d.png?width=206&height=368)
14. Select default messaging application

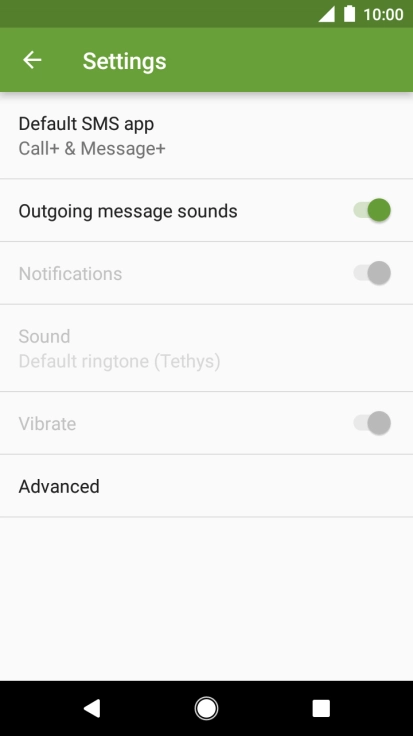

Press Default SMS app.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-bca6abc2-e3ba-4e4e-b139-49fbbfcd9619.png?width=206&height=368)

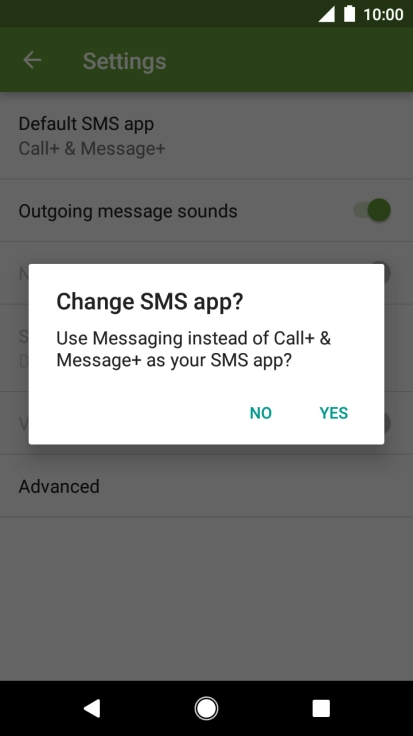

Press Yes.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-46d039bc-72e1-4d31-8fc7-6a47c0c57306.png?width=206&height=368)
15. Return to the home screen

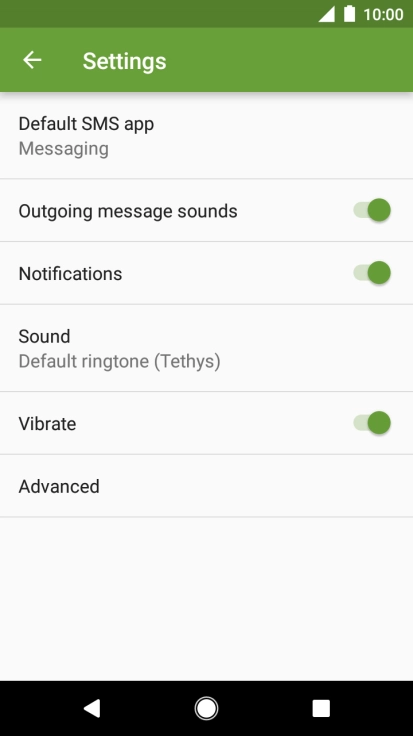

Press the Home key to return to the home screen.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-98f2b1c8-d6a2-4e1e-8d26-3687cad615dc.png?width=206&height=368)
