1. Find "Access point names"
Slide two fingers downwards starting from the top of the screen.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-9f080bf9-dfcd-4cf3-9881-0b23c891ca45.png?width=206&height=368)
Press the settings icon.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-ccf9b0e9-11e3-4df5-8975-892f3e871d72.png?width=206&height=368)
Press More.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-43a2a0e9-a2ef-48a3-ab3c-5efb02ddc2a5.png?width=206&height=368)
Press Mobile networks.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-f9bbb4d4-31d9-4f53-b0d9-fd9d2507f163.png?width=206&height=368)
Press Access point names.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-88dceddb-a41c-4a95-b15d-4c807c4ab83e.png?width=206&height=368)
2. Create new data connection

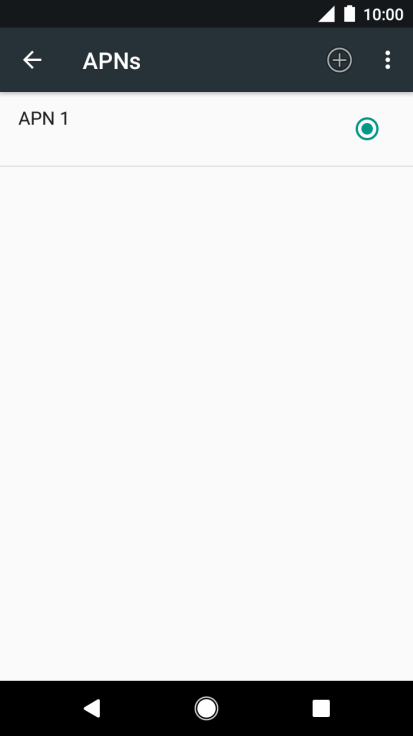

Press the new data connection icon.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-1fdf602c-7102-430d-b134-1f2543af553c.png?width=206&height=368)

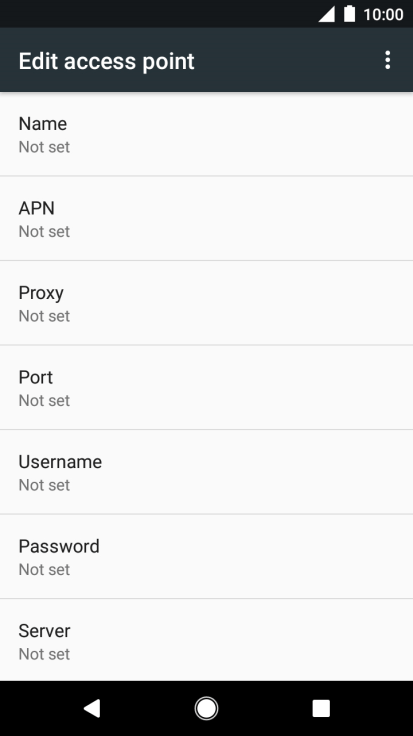

Press Name.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-c5d76cbc-4a6b-406e-a381-d550c29177e7.png?width=206&height=368)
Key in Vodafone Internet and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-ae7804ac-9437-48b6-be34-e8d033fe8b96.png?width=206&height=368)
Vodafone Internet
3. Enter APN

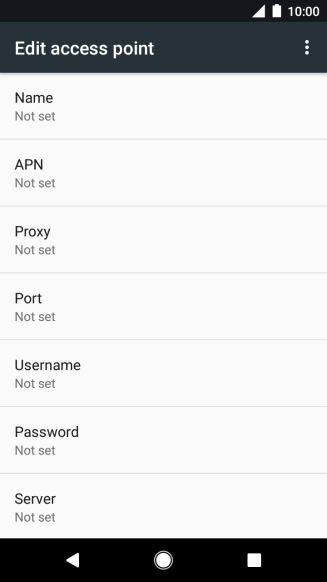

Press APN.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-c5d76cbc-4a6b-406e-a381-d550c29177e7.png?width=206&height=368)

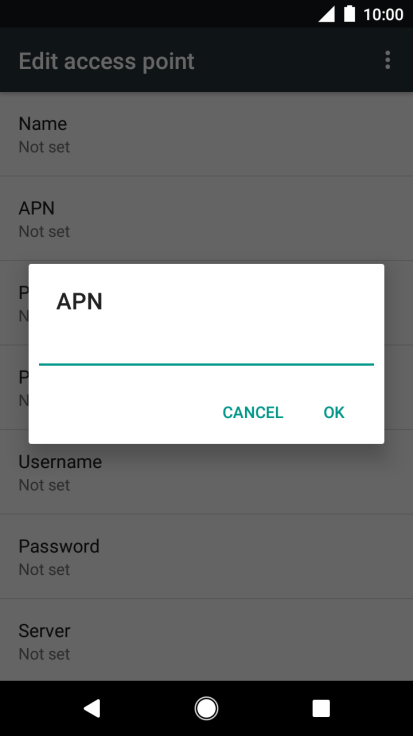

Key in live.vodafone.com and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-d6d9b345-4829-4de2-bcca-df4846c9578b.png?width=206&height=368)
live.vodafone.com
4. Select APN type

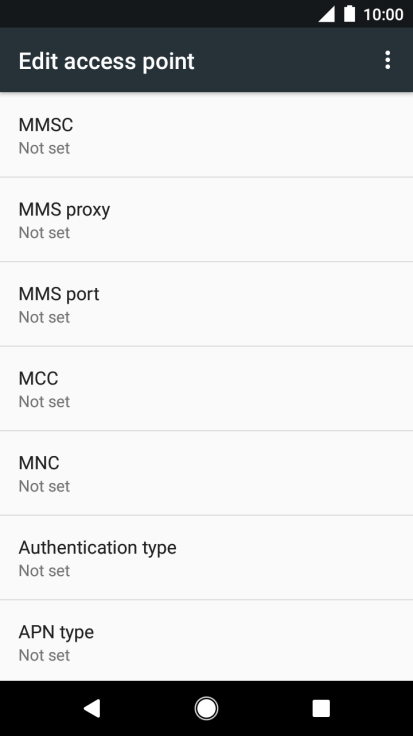

Press APN type.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-ba9f9070-e885-4286-a72e-88eb6a97b44e.png?width=206&height=368)

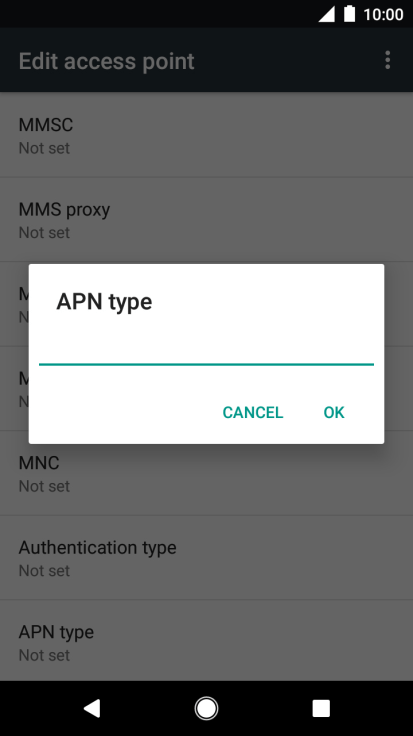

Key in default and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-d8c1defc-baa9-426c-bc25-1ec54d07e36a.png?width=206&height=368)
default
5. Enter country code
Press MCC.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-ba9f9070-e885-4286-a72e-88eb6a97b44e.png?width=206&height=368)
Key in 272 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-5dd8571a-4915-4043-8059-fe4640ae1d11.png?width=206&height=368)
272
6. Enter network code
Press MNC.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-ba9f9070-e885-4286-a72e-88eb6a97b44e.png?width=206&height=368)

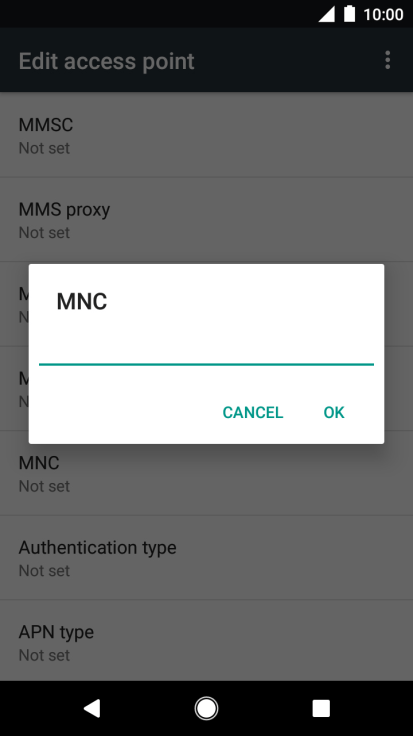

Key in 01 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-3cf8f994-d68b-4642-a532-14dfc4f778b8.png?width=206&height=368)
01
7. Select authentication type
Press Authentication type.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-ba9f9070-e885-4286-a72e-88eb6a97b44e.png?width=206&height=368)

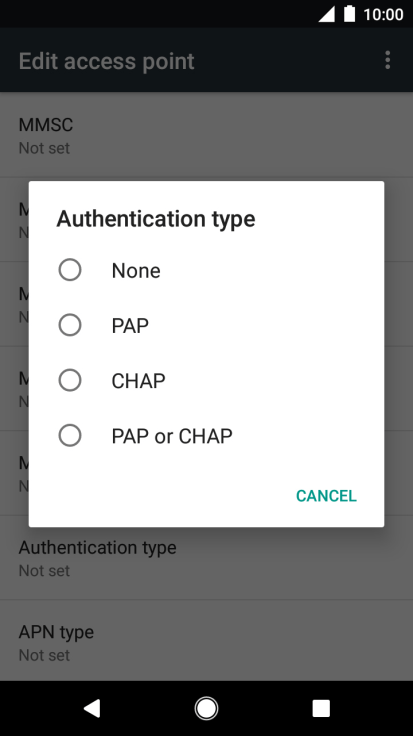

Press PAP.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-14a7ff4a-0842-4258-a5f1-95532d143a53.png?width=206&height=368)
8. Save data connection
Press the menu icon.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-ba9f9070-e885-4286-a72e-88eb6a97b44e.png?width=206&height=368)

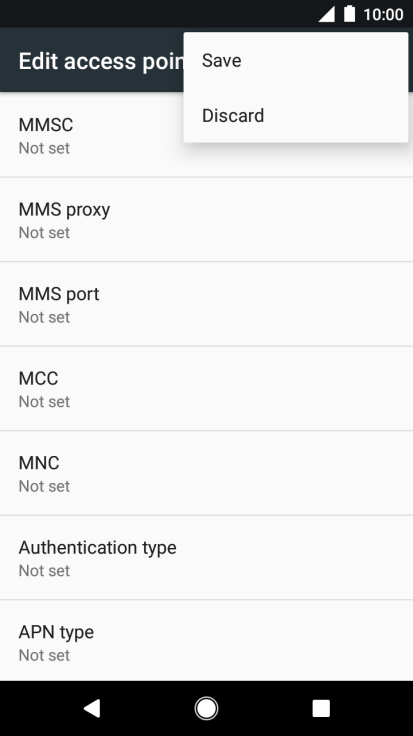

Press Save.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-3f58e58e-4311-449b-b777-b7cc387c3fa4.png?width=206&height=368)

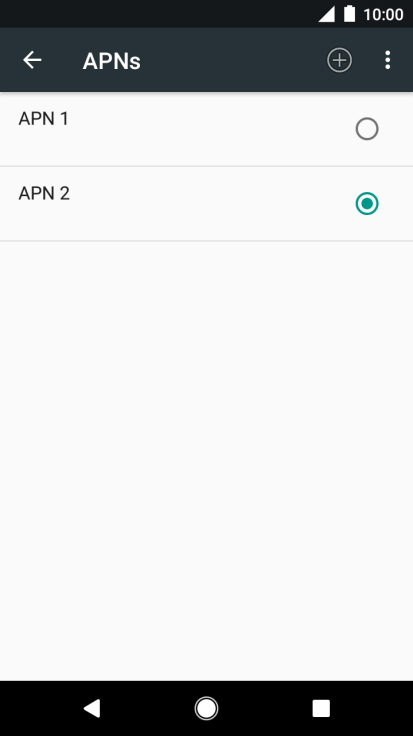

Press the field next to the required data connection to activate it.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-cf9088e7-a1fc-46d4-8be2-b62f66f0a776.png?width=206&height=368)
9. Return to the home screen
Press the Home key to return to the home screen.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-467483a6-45a2-47a2-8f50-d6e259b49eeb.png?width=206&height=368)
