Vodafone Smart mini 7

Vodafone Smart mini 7

Android 6.0

I can't use the internet connection on my Vodafone Smart mini 7 Android 6.0

Cause 3 of 4: Your phone hasn't been correctly set up for internet

Several functions on your phone require an internet connection, e.g. the internet browser, sending of email messages and installing apps.

Solution: Set up your phone for internet.

Step 1 of 27

Find "Access Point Names"

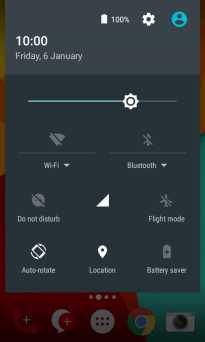

Slide two fingers downwards starting from the top the screen.

Step 2 of 27

Find "Access Point Names"

Press the settings icon.

Step 3 of 27

Find "Access Point Names"

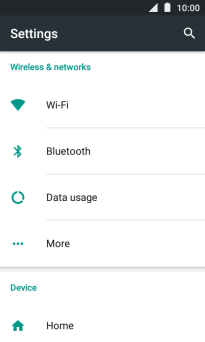

Press More.

Step 4 of 27

Find "Access Point Names"

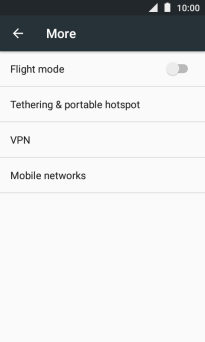

Press Mobile networks.

Step 5 of 27

Find "Access Point Names"

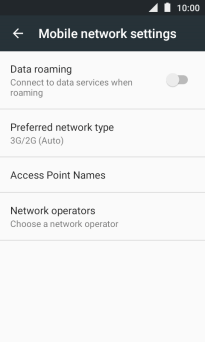

Press Access Point Names.

Step 6 of 27

Create new data connection

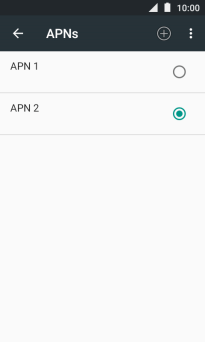

Press the new data connection icon.

Step 7 of 27

Create new data connection

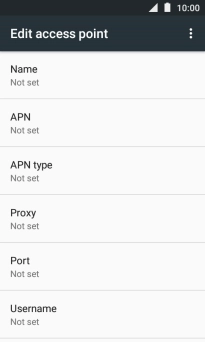

Press Name.

Vodafone Internet
Step 8 of 27

Create new data connection

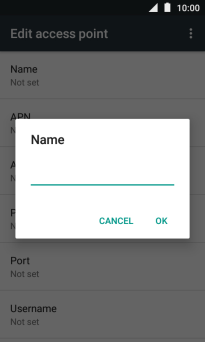

Key in Vodafone Internet and press OK.

Step 9 of 27

Enter APN

Press APN.

live.vodafone.com
Step 10 of 27

Enter APN

Key in live.vodafone.com and press OK.

Step 11 of 27

Select APN type

Press APN type.

Step 12 of 27

Select APN type

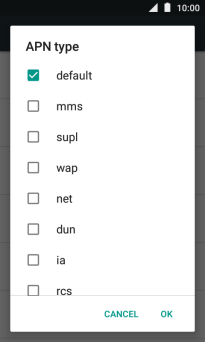

Make sure only default is selected.

Step 13 of 27

Select APN type

Press OK.

Step 14 of 27

Enter IP address

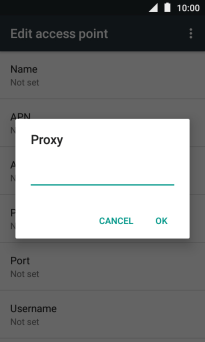

Press Proxy.

10.24.59.100
Step 15 of 27

Enter IP address

Key in 10.24.59.100 and press OK.

Step 16 of 27

Enter port number

Press Port.

80
Step 17 of 27

Enter port number

Key in 80 and press OK.

Step 18 of 27

Enter country code

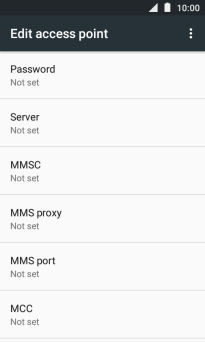

Press MCC.

272
Step 19 of 27

Enter country code

Key in 272 and press OK.

Step 20 of 27

Enter network code

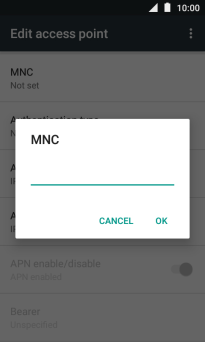

Press MNC.

01
Step 21 of 27

Enter network code

Key in 01 and press OK.

Step 22 of 27

Select authentication type

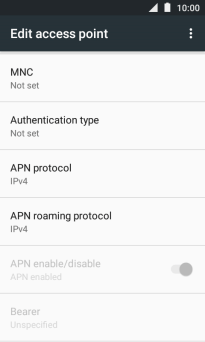

Press Authentication type.

Step 23 of 27

Select authentication type

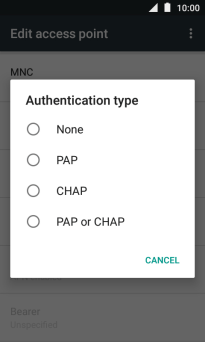

Press PAP.

Step 24 of 27

Save data connection

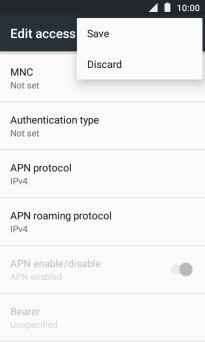

Press the menu icon.

Step 25 of 27

Save data connection

Press Save.

Step 26 of 27

Save data connection

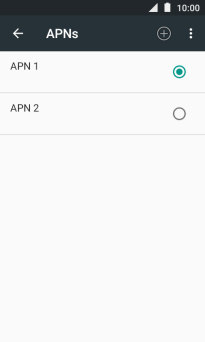

Press the field next to the required data connection to activate it.

Step 27 of 27

Return to the home screen

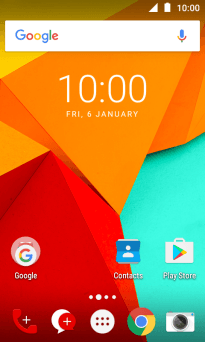

Press the Home key to return to the home screen.

1 Find "Access Point Names"

Slide two fingers downwards starting from the top the screen.
Press the settings icon.
Press More.
Press Mobile networks.
Press Access Point Names.

2 Create new data connection

Press the new data connection icon.
Press Name.
Key in Vodafone Internet and press OK.
Vodafone Internet

3 Enter APN

Press APN.
Key in live.vodafone.com and press OK.
live.vodafone.com

4 Select APN type

Press APN type.
Make sure only default is selected.
Press OK.

5 Enter IP address

Press Proxy.
Key in 10.24.59.100 and press OK.
10.24.59.100

6 Enter port number

Press Port.
Key in 80 and press OK.
80

7 Enter country code

Press MCC.
Key in 272 and press OK.
272

8 Enter network code

Press MNC.
Key in 01 and press OK.
01

9 Select authentication type

Press Authentication type.
Press PAP.

10 Save data connection

Press the menu icon.
Press Save.
Press the field next to the required data connection to activate it.

11 Return to the home screen

Press the Home key to return to the home screen.

Did this solve the problem?

Yes - All solved No - Go to next cause
