1. Find "Access Point Names"
Slide two fingers downwards starting from the top the screen.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-af1b2c9e-46d5-480a-a603-ff95b0d3f251.png?width=206&height=342)

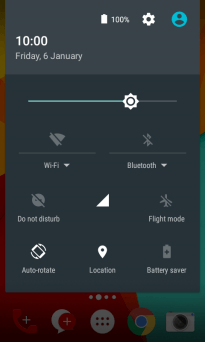

Press the settings icon.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-a0c13b37-773a-4db7-89f4-e6967cd1fc7b.png?width=206&height=342)

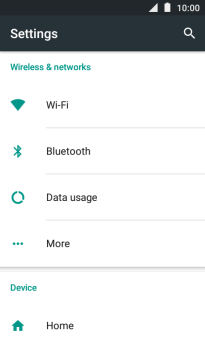

Press More.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-8741ad87-9f58-4913-9b08-f577c6e76199.png?width=206&height=342)

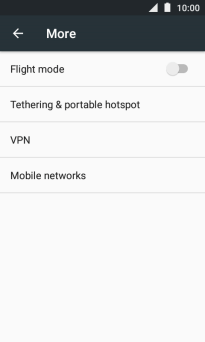

Press Mobile networks.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-7d2c5a28-d608-44ff-a03e-b72008662cea.png?width=206&height=342)

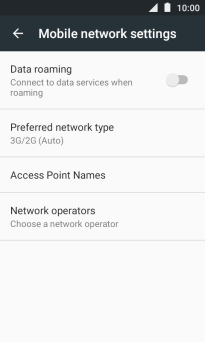

Press Access Point Names.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-013e2875-5b67-4779-91a5-6ca5dc984ac7.png?width=206&height=342)
2. Create new data connection

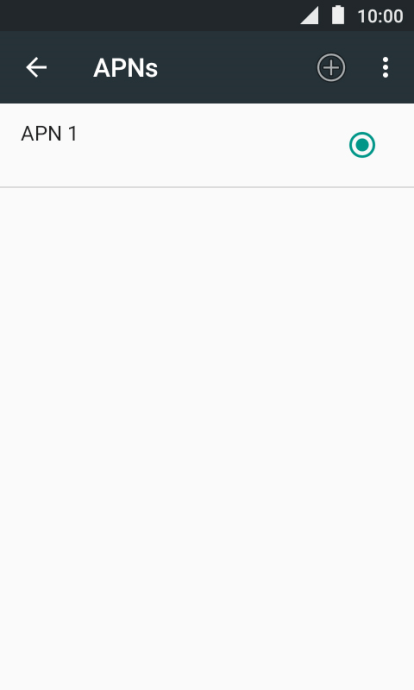

Press the new data connection icon.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-b7fb4a2f-5fa2-4d2d-a434-2c66d5aaedc7.png?width=206&height=342)

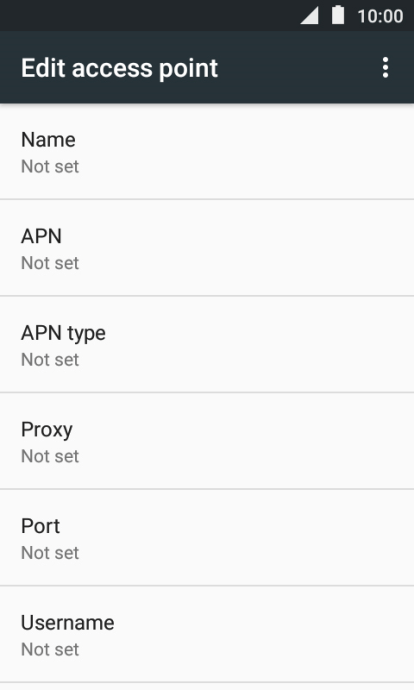

Press Name.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-4b821caa-ac32-4c21-94e9-85bf13fd9bb5.png?width=206&height=342)
Key in Vodafone Internet and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-177dc1a2-2bc9-4b6b-b0f2-6b653221b619.png?width=206&height=342)
Vodafone Internet
3. Enter APN
Press APN.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-4b821caa-ac32-4c21-94e9-85bf13fd9bb5.png?width=206&height=342)

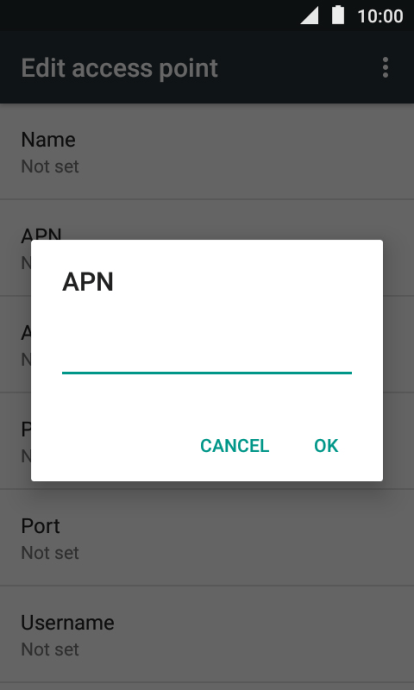

Key in live.vodafone.com and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-8339df88-2d66-48d9-a96b-e200d0c58873.png?width=206&height=342)
live.vodafone.com
4. Select APN type
Press APN type.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-4b821caa-ac32-4c21-94e9-85bf13fd9bb5.png?width=206&height=342)

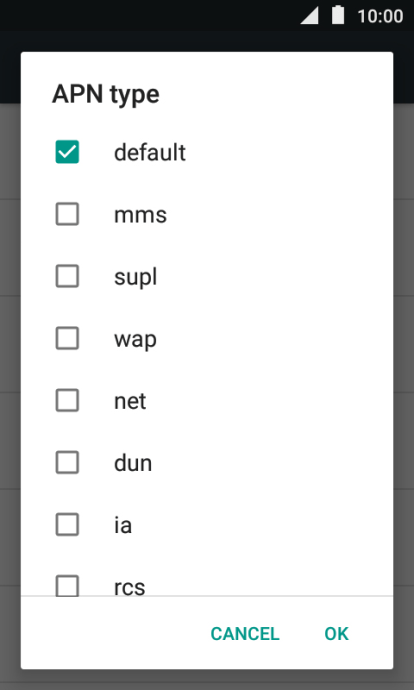

Make sure only default is selected.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-a04d6b87-4d94-454f-b5a4-77a4780be057.png?width=206&height=342)
Press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-a04d6b87-4d94-454f-b5a4-77a4780be057.png?width=206&height=342)
5. Enter IP address
Press Proxy.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-4b821caa-ac32-4c21-94e9-85bf13fd9bb5.png?width=206&height=342)
Key in 10.24.59.100 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-7a507da7-d761-4382-a02f-54105d55d530.png?width=206&height=342)
10.24.59.100
6. Enter port number
Press Port.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-4b821caa-ac32-4c21-94e9-85bf13fd9bb5.png?width=206&height=342)
Key in 80 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-fd457829-1485-469f-bda3-491d896e5980.png?width=206&height=342)
80
7. Enter country code

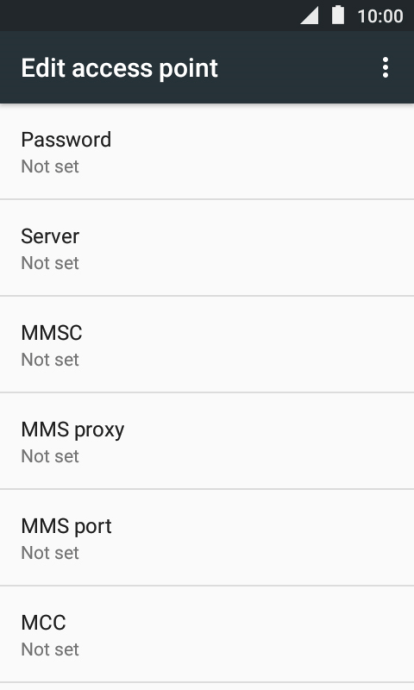

Press MCC.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-77639c9b-fc10-425a-826e-aeb7c362a122.png?width=206&height=342)
Key in 272 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-7aa571ba-8f49-4b8e-afee-f27e9847e2ab.png?width=206&height=342)
272
8. Enter network code

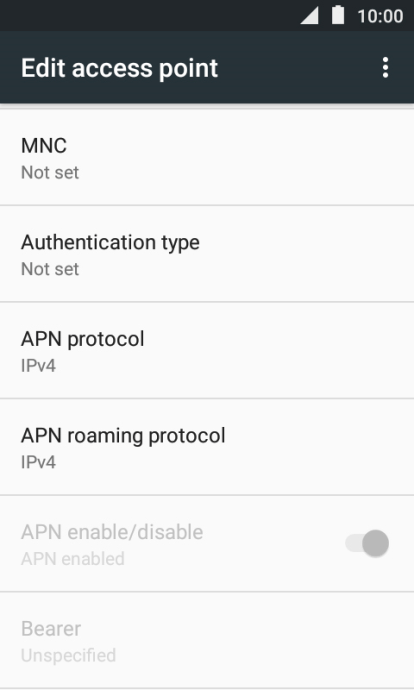

Press MNC.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-ce28d9f6-6c2c-400e-9175-173976708daa.png?width=206&height=342)

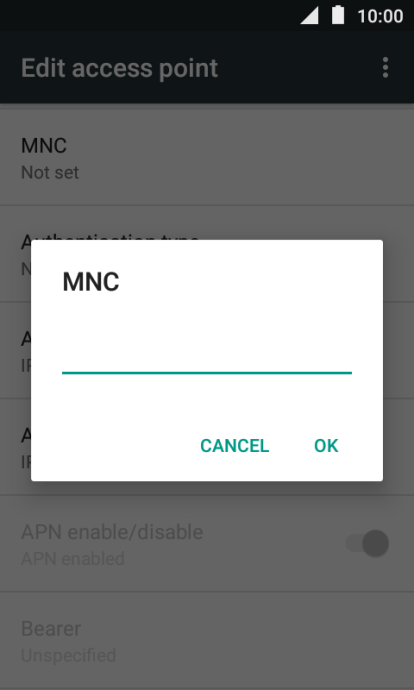

Key in 01 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-b6d542e8-8269-4ee4-9cf4-d406f38ee246.png?width=206&height=342)
01
9. Select authentication type
Press Authentication type.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-ce28d9f6-6c2c-400e-9175-173976708daa.png?width=206&height=342)

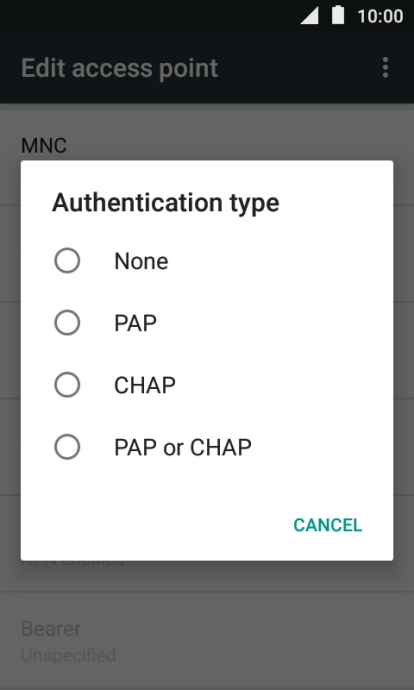

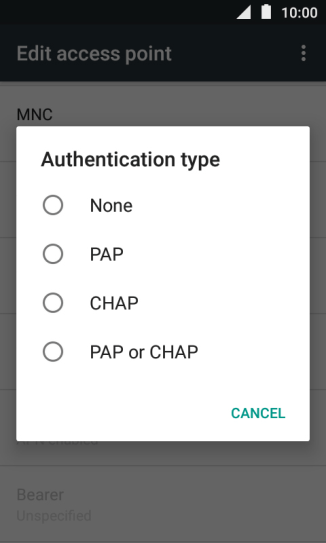

Press PAP.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-923a8ab1-88e6-4047-b8cc-3b6323914ff5.png?width=206&height=342)
10. Save data connection
Press the menu icon.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-ce28d9f6-6c2c-400e-9175-173976708daa.png?width=206&height=342)

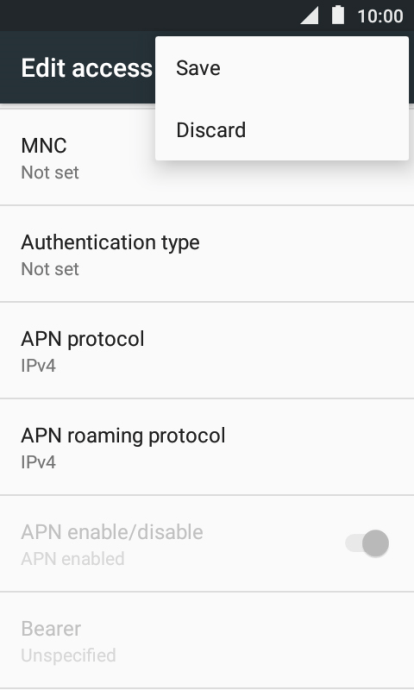

Press Save.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-3a992f61-49e4-4f85-a1f3-c62b3f1ceeb2.png?width=206&height=342)

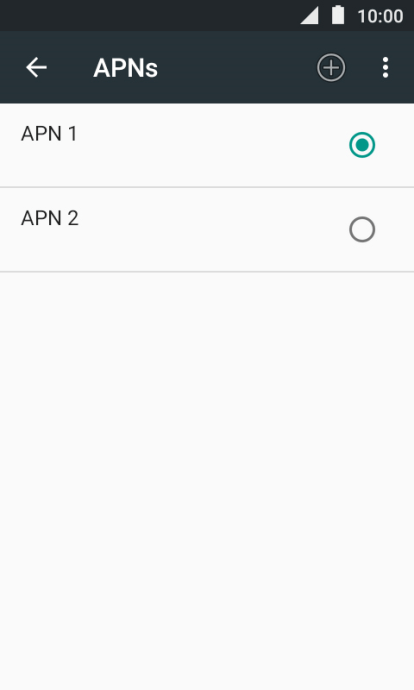

Press the field next to the required data connection to activate it.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-f058952e-612e-4261-83f1-b0a3b8911ef8.png?width=206&height=342)
11. Return to the home screen

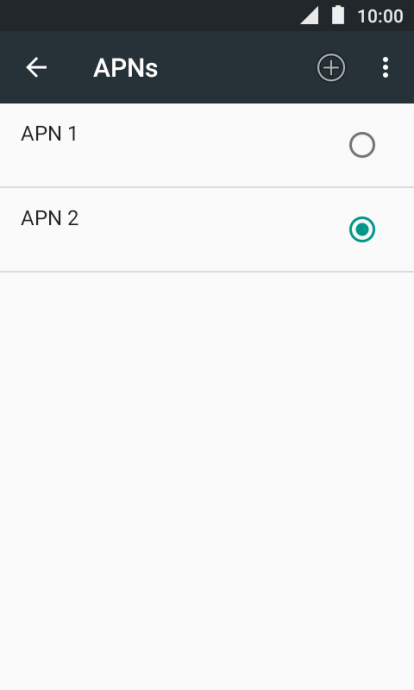

Press the Home key to return to the home screen.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-b85e4a8d-5449-42d4-aa8f-128691066a1c.png?width=206&height=342)
