Set up your phone for picture messaging - Vodafone Smart 4 Max

Read help info

A picture message is a message which can contain pictures and other media files and can be sent to other mobile phones and email addresses. You can send and receive picture messages as soon as you've inserted your SIM. If this isn't the case, you can set up your phone for picture messaging manually.

Step 1 of 35

Find "Access Point Names"

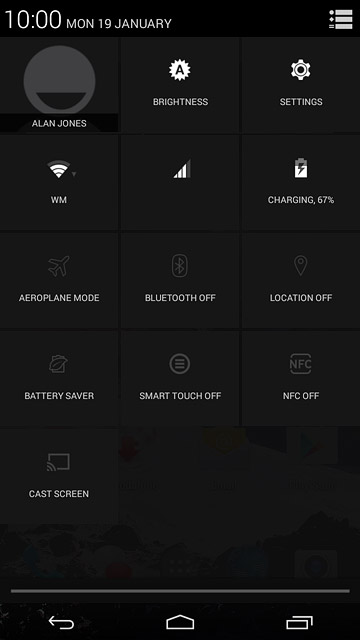

Slide two fingers down the display starting from the top edge of your phone.
Press SETTINGS.

Step 2 of 35

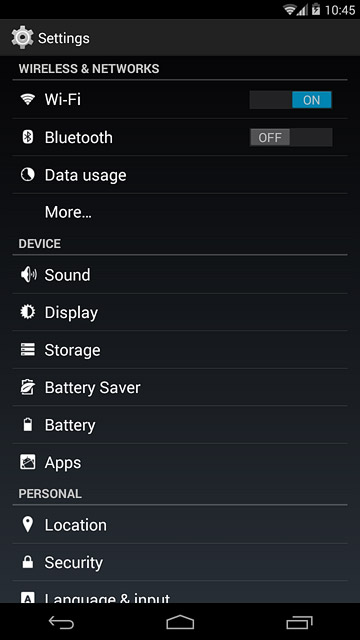

Find "Access Point Names"

Press More....

Step 3 of 35

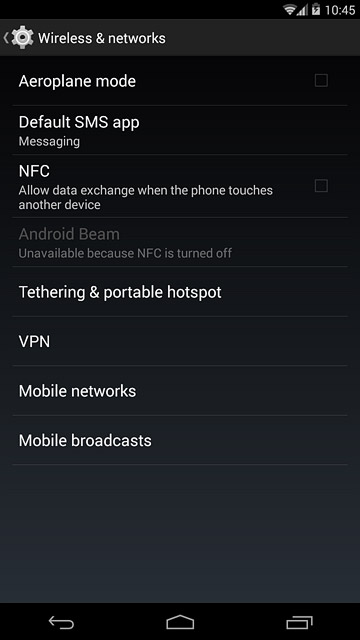

Find "Access Point Names"

Press Mobile networks.

Step 4 of 35

Find "Access Point Names"

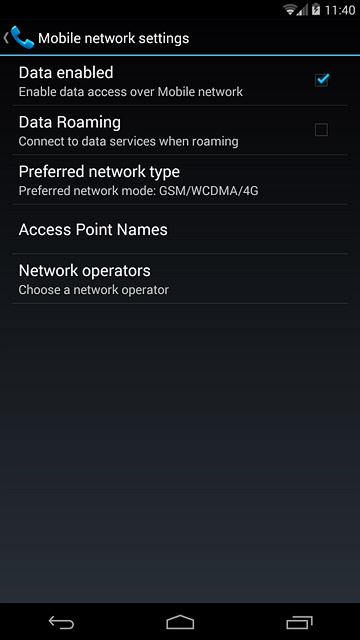

Press Access Point Names.

Step 5 of 35

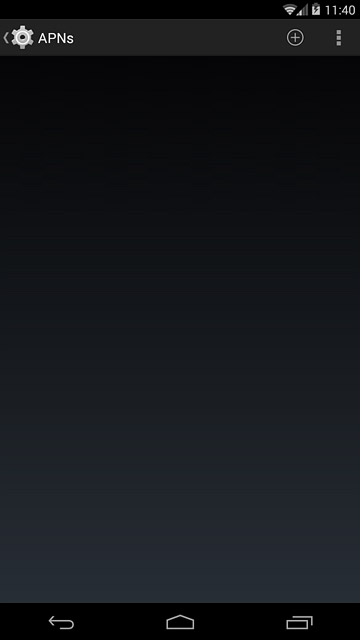

Create new data connection

Press the create data connection icon.

Step 6 of 35

Enter data connection name

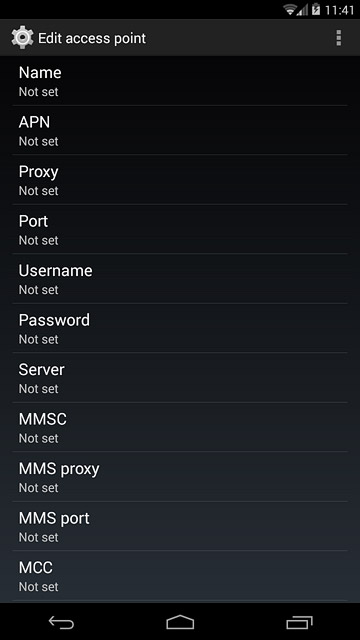

Press Name.

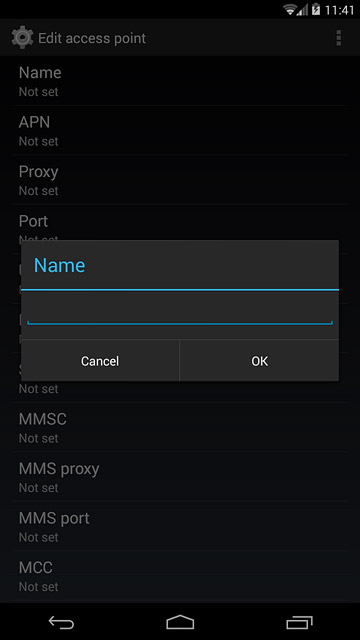

Step 7 of 35

Enter data connection name

Key in Vodafone MMS and press OK.

Step 8 of 35

Enter APN

Press APN.

Step 9 of 35

Enter APN

Key in mms.vodafone.net and press OK.

Step 10 of 35

Enter picture messaging server

Press MMSC.

Step 11 of 35

Enter picture messaging server

Key in http://www.vodafone.ie/mms and press OK.

Step 12 of 35

Enter IP address

Press MMS proxy.

Step 13 of 35

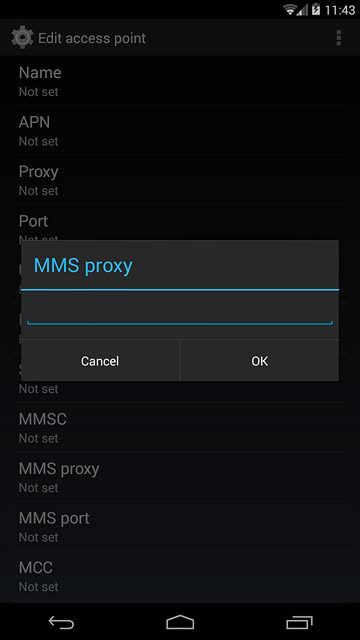

Enter IP address

Key in 10.24.59.200 and press OK.

Step 14 of 35

Enter port number

Press MMS port.

Step 15 of 35

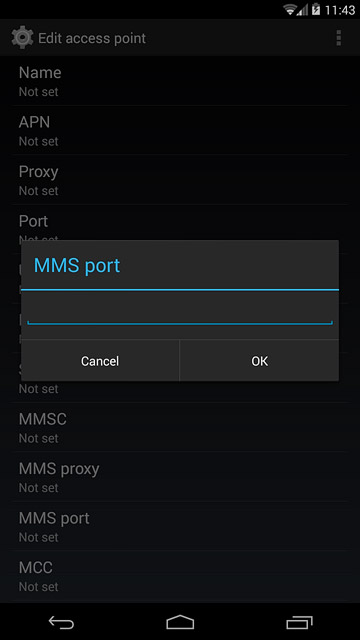

Enter port number

Key in 80 and press OK.

Step 16 of 35

Enter country code

Press MCC.

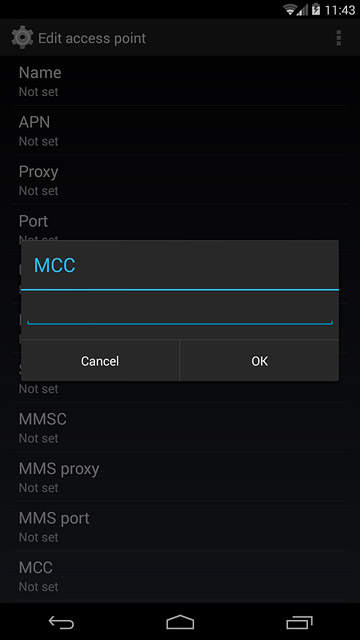

Step 17 of 35

Enter country code

Key in 272 and press OK.

Step 18 of 35

Enter network code

Press MNC.

Step 19 of 35

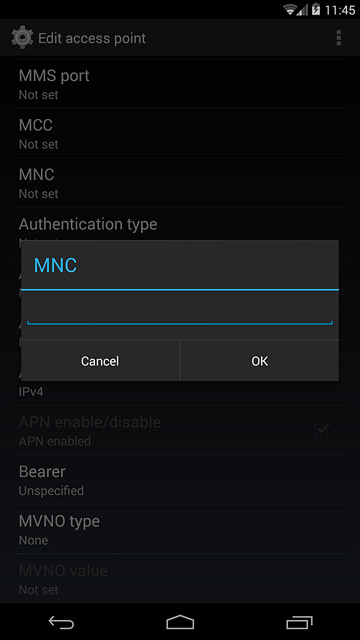

Enter network code

Key in 01 and press OK.

Step 20 of 35

Select authentication type

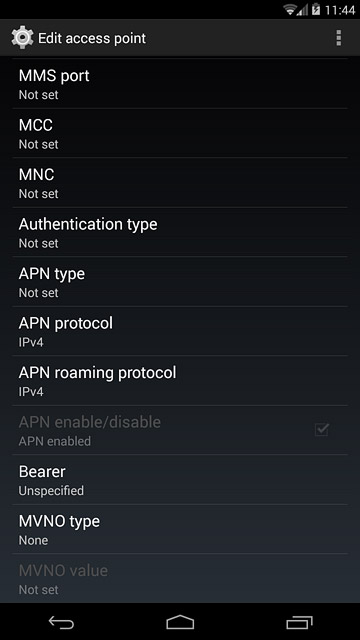

Press Authentication type.

Step 21 of 35

Select authentication type

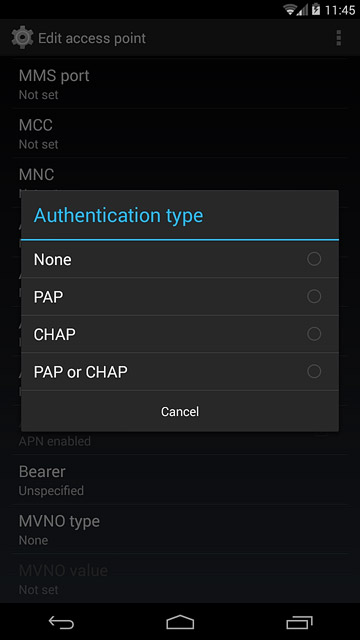

Press PAP.

Step 22 of 35

Select APN type

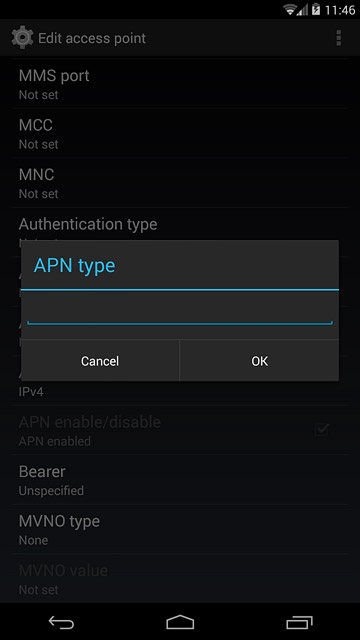

Press APN type.
Key in MMS

Step 23 of 35

Select APN type

Press OK.

Step 24 of 35

Select data bearer

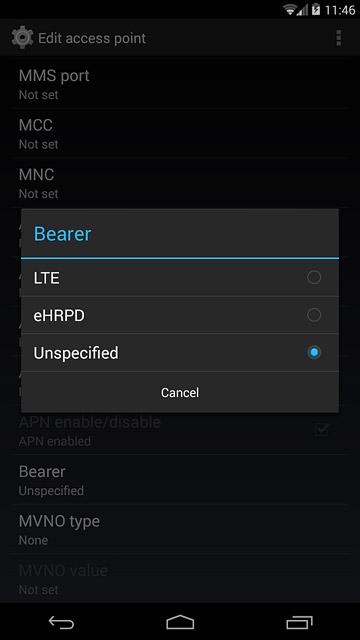

Press Bearer.

Step 25 of 35

Select data bearer

Press Unspecified.

Step 26 of 35

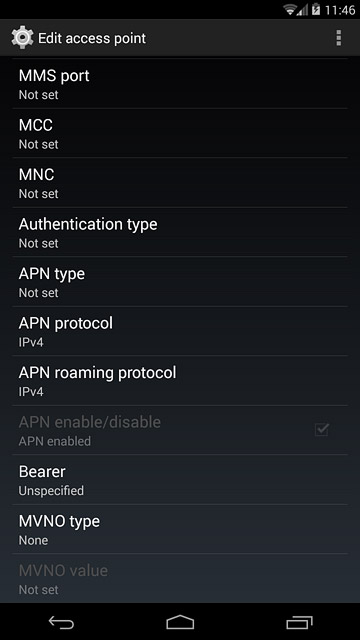

Save data connection

Press the menu icon.

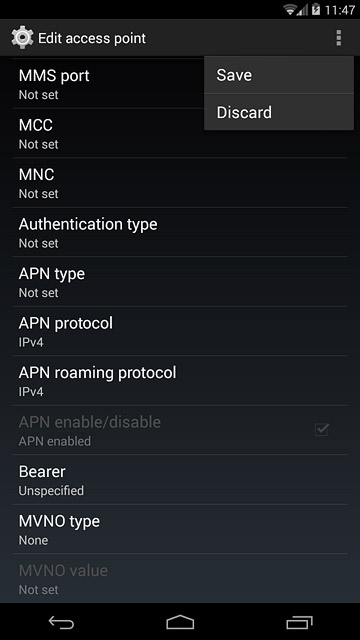

Step 27 of 35

Save data connection

Press Save.

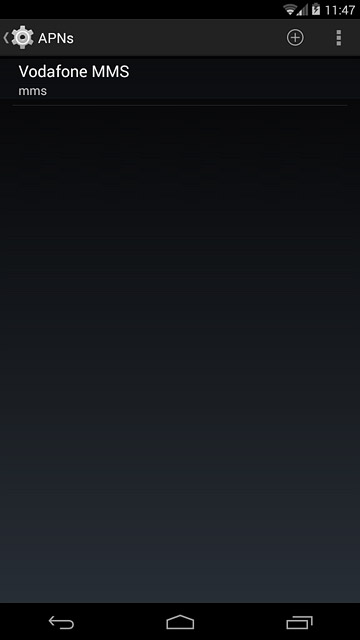

Step 28 of 35

Save data connection

Press the home icon to return to the home screen.

Step 29 of 35

Turn on the message function

Press the menu icon.

Step 30 of 35

Turn on the message function

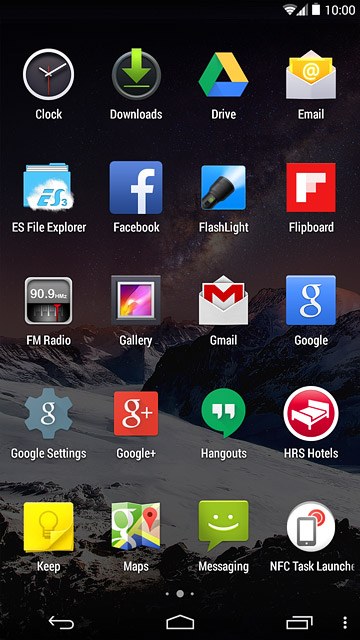

Press Messaging.

Step 31 of 35

Turn on the message function

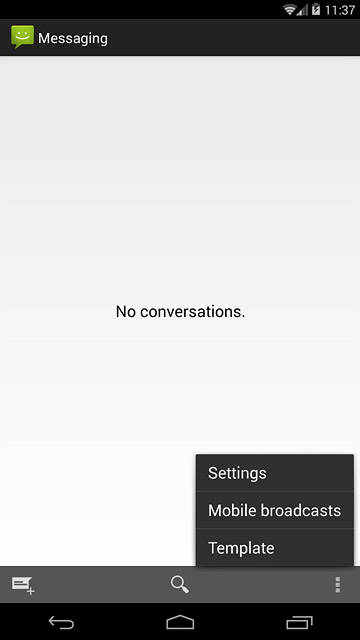

Press the menu icon.

Step 32 of 35

Turn on the message function

Press Settings.

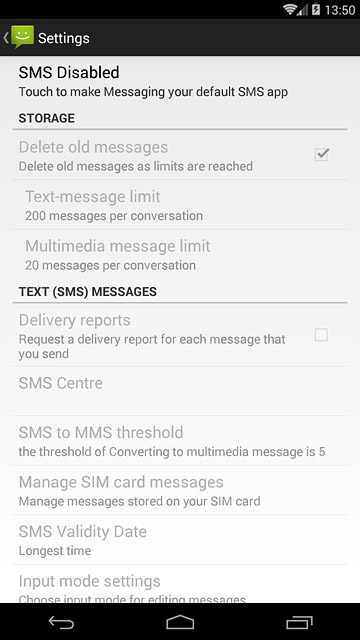

Step 33 of 35

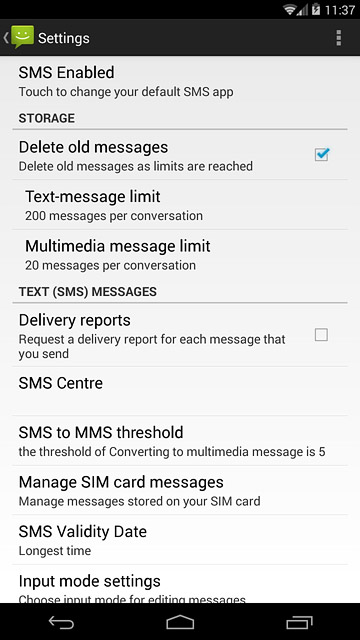

Turn on the message function

Press SMS Disabled.

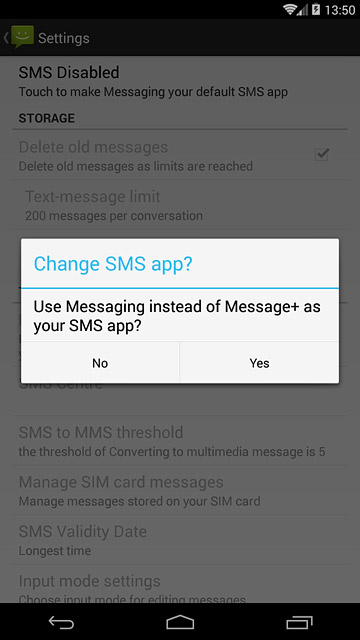

Step 34 of 35

Turn on the message function

Press Yes.

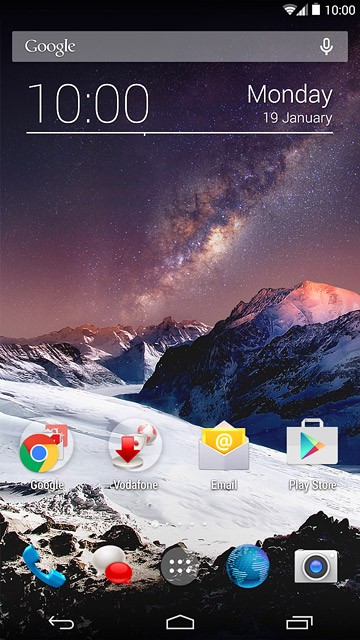

Step 35 of 35

Return to the home screen

Press the home icon to return to the home screen.

1. Find "Access Point Names"

Slide two fingers down the display starting from the top edge of your phone.
Press SETTINGS.
Press More....
Press Mobile networks.
Press Access Point Names.

2. Create new data connection

Press the create data connection icon.

3. Enter data connection name

Press Name.
Key in Vodafone MMS and press OK.

4. Enter APN

Press APN.
Key in mms.vodafone.net and press OK.

5. Enter picture messaging server

Press MMSC.
Key in http://www.vodafone.ie/mms and press OK.

6. Enter IP address

Press MMS proxy.
Key in 10.24.59.200 and press OK.

7. Enter port number

Press MMS port.
Key in 80 and press OK.

8. Enter country code

Press MCC.
Key in 272 and press OK.

9. Enter network code

Press MNC.
Key in 01 and press OK.

10. Select authentication type

Press Authentication type.
Press PAP.

11. Select APN type

Press APN type.
Key in MMS
Press OK.

12. Select data bearer

Press Bearer.
Press Unspecified.

13. Save data connection

Press the menu icon.
Press Save.
Press the home icon to return to the home screen.

14. Turn on the message function

Press the menu icon.
Press Messaging.
Press the menu icon.
Press Settings.
Press SMS Disabled.
Press Yes.

15. Return to the home screen

Press the home icon to return to the home screen.
