Set up your router for internet manually - Vodafone R205 / Windows Vista

Read help info

Usually, your router automatically uses the necessary settings to connect to the Internet. If this isn't the case, it may help to set up your router for internet manually. Follow these instructions to set up your router for internet manually.

Step 1 of 20

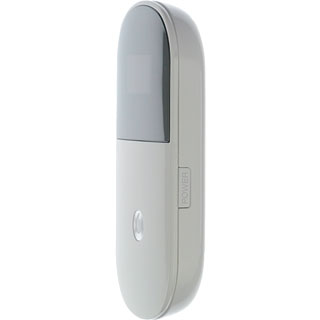

Turn on your router

Press and hold On/Off.

Step 2 of 20

Connect to your Wi-Fi hotspot

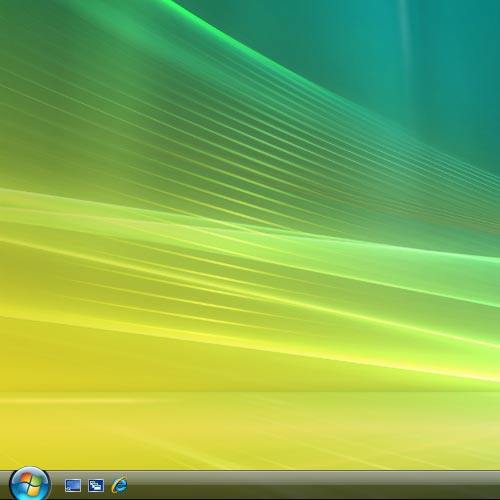

Do the following in Windows:
Click the Windows icon.

You can see the Wi-Fi hotspot name and password by pressing On/Off twice in quick succession.
Step 3 of 20

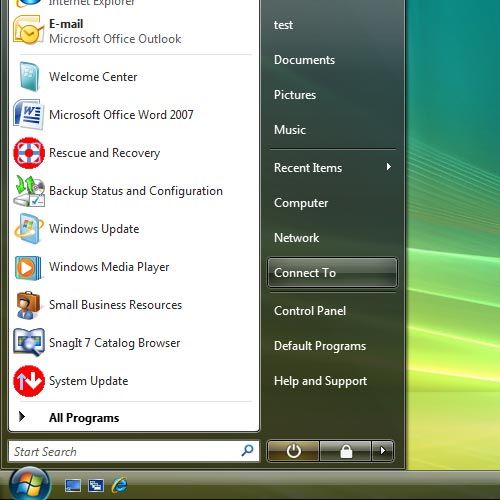

Connect to your Wi-Fi hotspot

Click Connect To.

You can see the Wi-Fi hotspot name and password by pressing On/Off twice in quick succession.
Step 4 of 20

Connect to your Wi-Fi hotspot

If required, click the refresh icon.

You can see the Wi-Fi hotspot name and password by pressing On/Off twice in quick succession.
Step 5 of 20

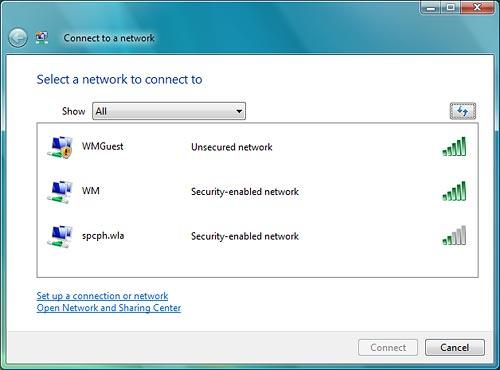

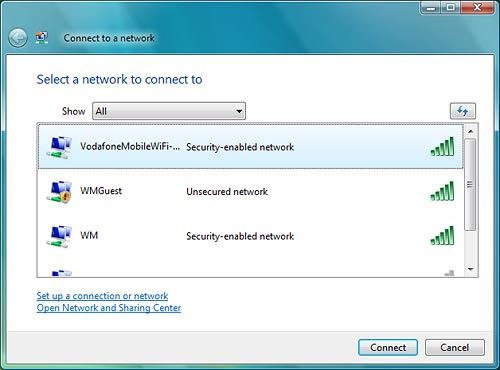

Connect to your Wi-Fi hotspot

Highlight the name of your Wi-Fi hotspot and click Connect.

You can see the Wi-Fi hotspot name and password by pressing On/Off twice in quick succession.
Step 6 of 20

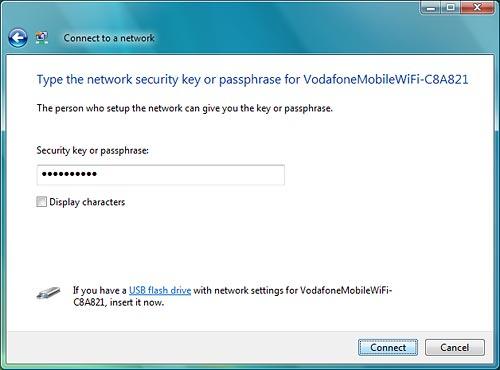

Connect to your Wi-Fi hotspot

Key in the password for your Wi-Fi hotspot and click Connect.

You can see the Wi-Fi hotspot name and password by pressing On/Off twice in quick succession.

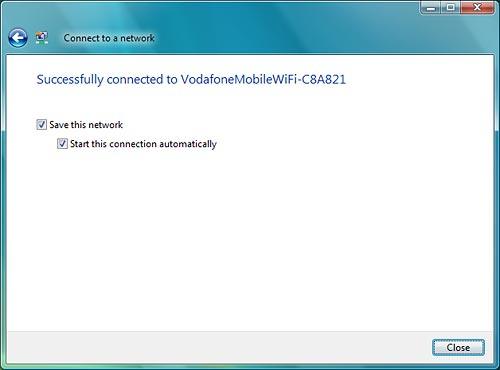

Step 7 of 20

Connect to your Wi-Fi hotspot

Click Close.
A connection to your Wi-Fi hotspot is established.

You can see the Wi-Fi hotspot name and password by pressing On/Off twice in quick succession.
Step 8 of 20

Connect to the router configuration page

Open a browser window.
Key in 192.168.0.1 in the address bar and press Enter.
Highlight the field next to Password and key in admin

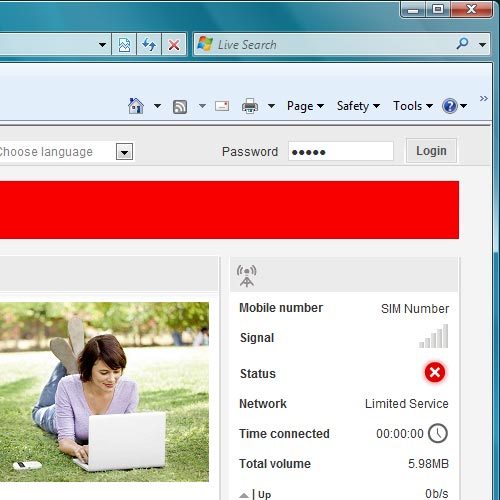

Step 9 of 20

Connect to the router configuration page

Click Login.

Step 10 of 20

Find "Connection"

Click Mobile Broadband.

Step 11 of 20

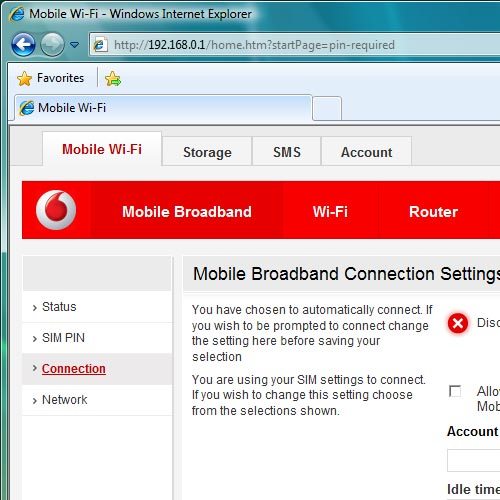

Find "Connection"

Click Connection.

Step 12 of 20

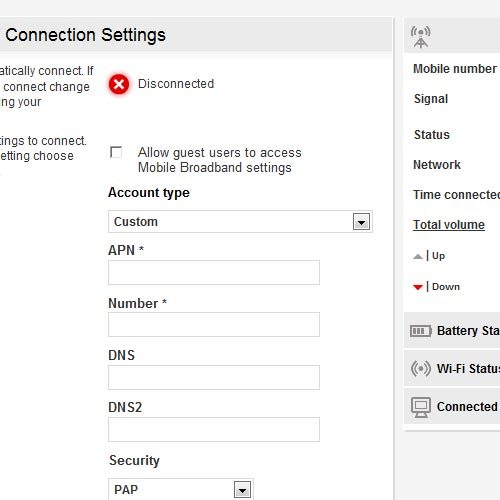

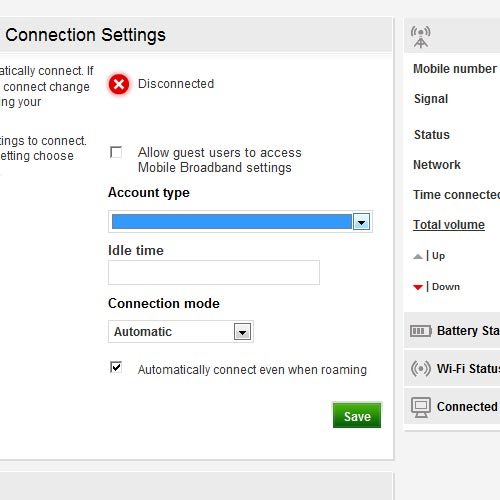

Create new data connection

Click the drop down list below Account type.

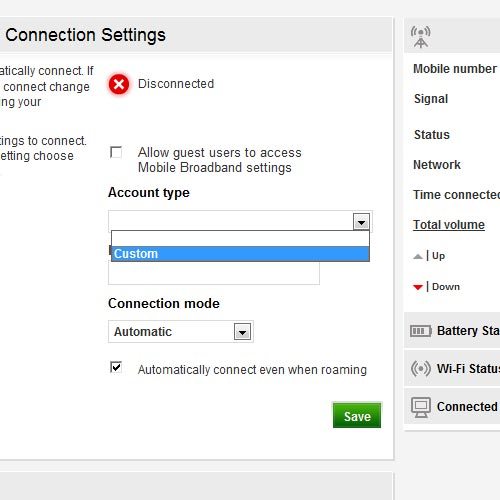

Step 13 of 20

Create new data connection

Highlight Custom.

Step 14 of 20

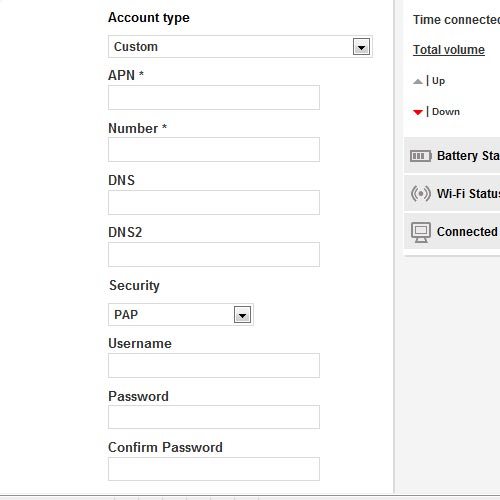

Enter APN

Highlight the field below APN.
Key in hs.vodafone.ie

Step 15 of 20

Enter dial-up number

Highlight the field below Number and key in *99#

Step 16 of 20

Enter username

Highlight the field below Username and key in vodafone

Step 17 of 20

Enter password

Highlight the field below Password and key in vodafone

Step 18 of 20

Enter password

Highlight the field below Confirm Password and key in vodafone

Step 19 of 20

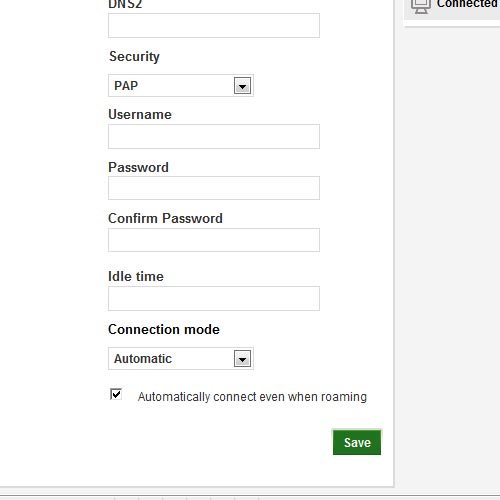

Save and exit

Click Save.

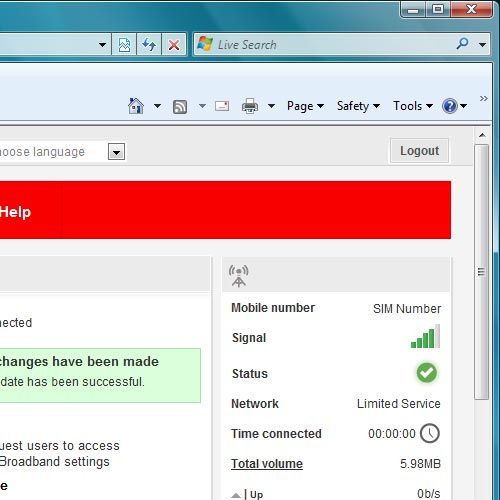

Step 20 of 20

Save and exit

Click Logout.
