Vodafone R205 / Windows Vista

Vodafone R205

Write and send a text message - Vodafone R205 / Windows Vista

Read help info

You can write and send text messages from your router to a phone number. Follow these instructions to write and send text messages.

Step 1 of 17

Turn on your router

Press and hold On/Off.

Step 2 of 17

Connect to your Wi-Fi hotspot

Do the following in Windows:

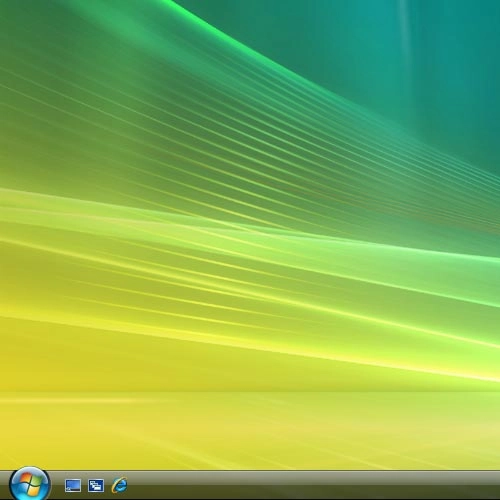

Click the Windows icon.

You can see the Wi-Fi hotspot name and password by pressing On/Off twice in quick succession.
Step 3 of 17

Connect to your Wi-Fi hotspot

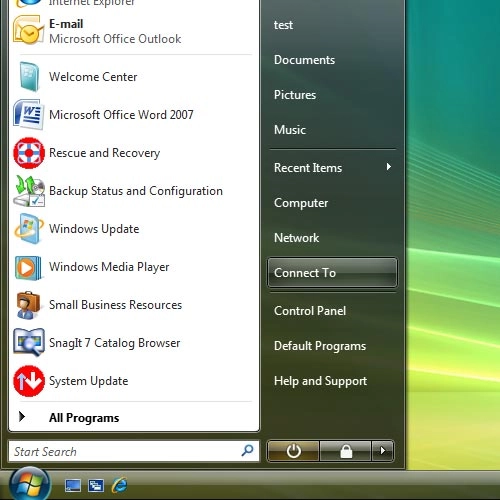

Click Connect To.

You can see the Wi-Fi hotspot name and password by pressing On/Off twice in quick succession.
Step 4 of 17

Connect to your Wi-Fi hotspot

If required, click the refresh icon.

You can see the Wi-Fi hotspot name and password by pressing On/Off twice in quick succession.
Step 5 of 17

Connect to your Wi-Fi hotspot

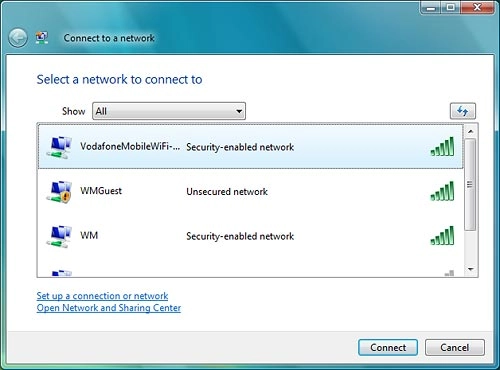

Highlight the name of your Wi-Fi hotspot and click Connect.

You can see the Wi-Fi hotspot name and password by pressing On/Off twice in quick succession.
Step 6 of 17

Connect to your Wi-Fi hotspot

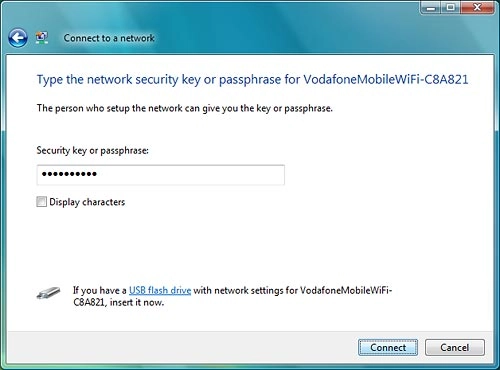

Key in the password for your Wi-Fi hotspot and click Connect.

You can see the Wi-Fi hotspot name and password by pressing On/Off twice in quick succession.
Step 7 of 17

Connect to your Wi-Fi hotspot

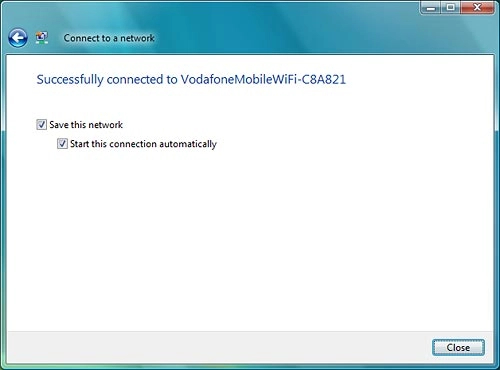

Click Close.
A connection to your Wi-Fi hotspot is established.

You can see the Wi-Fi hotspot name and password by pressing On/Off twice in quick succession.
Step 8 of 17

Connect to the router configuration page

Open a browser window.
Key in 192.168.0.1 in the address bar and press Enter.
Highlight the field next to Password and key in admin

Step 9 of 17

Connect to the router configuration page

Click Login.

Step 10 of 17

Key in your PIN

If you're asked to key in your PIN:

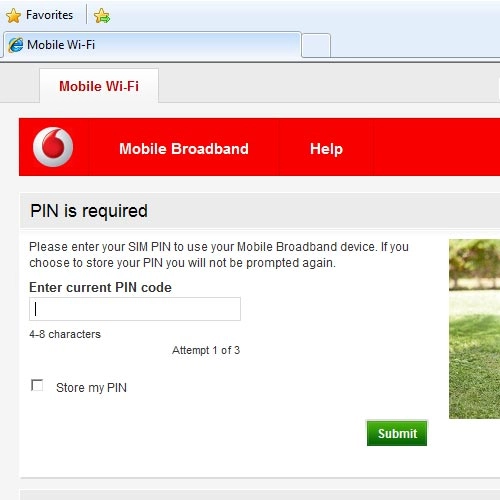

Highlight the field below Enter current PIN code and key in your PIN.

Step 11 of 17

Key in your PIN

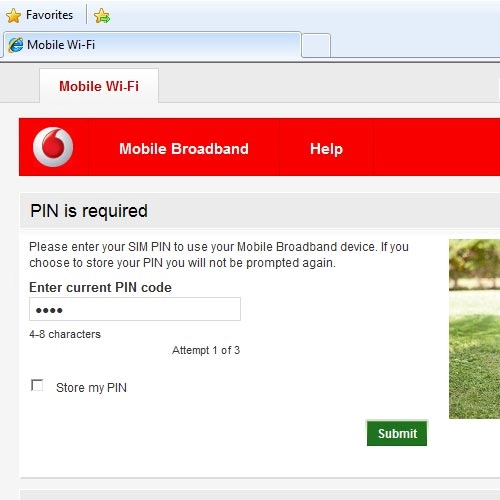

Click Submit.

Step 12 of 17

Find "Write"

Click SMS.

Step 13 of 17

Find "Write"

Click Write.

Step 14 of 17

Add recipient

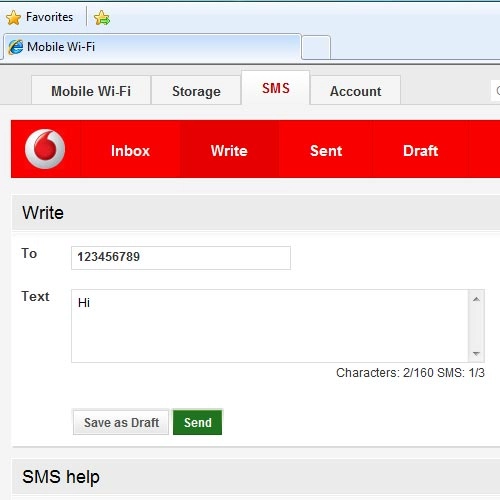

Highlight the field next to To and key in the required number.

Step 15 of 17

Write the text message

Highlight the text input field and write the text message.

Step 16 of 17

Send the message

Click Send.

Step 17 of 17

Exit

Click Logout.

1. Turn on your router

Press and hold On/Off.

2. Connect to your Wi-Fi hotspot

Do the following in Windows:
Click the Windows icon.
You can see the Wi-Fi hotspot name and password by pressing On/Off twice in quick succession.
Click Connect To.
You can see the Wi-Fi hotspot name and password by pressing On/Off twice in quick succession.
If required, click the refresh icon.
You can see the Wi-Fi hotspot name and password by pressing On/Off twice in quick succession.
Highlight the name of your Wi-Fi hotspot and click Connect.
You can see the Wi-Fi hotspot name and password by pressing On/Off twice in quick succession.
Key in the password for your Wi-Fi hotspot and click Connect.
You can see the Wi-Fi hotspot name and password by pressing On/Off twice in quick succession.
Click Close.
A connection to your Wi-Fi hotspot is established.
You can see the Wi-Fi hotspot name and password by pressing On/Off twice in quick succession.

3. Connect to the router configuration page

Open a browser window.
Key in 192.168.0.1 in the address bar and press Enter.
Highlight the field next to Password and key in admin
Click Login.

4. Key in your PIN

If you're asked to key in your PIN:
Highlight the field below Enter current PIN code and key in your PIN.
Click Submit.

5. Find "Write"

Click SMS.
Click Write.

6. Add recipient

Highlight the field next to To and key in the required number.

7. Write the text message

Highlight the text input field and write the text message.

8. Send the message

Click Send.

9. Exit

Click Logout.
