Choose settings for automatic connection - Vodafone R205 / Windows 7

Read help info

You can select if an internet connection is to be automatically established when you turn on the router. Follow these instructions to select settings for automatic connection.

Step 1 of 14

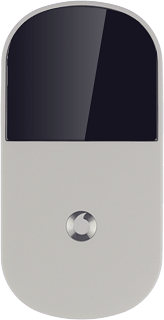

Turn on your router

Press and hold On/Off.

Step 2 of 14

Connect to your Wi-Fi hotspot

Do the following in Windows:

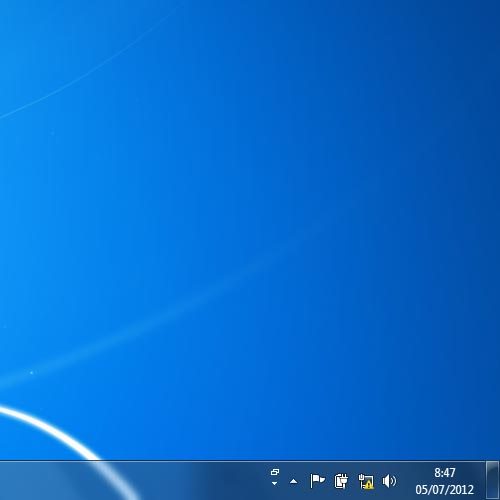

Click the network icon.

You can see the Wi-Fi hotspot name and password by pressing On/Off twice in quick succession.
Step 3 of 14

Connect to your Wi-Fi hotspot

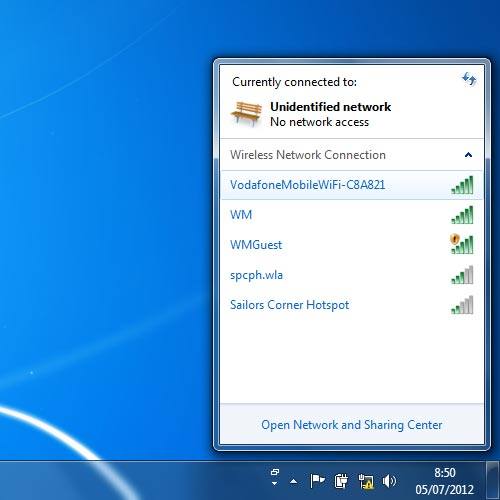

Highlight the name of your Wi-Fi hotspot and click Connect.

You can see the Wi-Fi hotspot name and password by pressing On/Off twice in quick succession.
Step 4 of 14

Connect to your Wi-Fi hotspot

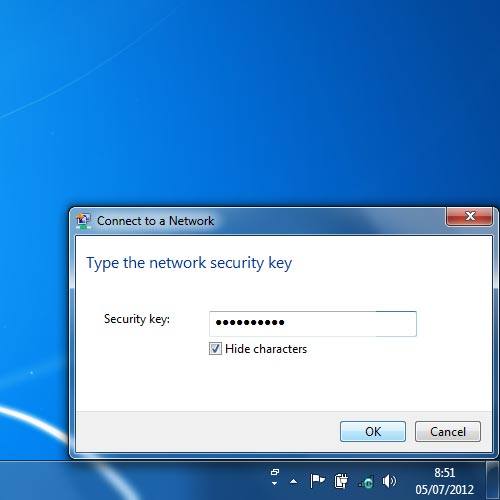

Key in the password for your Wi-Fi hotspot and click OK.
A connection to your Wi-Fi hotspot is established.

You can see the Wi-Fi hotspot name and password by pressing On/Off twice in quick succession.
Step 5 of 14

Connect to the router configuration page

Open a browser window.
Key in 192.168.0.1 in the address bar and press Enter.

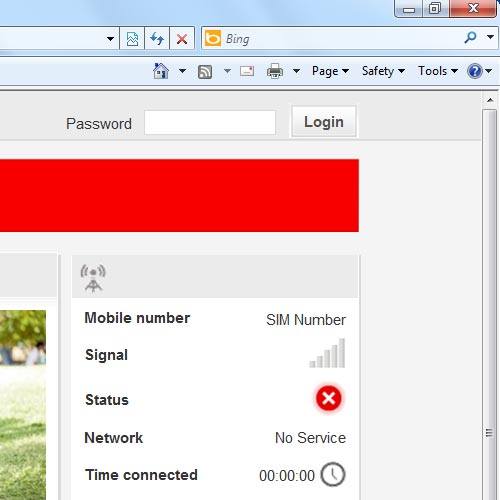

Highlight the field next to Password and key in admin

Step 6 of 14

Connect to the router configuration page

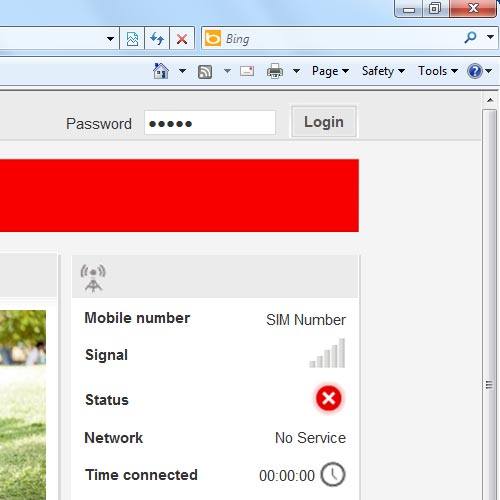

Click Login.

Step 7 of 14

Find "Connection"

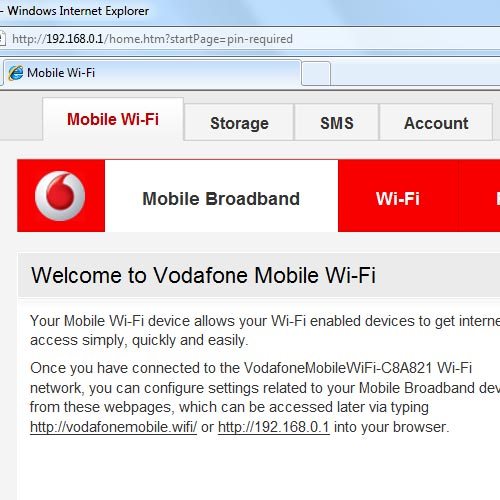

Click Mobile Broadband.

Step 8 of 14

Find "Connection"

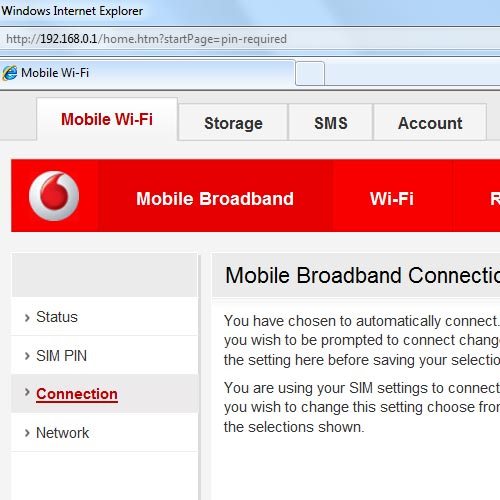

Click Connection.

Vodafone R205 / Windows 7
Step 9 of 14

Choose option

Choose one of the following options:
Select setting for automatic connection, go to 5a.
Turn automatic connection when roaming on or off, go to 5b.

Step 10 of 14

5a - Select setting for automatic connection

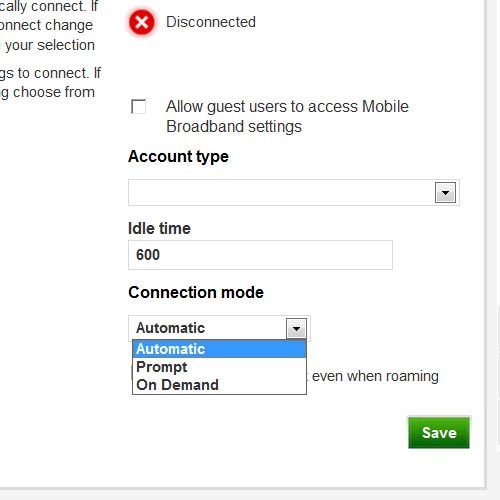

Click the drop down list below Connection mode.

Step 11 of 14

5a - Select setting for automatic connection

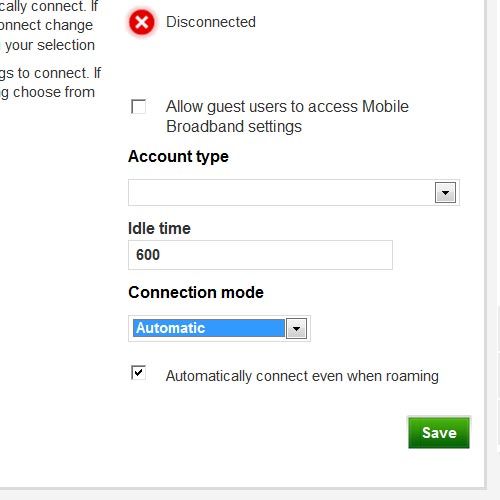

Highlight Automatic, Prompt or On Demand.

Step 12 of 14

5b - Turn automatic connection when roaming on or off

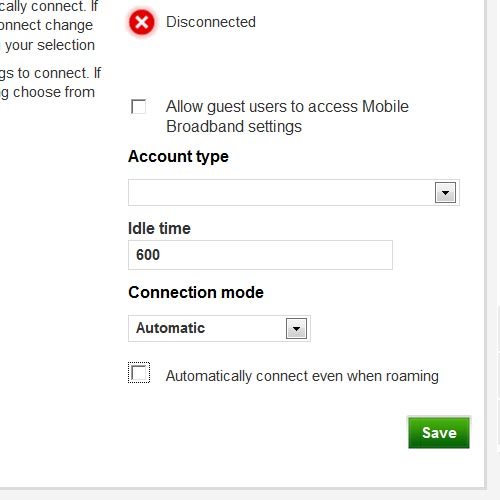

Click the box next to Automatically connect even when roaming to turn automatic connection when roaming on or off.

Step 13 of 14

5b - Turn automatic connection when roaming on or off

When the box next to the menu item is ticked (V), the function is turned on.

Step 14 of 14

Exit

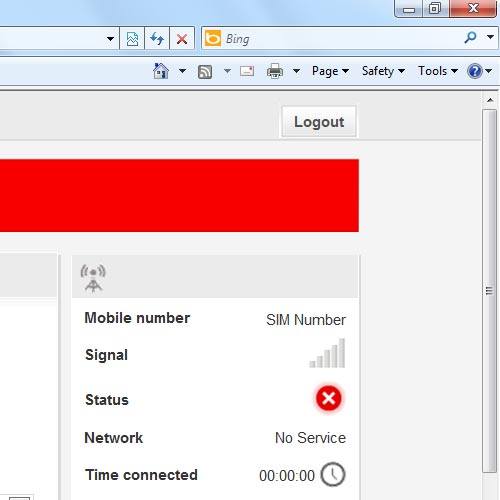

Click Logout.

Turn on your router

Press and hold On/Off.

Connect to your Wi-Fi hotspot

Do the following in Windows:
Click the network icon.
You can see the Wi-Fi hotspot name and password by pressing On/Off twice in quick succession.
Highlight the name of your Wi-Fi hotspot and click Connect.
You can see the Wi-Fi hotspot name and password by pressing On/Off twice in quick succession.
Key in the password for your Wi-Fi hotspot and click OK.
A connection to your Wi-Fi hotspot is established.
You can see the Wi-Fi hotspot name and password by pressing On/Off twice in quick succession.

Connect to the router configuration page

Open a browser window.
Key in 192.168.0.1 in the address bar and press Enter.
Highlight the field next to Password and key in admin
Click Login.

Find "Connection"

Click Mobile Broadband.
Click Connection.

Choose option

Choose one of the following options:
Select setting for automatic connection, go to 5a.
Turn automatic connection when roaming on or off, go to 5b.
Vodafone R205 / Windows 7

5a - Select setting for automatic connection

Click the drop down list below Connection mode.
Highlight Automatic, Prompt or On Demand.

5b - Turn automatic connection when roaming on or off

Click the box next to Automatically connect even when roaming to turn automatic connection when roaming on or off.
When the box next to the menu item is ticked (V), the function is turned on.

Exit

Click Logout.
