Vodafone K4605 / Windows 7

Vodafone K4605

Windows 7
Windows 7 Windows Vista Mac Leopard Mac Snow Leopard

Set up your data card for internet manually - Vodafone K4605 / Windows 7

Read help info

Usually, you can connect to the internet from within the data card application (Vodafone Mobile Broadband) as soon as it has been installed on your computer. If this isn't the case, you can set up your data card for internet manually. Follow these instructions to set up your data card for internet manually.
If you have an active internet connection, it needs to be ended. Click here for information on how to end an internet connection.

Step 1 of 15

Find "Add Settings"

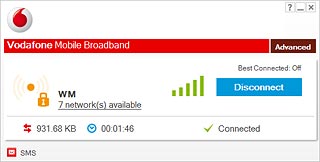

If required, click Advanced.

Step 2 of 15

Find "Add Settings"

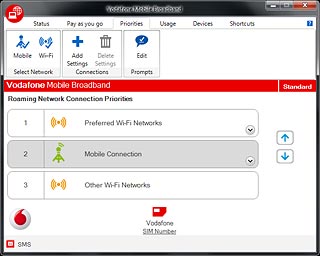

Click Priorities.

Step 3 of 15

Find "Add Settings"

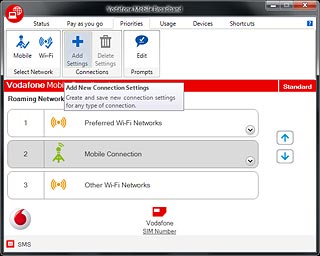

Click Add Settings.

Step 4 of 15

Create new data connection

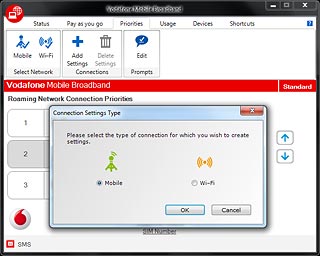

Highlight Mobile and click OK.

Step 5 of 15

Create new data connection

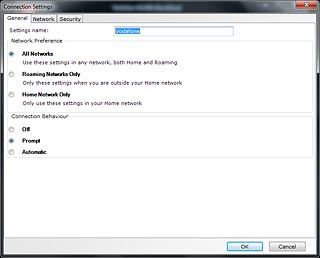

Highlight the field next to Settings name and key in the required name for the data connection.

Step 6 of 15

Select settings for roaming

Highlight one of the following options:
All Networks

Step 7 of 15

Select settings for roaming

Roaming Networks Only

Step 8 of 15

Select settings for roaming

Home Network Only

Step 9 of 15

Enter APN

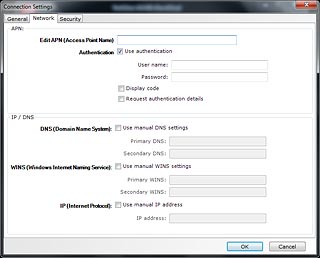

Click the Network tab.

Step 10 of 15

Enter APN

Highlight the field next to Edit APN (Access Point Name) and key in hs.vodafone.ie

Step 11 of 15

Turn on authentication

Click the box next to Use authentification to turn on authentication.

Step 12 of 15

Turn on authentication

When the box next to the menu item is ticked (V), authentication is turned on.

Step 13 of 15

Enter username

Highlight the field next to User name and key in vodafone

Step 14 of 15

Enter password

Highlight the field next to Password and key in vodafone

Step 15 of 15

Exit

Click OK to close the window.

Find "Add Settings"

If required, click Advanced.
Click Priorities.
Click Add Settings.

Create new data connection

Highlight Mobile and click OK.
Highlight the field next to Settings name and key in the required name for the data connection.

Select settings for roaming

Highlight one of the following options:
All Networks
Roaming Networks Only
Home Network Only

Enter APN

Click the Network tab.
Highlight the field next to Edit APN (Access Point Name) and key in hs.vodafone.ie

Turn on authentication

Click the box next to Use authentification to turn on authentication.
When the box next to the menu item is ticked (V), authentication is turned on.

Enter username

Highlight the field next to User name and key in vodafone

Enter password

Highlight the field next to Password and key in vodafone

Exit

Click OK to close the window.
