Vodafone HG658c/Windows 7

Vodafone HG658c

Windows 7
Windows 7 Windows 8 Yosemite Mavericks

Use file sharing - Vodafone HG658c/Windows 7

Read help info

You can share files with other devices on the network by connecting various USB storage devices (USB keys or external hard drives formatted to the file system FAT32) to your router. Remember, you need to establish a connection to the router web interface.

Step 1 of 16

Connect USB storage device

Turn the back of your router towards you.

Step 2 of 16

Connect USB storage device

Connect a USB storage device to the "USB" socket.

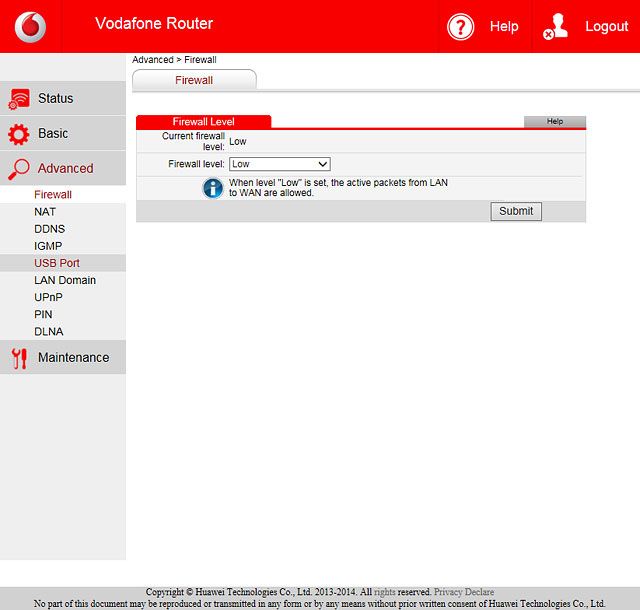

Step 3 of 16

Turn on file sharing

Click Advanced.

Step 4 of 16

Turn on file sharing

Click USB Port.

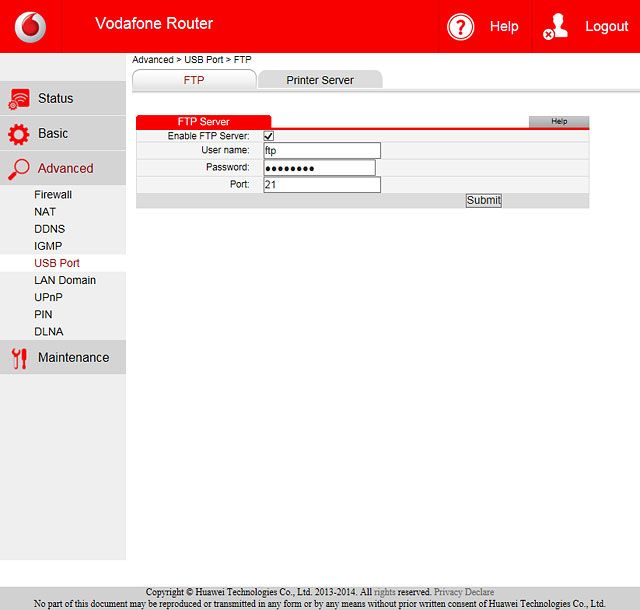

Step 5 of 16

Turn on file sharing

Click the box next to "Enable FTP Server" until the function is turned on.

Step 6 of 16

Create new user

Highlight the field next to "User name" and key in the required username.

Step 7 of 16

Create new user

Highlight the field next to "Password" and key in the required password.

Step 8 of 16

Create new user

Highlight the field next to "Port" and key in 21

Step 9 of 16

Create new user

Click Submit.

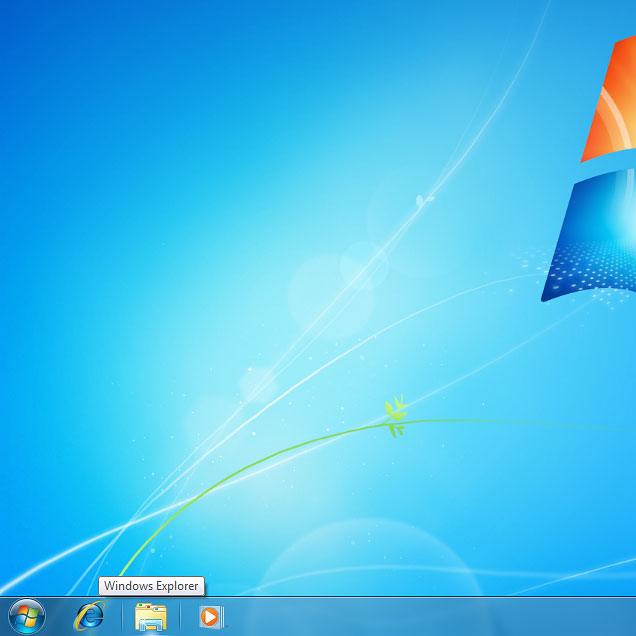

Step 10 of 16

Use file sharing in Windows

Open a file manager.

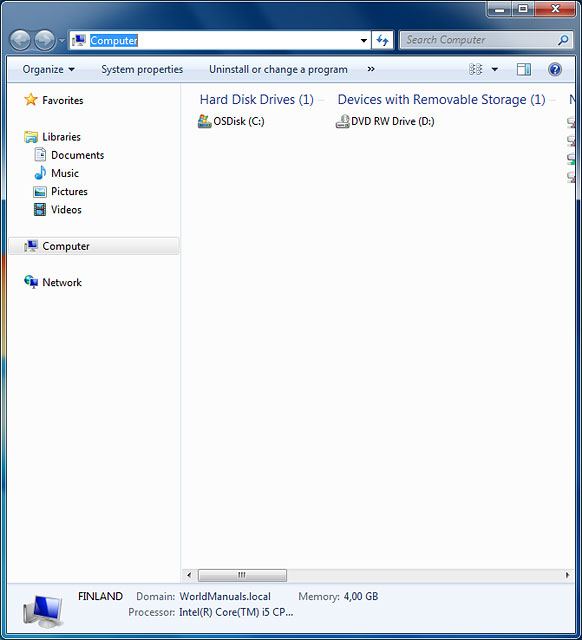

Step 11 of 16

Use file sharing in Windows

Highlight the address bar and then go to ftp://192.168.1.1

Step 12 of 16

Use file sharing in Windows

Highlight the field next to "User name" and key in your username.

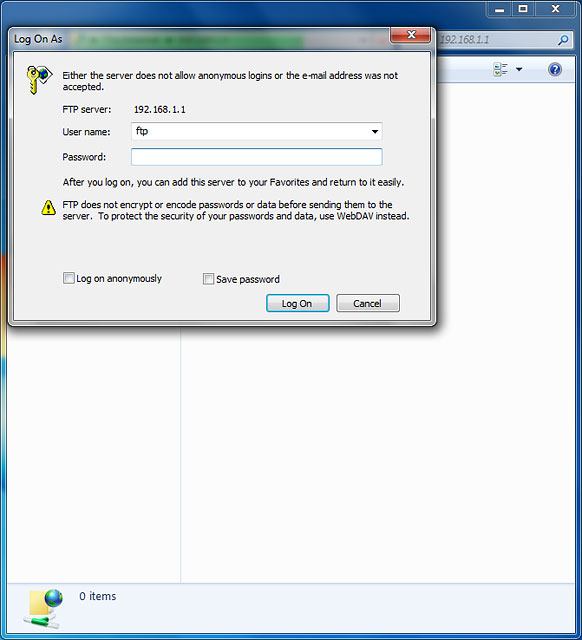

Step 13 of 16

Use file sharing in Windows

Highlight the field next to "Password" and key in your password.

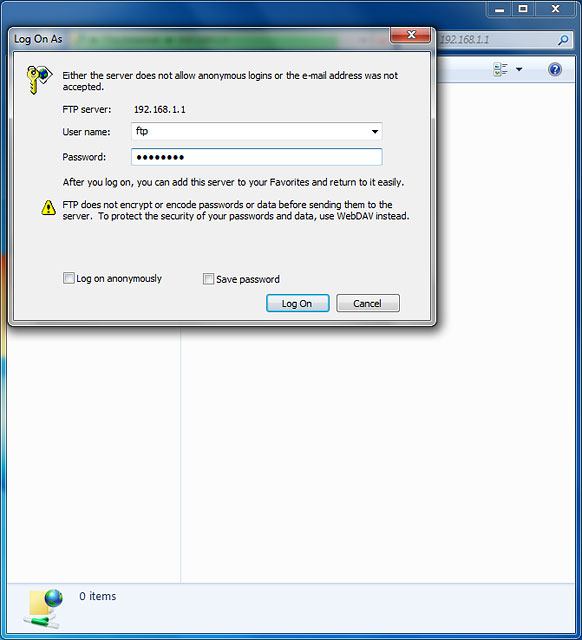

Step 14 of 16

Use file sharing in Windows

Click Log on.

Step 15 of 16

Use file sharing in Windows

Go to the required folder in the file system.

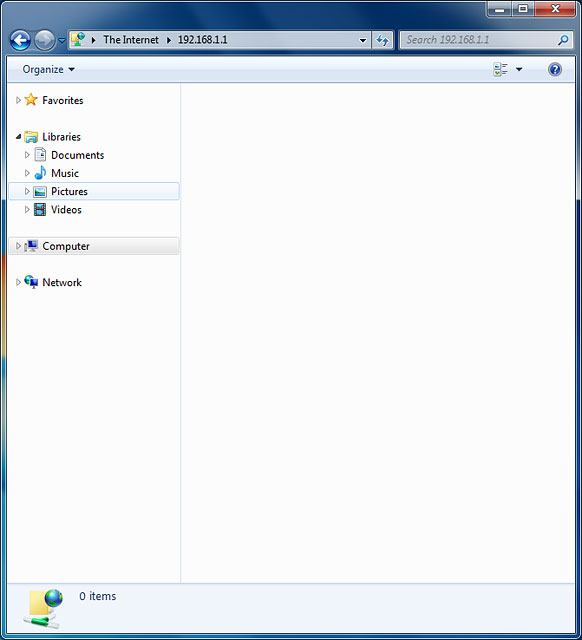

Step 16 of 16

Use file sharing in Windows

Highlight a file and move or copy it to the required location.

1. Connect USB storage device

Turn the back of your router towards you.
Connect a USB storage device to the "USB" socket.

2. Turn on file sharing

Click Advanced.
Click USB Port.
Click the box next to "Enable FTP Server" until the function is turned on.

3. Create new user

Highlight the field next to "User name" and key in the required username.
Highlight the field next to "Password" and key in the required password.
Highlight the field next to "Port" and key in 21
Click Submit.

4. Use file sharing in Windows

Open a file manager.
Highlight the address bar and then go to ftp://192.168.1.1
Highlight the field next to "User name" and key in your username.
Highlight the field next to "Password" and key in your password.
Click Log on.
Go to the required folder in the file system.
Highlight a file and move or copy it to the required location.
