Guide to keys and sockets on your Vodafone Gigabox Mac OS Mojave

Read help info

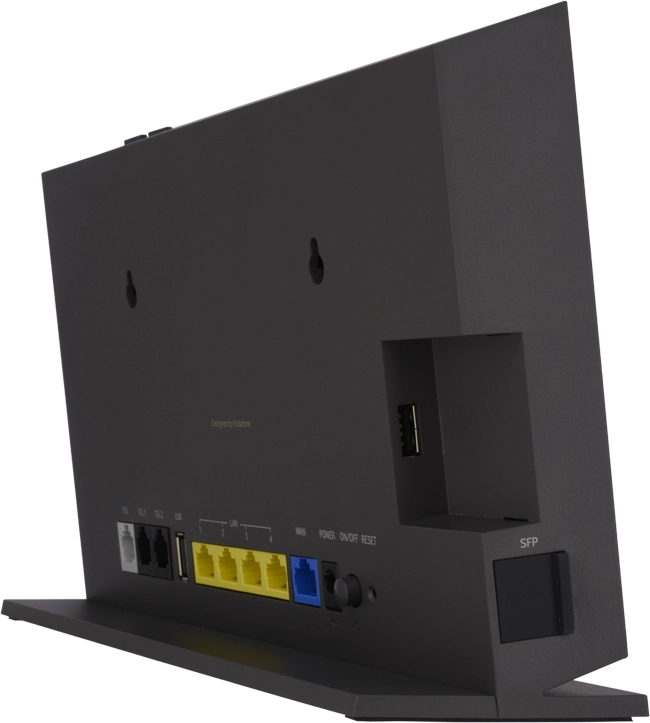

The list below shows you what the different keys and sockets on your modem are used for.

Step 1 of 13

"DSL" port

Connect the Ethernet cable to the "DSL" port.

Step 2 of 13

"TEL" port

Connect an analogue phone with the"Broadband Voice" service to the "TEL 1" port.

Step 3 of 13

Back USB port

Connect USB storage device to the back "USB" port.

Step 4 of 13

"LAN" port

Connect your computer or game console to the "LAN 1" port.

Step 5 of 13

"WAN" port

Connect the Ethernet cable to the "WAN" port to connect a "Gigabit Broadband" connection.

Step 6 of 13

Power plug

Connect the power supply to the power plug and to a wall socket.

Step 7 of 13

On/Off

Press On/Off to turn your modem on or off.

Step 8 of 13

Reset hole

Insert a sharp-pointed object into the small hole next to "RESET" and hold it for less than 10 seconds to restart your modem.

Step 9 of 13

Reset hole

Insert a sharp-pointed object into the small hole next to "RESET" and hold it for at least 10 seconds to restore the factory default settings.

Step 10 of 13

The USB port on the side of your modem

Remove the cover on the back of your modem.

Step 11 of 13

The USB port on the side of your modem

Connect USB storage device to the "USB" port on the side of your modem.

Step 12 of 13

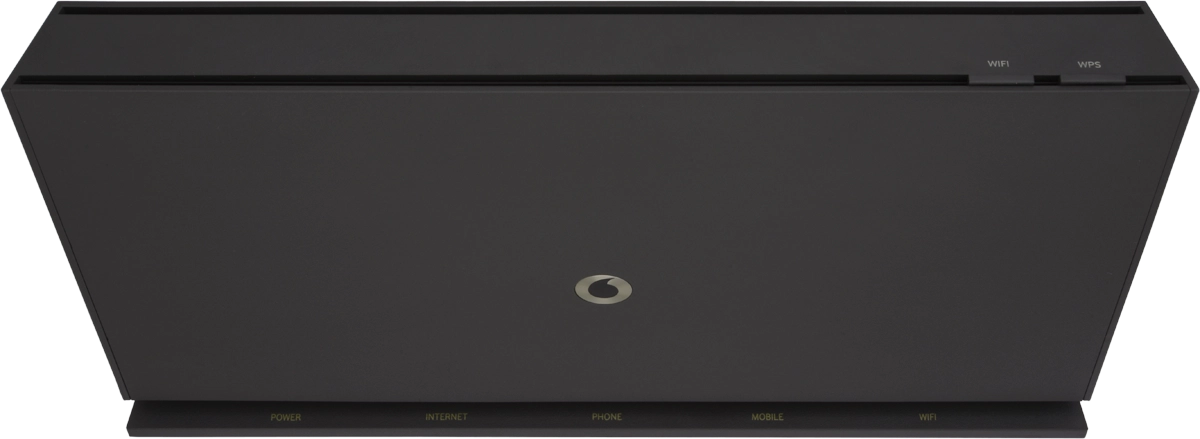

"WIFI" button

Briefly press the "WIFI" button to turn the Wi-Fi signal on or off.

Step 13 of 13

"WPS" button

Press and hold the "WPS" button for at least 5 seconds to register a wireless WPS device or a wireless phone.

1. "DSL" port

Connect the Ethernet cable to the "DSL" port.

2. "TEL" port

Connect an analogue phone with the"Broadband Voice" service to the "TEL 1" port.

3. Back USB port

Connect USB storage device to the back "USB" port.

4. "LAN" port

Connect your computer or game console to the "LAN 1" port.

5. "WAN" port

Connect the Ethernet cable to the "WAN" port to connect a "Gigabit Broadband" connection.

6. Power plug

Connect the power supply to the power plug and to a wall socket.

7. On/Off

Press On/Off to turn your modem on or off.

8. Reset hole

Insert a sharp-pointed object into the small hole next to "RESET" and hold it for less than 10 seconds to restart your modem.
Insert a sharp-pointed object into the small hole next to "RESET" and hold it for at least 10 seconds to restore the factory default settings.

9. The USB port on the side of your modem

Remove the cover on the back of your modem.
Connect USB storage device to the "USB" port on the side of your modem.

10. "WIFI" button

Briefly press the "WIFI" button to turn the Wi-Fi signal on or off.

11. "WPS" button

Press and hold the "WPS" button for at least 5 seconds to register a wireless WPS device or a wireless phone.
