Set up port forwarding on your Vodafone Gigabox Mac OS Mojave

Read help info

You can open and forward the modem ports to a computer or game console on your local network. Remember, you need to know the IP address of the device you want to forward the ports to and establish a connection to the modem web interface before you can use this function.

Step 1 of 16

Find "Port-Mapping"

Click the drop down list.

Step 2 of 16

Find "Port-Mapping"

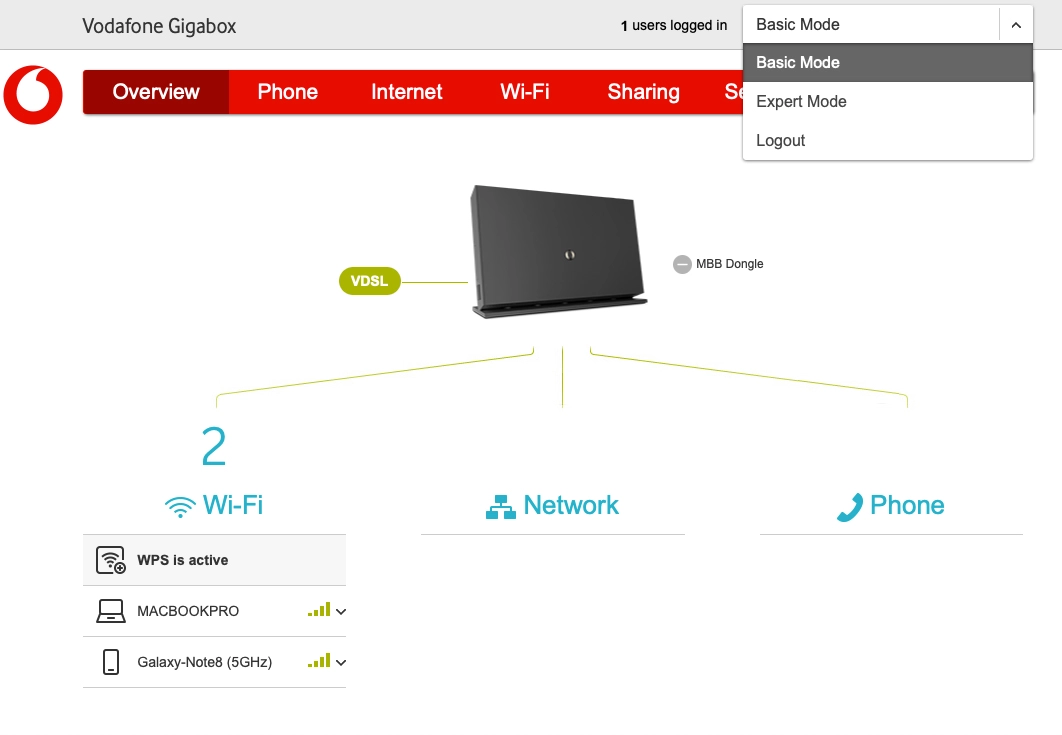

Click Expert Mode.

Step 3 of 16

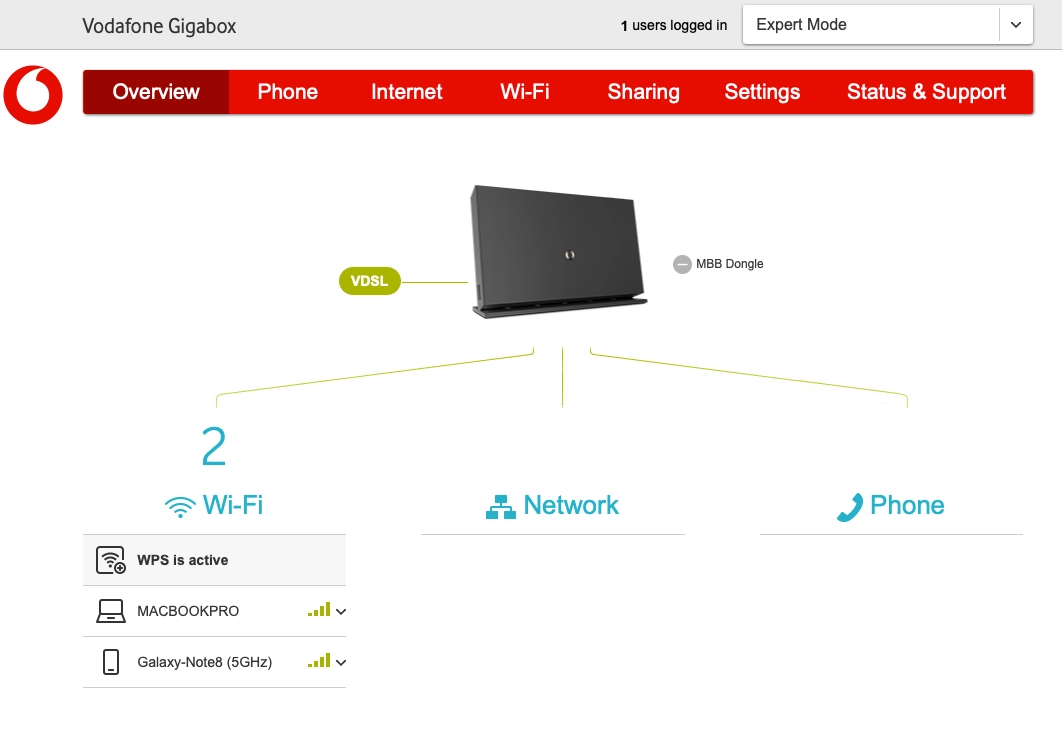

Find "Port-Mapping"

Click Internet.

Step 4 of 16

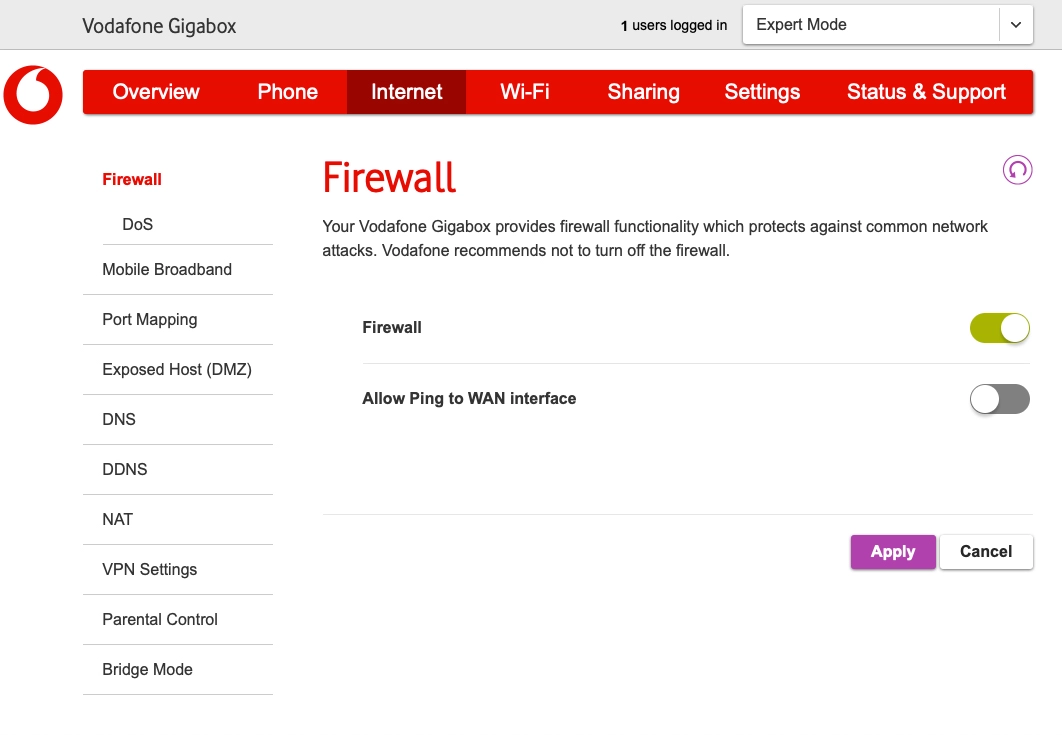

Find "Port-Mapping"

Click Port-Mapping.

Step 5 of 16

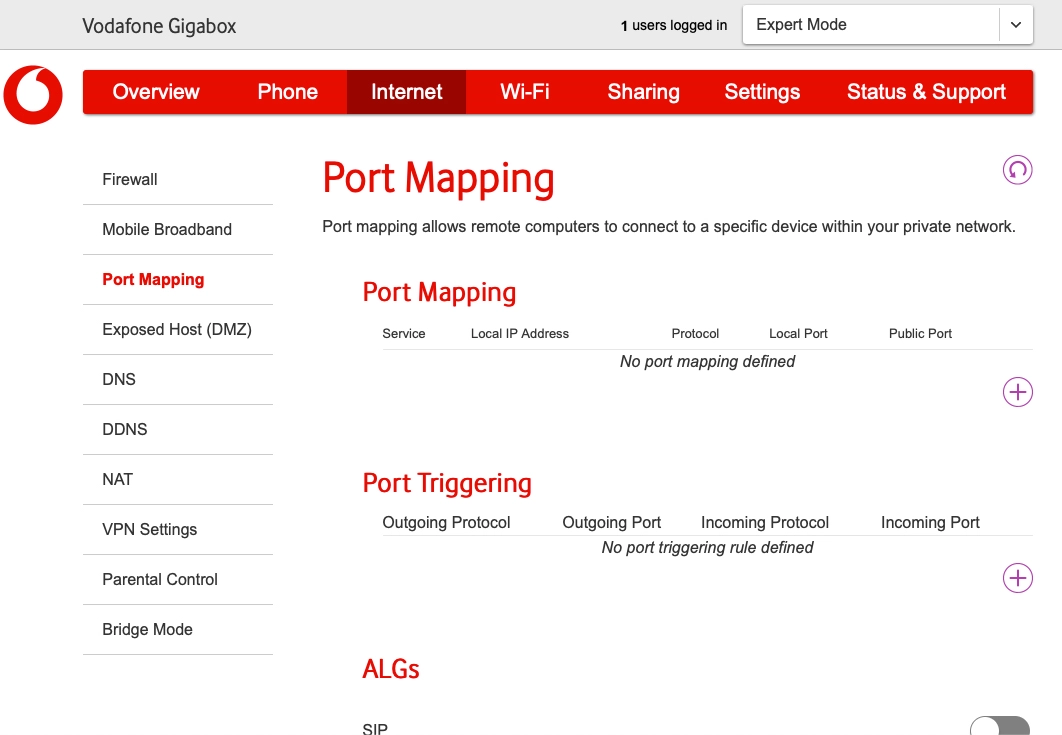

Set up new port forwarding

Click the new port forwarding icon.

Step 6 of 16

Select protocol

Click the drop down list next to "Service".

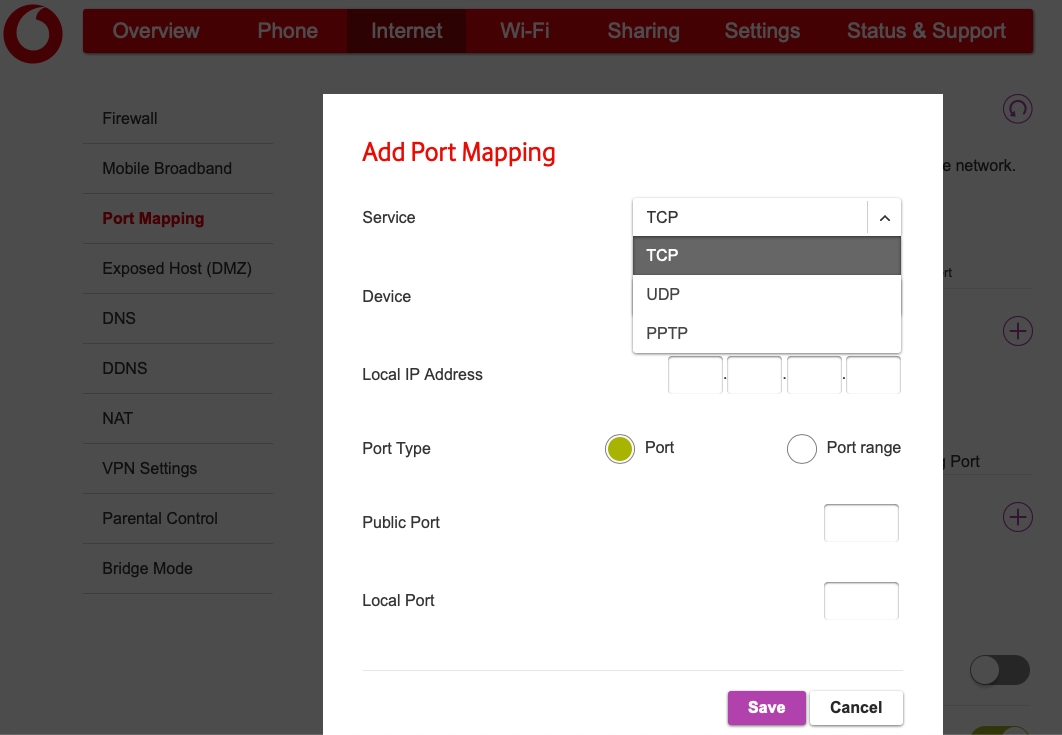

Step 7 of 16

Select protocol

Click the required port mapping service.

Step 8 of 16

Select forwarding device

Click the drop down list next to "Device".

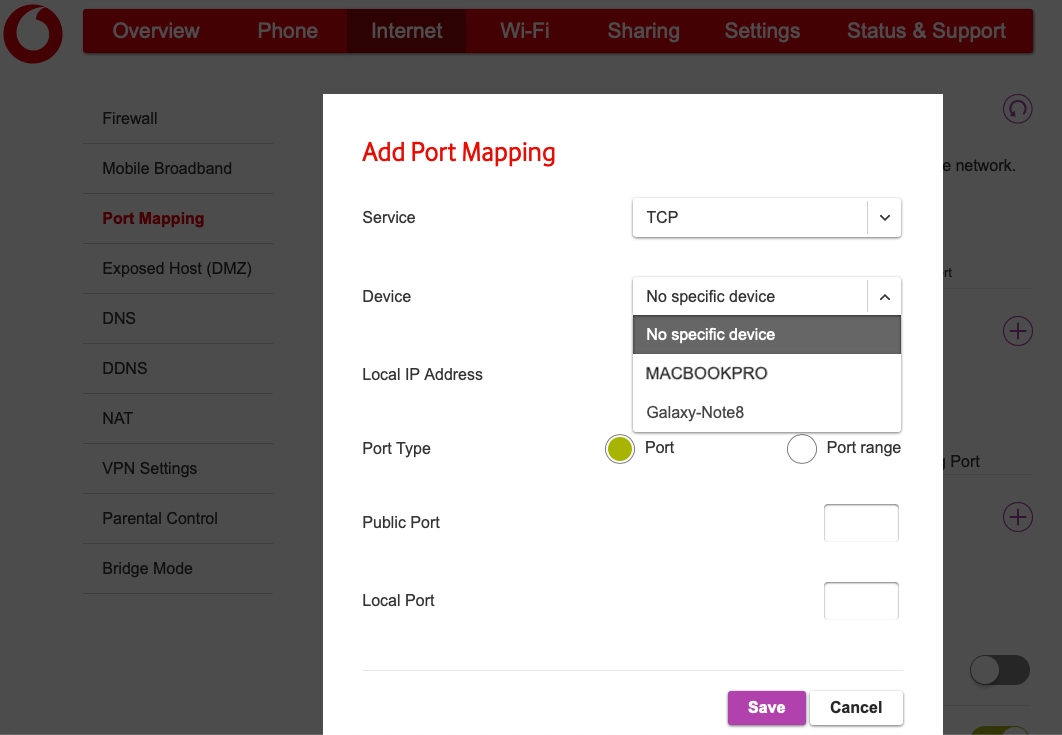

Step 9 of 16

Select forwarding device

To select a specifiic device, click the required device.

Step 10 of 16

Select forwarding device

To key in the IP address manually, click No specific device.

Step 11 of 16

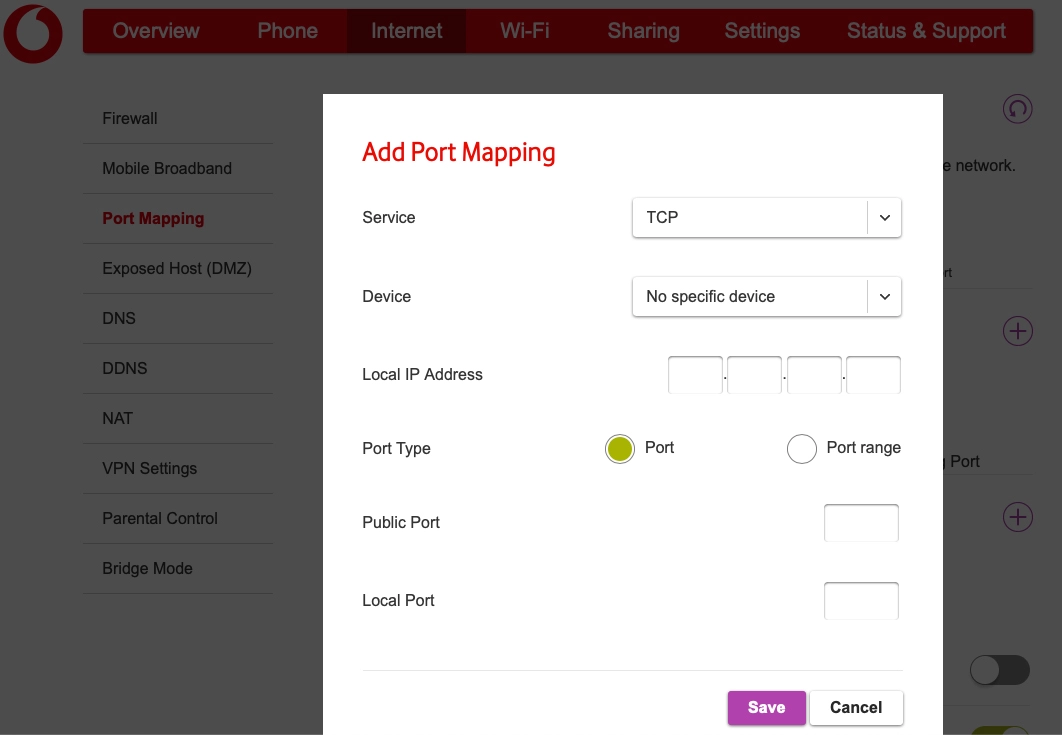

Enter internal IP address

Click the fields next to "Local IP Address" and key in the IP address of the device to which the external port numbers are to be forwarded.

Step 12 of 16

Enter external port numbers

Click the field next to "Port range".

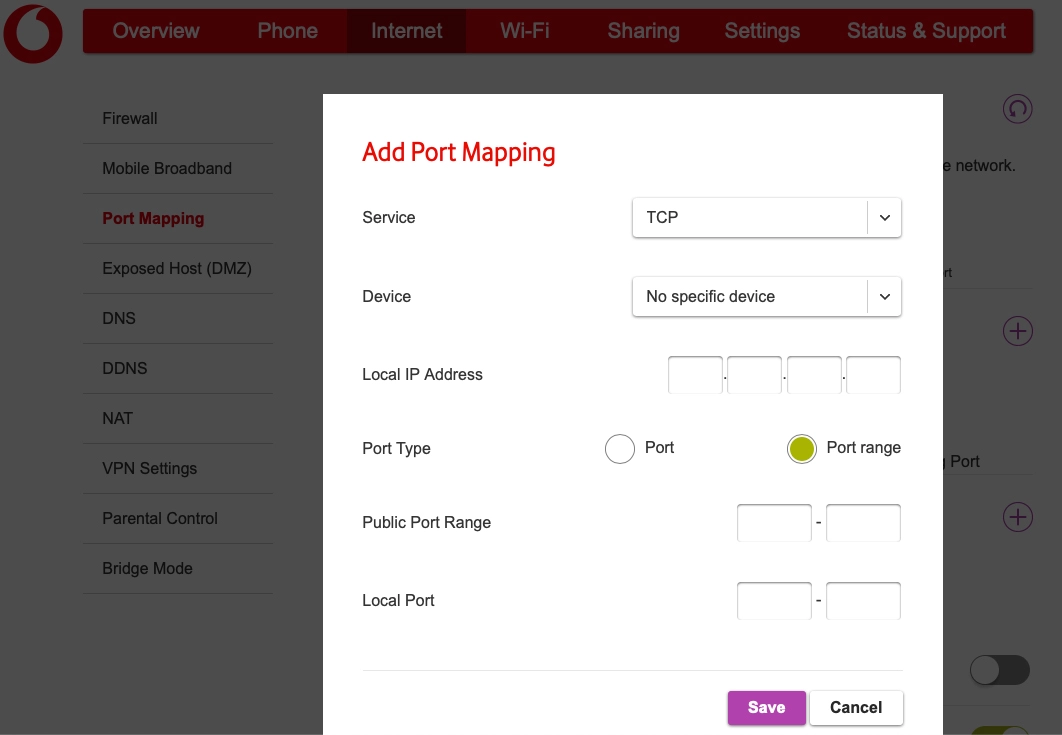

Step 13 of 16

Enter external port numbers

Click the fields next to "Public Port Range" and key in the external port numbers in the required interval, e.g. 6000-6100.

Step 14 of 16

Enter internal port numbers

Click the fields next to "Local Port" and key in the port numbers in the required interval to which the external port numbers are to be forwarded, e.g. 6000-6100.

Step 15 of 16

Save forwarding

Click Save.

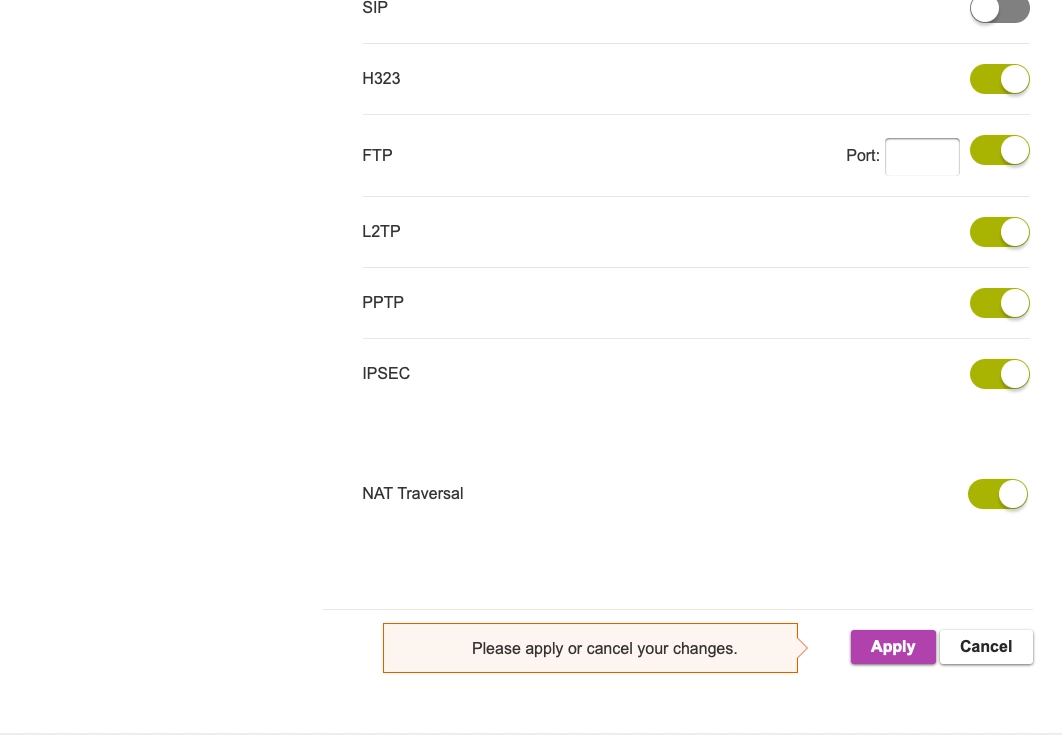

Step 16 of 16

Save forwarding

Click Apply.

1. Find "Port-Mapping"

Click the drop down list.
Click Expert Mode.
Click Internet.
Click Port-Mapping.

2. Set up new port forwarding

Click the new port forwarding icon.

3. Select protocol

Click the drop down list next to "Service".
Click the required port mapping service.

4. Select forwarding device

Click the drop down list next to "Device".
To select a specifiic device, click the required device.
To key in the IP address manually, click No specific device.

5. Enter internal IP address

Click the fields next to "Local IP Address" and key in the IP address of the device to which the external port numbers are to be forwarded.

6. Enter external port numbers

Click the field next to "Port range".
Click the fields next to "Public Port Range" and key in the external port numbers in the required interval, e.g. 6000-6100.

7. Enter internal port numbers

Click the fields next to "Local Port" and key in the port numbers in the required interval to which the external port numbers are to be forwarded, e.g. 6000-6100.

8. Save forwarding

Click Save.
Click Apply.
