1. Find "Access Point Names"
Slide two fingers downwards starting from the top of the screen.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-09d44d7d-0a80-4228-968c-72450293b8bf.png?width=208&height=454)
Press the settings icon.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-7b3668fe-3c19-483d-82d1-a9ebcad8edf7.png?width=208&height=454)
Press Network & internet.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-4e01a088-8063-4608-abfc-283c2ab868ee.png?width=208&height=454)

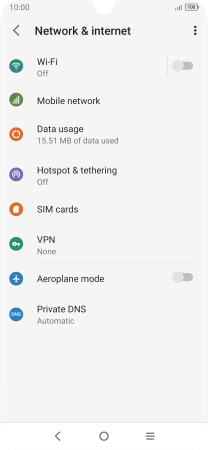

Press Mobile network.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-4e244f6c-2dcb-429a-89a5-76157a0a10ec.png?width=208&height=454)

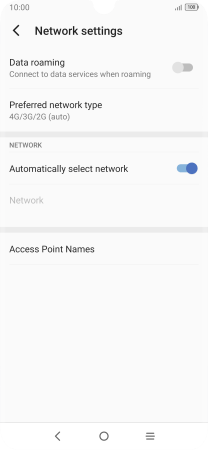

Press Access Point Names.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-8d776289-0399-44c8-8bdb-f0237503d10c.png?width=208&height=454)
2. Create new data connection

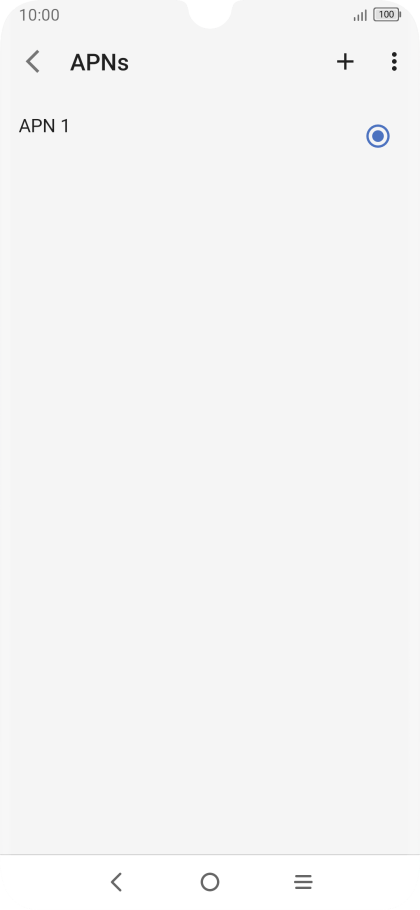

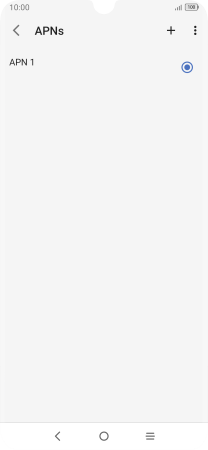

Press the add icon.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-fd048098-dfd6-4be8-9469-2fe373b1c396.png?width=208&height=454)

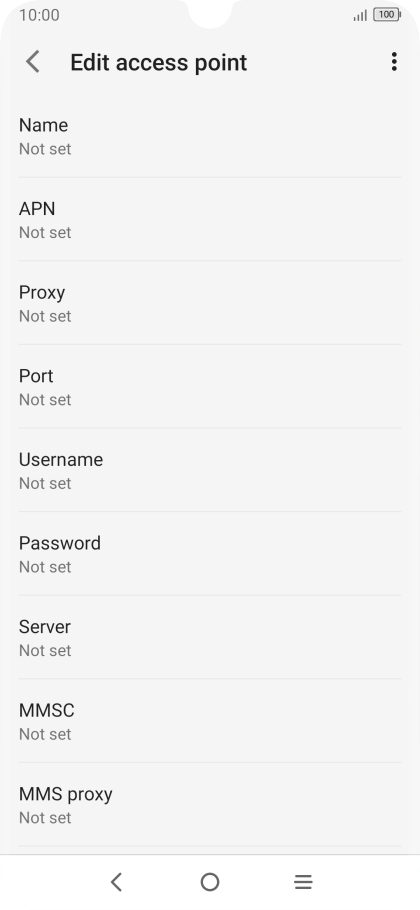

Press Name.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-077e94f3-eee9-487d-8ec2-f8c5edb5775b.png?width=208&height=454)
Key in Vodafone MMS and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-356e74cf-0f6c-462d-ab0a-22c37636698a.png?width=208&height=454)
Vodafone MMS
3. Enter APN
Press APN.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-077e94f3-eee9-487d-8ec2-f8c5edb5775b.png?width=208&height=454)

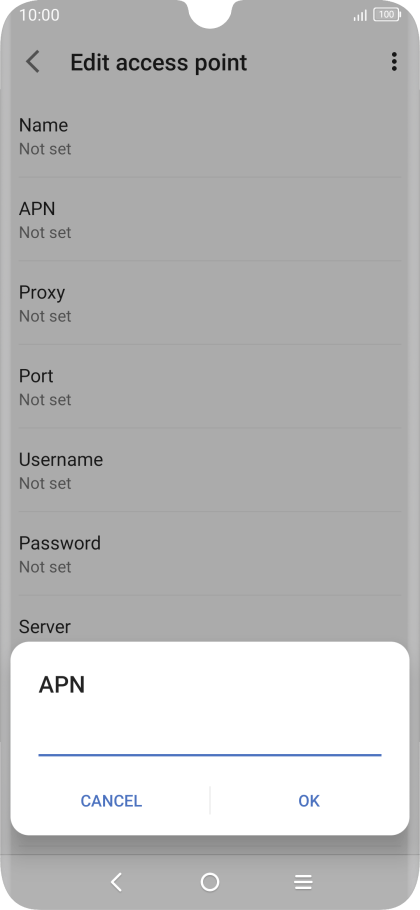

Key in mms.vodafone.net and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-af262cac-838e-4dd9-b3c9-5ae46064b362.png?width=208&height=454)
mms.vodafone.net
4. Enter MMSC
Press MMSC.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-077e94f3-eee9-487d-8ec2-f8c5edb5775b.png?width=208&height=454)
Key in http://www.vodafone.ie/mms and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-1d0a0f7d-73a8-4edc-b2bf-b3a50fc1535f.png?width=208&height=454)
http://www.vodafone.ie/mms
5. Enter IP address
Press MMS proxy.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-077e94f3-eee9-487d-8ec2-f8c5edb5775b.png?width=208&height=454)

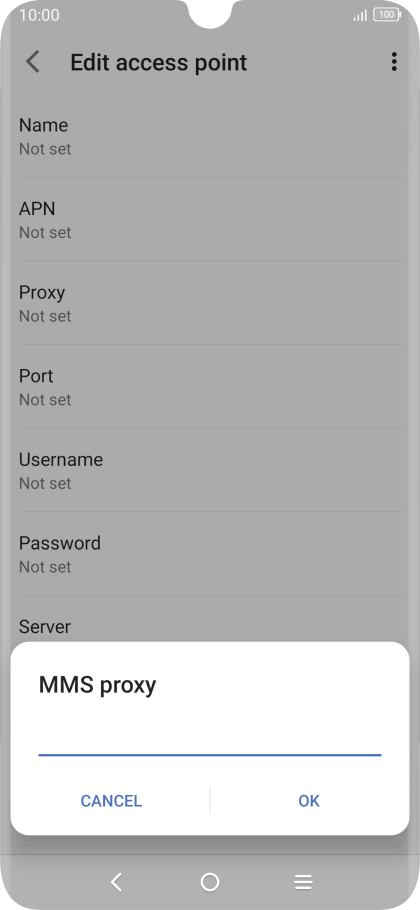

Key in 10.24.59.200 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-bb9b4dd5-29f6-4c5c-8716-45d56f3f4323.png?width=208&height=454)
10.24.59.200
6. Enter port number

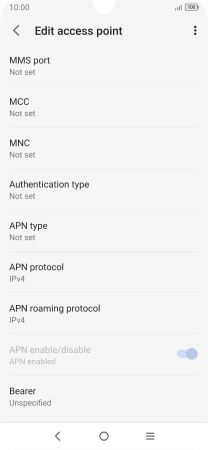

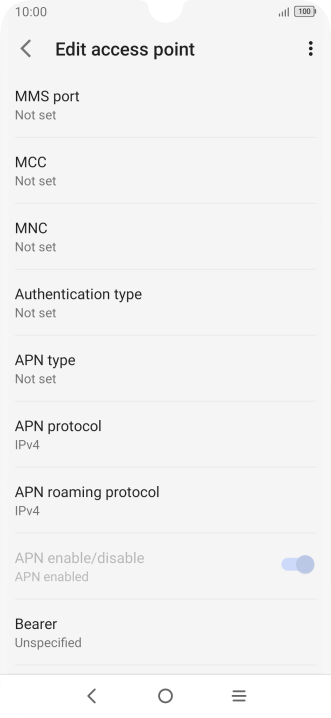

Press MMS port.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-3c4c4462-bcb6-4d5e-b6bc-ce817f03871d.png?width=208&height=454)
Key in 80 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-95f3d888-644d-4d1b-ae8e-fd33ff2a3224.png?width=208&height=454)
80
7. Enter country code
Press MCC.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-3c4c4462-bcb6-4d5e-b6bc-ce817f03871d.png?width=208&height=454)

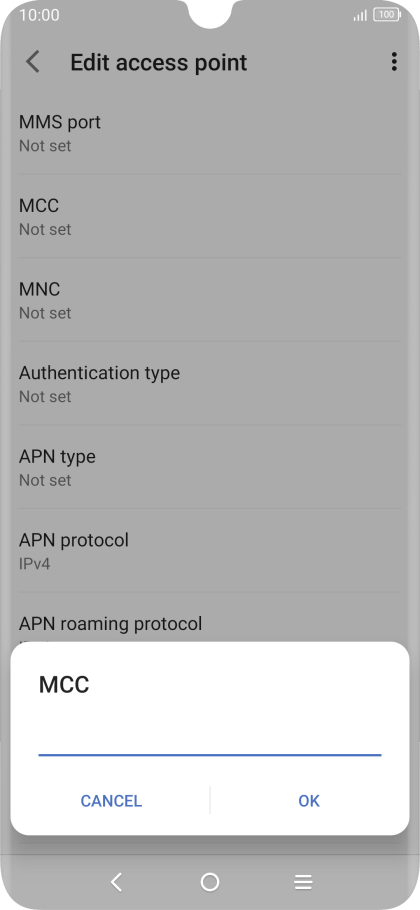

Key in 272 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-12aef3d8-d191-44b6-8a7b-a4c7af202f6c.png?width=208&height=454)
272
8. Enter network code
Press MNC.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-3c4c4462-bcb6-4d5e-b6bc-ce817f03871d.png?width=208&height=454)
Key in 01 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-c90260c4-bb29-475e-be86-55588b2e2190.png?width=208&height=454)
01
9. Select authentication type
Press Authentication type.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-3c4c4462-bcb6-4d5e-b6bc-ce817f03871d.png?width=208&height=454)

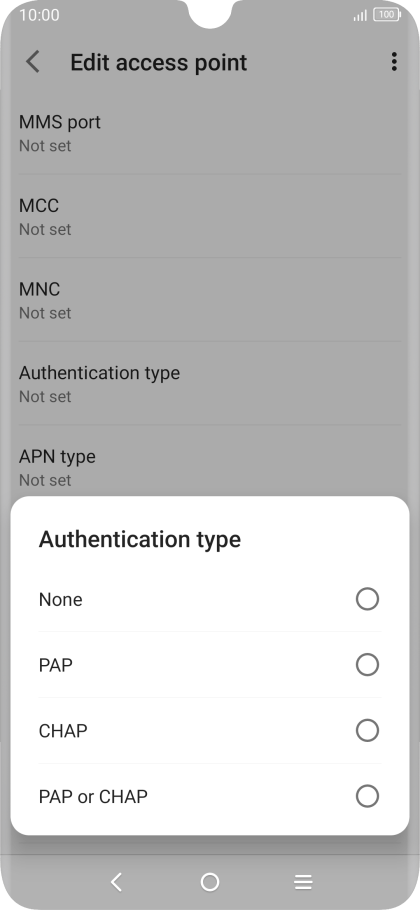

Press PAP.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-3e0dd28f-bee6-4f03-aa3f-dc15b9f1486a.png?width=208&height=454)
10. Enter APN type
Press APN type.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-3c4c4462-bcb6-4d5e-b6bc-ce817f03871d.png?width=208&height=454)

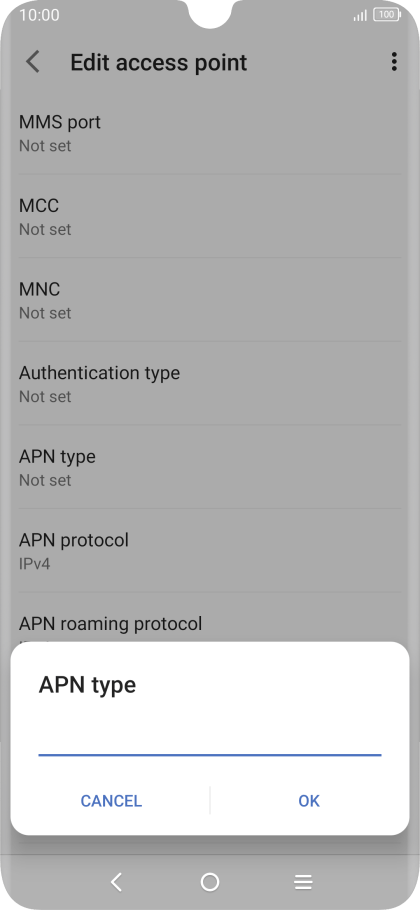

Key in mms and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-6ed7b637-3fda-48c9-8107-8feb84cb921f.png?width=208&height=454)
mms
11. Save data connection
Press the menu icon.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-3c4c4462-bcb6-4d5e-b6bc-ce817f03871d.png?width=208&height=454)

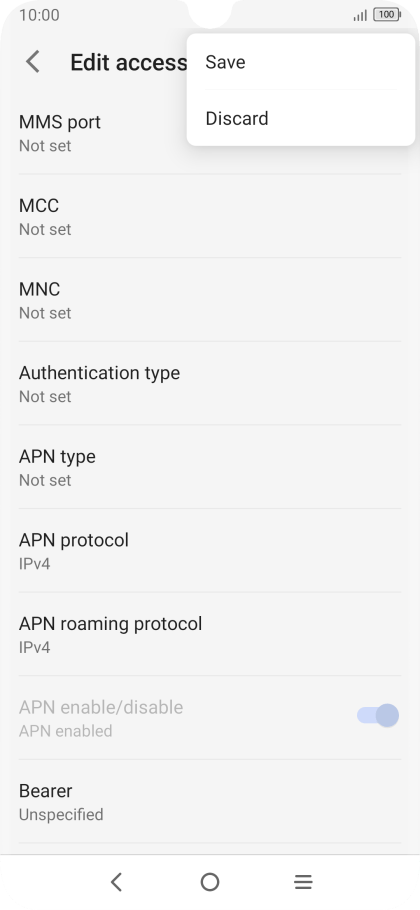

Press Save.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-0f5739f6-a3bc-4438-b854-2b2810354fdf.png?width=208&height=454)

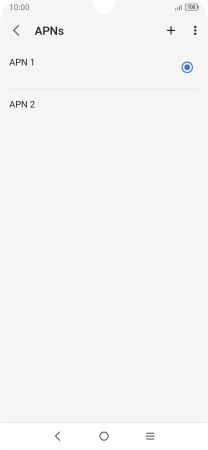

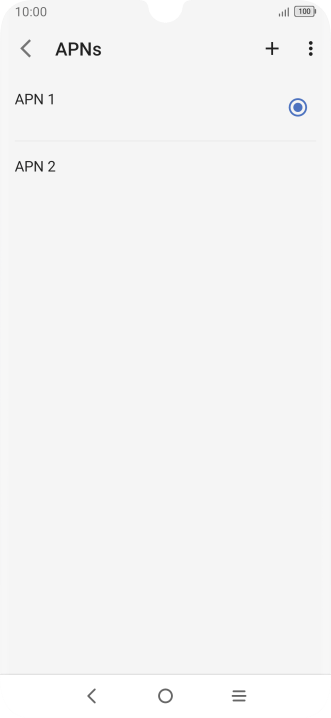

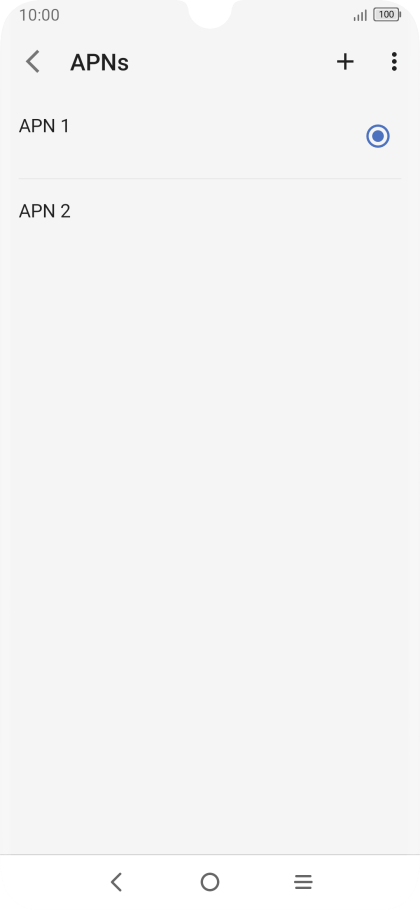

12. Return to the home screen
Press the Home key to return to the home screen.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-ac0409bf-fad2-4709-8530-8e24c0ec6cea.png?width=208&height=454)
