1. Find "Access Point Names"
Slide two fingers downwards starting from the top the screen.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-8c00728c-e376-45cd-8011-9efdfba0cc63.png?width=208&height=368)
Press the settings icon.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-18c49c43-e092-4555-a7fa-4611c9301a41.png?width=208&height=368)
Press More.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-f0b53076-68f4-40e5-9481-a3ced9961de6.png?width=208&height=368)

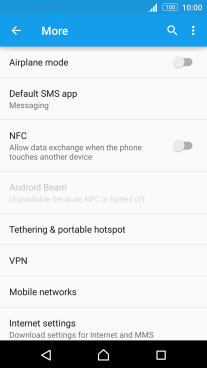

Press Mobile networks.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-211460dd-0fee-4ea4-a9ef-3d3a3a4ff03d.png?width=208&height=368)

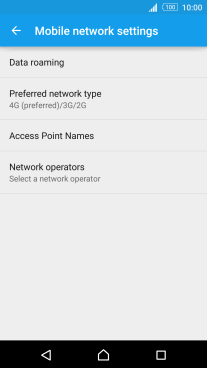

Press Access Point Names.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-60f15b7a-c445-46fd-b0da-dd51bd29edae.png?width=208&height=368)
2. Create new data connection

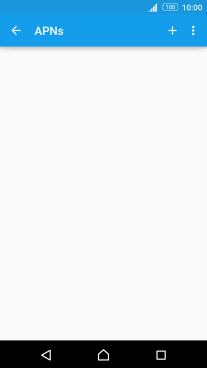

Press the new data connection icon.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-c3e3564e-80c4-4c33-a7b8-84709d717690.png?width=208&height=368)

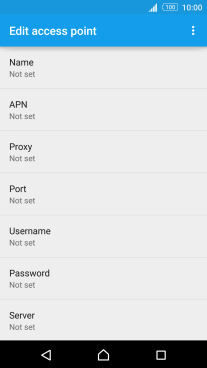

Press Name.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-f8d14893-9a0a-4cde-831e-0f9d34c3e1f4.png?width=208&height=368)
Key in Vodafone Internet and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-89fe0ead-daf0-41e1-996e-dc2c5c7e1633.png?width=208&height=368)
Vodafone Internet
3. Enter APN
Press APN.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-f8d14893-9a0a-4cde-831e-0f9d34c3e1f4.png?width=208&height=368)

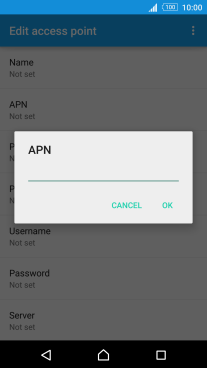

Key in live.vodafone.com and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-a486091f-9246-4713-850a-88c3d93e18cd.png?width=208&height=368)
live.vodafone.com
4. Enter IP address
Press Proxy.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-f8d14893-9a0a-4cde-831e-0f9d34c3e1f4.png?width=208&height=368)

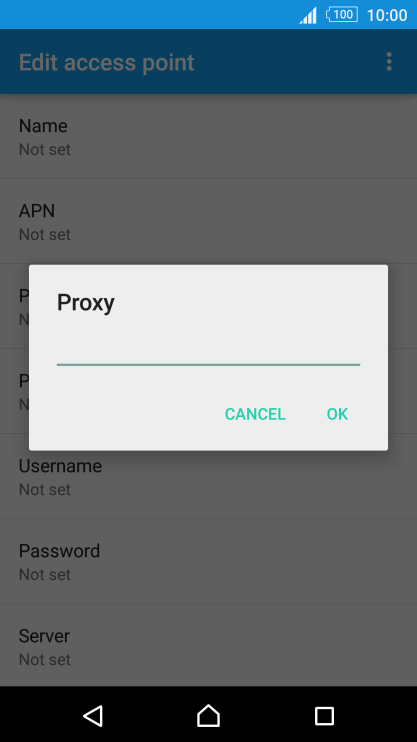

Key in 10.24.59.100 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-7400068c-1a7c-4372-851c-ca23eb884006.png?width=208&height=368)
10.24.59.100
5. Enter port number

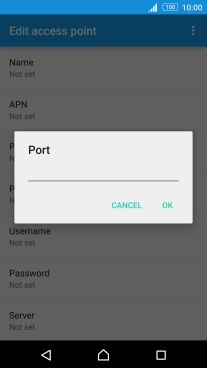

Press Port.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-f8d14893-9a0a-4cde-831e-0f9d34c3e1f4.png?width=208&height=368)

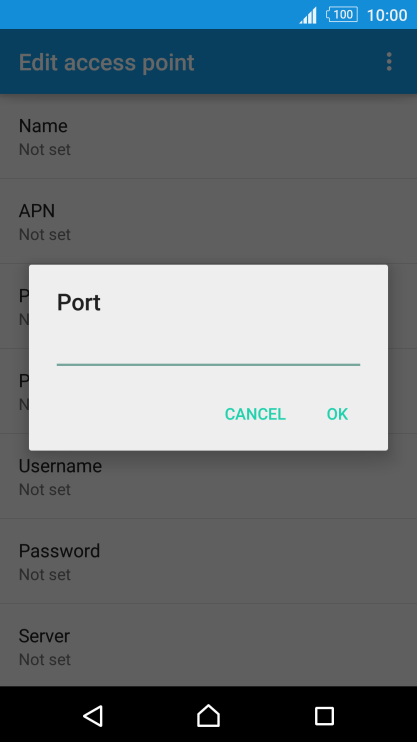

Key in 80 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-8e961634-cd9a-4df6-a16d-55401e81f517.png?width=208&height=368)
80
6. Enter country code

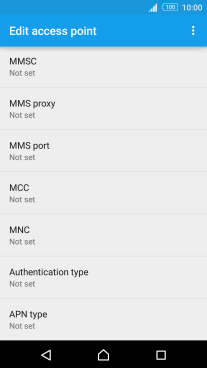

Press MCC.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-c6f7cdb4-2cbf-4761-a5e4-70764336d656.png?width=208&height=368)

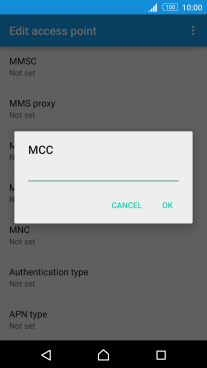

Key in 272 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-92163e68-78af-4603-a1e1-b3307e0b89a1.png?width=208&height=368)
272
7. Enter network code
Press MNC.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-c6f7cdb4-2cbf-4761-a5e4-70764336d656.png?width=208&height=368)

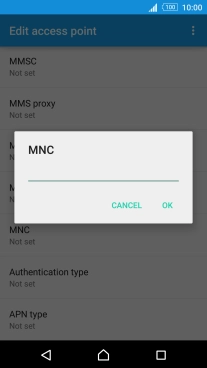

Key in 01 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-f33f5985-cc3f-4f12-bfd6-d15b2d836294.png?width=208&height=368)
01
8. Select authentication type
Press Authentication type.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-c6f7cdb4-2cbf-4761-a5e4-70764336d656.png?width=208&height=368)

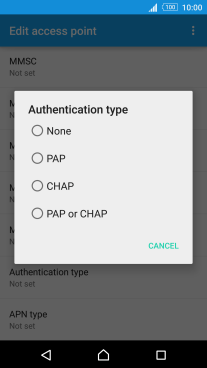

Press PAP.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-e86744fe-4e7b-4ee8-a79b-65378cdf3823.png?width=208&height=368)
9. Select APN type
Press APN type.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-c6f7cdb4-2cbf-4761-a5e4-70764336d656.png?width=208&height=368)

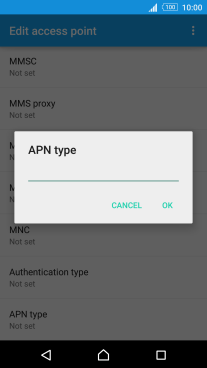

Key in default and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-be1be4d0-7a16-4d39-836c-59e1f6ee2033.png?width=208&height=368)
default
10. Save data connection
Press the menu icon.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-c6f7cdb4-2cbf-4761-a5e4-70764336d656.png?width=208&height=368)

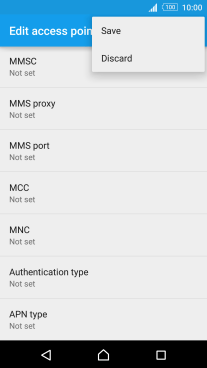

Press Save.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-7014c6b1-fbe9-4351-b8fd-26e6cecfa7a6.png?width=208&height=368)

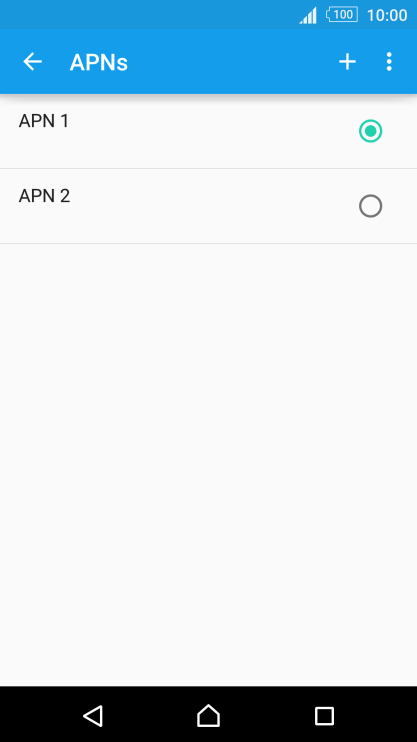

Press the field next to the data connection to activate it.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-e733e2e2-7773-4950-aec9-87d3373c1ab9.png?width=208&height=368)
11. Return to the home screen

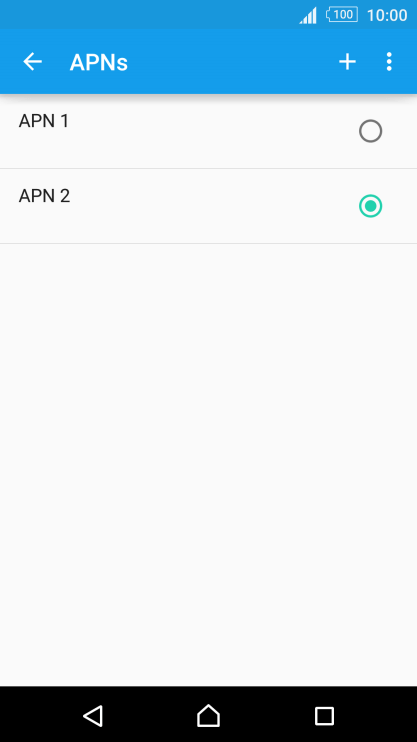

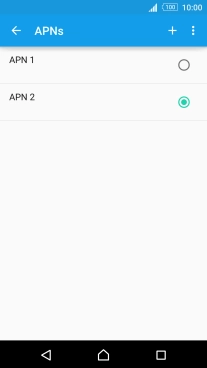

Press the Home key to return to the home screen.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-0ffe57ff-1c95-4bcc-94ee-167dca43c4e0.png?width=208&height=368)
