1. Find "Access point names"
Slide your finger downwards starting from the top of the screen.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-aa49f7aa-0eed-44e8-ac4b-8e400a9b21e8.png?width=206&height=368)
Press the settings icon.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-93050226-ea5c-4aa1-bbd5-9cb190344575.png?width=206&height=368)
Press Network & Internet.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-14ccf874-8f33-4fb6-bfd0-e7d0a2eff148.png?width=206&height=368)
Press Mobile networks.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-300f6531-3b17-44f7-9fe9-394b0d8ffce3.png?width=206&height=368)
Press Access point names.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-541bef74-4f8e-42c6-96a5-64c7b38fa559.png?width=206&height=368)
2. Create new data connection

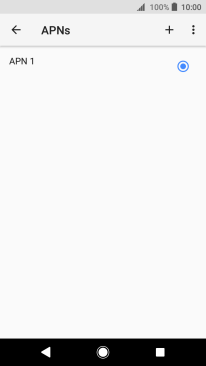

Press the new data connection icon.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-bac1a32f-90ea-4179-b717-9014e1299100.png?width=206&height=368)

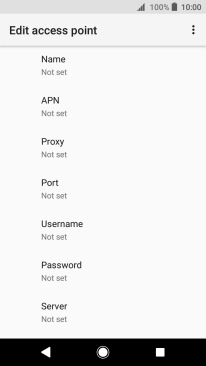

Press Name.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-540e176c-5158-4368-a506-0d5006124009.png?width=206&height=368)

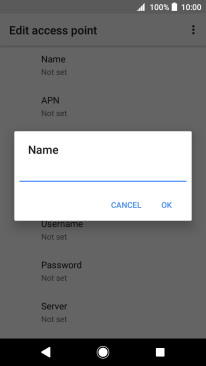

Key in Vodafone Internet and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-7aaea7ac-27c6-4571-a07d-6676db2f68ff.png?width=206&height=368)
Vodafone Internet
3. Enter APN
Press APN.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-540e176c-5158-4368-a506-0d5006124009.png?width=206&height=368)

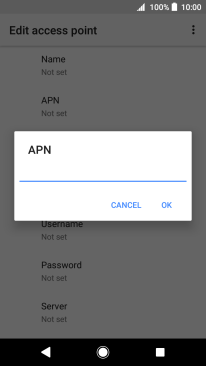

Key in live.vodafone.com and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-42a879fa-a544-42b1-8483-3576d6c33046.png?width=206&height=368)
live.vodafone.com
4. Enter country code

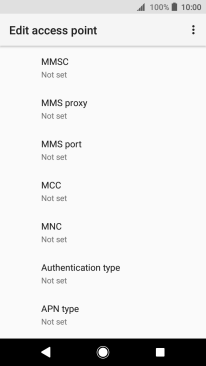

Press MCC.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-73a03cab-c6f9-4e89-8cfc-200dbb18d539.png?width=206&height=368)
Key in 272 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-d6401603-c7bc-4b42-aa32-3fe658e63f93.png?width=206&height=368)
272
5. Enter network code
Press MNC.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-73a03cab-c6f9-4e89-8cfc-200dbb18d539.png?width=206&height=368)

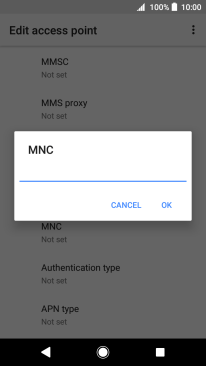

Key in 01 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-93300152-9482-475a-b867-8b5b4402807c.png?width=206&height=368)
01
6. Select authentication type
Press Authentication type.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-73a03cab-c6f9-4e89-8cfc-200dbb18d539.png?width=206&height=368)

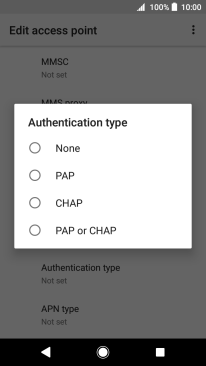

Press PAP.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-fbde86e1-9176-4580-a96a-b76ee7ea7503.png?width=206&height=368)
7. Enter APN type
Press APN type.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-73a03cab-c6f9-4e89-8cfc-200dbb18d539.png?width=206&height=368)

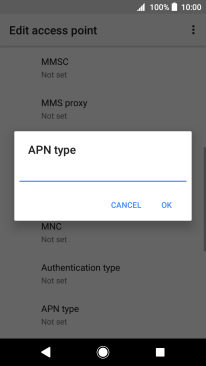

Key in default and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-32ee8a77-36dd-405c-9742-6fa877499f87.png?width=206&height=368)
default
8. Save data connection
Press the menu icon.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-73a03cab-c6f9-4e89-8cfc-200dbb18d539.png?width=206&height=368)
Press Save.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-26718f05-e182-4345-b031-cfef573d36d8.png?width=206&height=368)

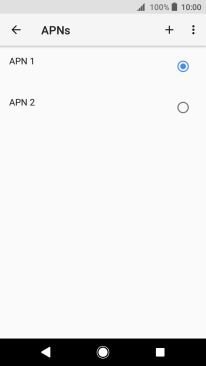

Press the field next to the data connection to activate it.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-ba13437e-f913-47a1-921f-fa2e661d1fa6.png?width=206&height=368)
9. Return to the home screen

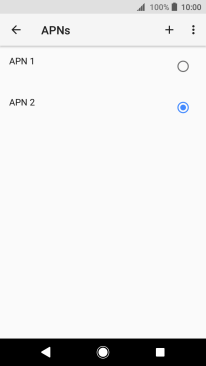

Press the Home key to return to the home screen.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-53db542d-c762-4fdc-96b9-a9facc98d984.png?width=206&height=368)
