1. Find "Access point names"
Slide your finger downwards starting from the top of the screen.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-5452e51d-155b-45b5-8bdd-32ec709ec475.png?width=220&height=390)
Press the settings icon.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-cd1cc86c-dd29-49c0-8f43-94788483bb1b.png?width=220&height=390)
Press Network & Internet.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-2e8ed46a-c46c-4305-bc08-7386cdb1f271.png?width=220&height=390)
Press Mobile network.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-719dc2b5-28cc-412e-ada8-ec6558562b99.png?width=220&height=390)
Press Access point names.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-b643ccdf-c13b-42db-b4bb-6f17412db01b.png?width=220&height=390)
2. Create new data connection

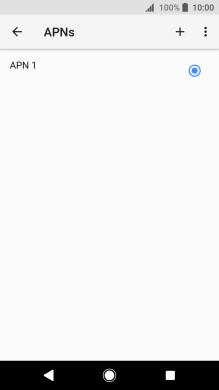

Press the new data connection icon.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-83c5a3f9-c36b-4051-ae6d-b85d8468beea.png?width=220&height=390)

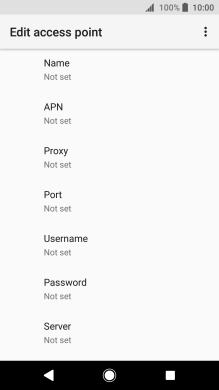

Press Name.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-a3b4a796-dea6-47eb-9500-7103dbc66700.png?width=220&height=390)

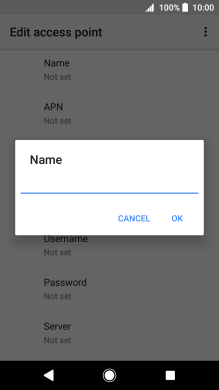

Key in Vodafone MMS and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-3b508046-94ce-4e3b-894c-6742a53384f3.png?width=220&height=390)
Vodafone MMS
3. Enter APN
Press APN.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-a3b4a796-dea6-47eb-9500-7103dbc66700.png?width=220&height=390)

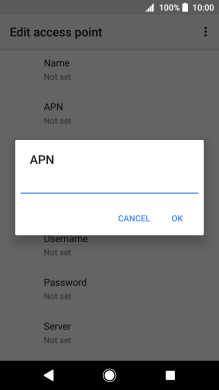

Key in mms.vodafone.net and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-c76179dd-9a31-48fa-a74c-61952f3b802f.png?width=220&height=390)
mms.vodafone.net
4. Enter MMSC

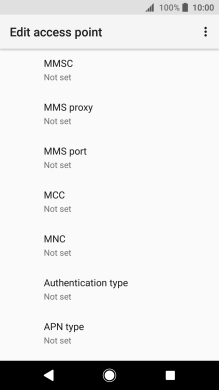

Press MMSC.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-e16a9a81-3733-4c9e-a5e6-de0eea8039ac.png?width=220&height=390)

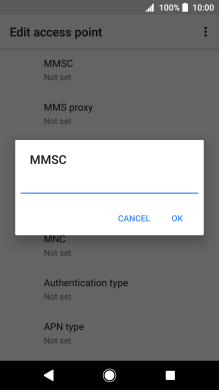

Key in http://www.vodafone.ie/mms and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-a863e975-9dfe-4182-a2f0-a6b6e40a3d4c.png?width=220&height=390)
http://www.vodafone.ie/mms
5. Enter IP address
Press MMS proxy.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-e16a9a81-3733-4c9e-a5e6-de0eea8039ac.png?width=220&height=390)

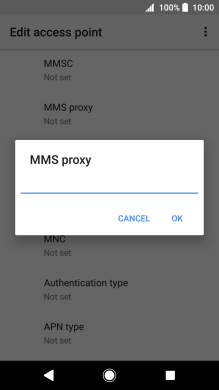

Key in 10.24.59.200 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-8ed3a959-2ce6-4cca-b372-135be8920c93.png?width=220&height=390)
10.24.59.200
6. Enter port number
Press MMS port.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-e16a9a81-3733-4c9e-a5e6-de0eea8039ac.png?width=220&height=390)
Key in 80 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-f8ef69ef-a040-42f8-9002-6fd8778dc658.png?width=220&height=390)
80
7. Enter country code
Press MCC.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-e16a9a81-3733-4c9e-a5e6-de0eea8039ac.png?width=220&height=390)
Key in 272 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-f56cdfd7-a0b6-4b92-83ba-61c2bad77ac9.png?width=220&height=390)
272
8. Enter network code
Press MNC.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-e16a9a81-3733-4c9e-a5e6-de0eea8039ac.png?width=220&height=390)

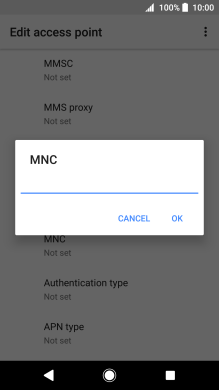

Key in 01 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-23feac40-73c5-40be-98f7-232a7c5481f0.png?width=220&height=390)
01
9. Select authentication type
Press Authentication type.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-e16a9a81-3733-4c9e-a5e6-de0eea8039ac.png?width=220&height=390)

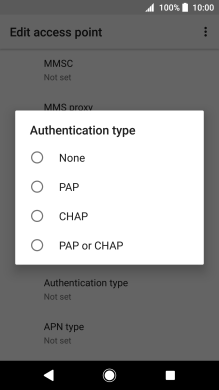

Press PAP.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-8e443397-a54d-4ac9-b5e4-c04e5d0644ba.png?width=220&height=390)
10. Enter APN type
Press APN type.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-e16a9a81-3733-4c9e-a5e6-de0eea8039ac.png?width=220&height=390)

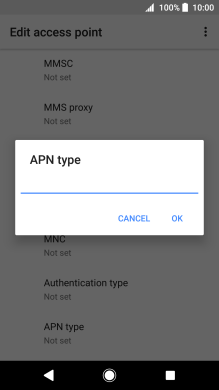

Key in mms and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-abbdd4c7-19c5-400d-a3cf-76423058651a.png?width=220&height=390)
mms
11. Save data connection
Press the menu icon.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-e16a9a81-3733-4c9e-a5e6-de0eea8039ac.png?width=220&height=390)

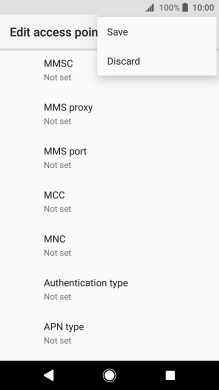

Press Save.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-d6923ed2-e76e-42b6-94d9-da240f9613da.png?width=220&height=390)
12. Return to the home screen

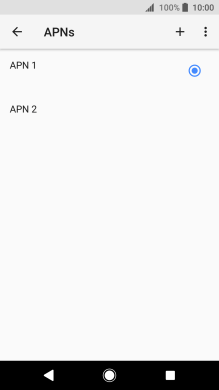

Press the Home key to return to the home screen.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-de99995f-4613-4e23-8a6b-2837712ab0f2.png?width=220&height=390)
