1. Find "Access Point Names"
Slide two fingers downwards starting from the top of the screen.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-74c57bac-f4cb-4221-a7c7-9d243f228d7e.png?width=204&height=366)
Press the settings icon.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-5316b8e0-12cb-413b-9087-8f044cf22306.png?width=204&height=366)
Press More.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-f572a067-1baa-487e-8732-af0e064bed78.png?width=204&height=366)

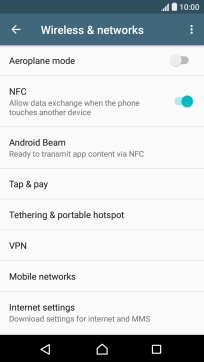

Press Mobile networks.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-f069fd44-d5b7-4936-9d7b-6b85e3012418.png?width=204&height=366)

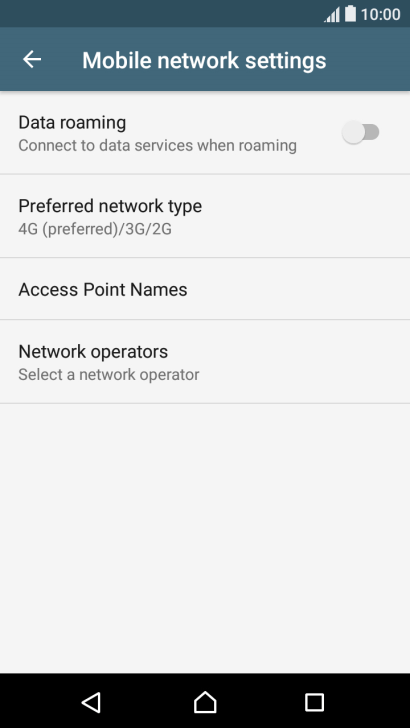

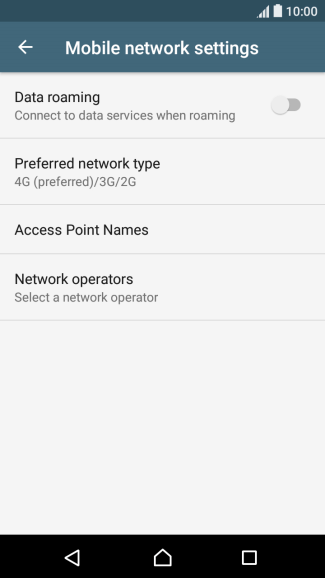

Press Access Point Names.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-1e60eb4d-6a5f-4cd1-a9d5-79832a7c7bd0.png?width=204&height=366)
2. Create new data connection

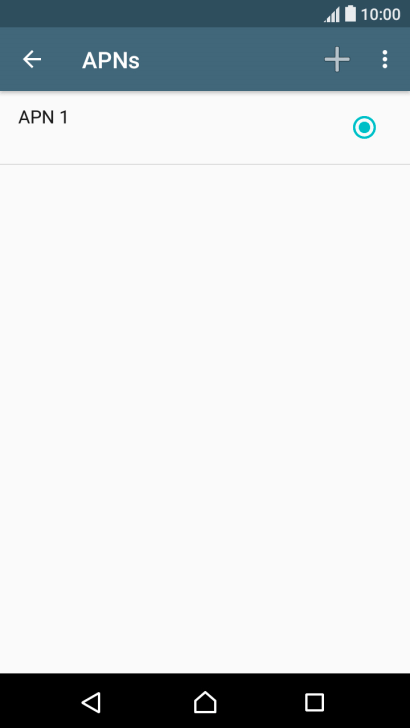

Press the new data connection icon.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-7b695d93-5a5a-43d0-9865-a423e8dd429f.png?width=204&height=366)

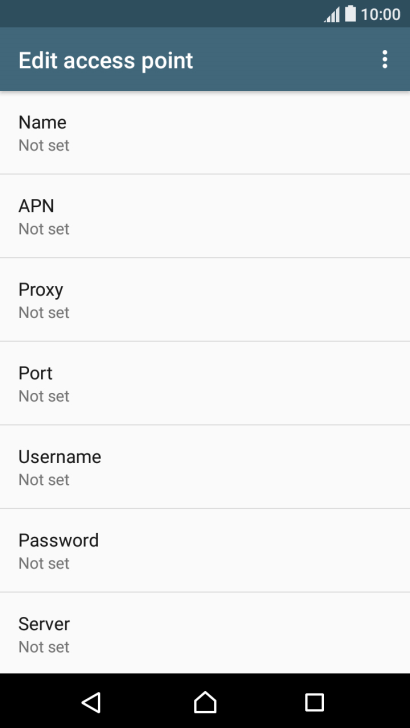

Press Name.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-8d6b2e17-d891-4f22-b686-a2c0dd8eaa8c.png?width=204&height=366)

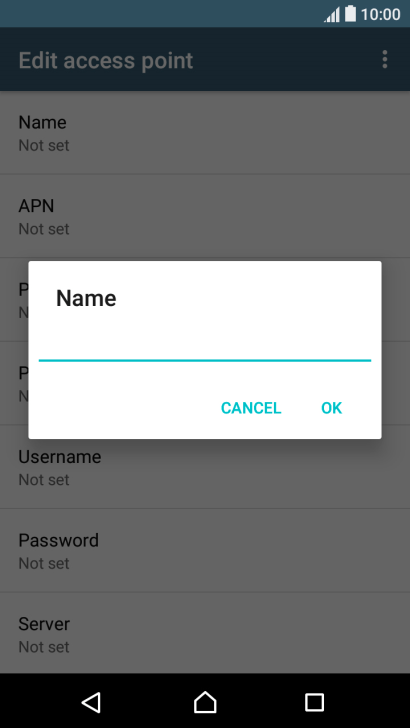

Key in Vodafone Internet and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-8faaef22-04b9-4c57-a88f-5559336979c2.png?width=204&height=366)
Vodafone Internet
3. Enter APN
Press APN.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-8d6b2e17-d891-4f22-b686-a2c0dd8eaa8c.png?width=204&height=366)

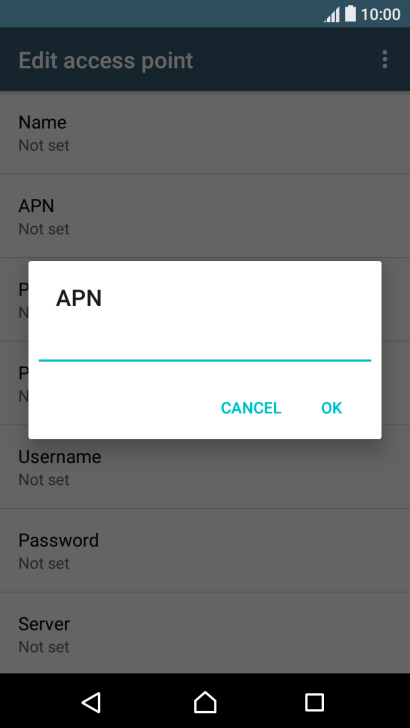

Key in live.vodafone.com and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-c6da011c-b0ee-4e59-8d2f-7632acaaad85.png?width=204&height=366)
live.vodafone.com
4. Enter country code

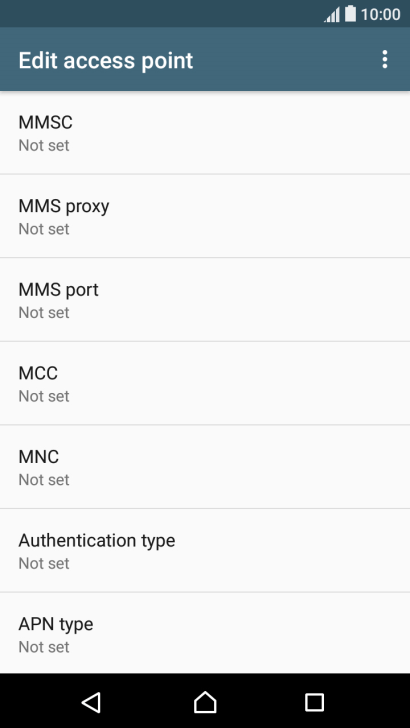

Press MCC.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-3d67afcd-ef62-4a4c-a5c0-6c58b7cb50e2.png?width=204&height=366)

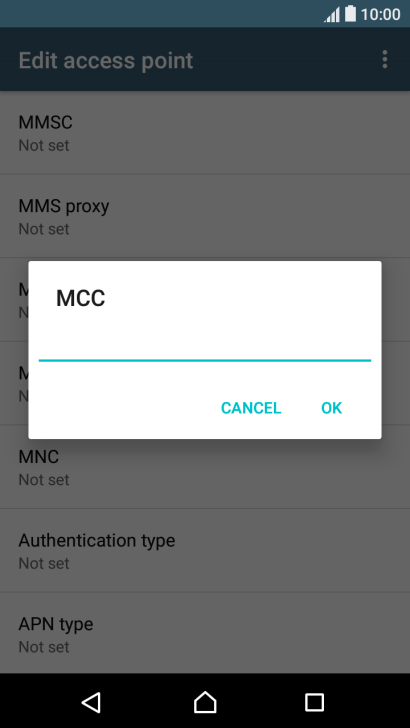

Key in 272 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-425e86f1-f0d3-440a-9124-18213c03d646.png?width=204&height=366)
272
5. Enter network code
Press MNC.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-3d67afcd-ef62-4a4c-a5c0-6c58b7cb50e2.png?width=204&height=366)

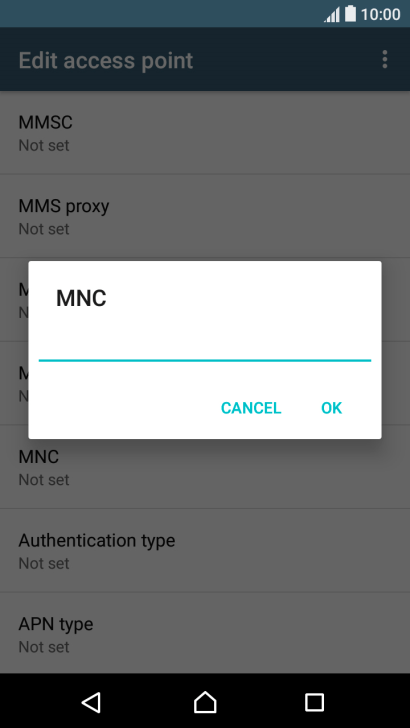

Key in 01 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-9db8236f-adfe-407b-8c76-30e9361d8523.png?width=204&height=366)
01
6. Select authentication type
Press Authentication type.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-3d67afcd-ef62-4a4c-a5c0-6c58b7cb50e2.png?width=204&height=366)

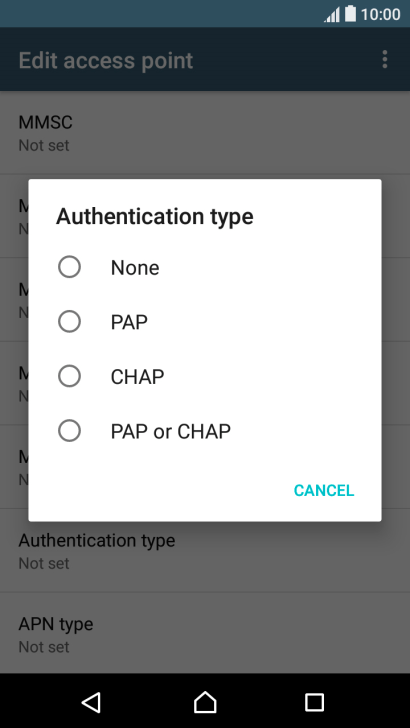

Press PAP.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-cdb7e06d-d3fe-4c1c-a912-38c71db866b1.png?width=204&height=366)
7. Select APN type
Press APN type.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-3d67afcd-ef62-4a4c-a5c0-6c58b7cb50e2.png?width=204&height=366)

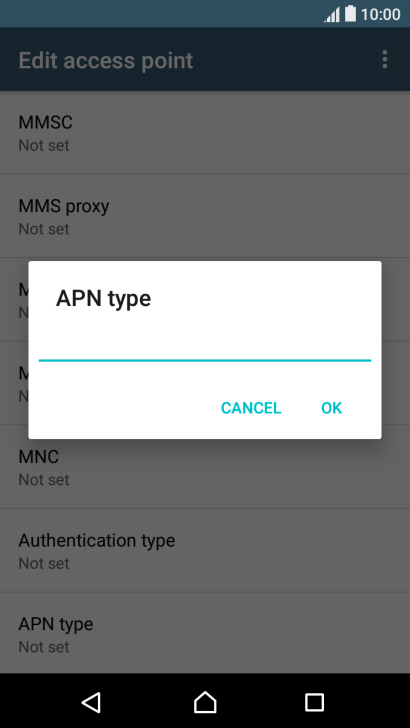

Key in default and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-d441271e-02db-4c14-af3a-5262fd8ade50.png?width=204&height=366)
default
8. Save data connection
Press the menu icon.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-3d67afcd-ef62-4a4c-a5c0-6c58b7cb50e2.png?width=204&height=366)

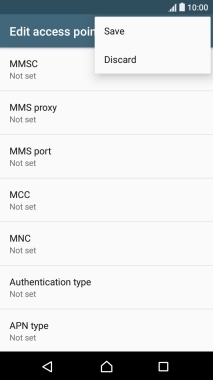

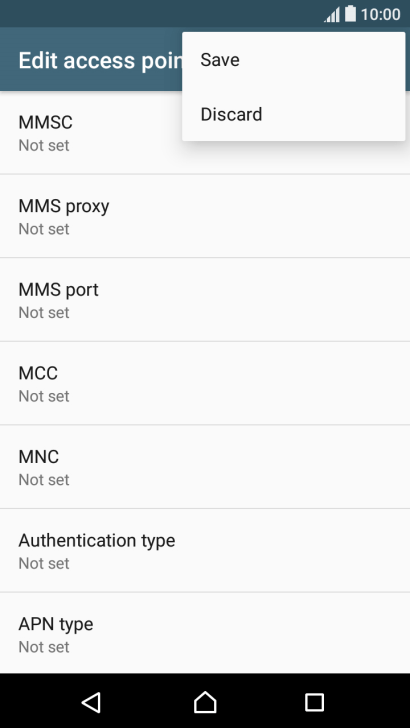

Press Save.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-e99e41f0-2ed8-40ce-912a-bb6e53b0b69d.png?width=204&height=366)
Press the field next to the data connection to activate it.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-e1d86d7d-b837-4865-9a4d-dcc43cd6ff97.png?width=204&height=366)
9. Return to the home screen

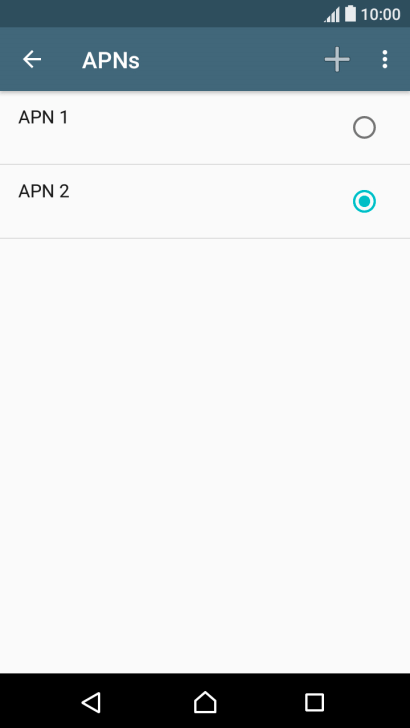

Press the Home key to return to the home screen.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-3efc5ca0-ee84-4af1-9072-7e255c52fbe0.png?width=204&height=366)
