Guide to phone keys and sockets - Sony Ericsson Coconut

Read help info

Follow these instructions for a guide on how to use the phone keys and sockets.

Step 1 of 20

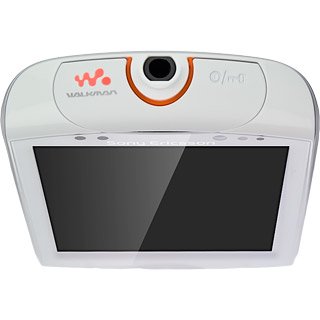

On/Off

Several functions are associated with On/Off:

Step 2 of 20

On/Off

Press On/Off to turn your phone on and off.

Step 3 of 20

On/Off

Press and hold On/Off to access other functions, such as silent mode and flight mode.

Step 4 of 20

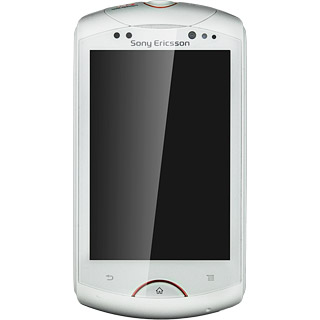

The Home key

Several functions are associated with the Home key:

Step 5 of 20

The Home key

Press the Home key to return to standby mode.

Step 6 of 20

The Home key

Press and hold the Home key to view a list of the most recently used menu items.

Step 7 of 20

The Return key

Press the Return key to exit an active menu item.

Step 8 of 20

The Menu key

Press the Menu key to open a pop-up menu.

Step 9 of 20

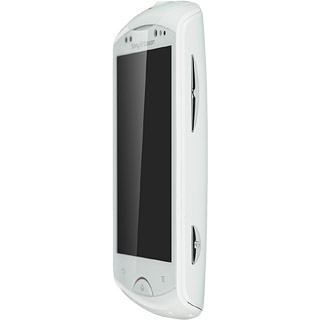

The Volume key

Several functions are associated with the Volume key:

Step 10 of 20

The Volume key

Press the upper or lower part of the Volume key to adjust the ring volume.

Step 11 of 20

The Volume key

Press the upper or lower part of the Volume key during a call to adjust the volume.

Step 12 of 20

The Volume key

Press the upper or lower part of the Volume key to silence the incoming call alert.

Step 13 of 20

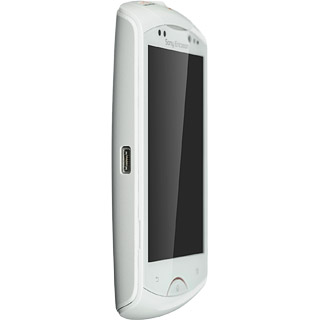

Socket

Connect the charger or data cable to the phone socket and to a wall socket or your computer's USB port.

Step 14 of 20

Headset socket

Connect the headset to the headset socket.

Step 15 of 20

The Camera key

Several functions are associated with the Camera key:

Step 16 of 20

The Camera key

Press the Camera key to turn on the camera.

Step 17 of 20

The Camera key

Press the Camera key to take a picture when the camera is turned on.

Step 18 of 20

The Walkman key

Press the Walkman key to turn on the music player.

Step 19 of 20

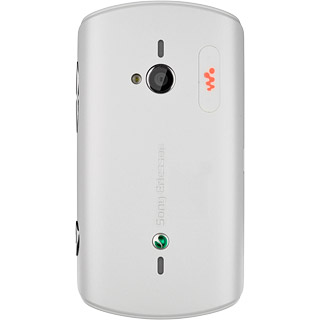

Camera lens at the back of your phone

Point the camera lens at the back of your phone at the required object to take a picture or record a video clip.

Step 20 of 20

Camera lens at the front of your phone

Point the camera lens at the front of your phone at the required object during a video call.

1. On/Off

Several functions are associated with On/Off:
Press On/Off to turn your phone on and off.
Press and hold On/Off to access other functions, such as silent mode and flight mode.

2. The Home key

Several functions are associated with the Home key:
Press the Home key to return to standby mode.
Press and hold the Home key to view a list of the most recently used menu items.

3. The Return key

Press the Return key to exit an active menu item.

4. The Menu key

Press the Menu key to open a pop-up menu.

5. The Volume key

Several functions are associated with the Volume key:
Press the upper or lower part of the Volume key to adjust the ring volume.
Press the upper or lower part of the Volume key during a call to adjust the volume.
Press the upper or lower part of the Volume key to silence the incoming call alert.

6. Socket

Connect the charger or data cable to the phone socket and to a wall socket or your computer's USB port.

7. Headset socket

Connect the headset to the headset socket.

8. The Camera key

Several functions are associated with the Camera key:
Press the Camera key to turn on the camera.
Press the Camera key to take a picture when the camera is turned on.

9. The Walkman key

Press the Walkman key to turn on the music player.

10. Camera lens at the back of your phone

Point the camera lens at the back of your phone at the required object to take a picture or record a video clip.

11. Camera lens at the front of your phone

Point the camera lens at the front of your phone at the required object during a video call.
