1. Find "Access Point Names"
Slide two fingers downwards starting from the top of the screen.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-755387b0-a9fd-4591-9b54-e6c035aec1ad.png?width=362&height=454)
Press the settings icon.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-a3090bff-6848-4750-95ab-3de8c0c492f0.png?width=362&height=454)
Press Connections.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-d940296c-09ac-423d-8468-eb7ee586ed47.png?width=362&height=454)
Press Mobile networks.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-8140f19d-0054-435e-9dfc-b0aafbce9d73.png?width=362&height=454)

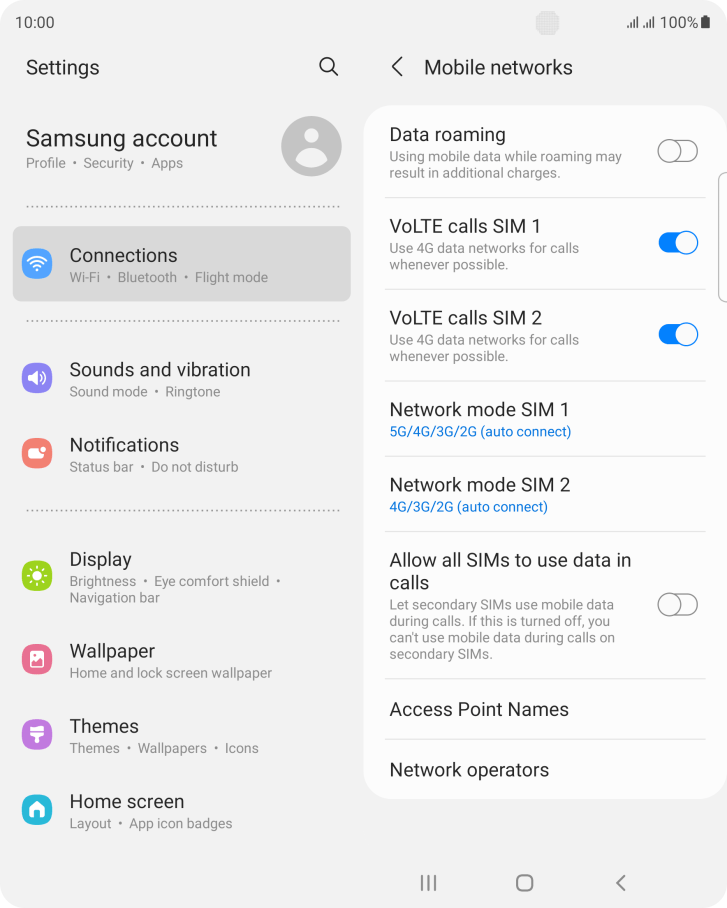

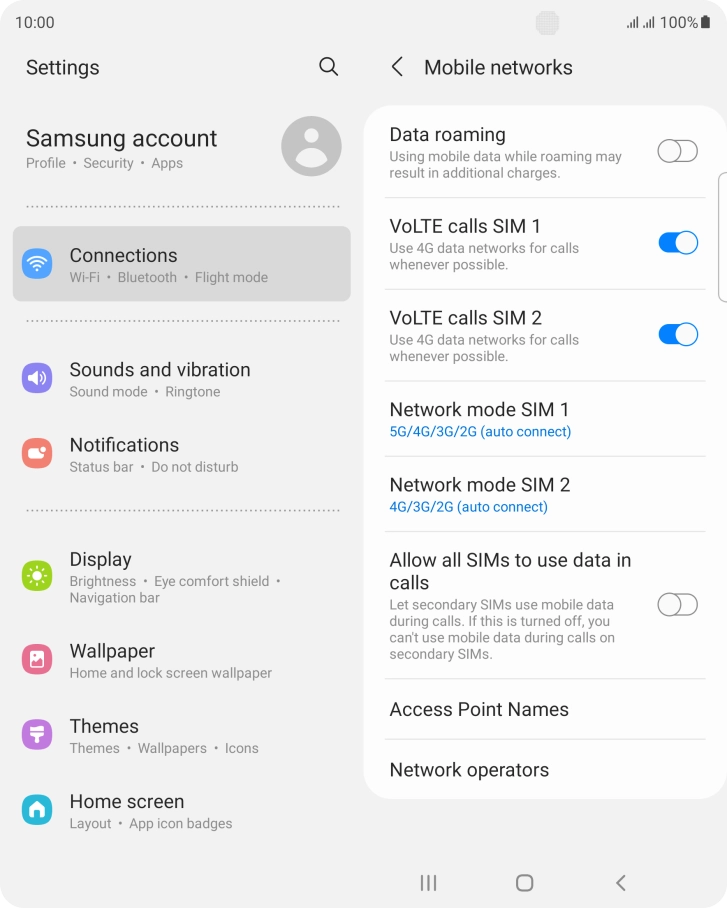

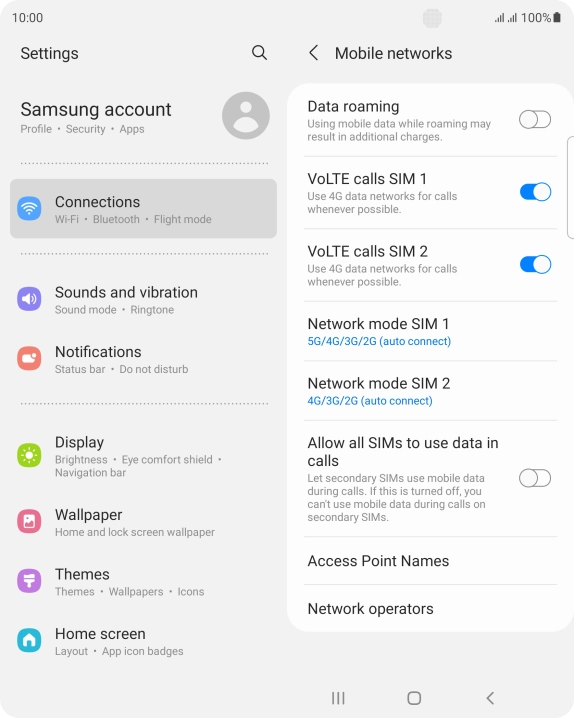

Press Access Point Names.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-27c6fdf0-1fc2-4b8c-b03e-f9ac83bb4b0a.png?width=362&height=454)
2. Create new data connection

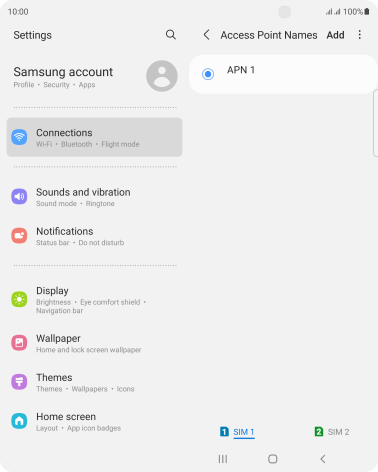

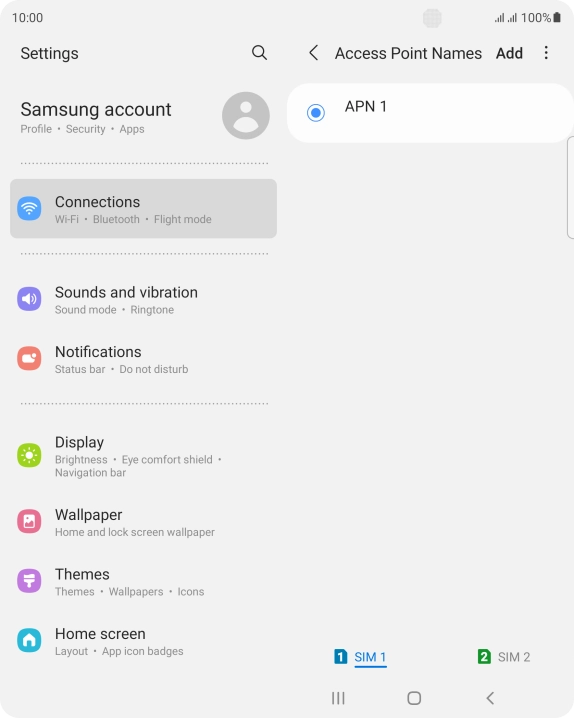

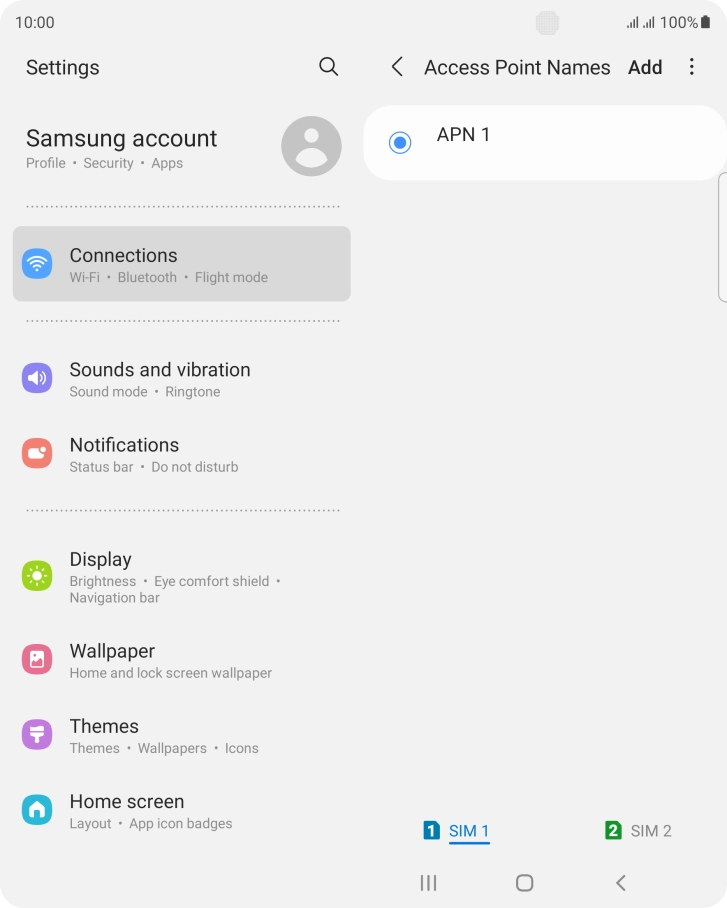

Press the required SIM.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-d98497e7-55a8-4d89-9fe1-c030450996d7.png?width=362&height=454)

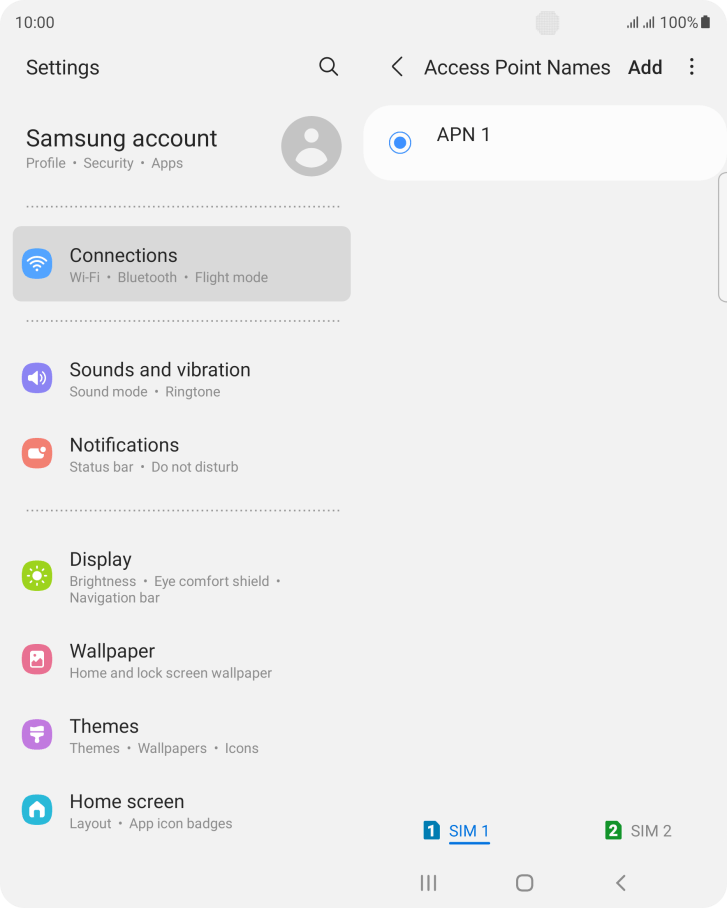

Press Add.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-d98497e7-55a8-4d89-9fe1-c030450996d7.png?width=362&height=454)

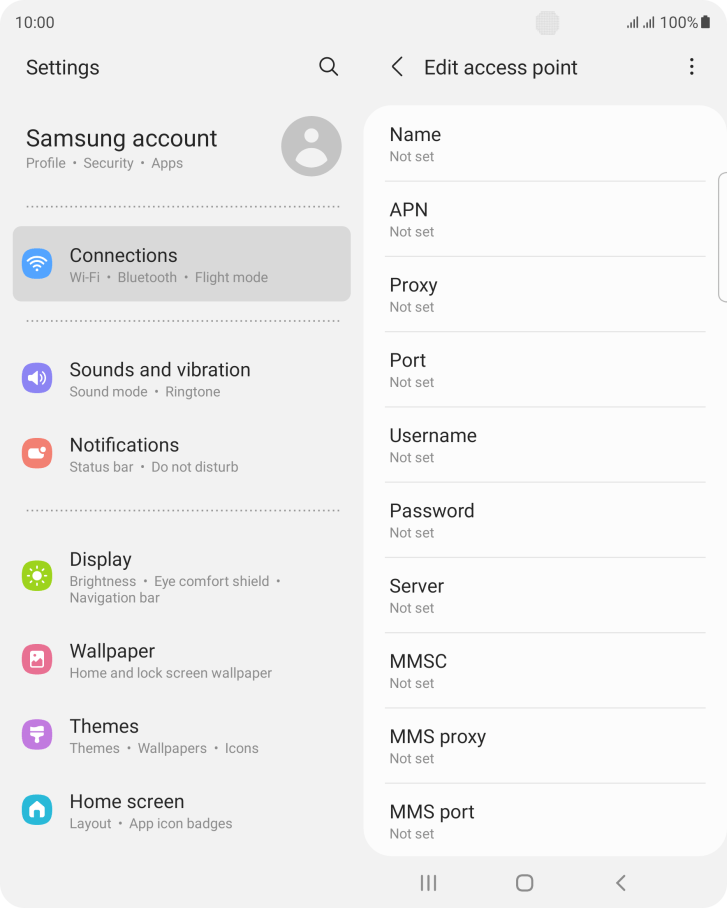

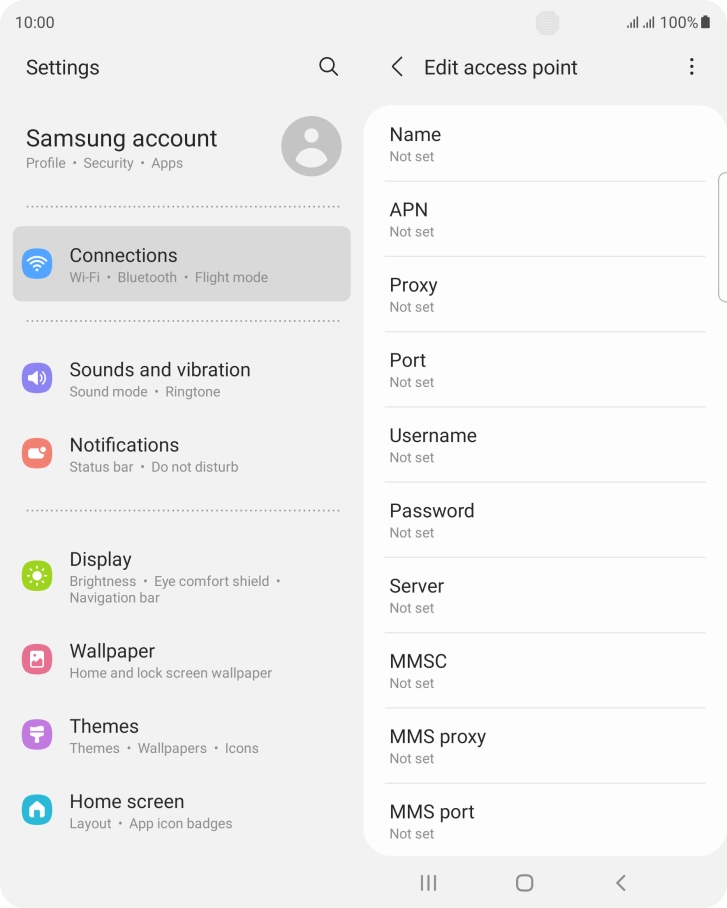

Press Name.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-03a0b50b-dbcc-41bd-951b-f93dc4f66de4.png?width=362&height=454)
Key in Vodafone Internet and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-453eeab0-ac47-4eec-8f81-512bbbe191cd.png?width=362&height=454)
Vodafone Internet
3. Enter APN
Press APN.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-03a0b50b-dbcc-41bd-951b-f93dc4f66de4.png?width=362&height=454)

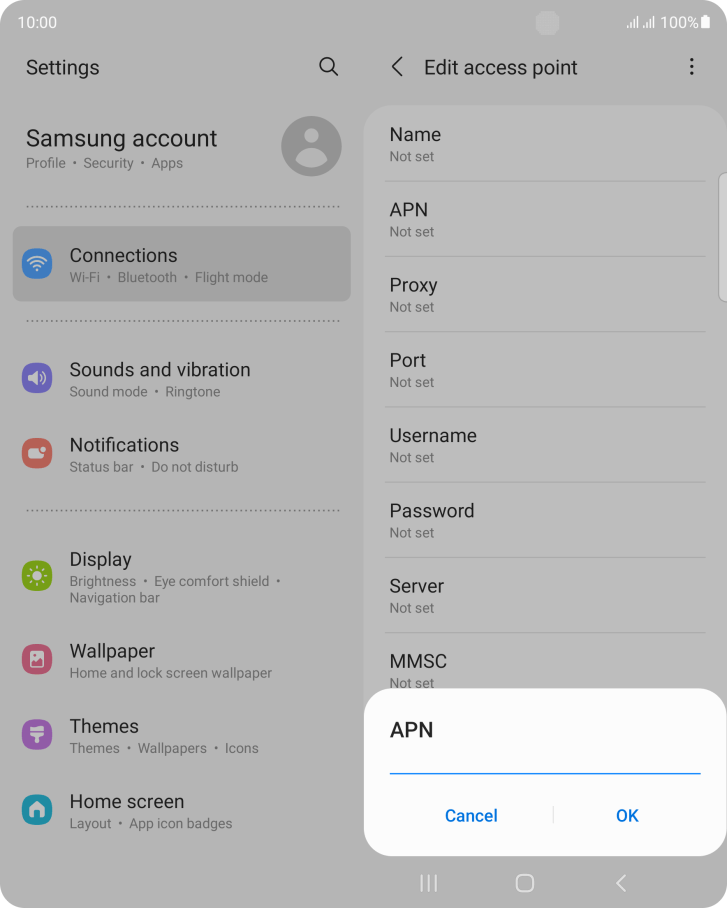

Key in live.vodafone.com and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-ea7c32d1-ce3e-4573-ab0a-c8b1c8f86366.png?width=362&height=454)
live.vodafone.com
4. Enter country code

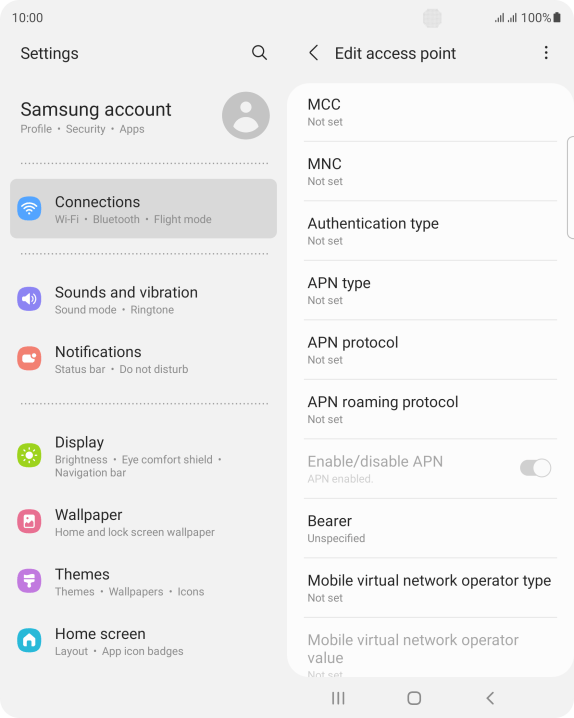

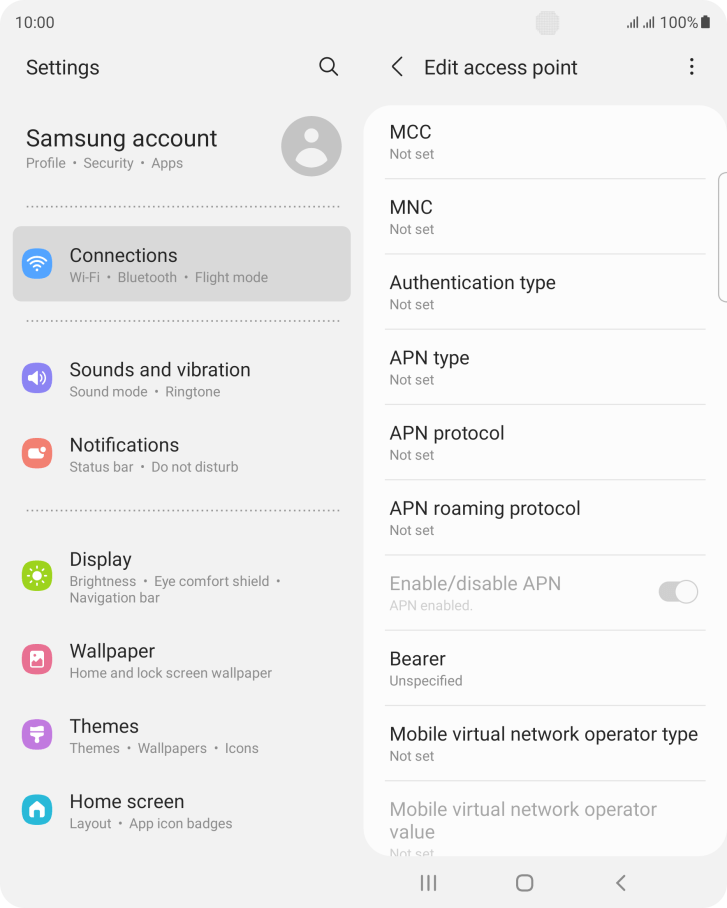

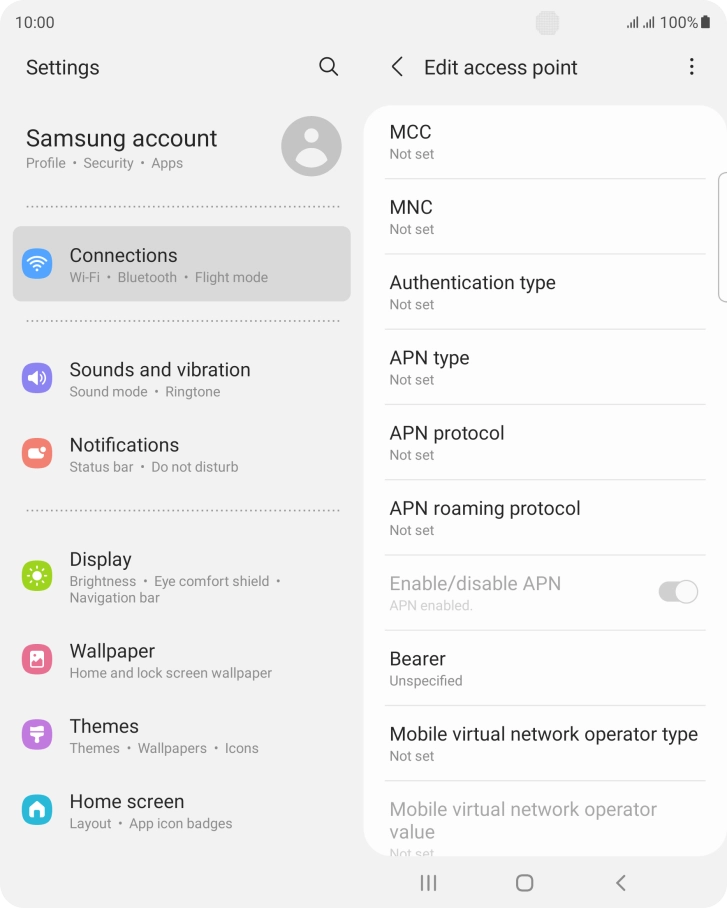

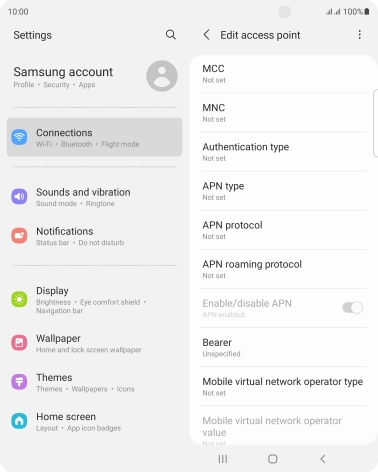

Press MCC.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-4864fc5d-687c-48d0-a61c-0a7ed3945cb9.png?width=362&height=454)

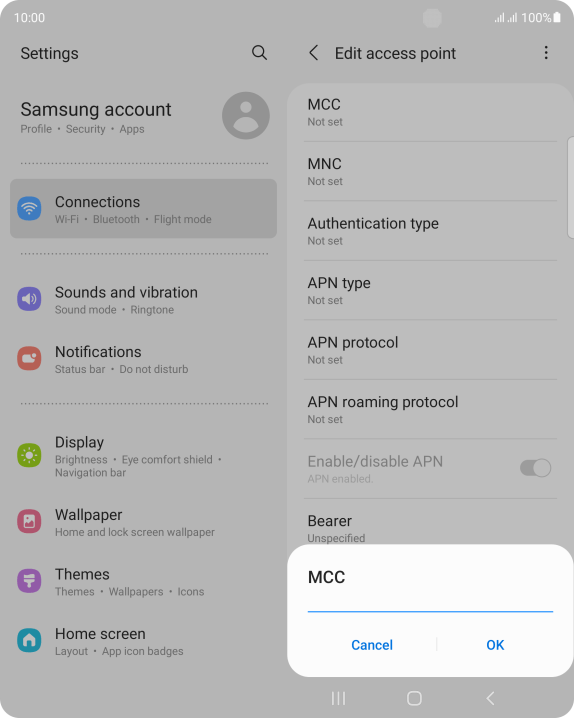

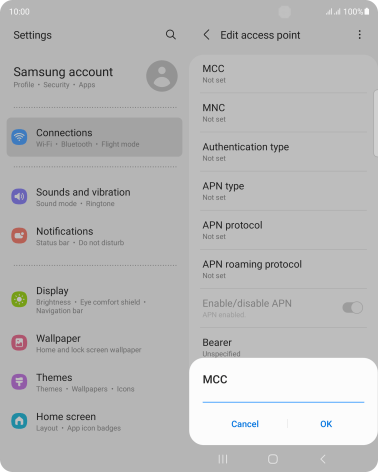

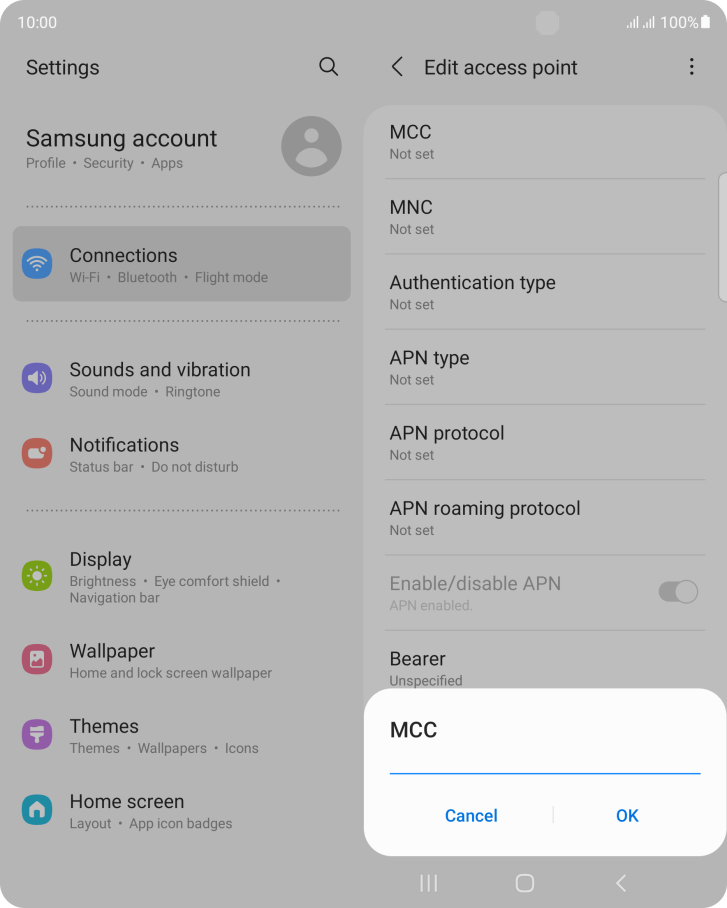

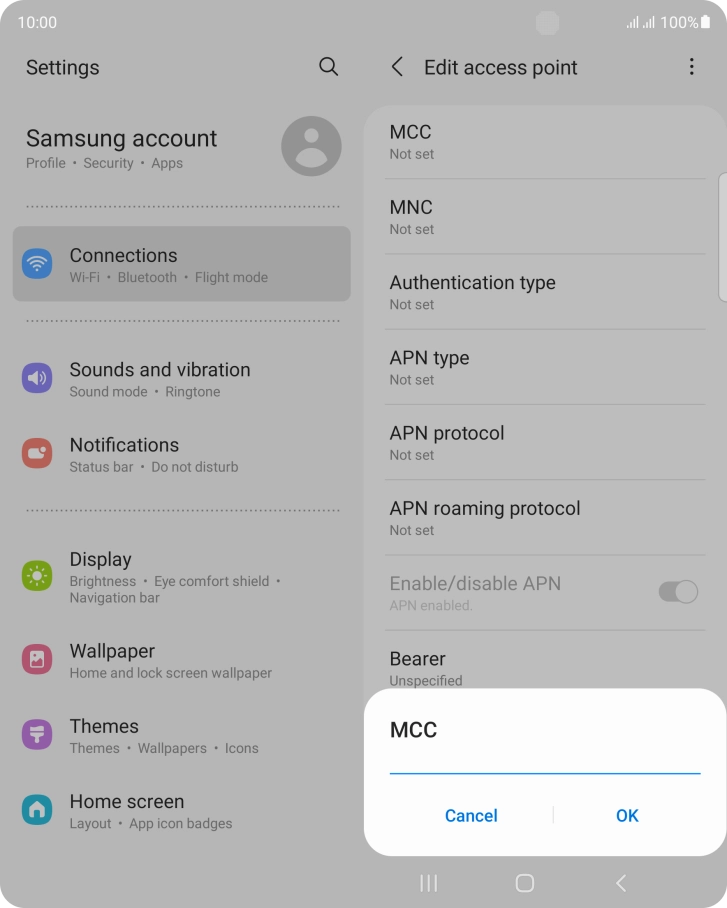

Key in 272 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-c289cffc-0644-4020-a7bf-1c5b4e4a6f8a.png?width=362&height=454)
272
5. Enter network code

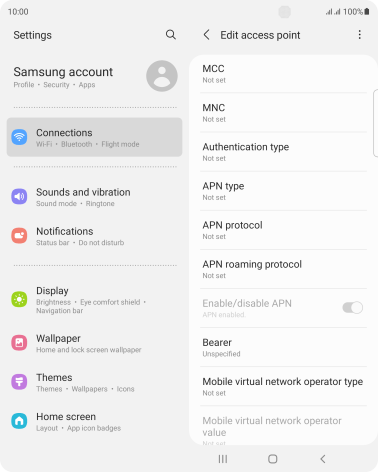

Press MNC.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-4864fc5d-687c-48d0-a61c-0a7ed3945cb9.png?width=362&height=454)

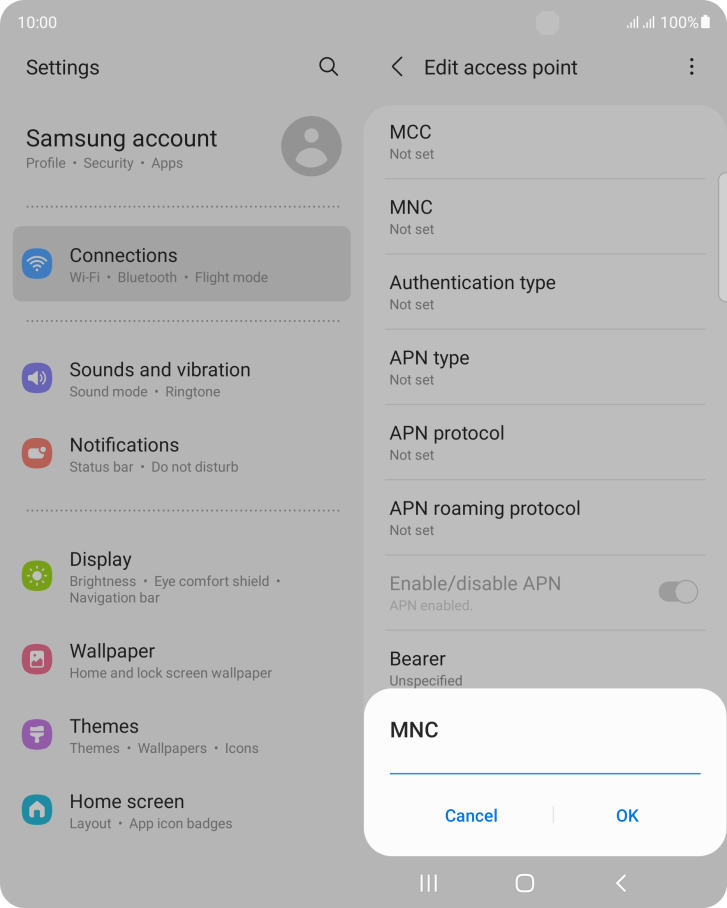

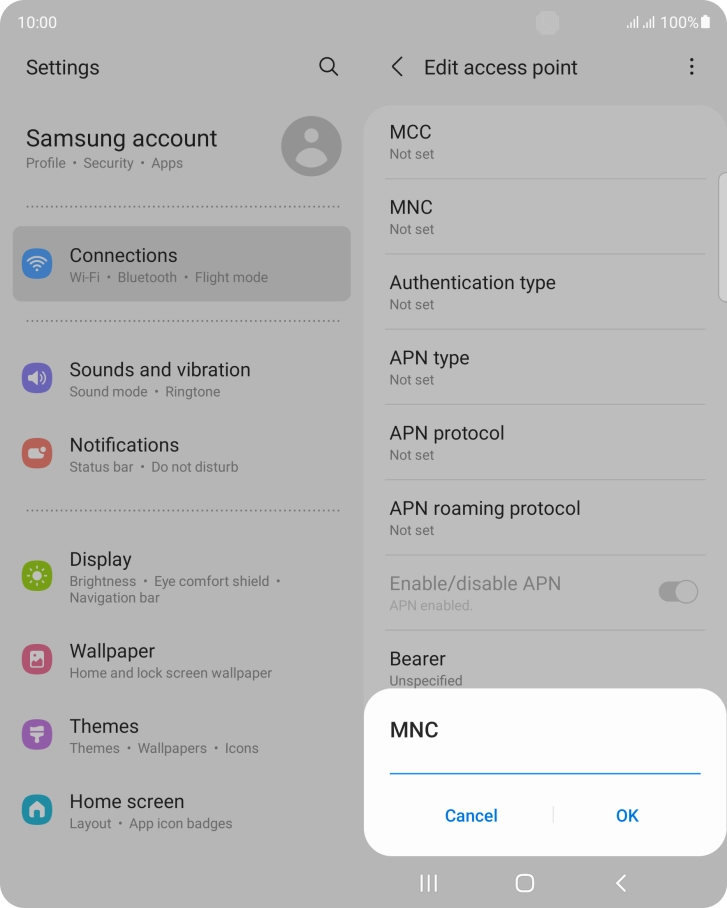

Key in 01 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-442026af-9ecc-433b-807e-72a3a9e67c51.png?width=362&height=454)
01
6. Select authentication type
Press Authentication type.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-4864fc5d-687c-48d0-a61c-0a7ed3945cb9.png?width=362&height=454)

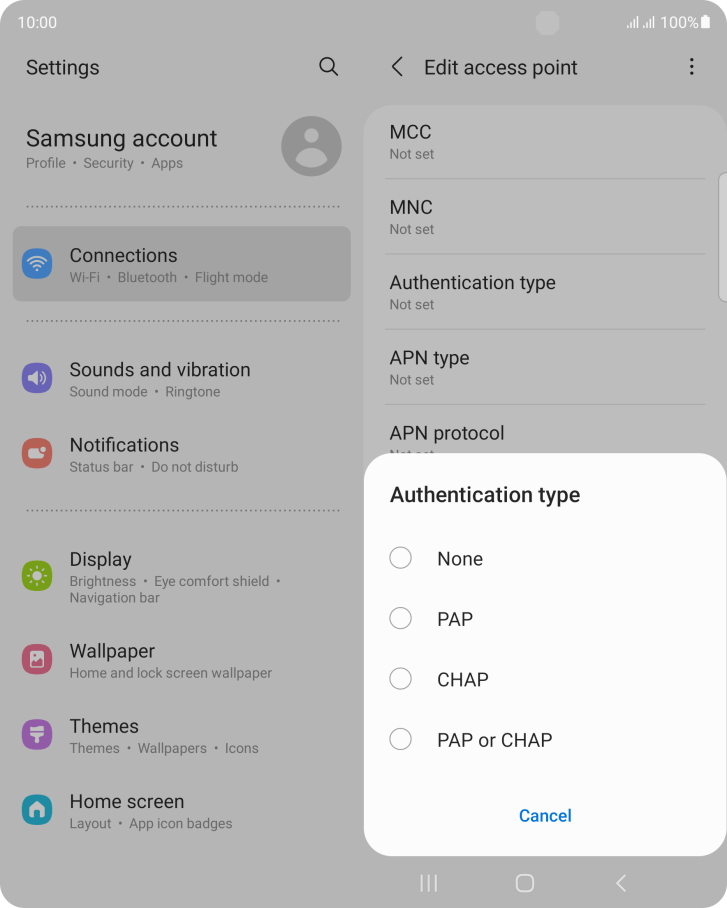

Press PAP.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-c90dafc6-99f3-4a8c-8948-2003aefc8ba3.png?width=362&height=454)
7. Enter APN type
Press APN type.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-4864fc5d-687c-48d0-a61c-0a7ed3945cb9.png?width=362&height=454)

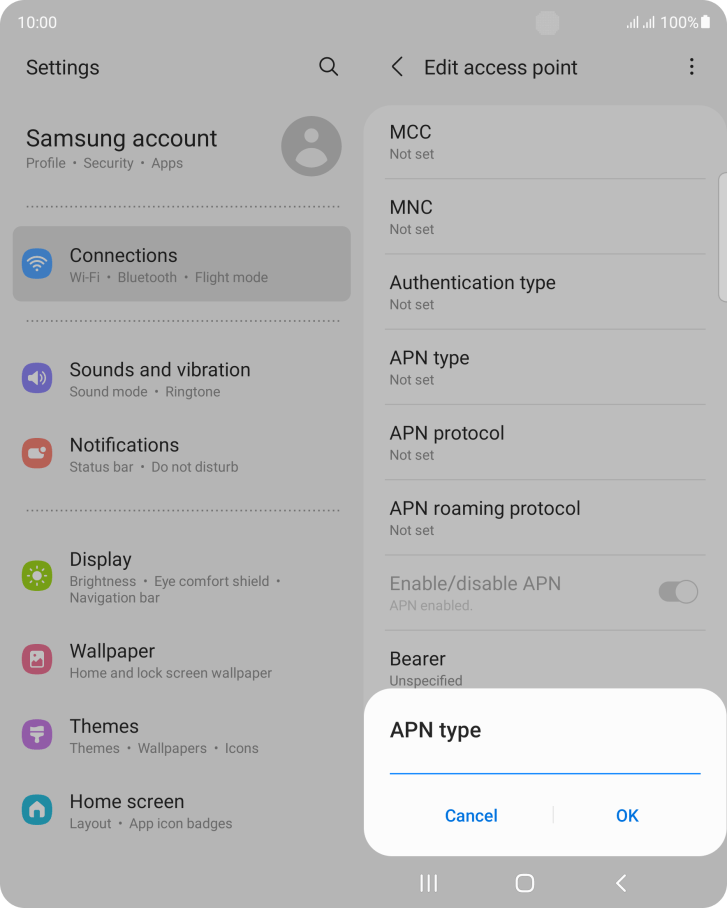

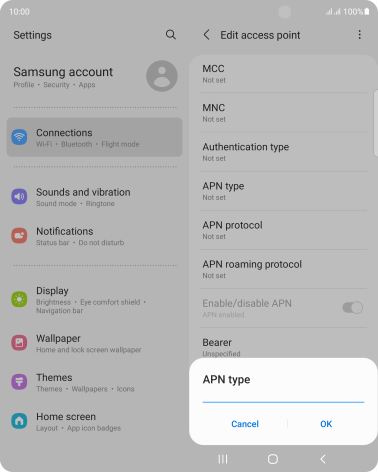

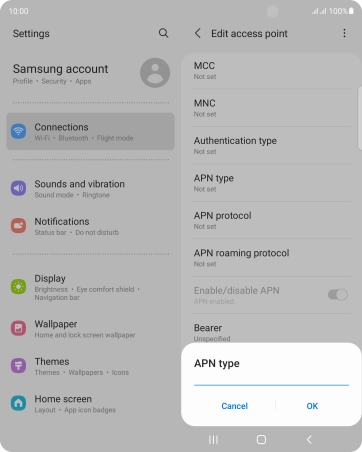

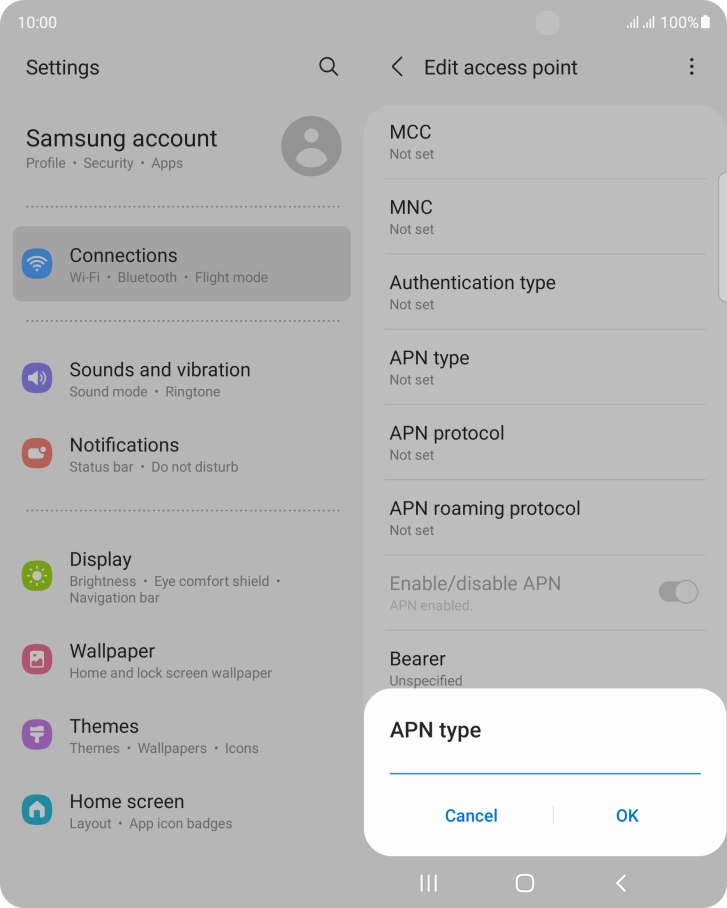

Key in default and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-7c269e49-382d-4302-af65-8a5165c07e79.png?width=362&height=454)
default
8. Save data connection
Press the menu icon.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-4864fc5d-687c-48d0-a61c-0a7ed3945cb9.png?width=362&height=454)

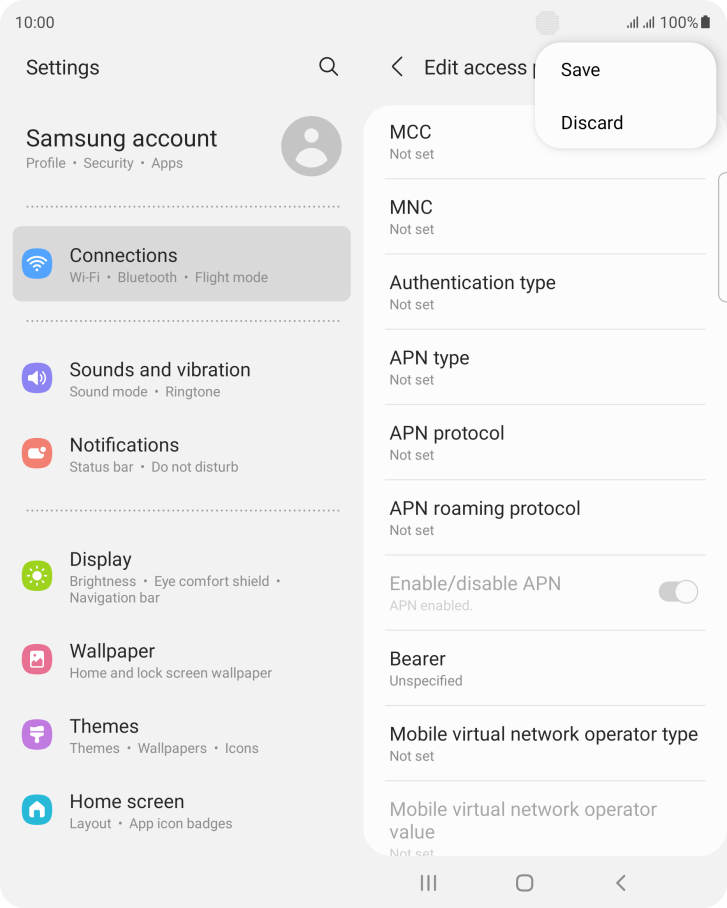

Press Save.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-2f9bc14b-193d-4229-9afb-9becc8ed63db.png?width=362&height=454)

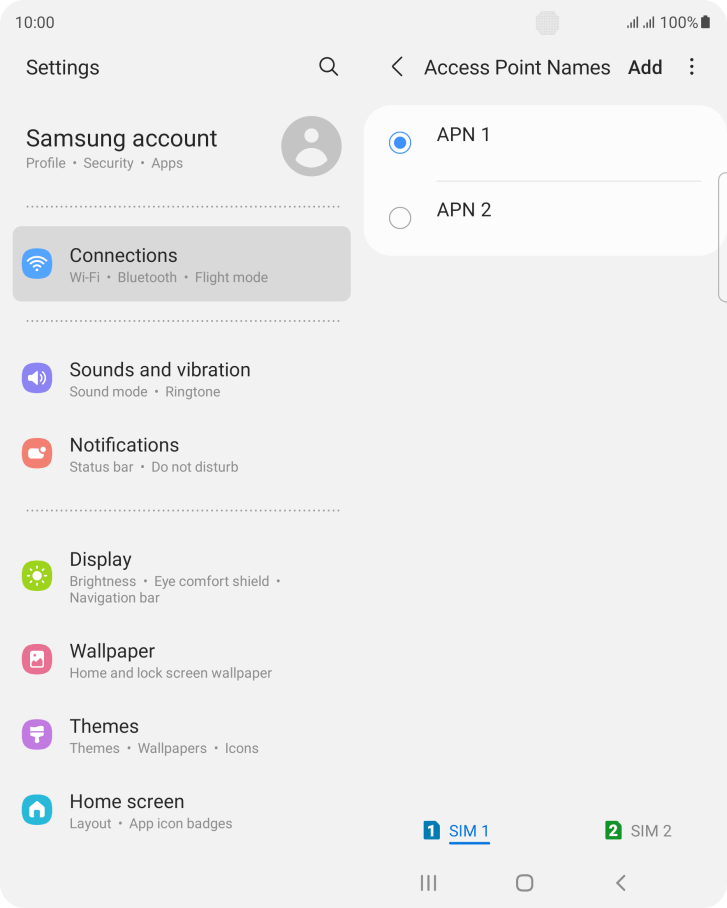

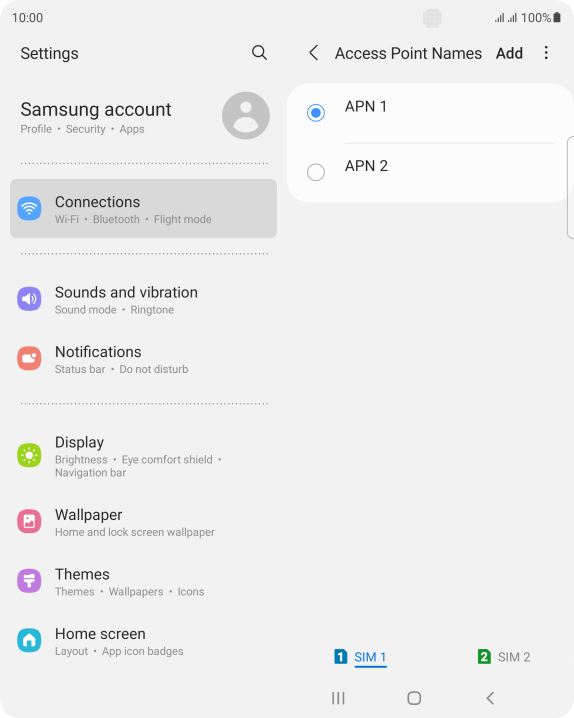

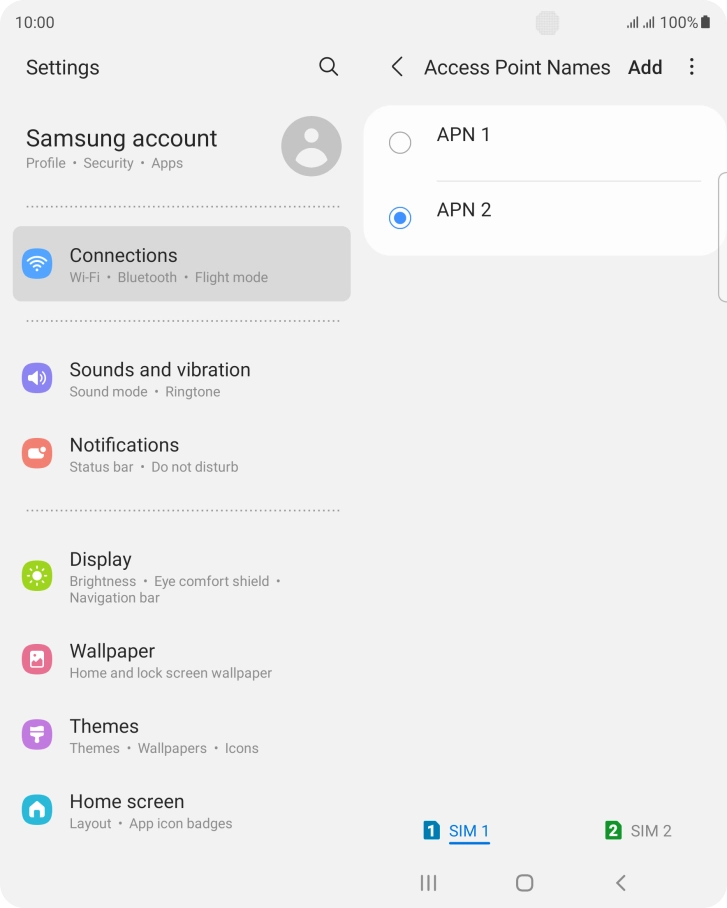

Press the field next to the data connection to activate it.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-cf296bf6-5834-4d78-ba9c-2f8fa72d5c48.png?width=362&height=454)
9. Return to the home screen

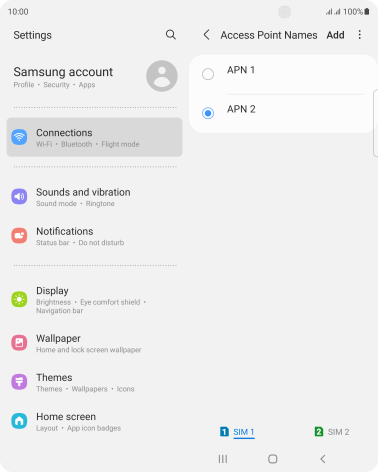

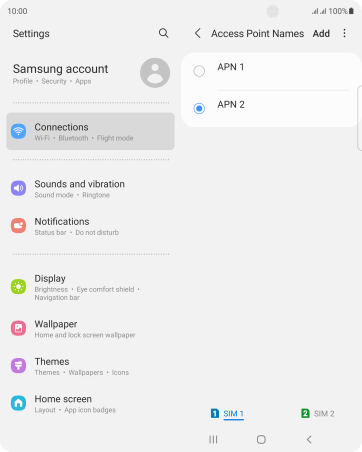

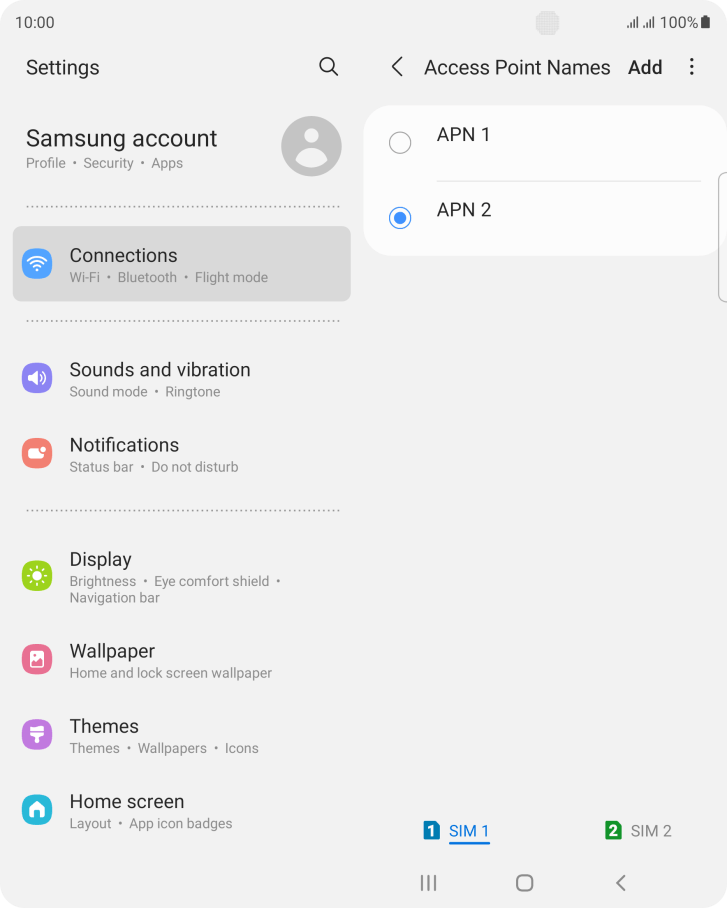

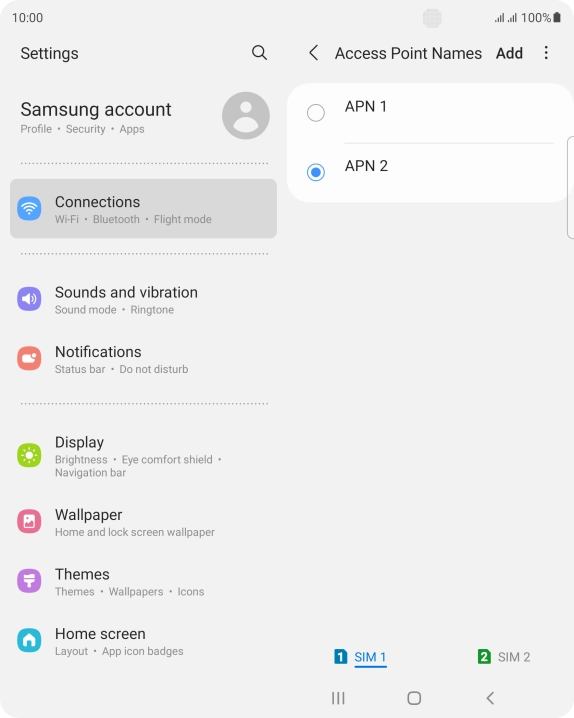

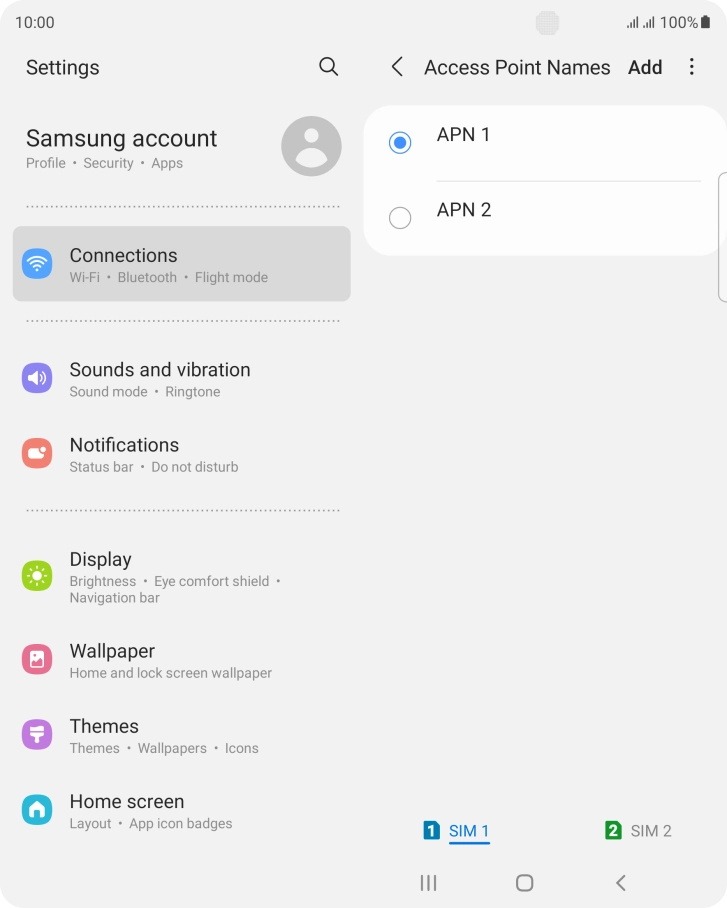

Press the Home key to return to the home screen.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-4acc9799-0feb-4d7c-bdf0-80ec387ca754.png?width=362&height=454)
