1. Find "Access Point Names"
Slide two fingers downwards starting from the top of the screen.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-d0ceff7d-4059-460e-852c-3f907c304854.png?width=190&height=394)
Press the settings icon.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-e956f5b6-0b42-4f54-bebe-34b5220b4001.png?width=190&height=394)

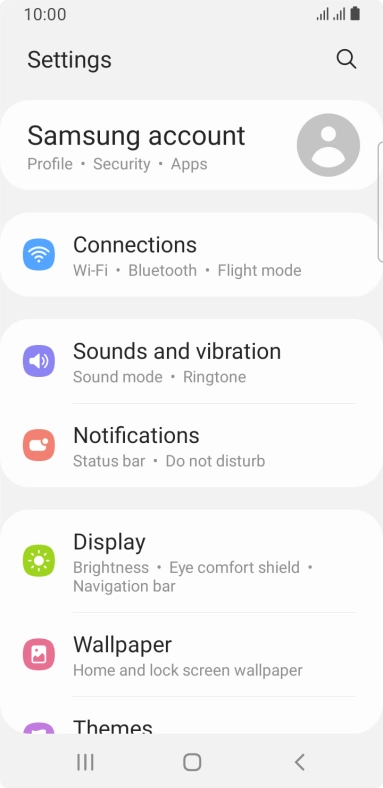

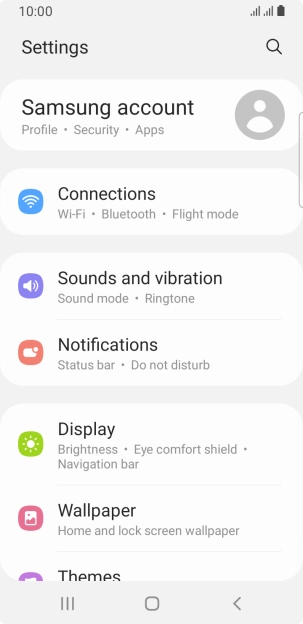

Press Connections.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-c27e3349-d49e-43bd-a604-a7f435dd2da7.png?width=190&height=394)

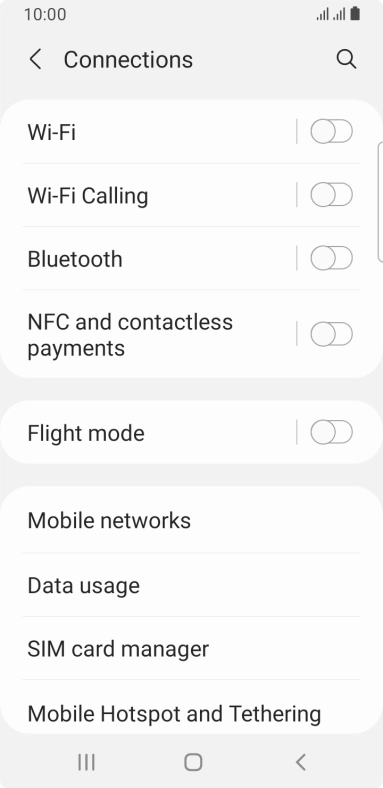

Press Mobile networks.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-02806ebd-c3de-4a47-a66e-c65cd14d7587.png?width=190&height=394)

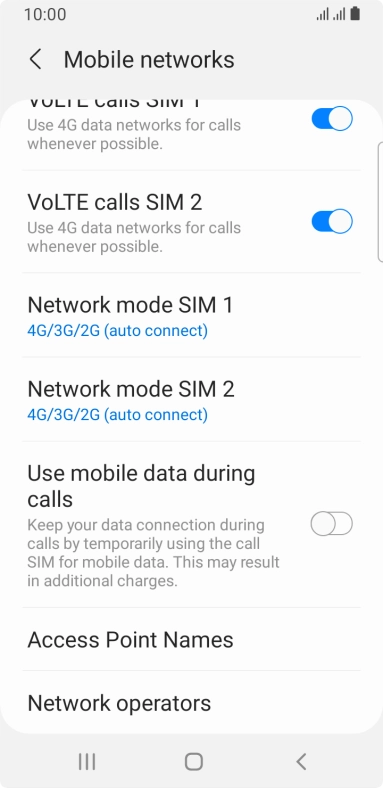

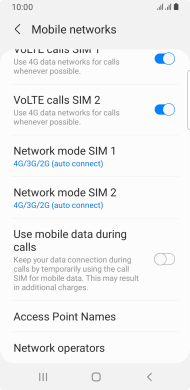

Press Access Point Names.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-715fca1c-68e2-4c92-8440-0ac5e366729d.png?width=190&height=394)
2. Create new data connection
Press the required SIM.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-87d3daa9-83d1-4ce4-ac3b-e8f0aab6f79c.png?width=190&height=394)

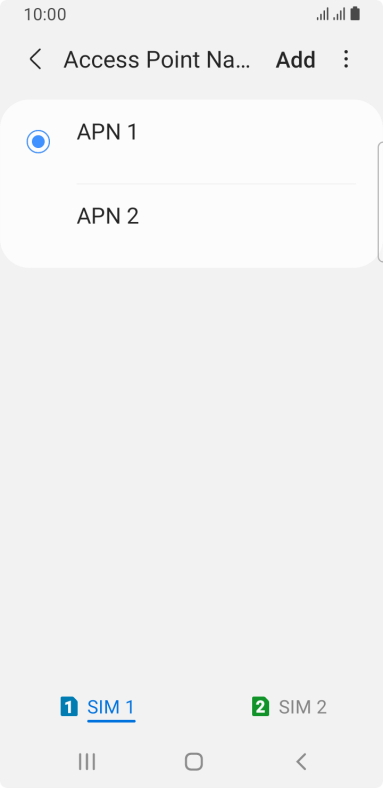

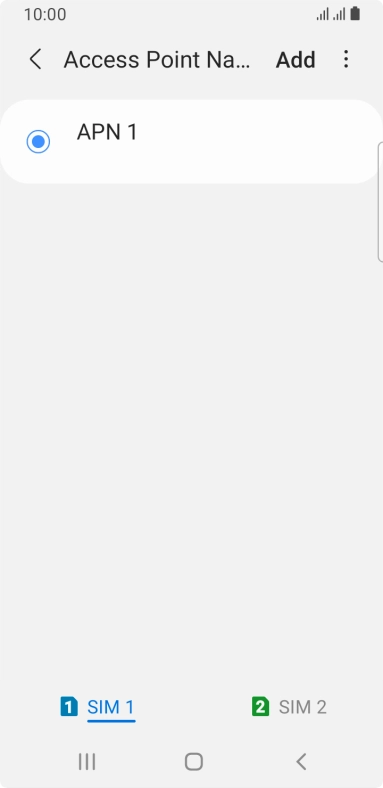

Press Add.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-87d3daa9-83d1-4ce4-ac3b-e8f0aab6f79c.png?width=190&height=394)

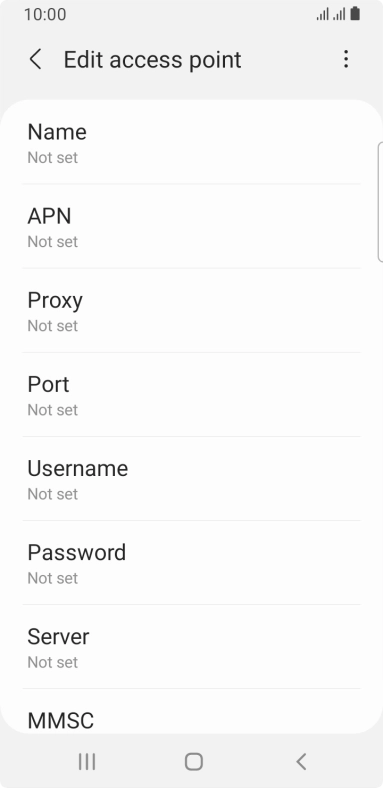

Press Name.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-d9c06529-3978-400c-bafd-213817451c5a.png?width=190&height=394)

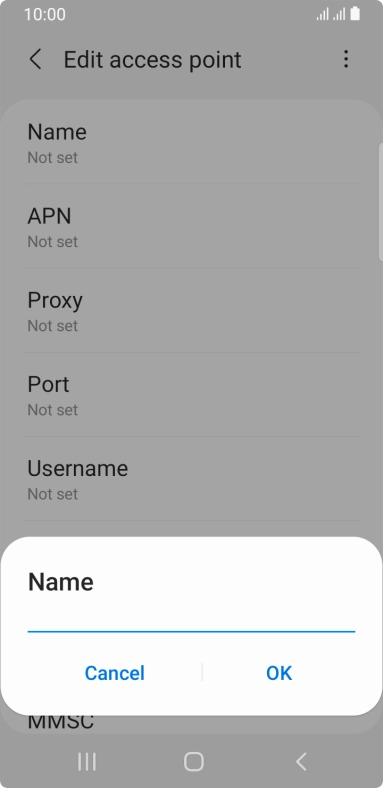

Key in Vodafone MMS and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-d144652c-1185-49dd-a58a-48d3497adf41.png?width=190&height=394)
Vodafone MMS
3. Enter APN
Press APN.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-d9c06529-3978-400c-bafd-213817451c5a.png?width=190&height=394)

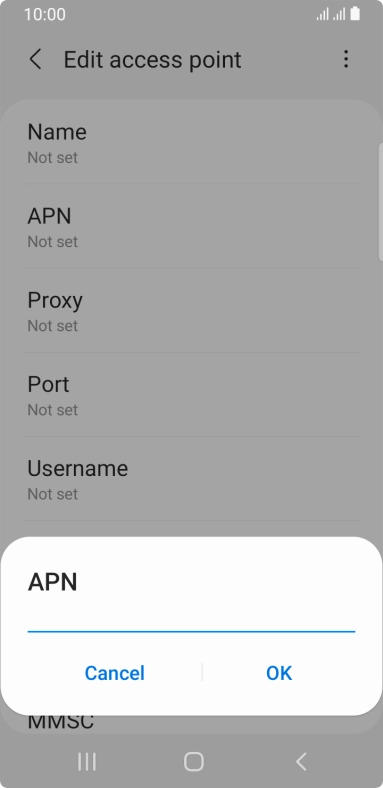

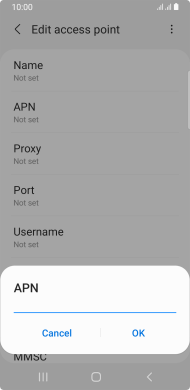

Key in mms.vodafone.net and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-87c44919-2789-4472-bbff-d9b866faf541.png?width=190&height=394)
mms.vodafone.net
4. Enter MMSC

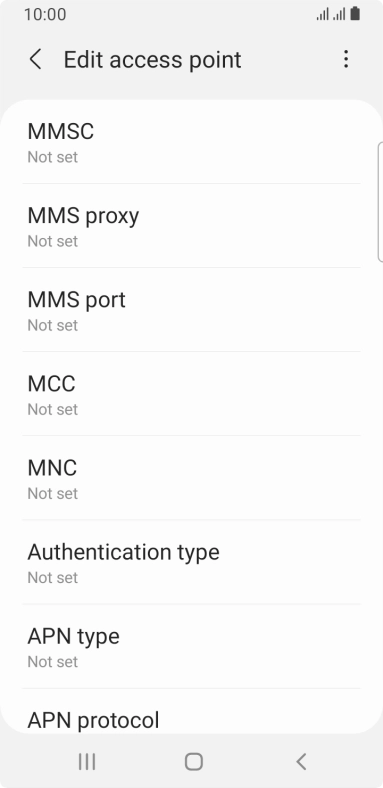

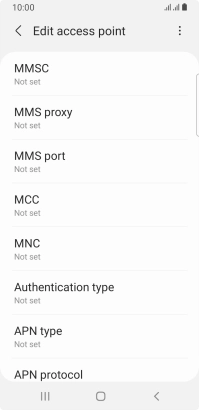

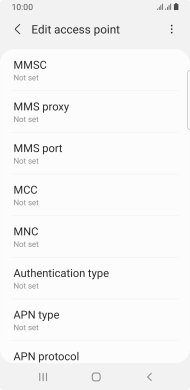

Press MMSC.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-d4661a48-f049-4498-86c3-ec64a1436fed.png?width=190&height=394)

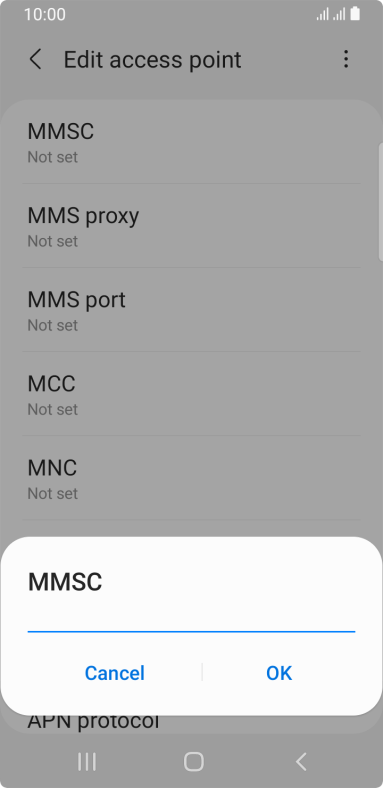

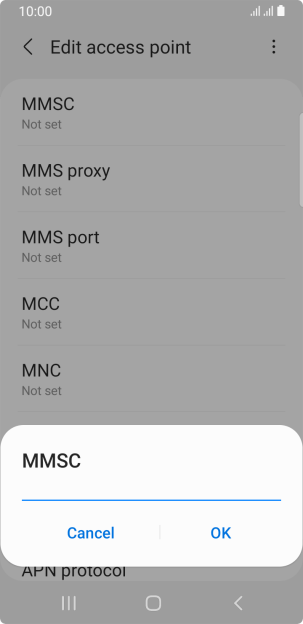

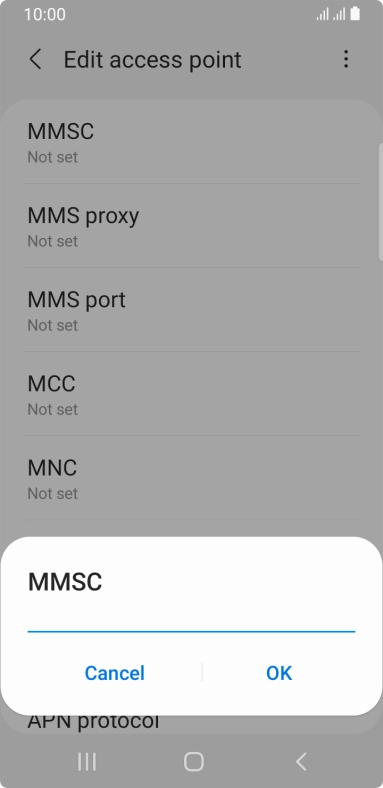

Key in http://www.vodafone.ie/mms and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-0ae88534-38c3-4b63-82b0-22644a96a855.png?width=190&height=394)
http://www.vodafone.ie/mms
5. Enter IP address
Press MMS proxy.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-d4661a48-f049-4498-86c3-ec64a1436fed.png?width=190&height=394)

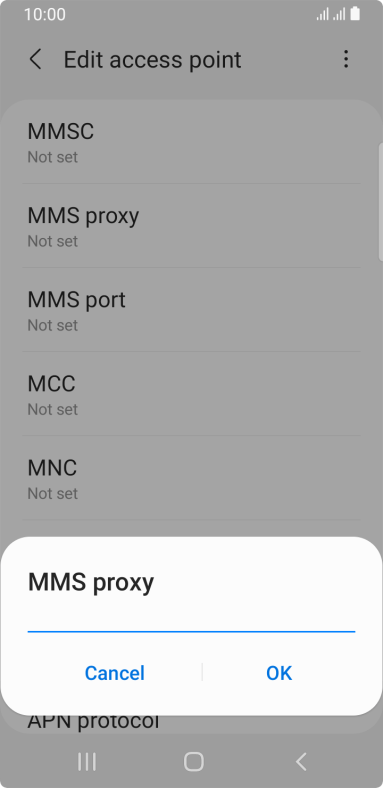

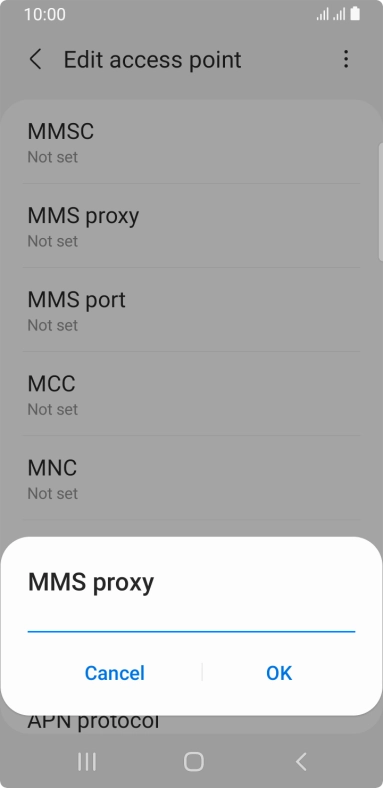

Key in 10.24.59.200 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-cda8fe23-08f0-4bb3-a9c0-5362dfdca979.png?width=190&height=394)
10.24.59.200
6. Enter port number
Press MMS port.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-d4661a48-f049-4498-86c3-ec64a1436fed.png?width=190&height=394)

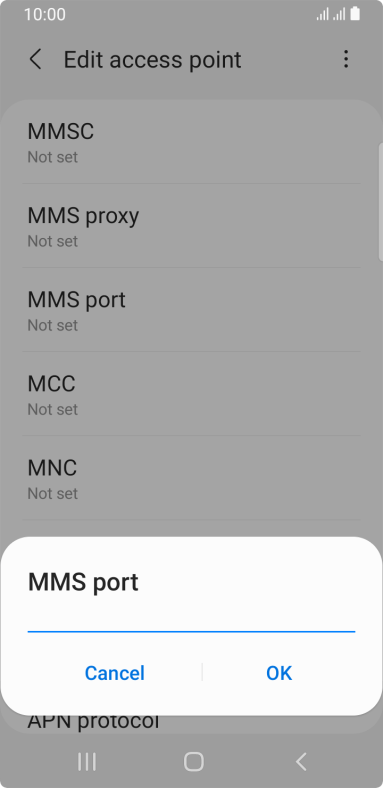

Key in 80 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-4ab6fdf1-0430-4148-9af2-559eca248d40.png?width=190&height=394)
80
7. Enter country code
Press MCC.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-d4661a48-f049-4498-86c3-ec64a1436fed.png?width=190&height=394)

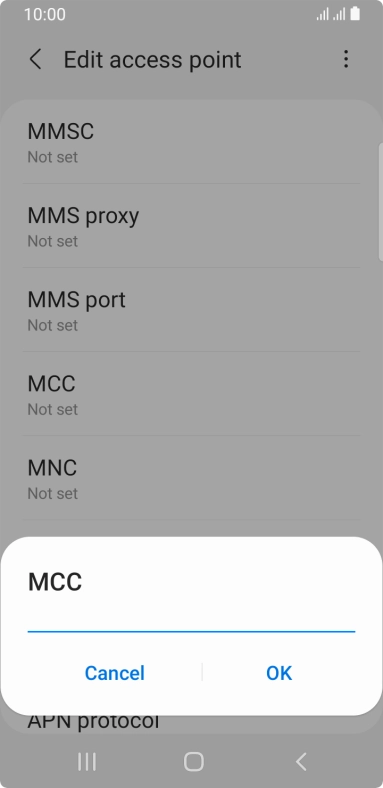

Key in 272 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-e14b2948-f79e-4ab8-978c-c2131c0db021.png?width=190&height=394)
272
8. Enter network code
Press MNC.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-d4661a48-f049-4498-86c3-ec64a1436fed.png?width=190&height=394)
Key in 01 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-d67e3b18-5a04-411b-a0c9-651907411a10.png?width=190&height=394)
01
9. Select authentication type
Press Authentication type.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-d4661a48-f049-4498-86c3-ec64a1436fed.png?width=190&height=394)

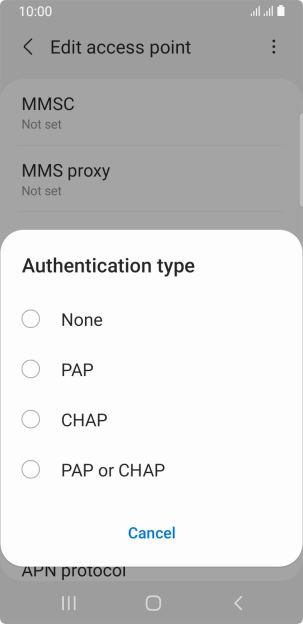

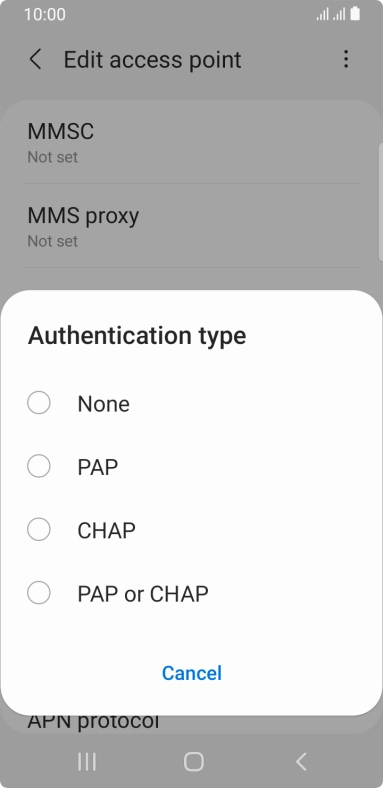

Press PAP.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-da16e30a-8659-4e27-b456-8a77d59f70c8.png?width=190&height=394)
10. Enter APN type
Press APN type.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-d4661a48-f049-4498-86c3-ec64a1436fed.png?width=190&height=394)

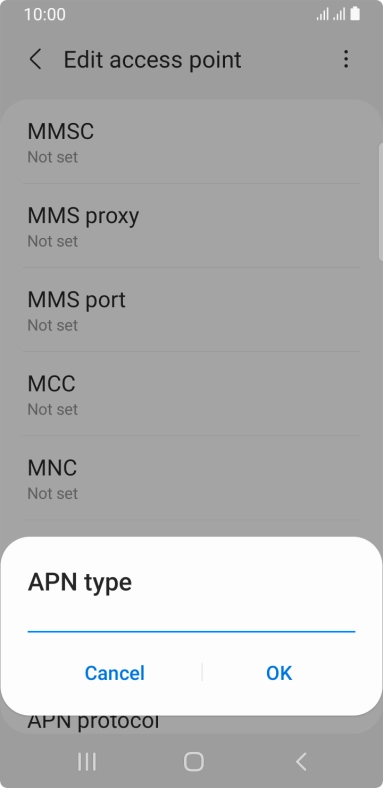

Key in mms and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-e044bd59-884a-40df-8fc6-163f338deb13.png?width=190&height=394)
mms
11. Save data connection
Press the menu icon.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-d4661a48-f049-4498-86c3-ec64a1436fed.png?width=190&height=394)

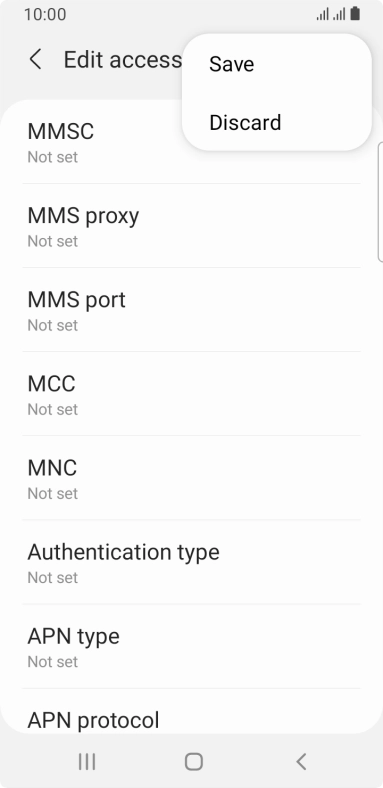

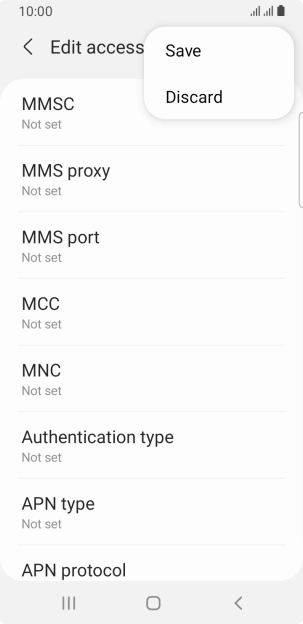

Press Save.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-0442aae5-1961-4e51-969a-50471f2c9526.png?width=190&height=394)
12. Return to the home screen
Press the Home key to return to the home screen.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-28943dc1-c023-494f-900e-0dfb7aad1b7e.png?width=190&height=394)
