Set up your Samsung Galaxy Xcover 5 Android 11.0 for internet

Read help info

The internet connection is shared by many functions on your phone such as internet browsing, receiving email messages and installing apps. You can access the internet as soon as you've inserted your SIM. If this isn't the case, you can set up your phone for internet manually.

Step 1 of 27

1. Find "Access Point Names"

Slide two fingers downwards starting from the top of the screen.

Step 2 of 27

1. Find "Access Point Names"

Press the settings icon.

Step 3 of 27

1. Find "Access Point Names"

Press Connections.

Step 4 of 27

1. Find "Access Point Names"

Press Mobile networks.

Step 5 of 27

1. Find "Access Point Names"

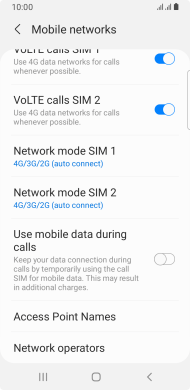

Press Access Point Names.

Step 6 of 27

2. Create new data connection

Press the required SIM.

Step 7 of 27

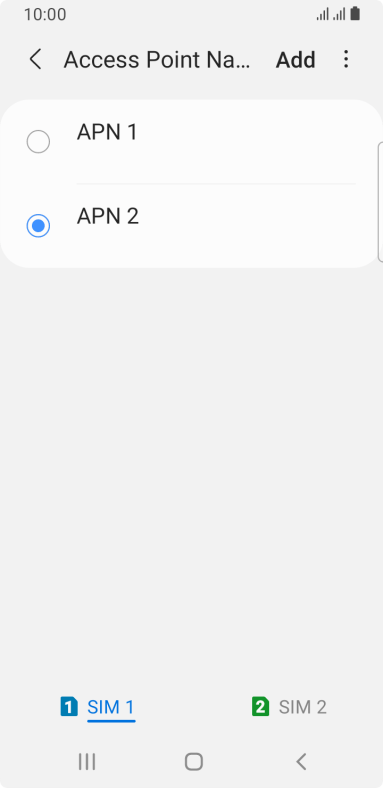

2. Create new data connection

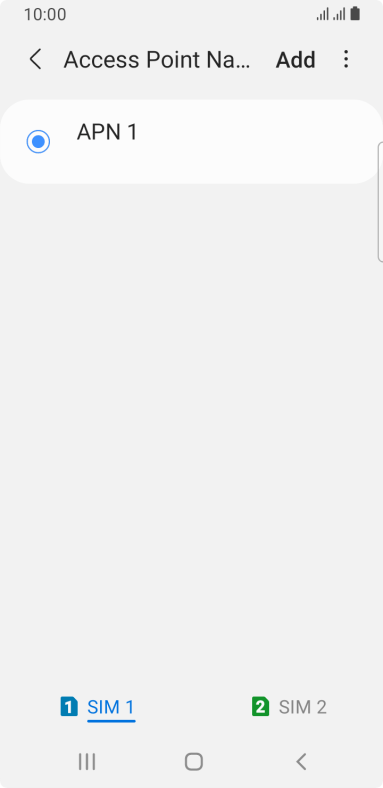

Press Add.

Step 8 of 27

2. Create new data connection

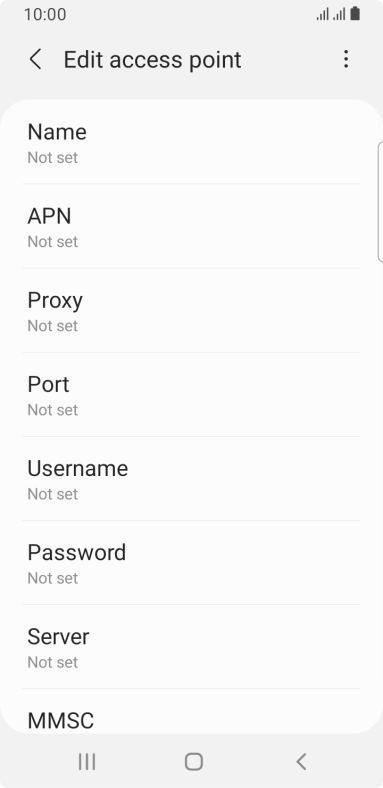

Press Name.

Vodafone Internet
Step 9 of 27

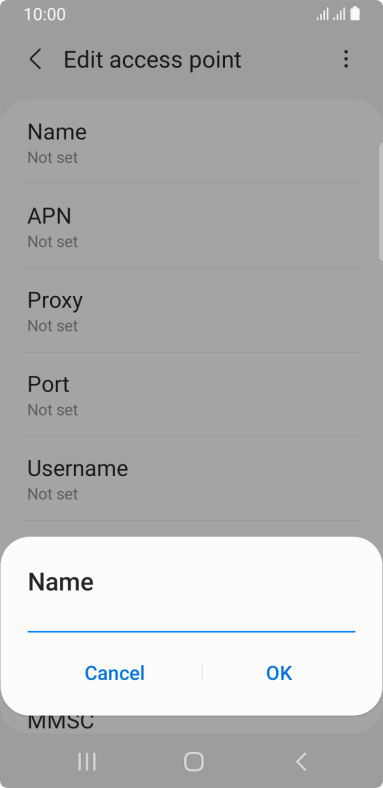

2. Create new data connection

Key in Vodafone Internet and press OK.

Step 10 of 27

3. Enter APN

Press APN.

live.vodafone.com
Step 11 of 27

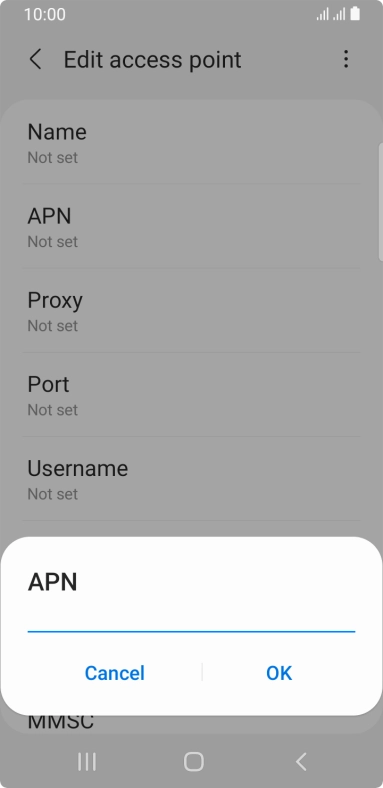

3. Enter APN

Key in live.vodafone.com and press OK.

Step 12 of 27

4. Enter IP address

Press Proxy.

10.24.59.100
Step 13 of 27

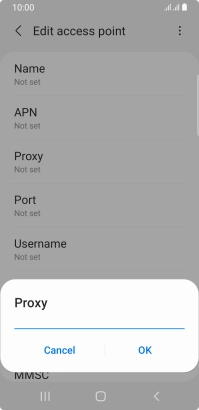

4. Enter IP address

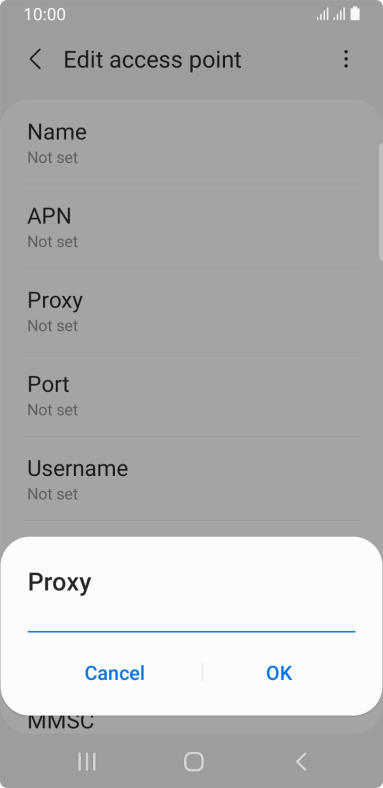

Key in 10.24.59.100 and press OK.

Step 14 of 27

5. Enter port number

Press Port.

80
Step 15 of 27

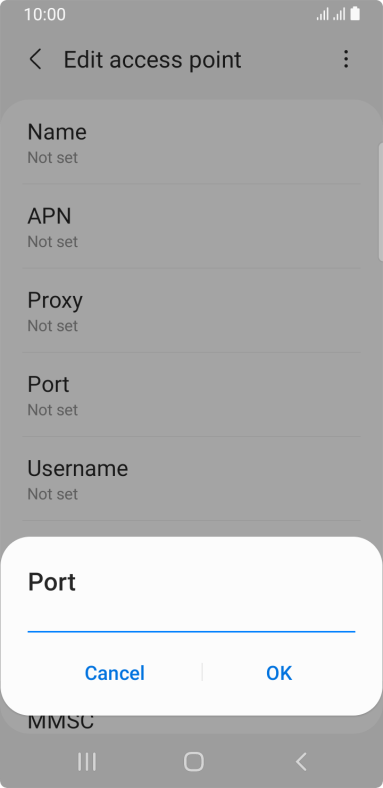

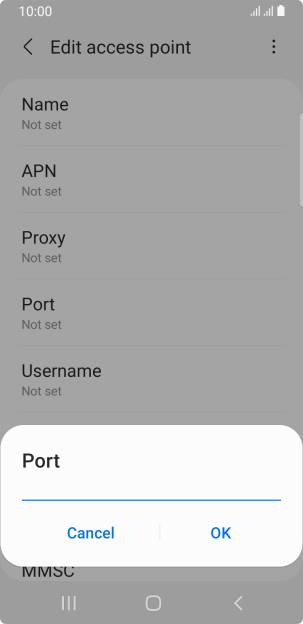

5. Enter port number

Key in 80 and press OK.

Step 16 of 27

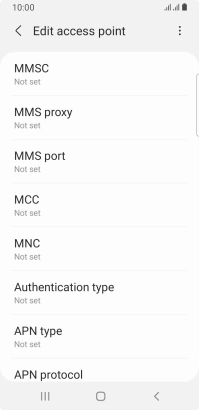

6. Enter country code

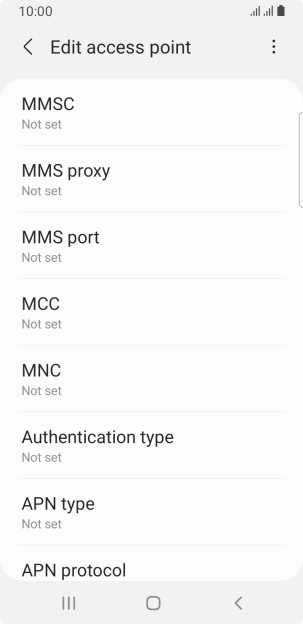

Press MCC.

272
Step 17 of 27

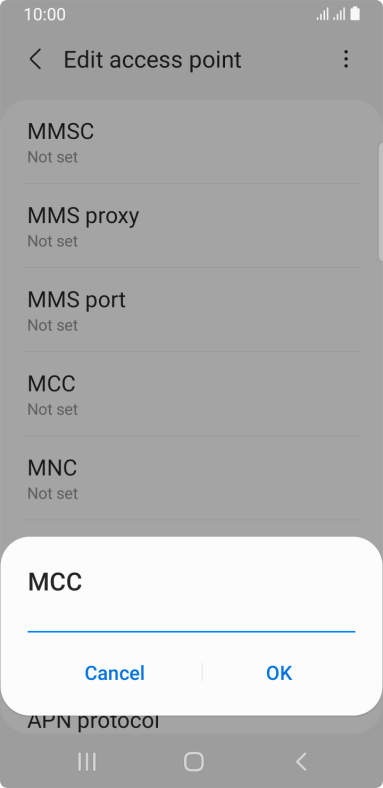

6. Enter country code

Key in 272 and press OK.

Step 18 of 27

7. Enter network code

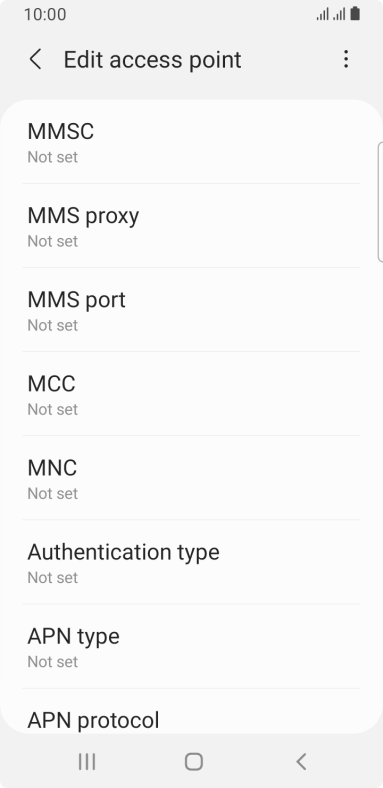

Press MNC.

01
Step 19 of 27

7. Enter network code

Key in 01 and press OK.

Step 20 of 27

8. Select authentication type

Press Authentication type.

Step 21 of 27

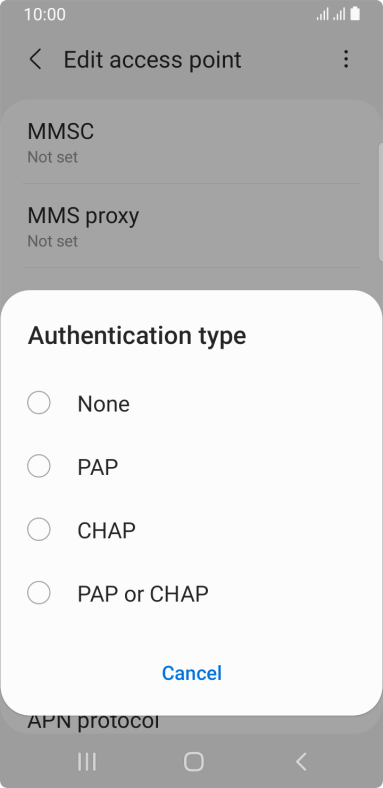

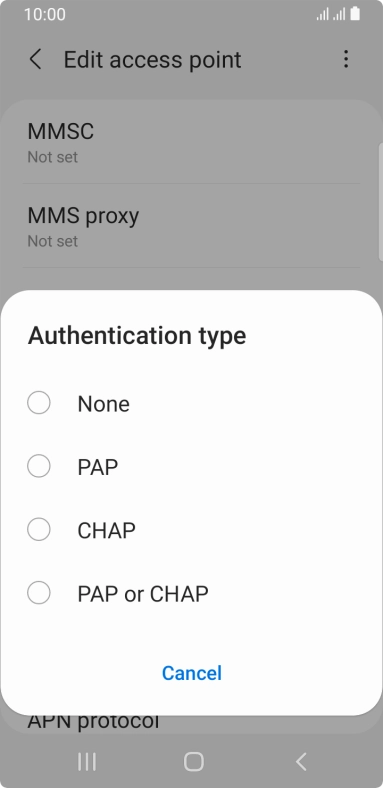

8. Select authentication type

Press PAP.

Step 22 of 27

9. Enter APN type

Press APN type.

default
Step 23 of 27

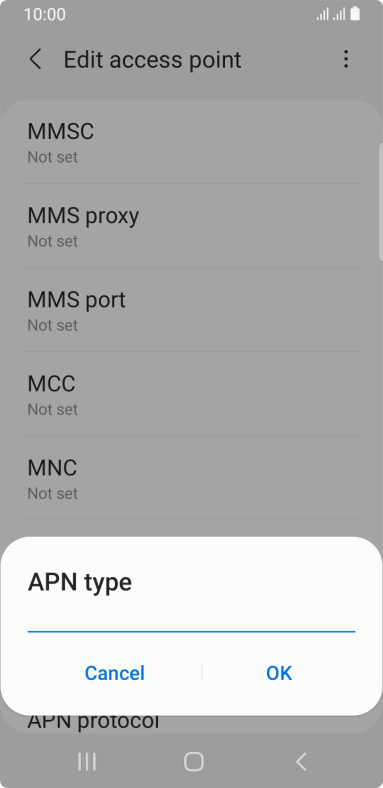

9. Enter APN type

Key in default and press OK.

Step 24 of 27

10. Save data connection

Press the menu icon.

Step 25 of 27

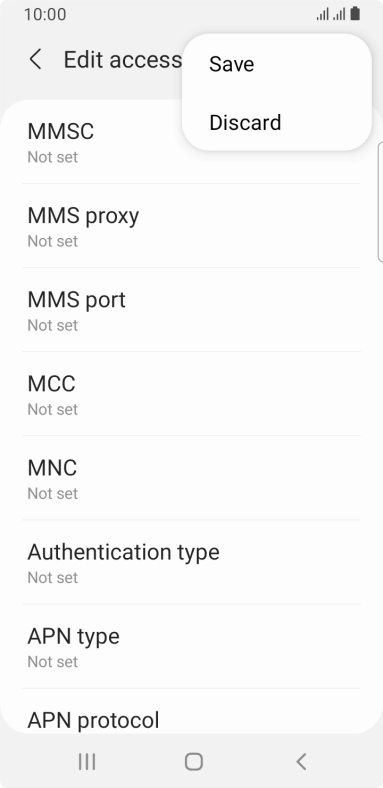

10. Save data connection

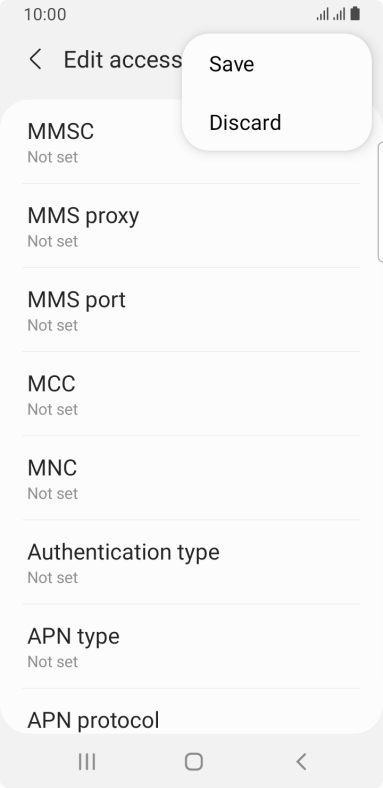

Press Save.

Step 26 of 27

10. Save data connection

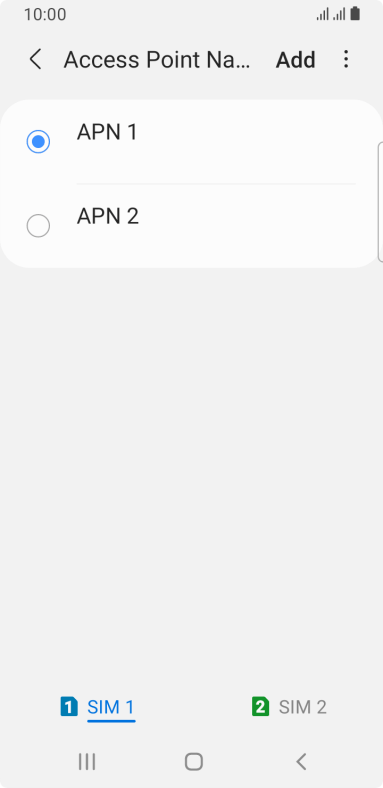

Press the field next to the data connection to activate it.

Step 27 of 27

11. Return to the home screen

Press the Home key to return to the home screen.

1. Find "Access Point Names"

Slide two fingers downwards starting from the top of the screen.
Press the settings icon.
Press Connections.
Press Mobile networks.
Press Access Point Names.

2. Create new data connection

Press the required SIM.
Press Add.
Press Name.
Key in Vodafone Internet and press OK.
Vodafone Internet

3. Enter APN

Press APN.
Key in live.vodafone.com and press OK.
live.vodafone.com

4. Enter IP address

Press Proxy.
Key in 10.24.59.100 and press OK.
10.24.59.100

5. Enter port number

Press Port.
Key in 80 and press OK.
80

6. Enter country code

Press MCC.
Key in 272 and press OK.
272

7. Enter network code

Press MNC.
Key in 01 and press OK.
01

8. Select authentication type

Press Authentication type.
Press PAP.

9. Enter APN type

Press APN type.
Key in default and press OK.
default

10. Save data connection

Press the menu icon.
Press Save.
Press the field next to the data connection to activate it.

11. Return to the home screen

Press the Home key to return to the home screen.
