1. Find "Access Point Names"
Slide your finger downwards starting from the top of the screen.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-90800315-078b-4e39-9d48-c52467d6d778.png?width=210&height=350)
Press the settings icon.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-cc2e927c-f643-4f32-82fd-86a5ffcde815.png?width=210&height=350)
Press Mobile networks.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-125e877c-2af8-424b-8cfe-72b484006a27.png?width=210&height=350)

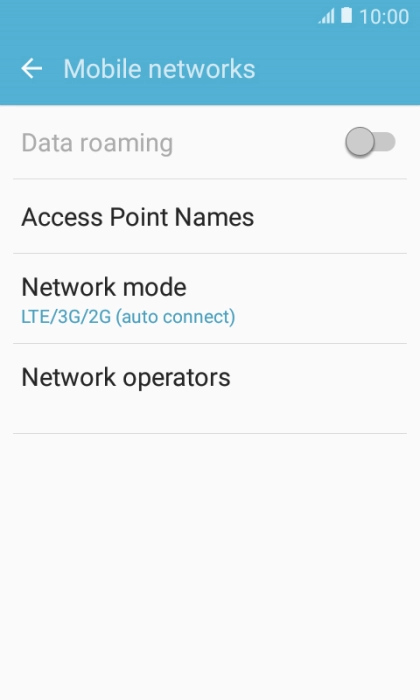

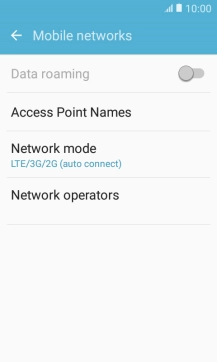

Press Access Point Names.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-4980814c-d548-4128-8b9f-c937f600f458.png?width=210&height=350)
2. Create new data connection

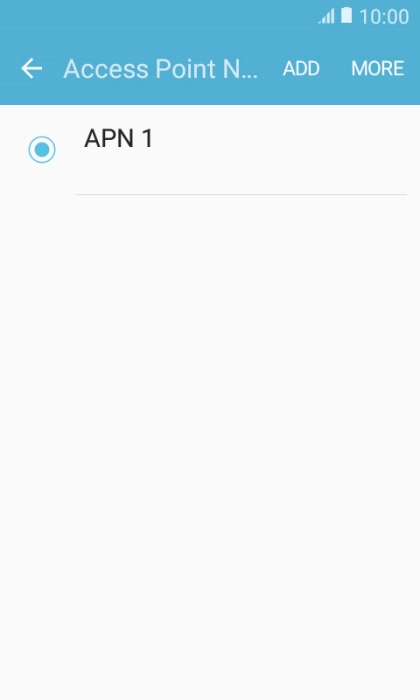

Press ADD.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-281aa5ff-ba66-4ffd-9673-0b168084b528.png?width=210&height=350)

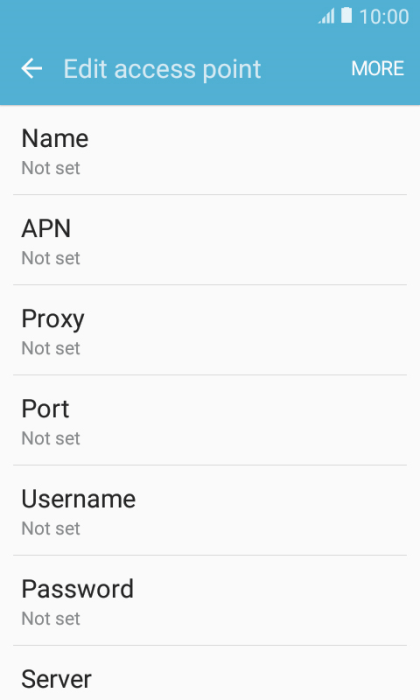

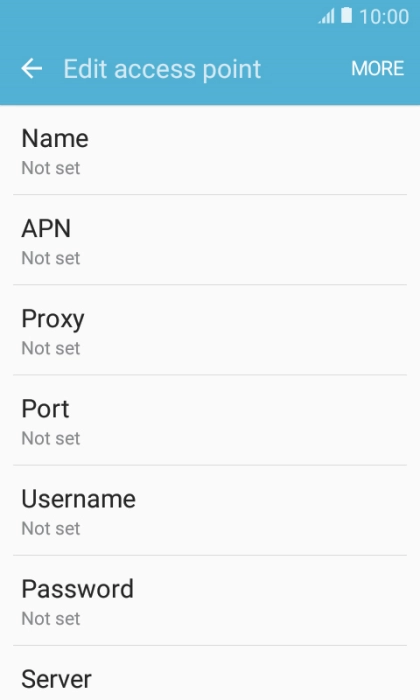

Press Name.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-997fca2e-eca3-4242-be22-34e3d33c8c71.png?width=210&height=350)

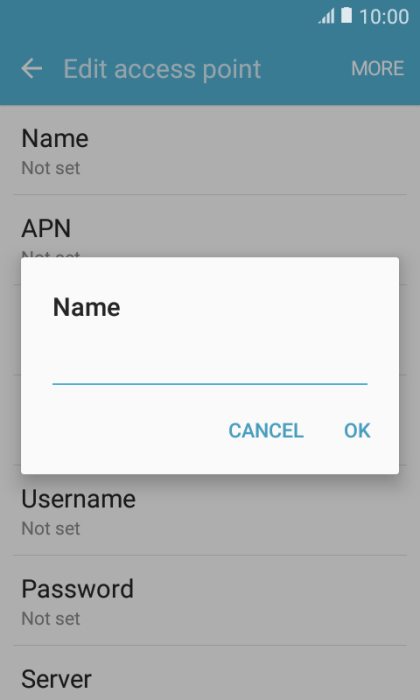

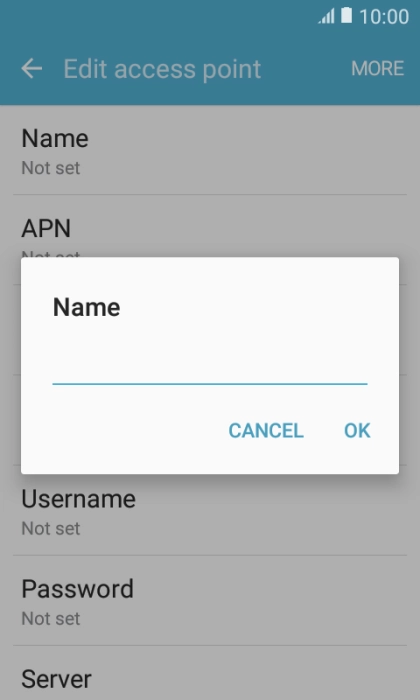

Key in Vodafone MMS and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-bde8c655-dc66-4fd5-9d95-43b92f4483a5.png?width=210&height=350)
Vodafone MMS
3. Enter APN
Press APN.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-997fca2e-eca3-4242-be22-34e3d33c8c71.png?width=210&height=350)

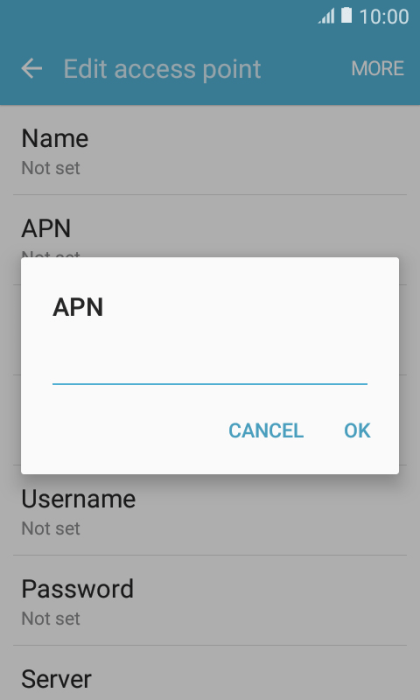

Key in mms.vodafone.net and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-2c5ca12e-ceb0-4456-bbce-562e8008655e.png?width=210&height=350)
mms.vodafone.net
4. Enter MMSC

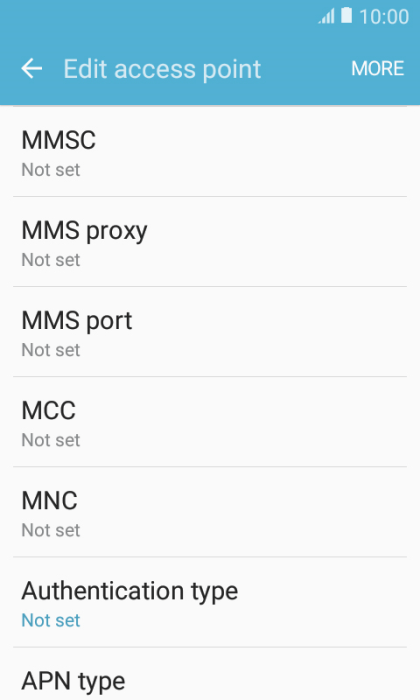

Press MMSC.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-a29dea93-d18c-415d-8e39-1b1f1b0f083f.png?width=210&height=350)

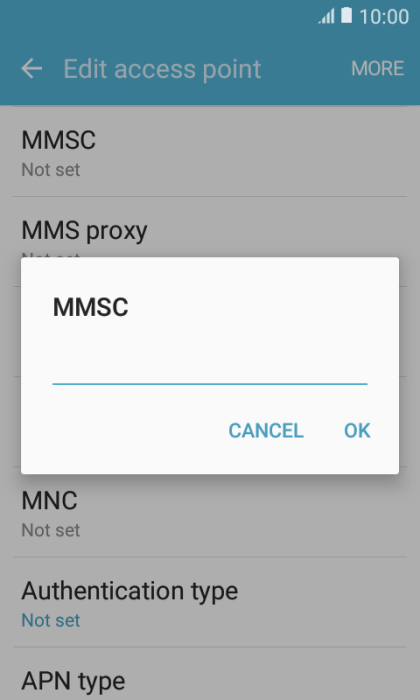

Key in http://www.vodafone.ie/mms and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-873cb88a-b1df-4505-bff5-b97e774af0d5.png?width=210&height=350)
http://www.vodafone.ie/mms
5. Enter IP address
Press MMS proxy.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-a29dea93-d18c-415d-8e39-1b1f1b0f083f.png?width=210&height=350)

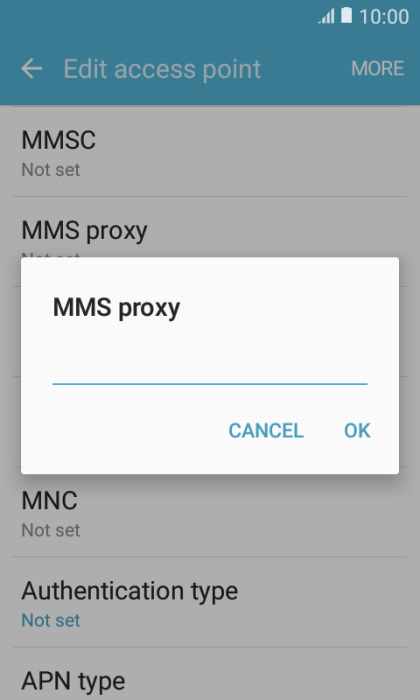

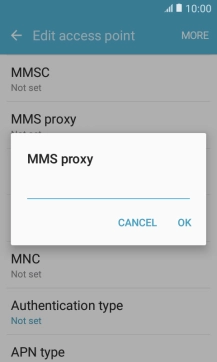

Key in 10.24.59.200 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-8cd959fb-3d51-4d6b-bfcb-0ce3861324f5.png?width=210&height=350)
10.24.59.200
6. Enter port number
Press MMS port.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-a29dea93-d18c-415d-8e39-1b1f1b0f083f.png?width=210&height=350)

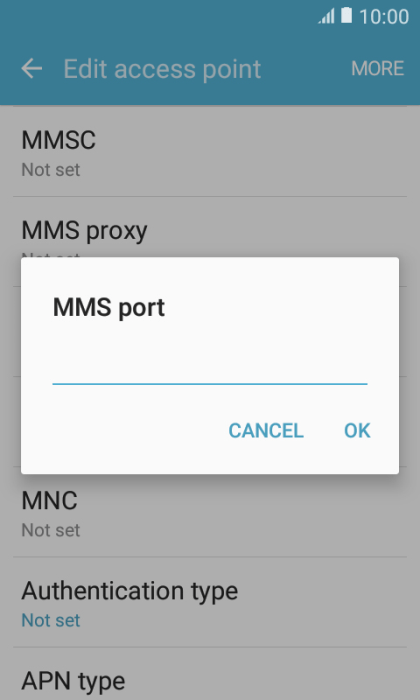

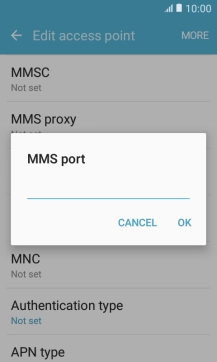

Key in 80 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-391ec37b-b79e-44c1-a0e1-49108afb15da.png?width=210&height=350)
80
7. Enter country code
Press MCC.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-a29dea93-d18c-415d-8e39-1b1f1b0f083f.png?width=210&height=350)
Key in 272 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-06be86c5-38c8-4b6c-81c8-3d805e8917ee.png?width=210&height=350)
272
8. Enter network code
Press MNC.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-a29dea93-d18c-415d-8e39-1b1f1b0f083f.png?width=210&height=350)

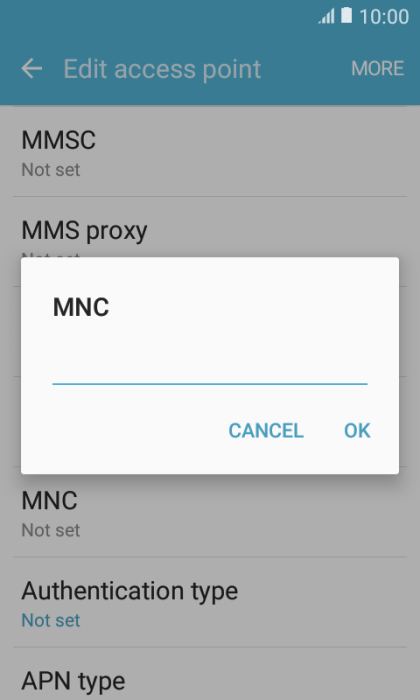

Key in 01 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-6245f2fb-d7ca-4bee-88ba-6f17c464e9fd.png?width=210&height=350)
01
9. Select authentication type
Press Authentication type.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-a29dea93-d18c-415d-8e39-1b1f1b0f083f.png?width=210&height=350)

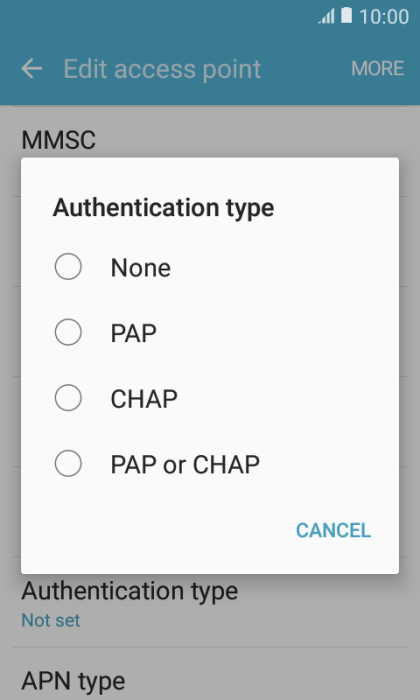

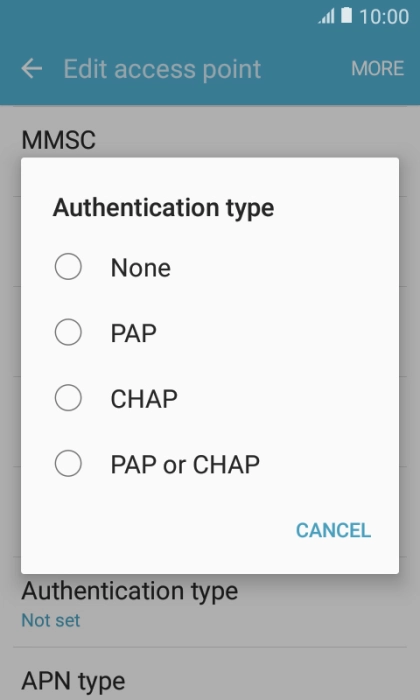

Press PAP.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-394fb031-fc72-4b00-944d-e5c20c850b1b.png?width=210&height=350)
10. Select APN type

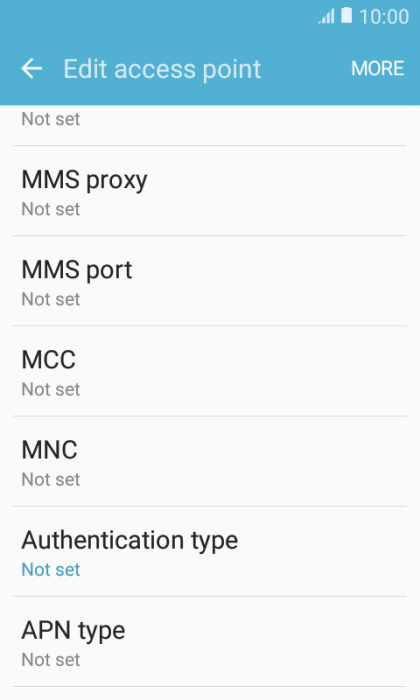

Press APN type.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-d152a23b-a036-4f6a-9263-138b7078bcf3.png?width=210&height=350)

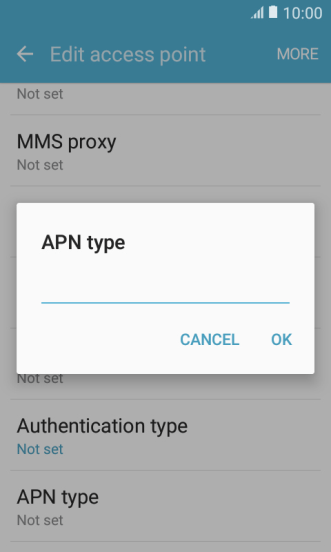

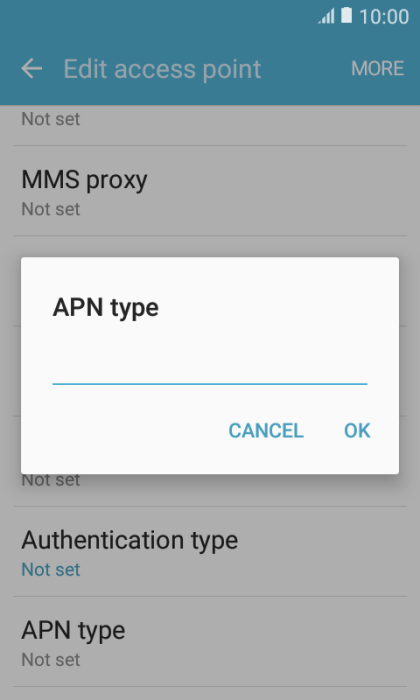

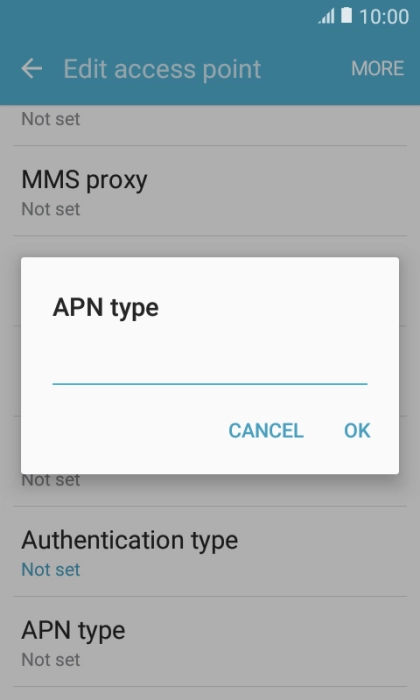

Key in mms and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-75d45d7e-fbe5-4e9d-8740-17ebb0480210.png?width=210&height=350)
mms
11. Save data connection
Press MORE.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-d152a23b-a036-4f6a-9263-138b7078bcf3.png?width=210&height=350)

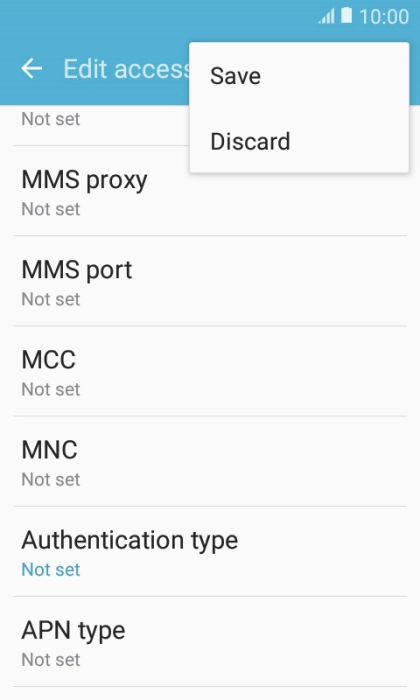

Press Save.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-c3428523-a2b2-48f0-b0b1-692f436b92b9.png?width=210&height=350)
12. Return to the home screen
Press the Home key to return to the home screen.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-23a51d1f-e658-47f6-af70-8e6f1405c7f1.png?width=210&height=350)
