Set up the device for picture messaging - Samsung Galaxy Tab 10.1

Read help info

Follow these instructions to set up the device for picture messaging.

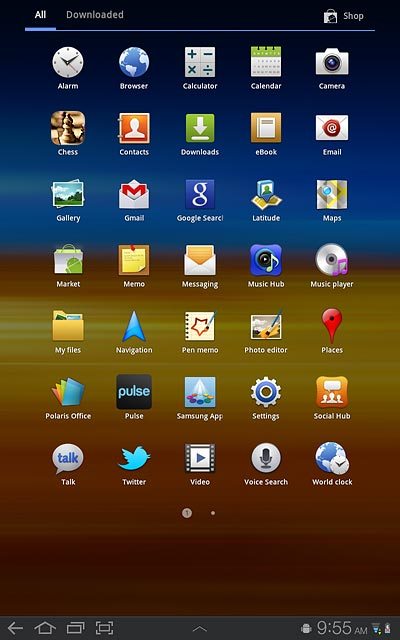

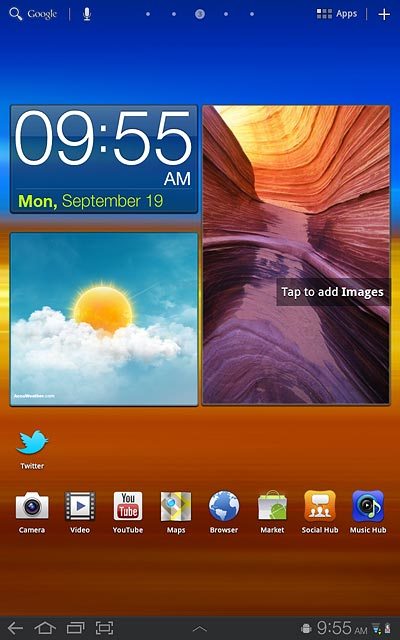

Press Apps.
Step 1 of 39

Find "Access Point Names"

Press Apps.

Press Settings.
Step 2 of 39

Find "Access Point Names"

Press Settings.

Press Wireless and networks.
Step 3 of 39

Find "Access Point Names"

Press Wireless and networks.

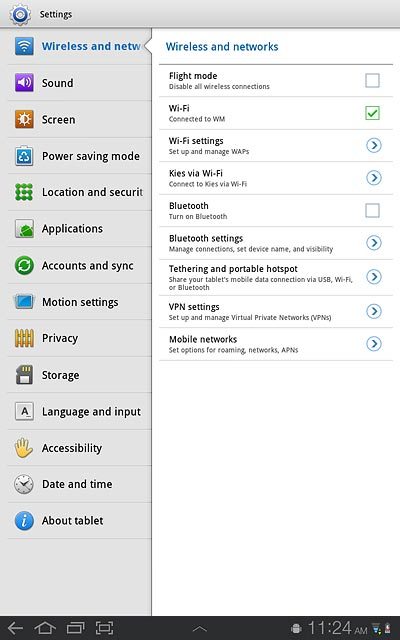

Press Mobile networks.
Step 4 of 39

Find "Access Point Names"

Press Mobile networks.

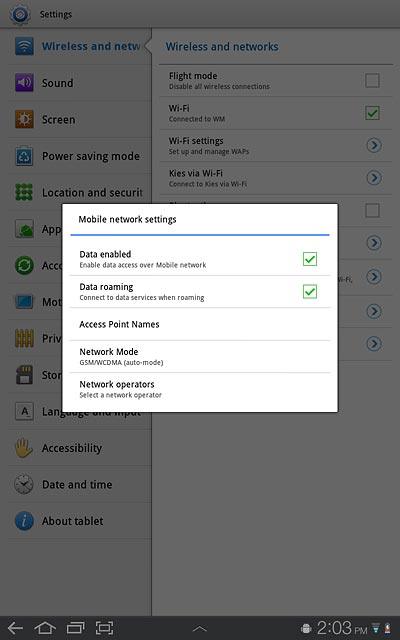

Press Access Point Names.
Step 5 of 39

Find "Access Point Names"

Press Access Point Names.

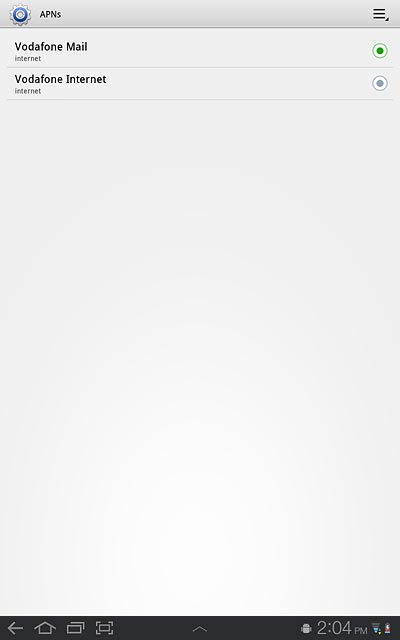

Press the menu icon.
Step 6 of 39

Create new data connection

Press the menu icon.

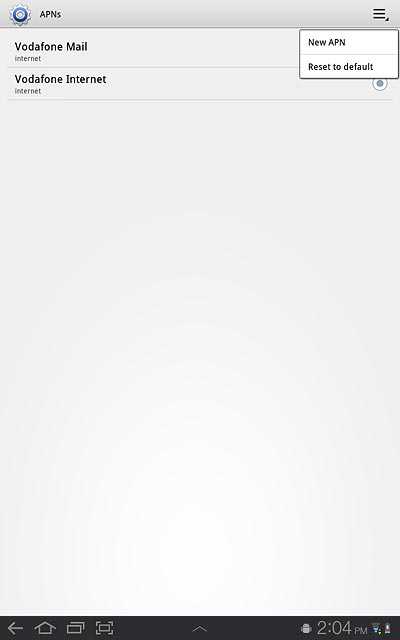

Press New APN.
Step 7 of 39

Create new data connection

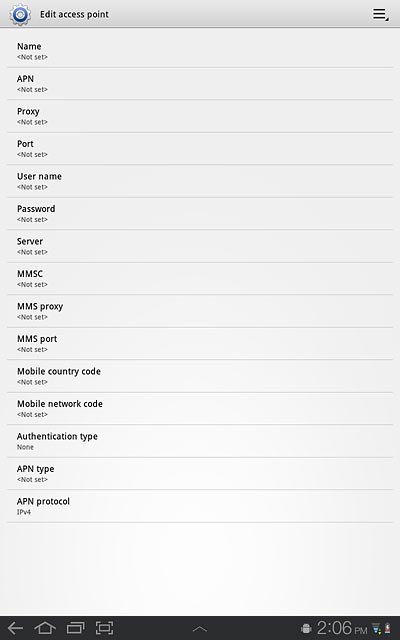

Press New APN.

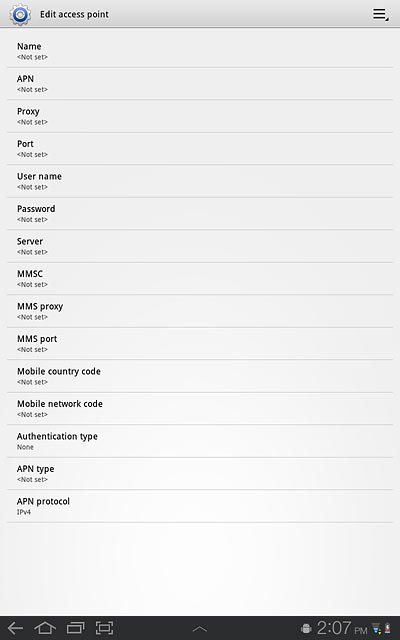

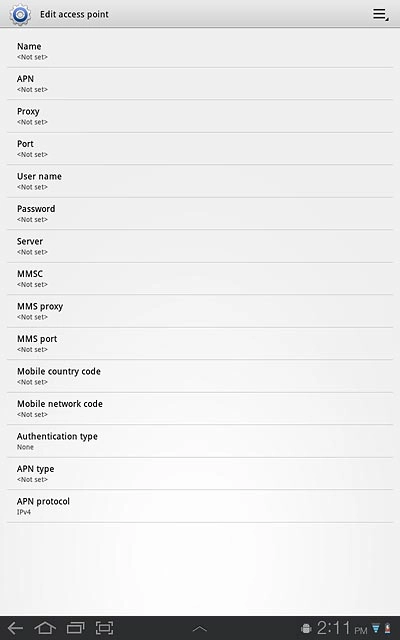

Press Name.
Step 8 of 39

Enter data connection name

Press Name.

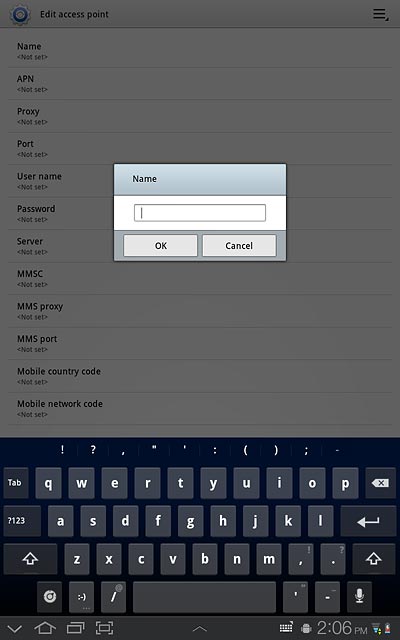

Key in Vodafone MMS and press OK.
Step 9 of 39

Enter data connection name

Key in Vodafone MMS and press OK.

Press APN.
Step 10 of 39

Enter APN

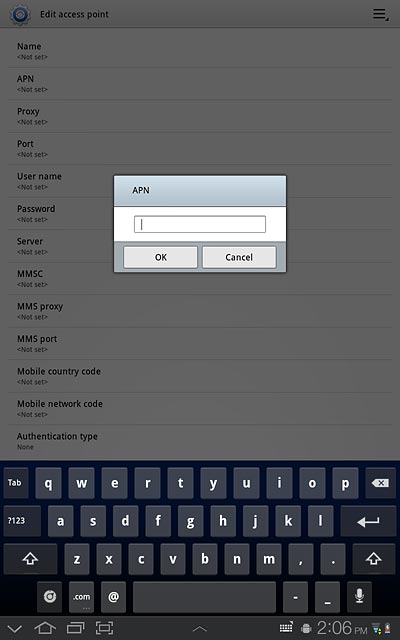

Press APN.

Key in mms.vodafone.net and press OK.
Step 11 of 39

Enter APN

Key in mms.vodafone.net and press OK.

Press MMSC.
Step 12 of 39

Enter picture messaging server

Press MMSC.

Key in http://www.vodafone.ie/mms and press OK.
Step 13 of 39

Enter picture messaging server

Key in http://www.vodafone.ie/mms and press OK.

Press MMS proxy.
Step 14 of 39

Enter IP address

Press MMS proxy.

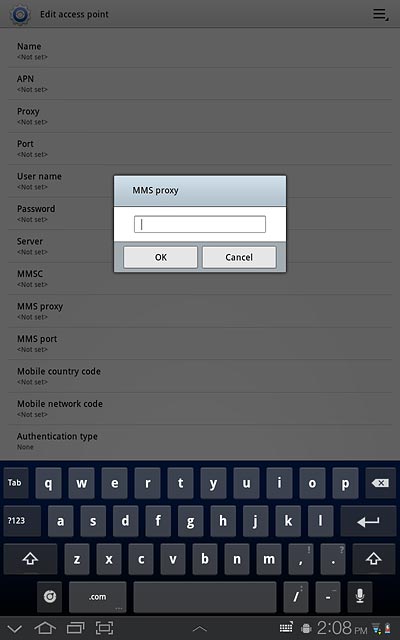

Key in 10.24.59.200 and press OK.
Step 15 of 39

Enter IP address

Key in 10.24.59.200 and press OK.

Press MMS port.
Step 16 of 39

Enter port number

Press MMS port.

Key in 80 and press OK.
Step 17 of 39

Enter port number

Key in 80 and press OK.

Press Mobile country code.
Step 18 of 39

Enter country code

Press Mobile country code.

Key in 272 and press OK.
Step 19 of 39

Enter country code

Key in 272 and press OK.

Press Mobile network code.
Step 20 of 39

Enter network code

Press Mobile network code.

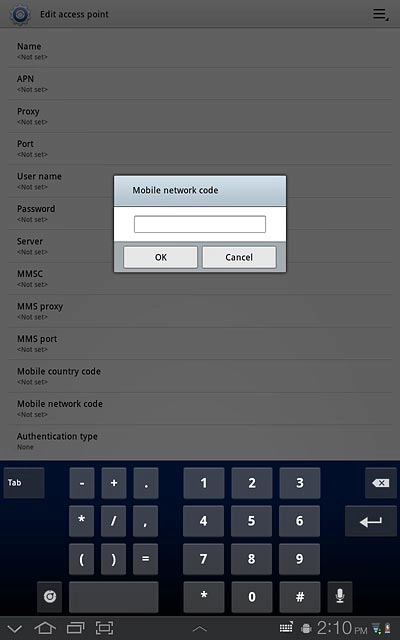

Key in 01 and press OK.
Step 21 of 39

Enter network code

Key in 01 and press OK.

Press Authentication type.
Step 22 of 39

Select authentication type

Press Authentication type.

Press PAP.
Step 23 of 39

Select authentication type

Press PAP.

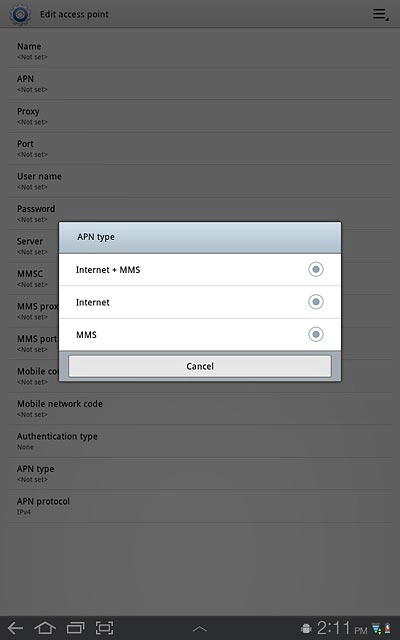

Press APN type.
Step 24 of 39

Select APN type

Press APN type.

Press MMS.
Step 25 of 39

Select APN type

Press MMS.

Press the menu icon.
Step 26 of 39

Save data connection

Press the menu icon.

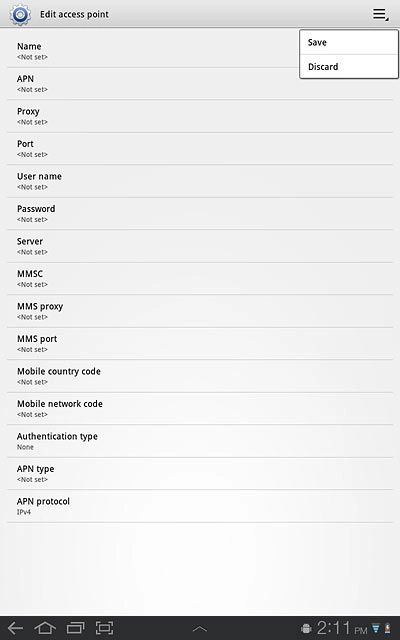

Press Save.
Step 27 of 39

Save data connection

Press Save.

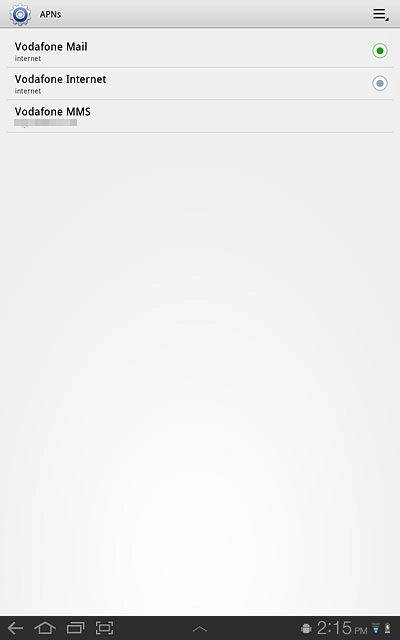

Press the home icon to return to standby mode.
Step 28 of 39

Save data connection

Press the home icon to return to standby mode.

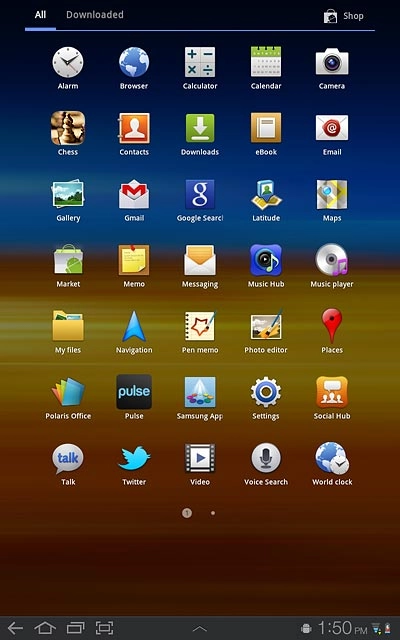

Press Apps.
Step 29 of 39

Find "Settings"

Press Apps.

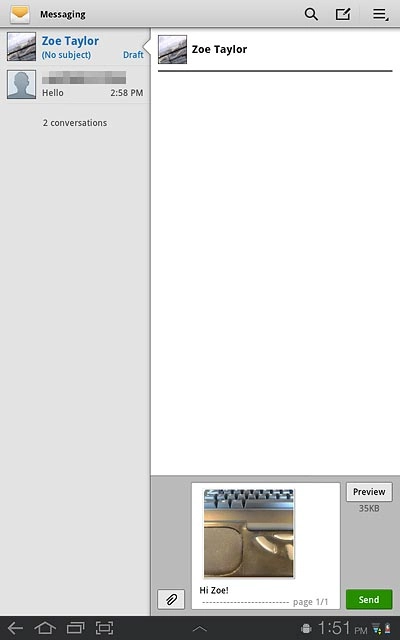

Press Messaging.
Step 30 of 39

Find "Settings"

Press Messaging.

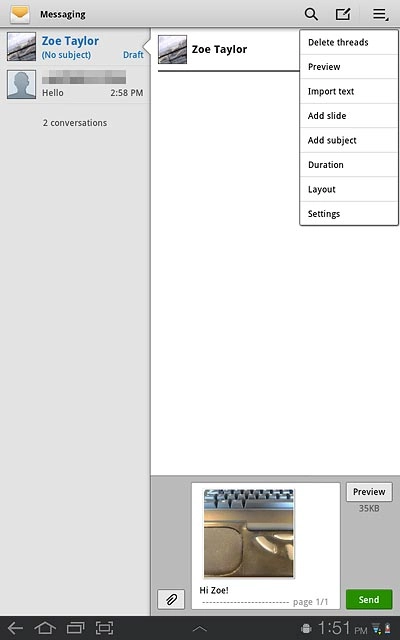

Press the menu icon.
Step 31 of 39

Find "Settings"

Press the menu icon.

Press Settings.
Step 32 of 39

Find "Settings"

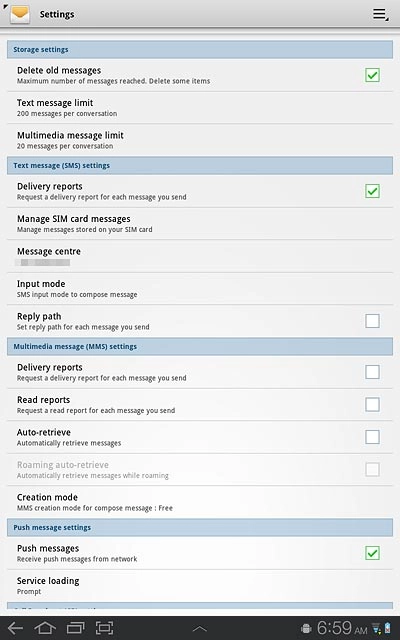

Press Settings.

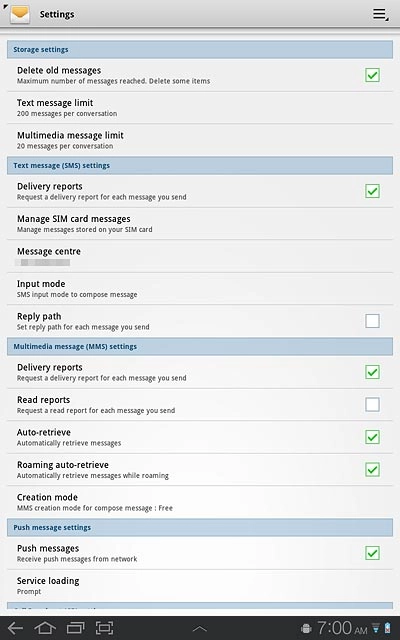

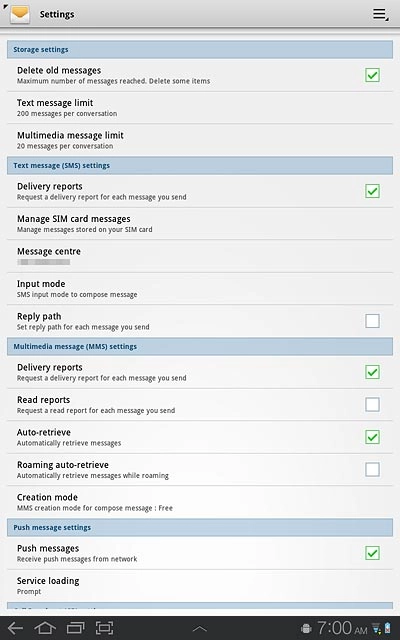

Press Delivery reports below Multimedia message (MMS) settings to turn the function on or off.
Step 33 of 39

Turn request for delivery reports on or off

Press Delivery reports below Multimedia message (MMS) settings to turn the function on or off.

If you turn on request for delivery reports, you'll be notified when your message has been delivered. This requires that sending of delivery reports has been turned on by the recipient.
When the box next to the menu item is ticked (V), the function is turned on.
Step 34 of 39

Turn request for delivery reports on or off

When the box next to the menu item is ticked (V), the function is turned on.

If you turn on request for delivery reports, you'll be notified when your message has been delivered. This requires that sending of delivery reports has been turned on by the recipient.
Press Auto-retrieve to turn on the function.
Step 35 of 39

Select setting for picture message download in home network

Press Auto-retrieve to turn on the function.

If you turn on the function, you'll receive all picture messages when you're within range of your home network.
If you turn off the function, you'll be notified before you receive picture messages when you're within range of your home network.
When the box next to the menu item is ticked (V), the function is turned on.
Step 36 of 39

Select setting for picture message download in home network

When the box next to the menu item is ticked (V), the function is turned on.

If you turn on the function, you'll receive all picture messages when you're within range of your home network.
If you turn off the function, you'll be notified before you receive picture messages when you're within range of your home network.

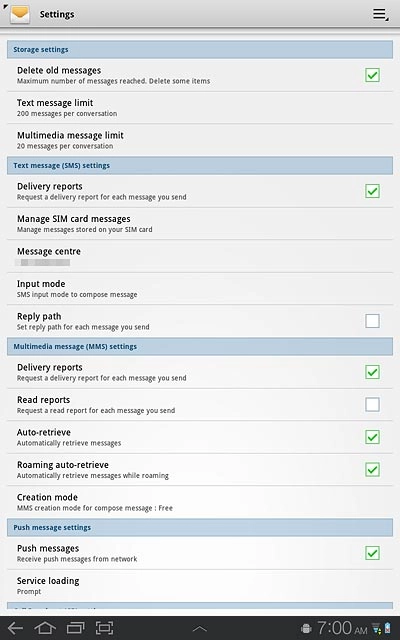

Press Roaming auto-retrieve to turn on the function.
Step 37 of 39

Select setting for picture message download when roaming

Press Roaming auto-retrieve to turn on the function.

If you turn on the function, you'll receive all picture messages when you're out of range of your home network.
If you turn off the function, you'll be notified before you receive picture messages when you're out of range of your home network.
When the box next to the menu item is ticked (V), the function is turned on.
Step 38 of 39

Select setting for picture message download when roaming

When the box next to the menu item is ticked (V), the function is turned on.

If you turn on the function, you'll receive all picture messages when you're out of range of your home network.
If you turn off the function, you'll be notified before you receive picture messages when you're out of range of your home network.
Press the home icon to return to standby mode.
Step 39 of 39

Exit

Press the home icon to return to standby mode.

Find "Access Point Names"

Press Apps.
Press Settings.
Press Wireless and networks.
Press Mobile networks.
Press Access Point Names.

Create new data connection

Press the menu icon.
Press New APN.

Enter data connection name

Press Name.
Key in Vodafone MMS and press OK.

Enter APN

Press APN.
Key in mms.vodafone.net and press OK.

Enter picture messaging server

Press MMSC.
Key in http://www.vodafone.ie/mms and press OK.

Enter IP address

Press MMS proxy.
Key in 10.24.59.200 and press OK.

Enter port number

Press MMS port.
Key in 80 and press OK.

Enter country code

Press Mobile country code.
Key in 272 and press OK.

Enter network code

Press Mobile network code.
Key in 01 and press OK.

Select authentication type

Press Authentication type.
Press PAP.

Select APN type

Press APN type.
Press MMS.

Save data connection

Press the menu icon.
Press Save.
Press the home icon to return to standby mode.

Find "Settings"

Press Apps.
Press Messaging.
Press the menu icon.
Press Settings.

Turn request for delivery reports on or off

Press Delivery reports below Multimedia message (MMS) settings to turn the function on or off.
If you turn on request for delivery reports, you'll be notified when your message has been delivered. This requires that sending of delivery reports has been turned on by the recipient.
When the box next to the menu item is ticked (V), the function is turned on.
If you turn on request for delivery reports, you'll be notified when your message has been delivered. This requires that sending of delivery reports has been turned on by the recipient.

Select setting for picture message download in home network

Press Auto-retrieve to turn on the function.
If you turn on the function, you'll receive all picture messages when you're within range of your home network.
If you turn off the function, you'll be notified before you receive picture messages when you're within range of your home network.
When the box next to the menu item is ticked (V), the function is turned on.
If you turn on the function, you'll receive all picture messages when you're within range of your home network.
If you turn off the function, you'll be notified before you receive picture messages when you're within range of your home network.

Select setting for picture message download when roaming

Press Roaming auto-retrieve to turn on the function.
If you turn on the function, you'll receive all picture messages when you're out of range of your home network.
If you turn off the function, you'll be notified before you receive picture messages when you're out of range of your home network.
When the box next to the menu item is ticked (V), the function is turned on.
If you turn on the function, you'll receive all picture messages when you're out of range of your home network.
If you turn off the function, you'll be notified before you receive picture messages when you're out of range of your home network.

Exit

Press the home icon to return to standby mode.
