1 Find "Access Point Names"
Slide your finger downwards starting from the top of the screen.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-f3f1c5c2-0b7c-420e-b35f-30c56d2f5863.png?width=212&height=434)
Press the settings icon.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-00ed165e-6505-48dd-af4c-070fc489ed1f.png?width=212&height=434)
Press Connections.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-4d88bad1-8172-4ff1-94fd-8a0e039481c9.png?width=212&height=434)
Press Mobile networks.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-102e0548-0c0b-4bd3-af98-453e424efff2.png?width=212&height=434)
Press Access Point Names.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-c1c4f6d1-53b0-4774-92e0-4da4bb56d1bb.png?width=212&height=434)
2 Create new data connection
Press ADD.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-af328e35-42d9-40c3-988a-19ecabfb1330.png?width=212&height=434)
Press Name.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-ce638487-a94c-4716-9af5-26bba6f72164.png?width=212&height=434)
Key in Vodafone Internet and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-efa65624-2cdd-452c-b1a5-76615a01efd8.png?width=212&height=434)
Vodafone Internet
3 Enter APN
Press APN.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-ce638487-a94c-4716-9af5-26bba6f72164.png?width=212&height=434)
Key in live.vodafone.com and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-2b0a612f-2146-40a0-b34f-68b9f3ccbb84.png?width=212&height=434)
live.vodafone.com
4 Enter country code
Press MCC.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-dee03afd-3a5b-4fa3-82e5-40f89582b694.png?width=212&height=434)
Key in 272 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-1e4f3273-01e8-4191-8c6b-4547f1047f49.png?width=212&height=434)
272
5 Enter network code
Press MNC.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-dee03afd-3a5b-4fa3-82e5-40f89582b694.png?width=212&height=434)
Key in 01 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-55cf33d5-2331-4c99-9d11-3f563ed52711.png?width=212&height=434)
01
6 Select authentication type
Press Authentication type.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-dee03afd-3a5b-4fa3-82e5-40f89582b694.png?width=212&height=434)
Press PAP.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-29017d65-d5f9-4fc8-9afb-89be4dc0f893.png?width=212&height=434)
7 Select APN type
Press APN type.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-dee03afd-3a5b-4fa3-82e5-40f89582b694.png?width=212&height=434)
Key in default and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-cb8ac5e8-c48f-4b61-a7af-f8f301a13148.png?width=212&height=434)
default
8 Save data connection
Press the menu icon.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-5b966f75-13e4-4e38-921a-5d7b8cd5f260.png?width=212&height=434)
Press Save.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-c26a955b-5b46-4f5d-a967-7a16878ba6c5.png?width=212&height=434)

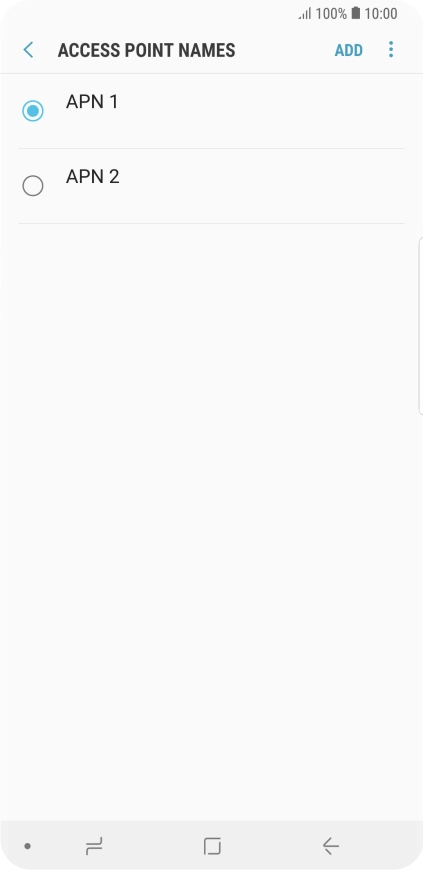

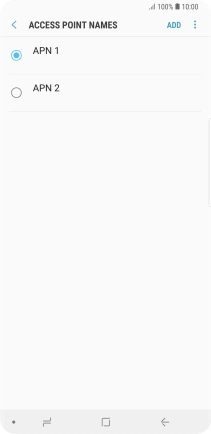

Press the field next to the data connection to activate it.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-6f362df7-3e3c-4aec-b4cd-a9d2e998988e.png?width=212&height=434)
9 Return to the home screen

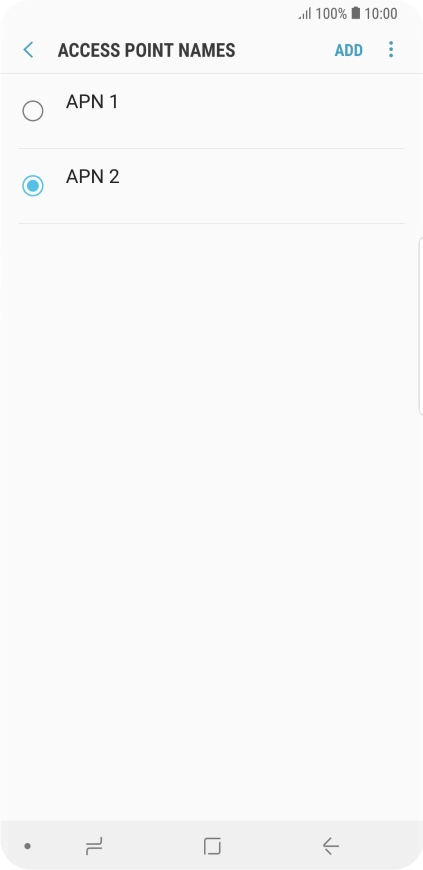

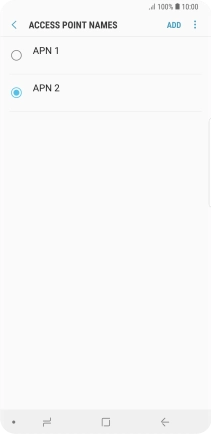

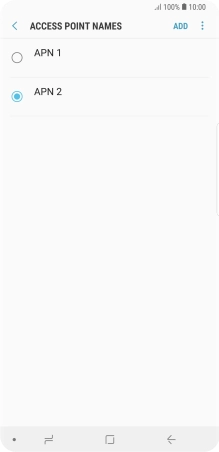

Press the Home key to return to the home screen.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-8bd30028-82d2-46ea-aae1-1f78c6c9685c.png?width=212&height=434)
