1. Find "Access Point Names"
Slide your finger downwards starting from the top of the screen.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-d0e3b1c0-01b8-444a-ace7-f98aae9b8879.png?width=212&height=434)
Press the settings icon.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-5d67e67e-47c8-486d-8b87-2ec7d16b7324.png?width=212&height=434)

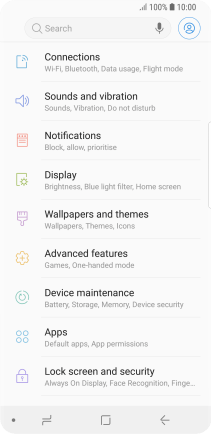

Press Connections.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-bd3b6dfe-e94b-4e86-a80b-0577bcc3f10e.png?width=212&height=434)

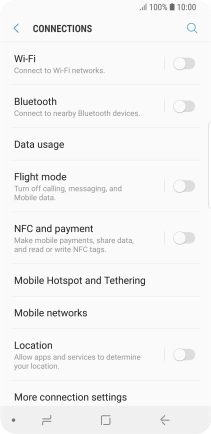

Press Mobile networks.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-353ec5ab-fdb2-435b-8f6d-2c8a6d670b78.png?width=212&height=434)

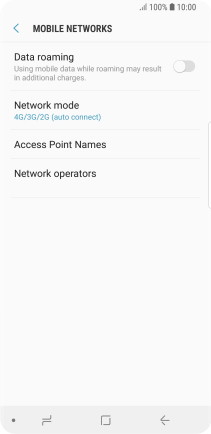

Press Access Point Names.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-e0d8f806-fd90-49b5-90d2-a1bd8f643216.png?width=212&height=434)
2. Create new data connection

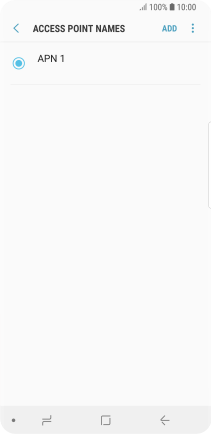

Press ADD.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-58cfe7a2-ef81-4369-b42d-ce1019ec3d53.png?width=212&height=434)

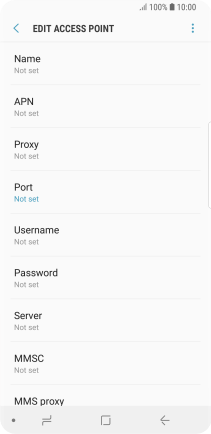

Press Name.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-49c1c2a1-7958-446c-9bf9-af3c76c07218.png?width=212&height=434)
Key in Vodafone MMS and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-4588dd63-892e-4b4f-81e6-d453d36a9e71.png?width=212&height=434)
Vodafone MMS
3. Enter APN
Press APN.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-49c1c2a1-7958-446c-9bf9-af3c76c07218.png?width=212&height=434)

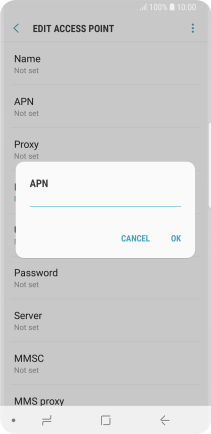

Key in mms.vodafone.net and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-13f14ad0-a526-4fd9-9edd-3f122d53be59.png?width=212&height=434)
mms.vodafone.net
4. Enter MMSC
Press MMSC.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-49c1c2a1-7958-446c-9bf9-af3c76c07218.png?width=212&height=434)

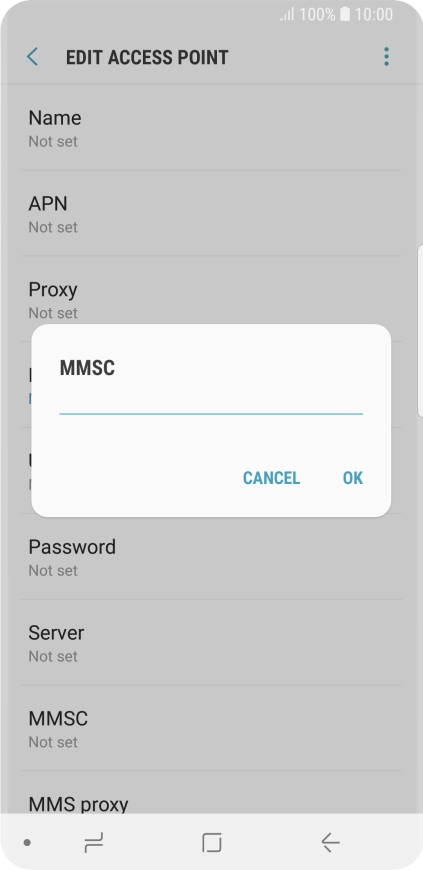

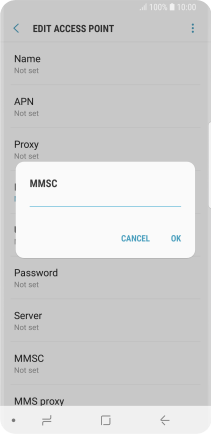

Key in http://www.vodafone.ie/mms and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-4bd5645e-0dd9-4b01-ae46-b67f0ee42088.png?width=212&height=434)
http://www.vodafone.ie/mms
5. Enter IP address

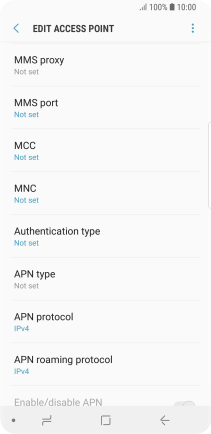

Press MMS proxy.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-200897bd-acea-48c1-9972-91cf11e986c1.png?width=212&height=434)

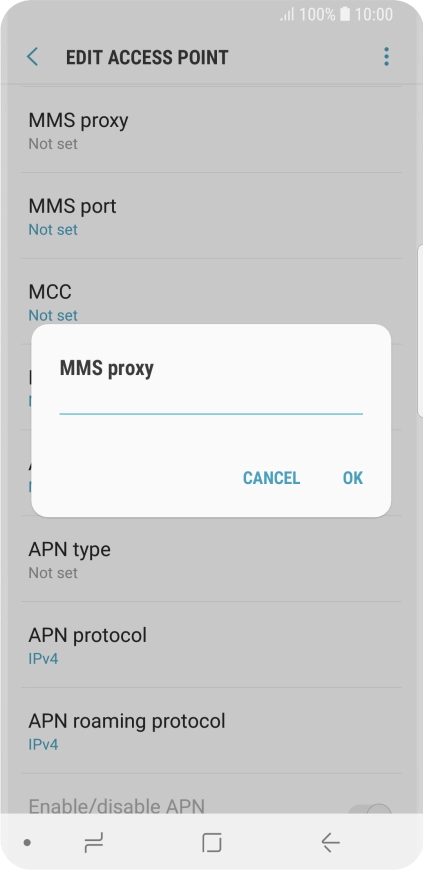

Key in 10.24.59.200 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-3927d0d2-fb6d-42c9-b7eb-f4126b3fd29c.png?width=212&height=434)
10.24.59.200
6. Enter port number
Press MMS port.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-200897bd-acea-48c1-9972-91cf11e986c1.png?width=212&height=434)

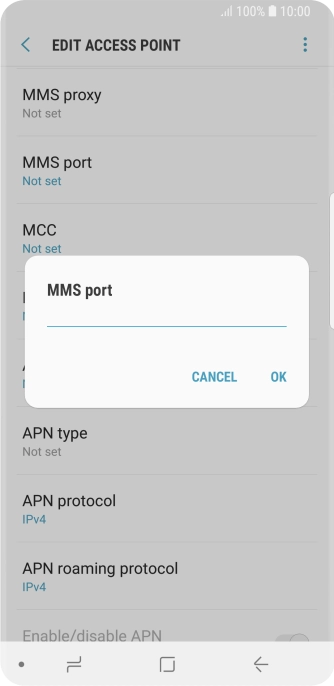

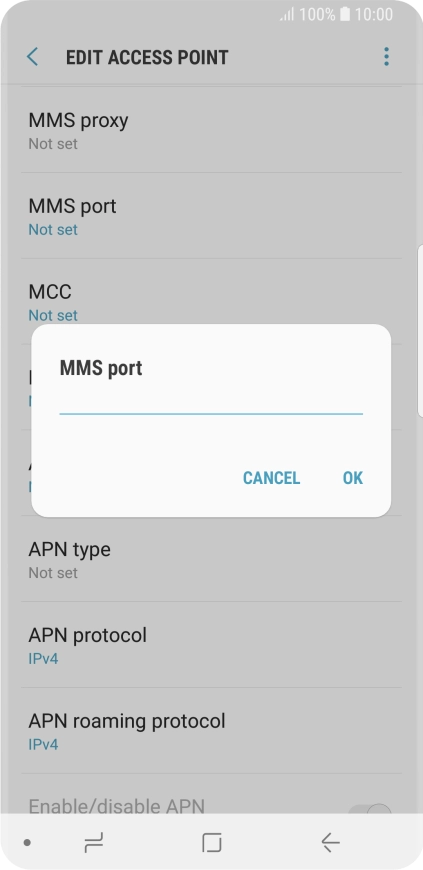

Key in 80 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-d2d963ff-a7df-44bb-9d65-9b916fa025d0.png?width=212&height=434)
80
7. Enter country code
Press MCC.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-200897bd-acea-48c1-9972-91cf11e986c1.png?width=212&height=434)

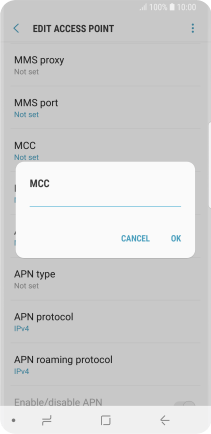

Key in 272 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-889b0dc9-c09e-48a1-8ad0-2cd3dabf0046.png?width=212&height=434)
272
8. Enter network code
Press MNC.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-200897bd-acea-48c1-9972-91cf11e986c1.png?width=212&height=434)

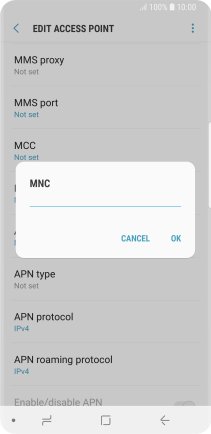

Key in 01 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-aa4f95e2-5798-4aaa-88f0-141261e151df.png?width=212&height=434)
01
9. Select authentication type
Press Authentication type.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-200897bd-acea-48c1-9972-91cf11e986c1.png?width=212&height=434)

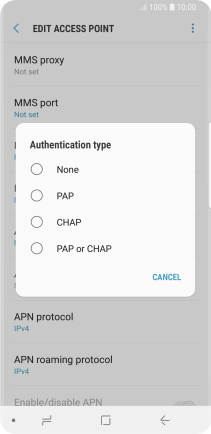

Press PAP.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-2d7f34d7-79ba-4a7c-b0e3-8e98b6466b6c.png?width=212&height=434)
10. Select APN type
Press APN type.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-200897bd-acea-48c1-9972-91cf11e986c1.png?width=212&height=434)
Key in mms and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-dfb03396-dea1-446d-943e-14ff9533475c.png?width=212&height=434)
mms
11. Save data connection
Press the menu icon.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-200897bd-acea-48c1-9972-91cf11e986c1.png?width=212&height=434)

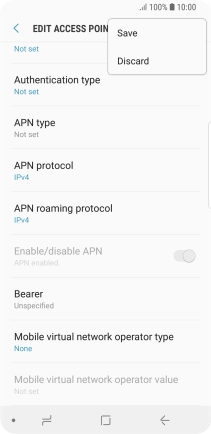

Press Save.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-b776ebe0-1c0a-4455-84e1-122a069a6bcf.png?width=212&height=434)
12. Return to the home screen

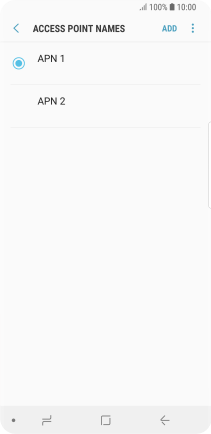

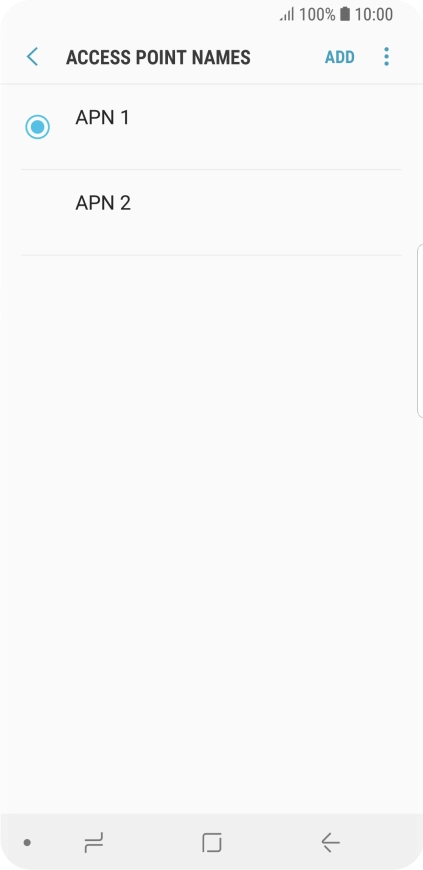

Press the Home key to return to the home screen.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-914af842-7ced-4289-97a1-348e2875d65e.png?width=212&height=434)
