1. Find "Access Point Names"
Slide two fingers downwards starting from the top of the screen.
![](http://wmstatic.global.ssl.fastly.net/ml/7200224-f-26750584-7e4c-4088-b863-acdf7a4d16d3.png?width=212&height=462)
Press the settings icon.
![](http://wmstatic.global.ssl.fastly.net/ml/7200224-f-5b1c0a9e-b9f1-4d88-9a2e-3345dbe4fdd0.png?width=212&height=462)
Press Connections.
![](http://wmstatic.global.ssl.fastly.net/ml/7200224-f-17d71ad0-b783-4e95-b20e-87eee16dd8f7.png?width=212&height=462)
Press Mobile networks.
![](http://wmstatic.global.ssl.fastly.net/ml/7200224-f-1eec63be-5b12-4e48-8f09-e681f8b428ee.png?width=212&height=462)
Press Access Point Names.
![](http://wmstatic.global.ssl.fastly.net/ml/7200224-f-461f2f89-90a8-41f4-88ea-57f572b453af.png?width=212&height=462)
2. Create new data connection
Press the add icon.
![](http://wmstatic.global.ssl.fastly.net/ml/7200224-f-42dc8f69-4cb5-426c-b34b-992992478738.png?width=212&height=462)
Press Name.
![](http://wmstatic.global.ssl.fastly.net/ml/7200224-f-f05036b9-7a10-46eb-b74d-3034f5220adb.png?width=212&height=462)
Key in Vodafone MMS and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7200224-f-a7bb4d72-65e5-4277-8eca-b4c3dca88450.png?width=212&height=462)
Vodafone MMS
3. Enter APN
Press APN.
![](http://wmstatic.global.ssl.fastly.net/ml/7200224-f-f05036b9-7a10-46eb-b74d-3034f5220adb.png?width=212&height=462)
Key in mms.vodafone.net and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7200224-f-a0064e60-7b6e-4386-9b5f-66101d69bc95.png?width=212&height=462)
mms.vodafone.net
4. Enter picture messaging server
Press MMSC.
![](http://wmstatic.global.ssl.fastly.net/ml/7200224-f-f05036b9-7a10-46eb-b74d-3034f5220adb.png?width=212&height=462)

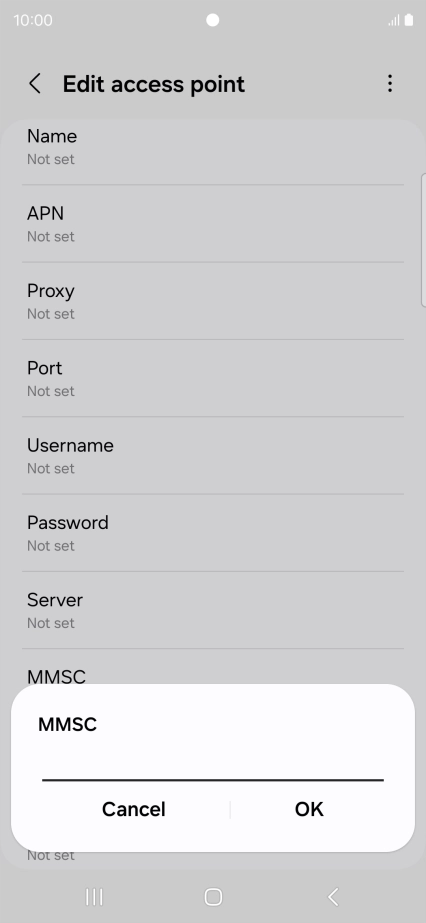

Key in http://www.vodafone.ie/mms and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7200224-f-ed43a776-9585-4976-9e31-d8d6ccf2992a.png?width=212&height=462)
http://www.vodafone.ie/mms
5. Enter IP address
Press MMS proxy.
![](http://wmstatic.global.ssl.fastly.net/ml/7200224-f-f05036b9-7a10-46eb-b74d-3034f5220adb.png?width=212&height=462)

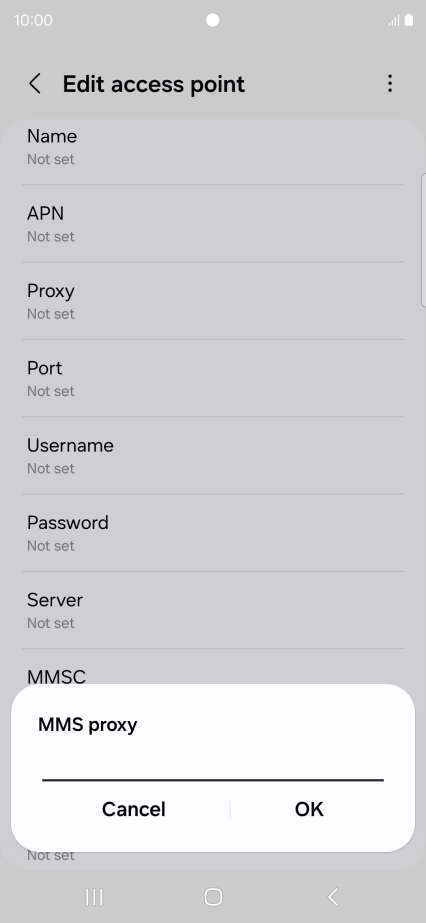

Key in 10.24.59.200 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7200224-f-27997733-871b-42a3-81da-5f676eef1cf3.png?width=212&height=462)
10.24.59.200
6. Enter port number
Press MMS port.
![](http://wmstatic.global.ssl.fastly.net/ml/7200224-f-f05036b9-7a10-46eb-b74d-3034f5220adb.png?width=212&height=462)
Key in 80 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7200224-f-e2e1eeba-5858-44bb-ac8a-7b3464f0c1d6.png?width=212&height=462)
80
7. Enter country code
Press MCC.
![](http://wmstatic.global.ssl.fastly.net/ml/7200224-f-b7f568c1-2808-491e-809e-23db38859058.png?width=212&height=462)
Key in 272 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7200224-f-0ffbdd98-0264-4a22-80a1-fd0fe6787937.png?width=212&height=462)
272
8. Enter network code
Press MNC.
![](http://wmstatic.global.ssl.fastly.net/ml/7200224-f-b7f568c1-2808-491e-809e-23db38859058.png?width=212&height=462)
Key in 01 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7200224-f-4dbfae6d-fcd8-4bda-bdca-74d667aa5f56.png?width=212&height=462)
01
9. Select authentication type
Press Authentication type.
![](http://wmstatic.global.ssl.fastly.net/ml/7200224-f-b7f568c1-2808-491e-809e-23db38859058.png?width=212&height=462)
Press PAP.
![](http://wmstatic.global.ssl.fastly.net/ml/7200224-f-763f2af5-2ae9-480c-815a-0331085fd00f.png?width=212&height=462)
10. Enter APN type
Press APN type.
![](http://wmstatic.global.ssl.fastly.net/ml/7200224-f-b7f568c1-2808-491e-809e-23db38859058.png?width=212&height=462)
Key in mms and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7200224-f-fc6ce943-1db2-4dc1-9e4c-b7b41e615355.png?width=212&height=462)
mms
11. Save data connection
Press the menu icon.
![](http://wmstatic.global.ssl.fastly.net/ml/7200224-f-b7f568c1-2808-491e-809e-23db38859058.png?width=212&height=462)
Press Save.
![](http://wmstatic.global.ssl.fastly.net/ml/7200224-f-3fe3f8c9-8b65-45a7-a110-42f8f12100ce.png?width=212&height=462)

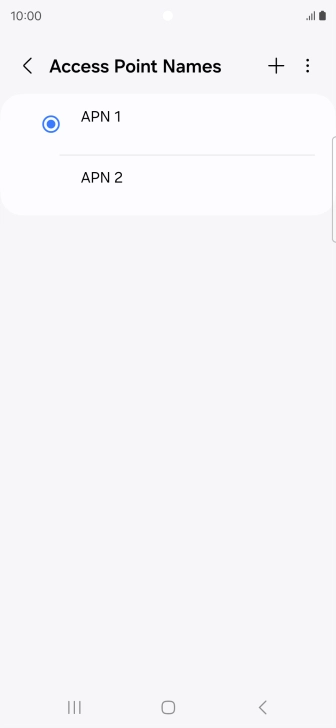

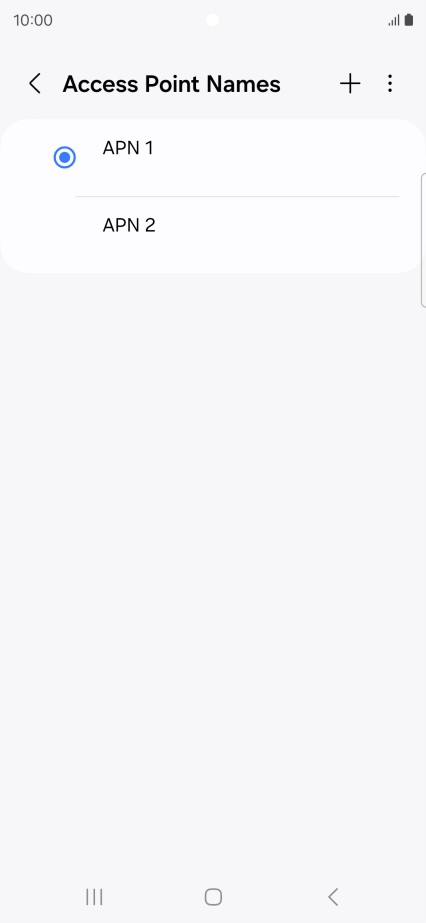

12. Return to the home screen
Press the Home key to return to the home screen.
![](http://wmstatic.global.ssl.fastly.net/ml/7200224-f-2adf3ac9-37a0-4910-a13e-27f58c1df7cf.png?width=212&height=462)
