1. Find "Access Point Names"
Slide two fingers downwards starting from the top of the screen.
![](http://wmstatic.global.ssl.fastly.net/ml/7050224-f-c2803b3e-c875-49fc-923e-2dc4a4150749.png?width=214&height=462)
Press the settings icon.
![](http://wmstatic.global.ssl.fastly.net/ml/7050224-f-97db32a7-1f39-425f-93ee-7f6dc721ccdb.png?width=214&height=462)
Press Connections.
![](http://wmstatic.global.ssl.fastly.net/ml/7050224-f-673ce40b-39f9-43e3-ab6c-6f77f7b355f7.png?width=214&height=462)
Press Mobile networks.
![](http://wmstatic.global.ssl.fastly.net/ml/7050224-f-78ec5cf5-392e-4c79-8d43-28454645c1fa.png?width=214&height=462)
Press Access Point Names.
![](http://wmstatic.global.ssl.fastly.net/ml/7050224-f-1f74db3a-268a-487e-9ad5-e27721b2917e.png?width=214&height=462)
2. Create new data connection

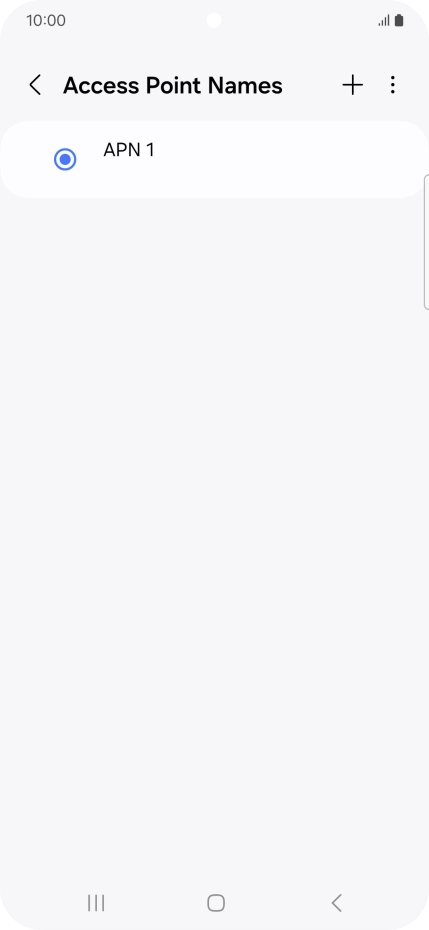

Press the add icon.
![](http://wmstatic.global.ssl.fastly.net/ml/7050224-f-255c043e-b8b3-45fc-a43a-bb2091cd44bf.png?width=214&height=462)

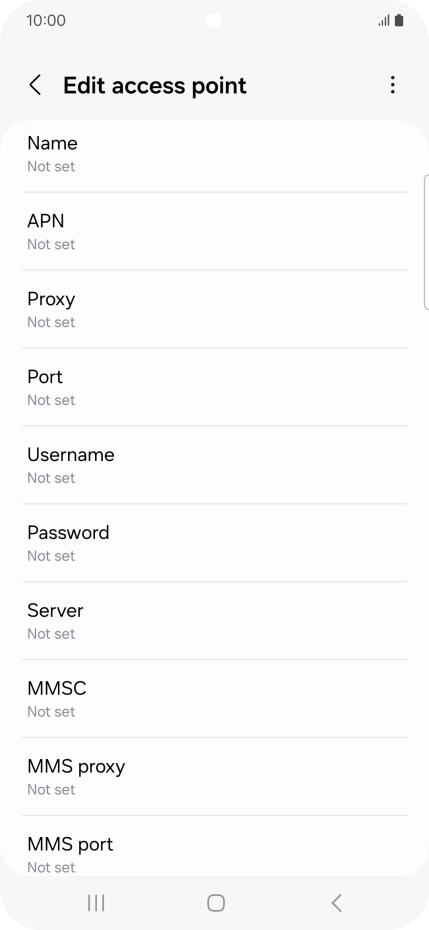

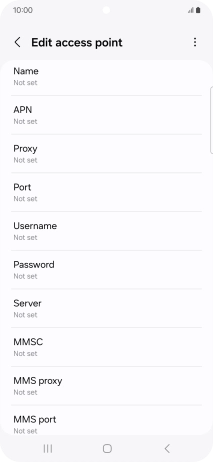

Press Name.
![](http://wmstatic.global.ssl.fastly.net/ml/7050224-f-62f08be0-83fd-48c0-9cfb-d552386fc1b3.png?width=214&height=462)

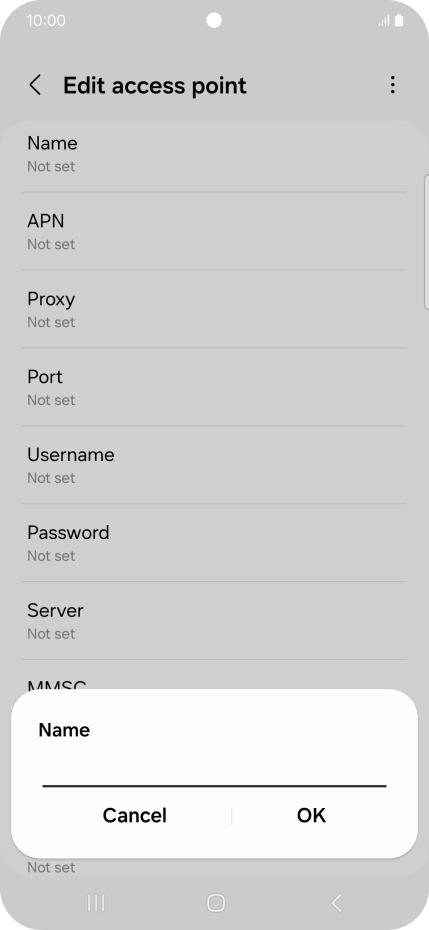

Key in Vodafone MMS and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7050224-f-183afb93-c86a-403c-b5ec-1ce783acd295.png?width=214&height=462)
Vodafone MMS
3. Enter APN
Press APN.
![](http://wmstatic.global.ssl.fastly.net/ml/7050224-f-62f08be0-83fd-48c0-9cfb-d552386fc1b3.png?width=214&height=462)

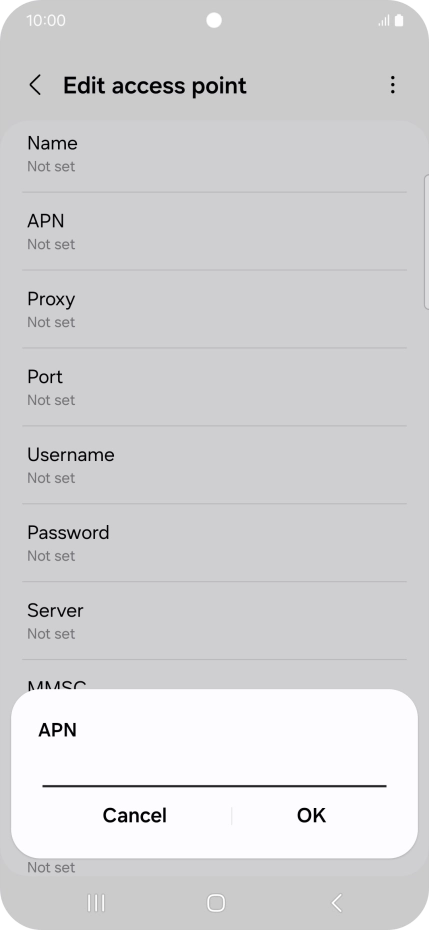

Key in mms.vodafone.net and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7050224-f-865ff9d1-c34a-44aa-bfc0-a977be8c761f.png?width=214&height=462)
mms.vodafone.net
4. Enter picture messaging server
Press MMSC.
![](http://wmstatic.global.ssl.fastly.net/ml/7050224-f-62f08be0-83fd-48c0-9cfb-d552386fc1b3.png?width=214&height=462)

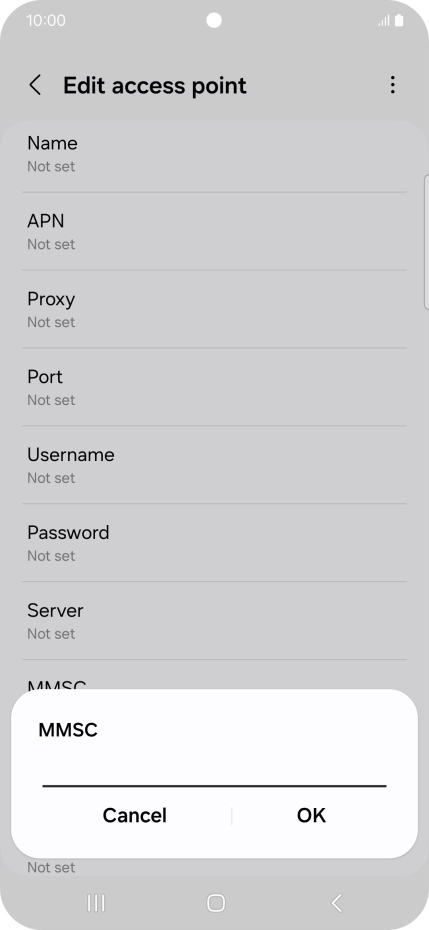

Key in http://www.vodafone.ie/mms and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7050224-f-58ae178e-5a09-4564-b1e7-01e1a156a48d.png?width=214&height=462)
http://www.vodafone.ie/mms
5. Enter IP address
Press MMS proxy.
![](http://wmstatic.global.ssl.fastly.net/ml/7050224-f-62f08be0-83fd-48c0-9cfb-d552386fc1b3.png?width=214&height=462)

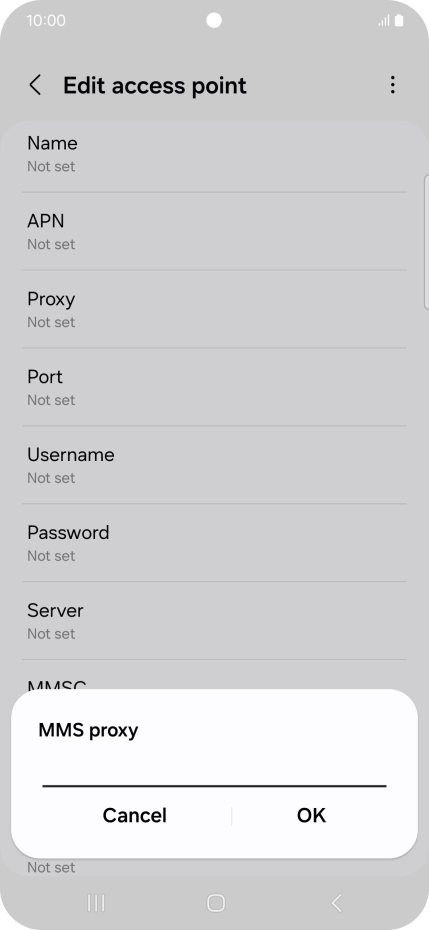

Key in 10.24.59.200 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7050224-f-d15eebb0-7c4f-4cc6-a34f-b6d4dcb32535.png?width=214&height=462)
10.24.59.200
6. Enter port number
Press MMS port.
![](http://wmstatic.global.ssl.fastly.net/ml/7050224-f-62f08be0-83fd-48c0-9cfb-d552386fc1b3.png?width=214&height=462)
Key in 80 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7050224-f-3e2ca33f-002c-47b5-8ccd-e991de0ad989.png?width=214&height=462)
80
7. Enter country code

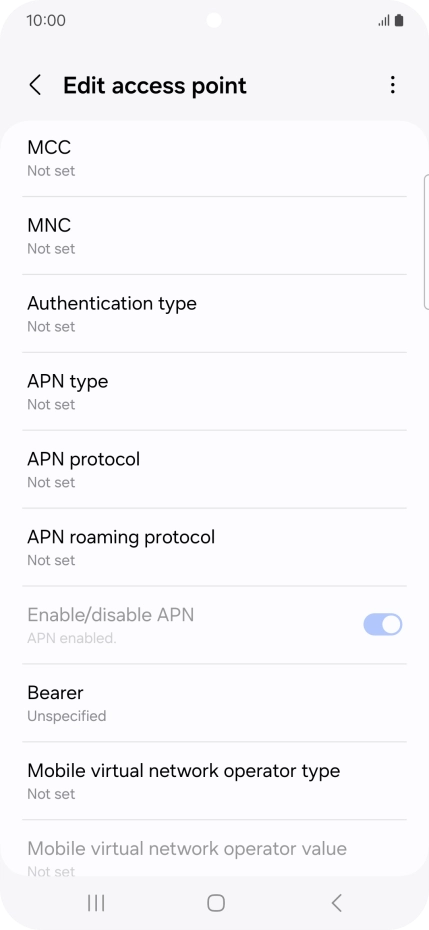

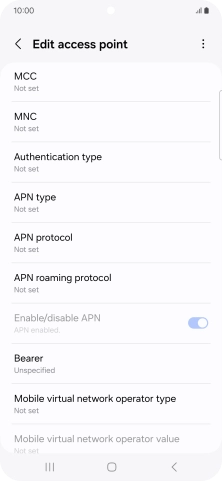

Press MCC.
![](http://wmstatic.global.ssl.fastly.net/ml/7050224-f-9af76461-f158-4652-a7ef-d995069d7cbc.png?width=214&height=462)
Key in 272 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7050224-f-f9cae028-9b8d-4c20-ad45-fe4da2dc1701.png?width=214&height=462)
272
8. Enter network code
Press MNC.
![](http://wmstatic.global.ssl.fastly.net/ml/7050224-f-9af76461-f158-4652-a7ef-d995069d7cbc.png?width=214&height=462)

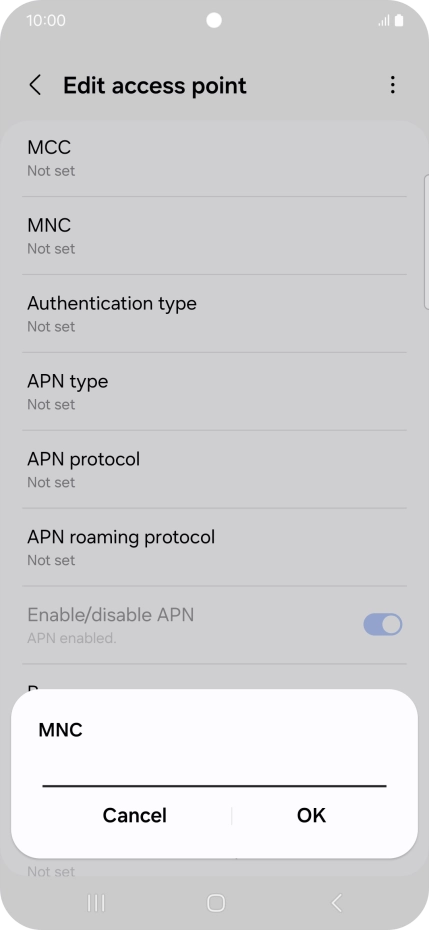

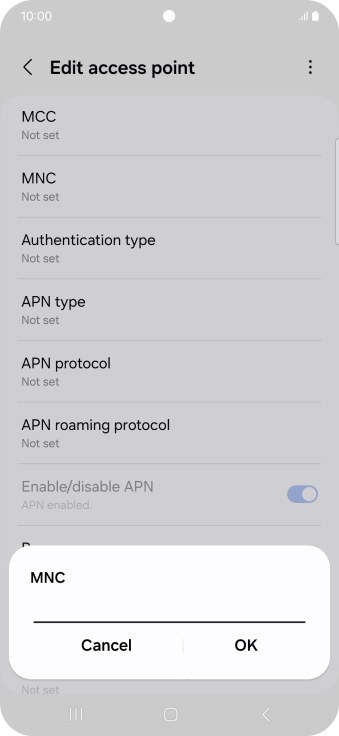

Key in 01 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7050224-f-1d9cd74f-179c-4db7-a864-7f76a5628bf3.png?width=214&height=462)
01
9. Select authentication type
Press Authentication type.
![](http://wmstatic.global.ssl.fastly.net/ml/7050224-f-9af76461-f158-4652-a7ef-d995069d7cbc.png?width=214&height=462)

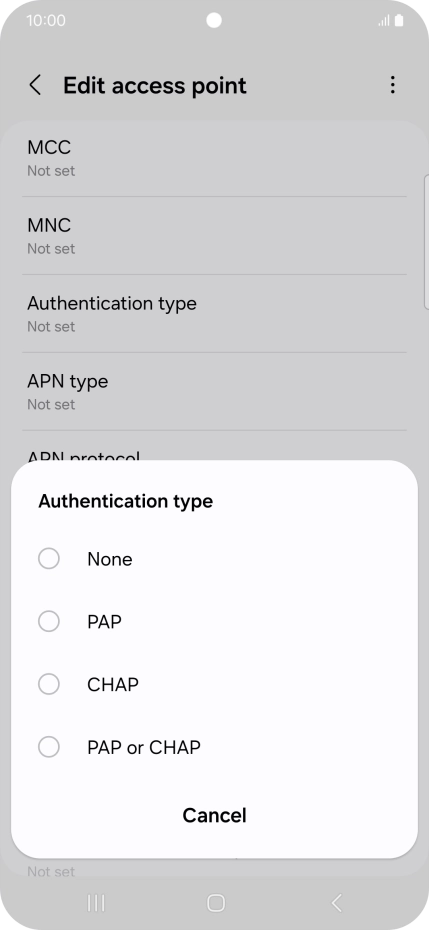

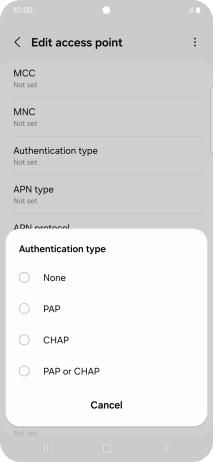

Press PAP.
![](http://wmstatic.global.ssl.fastly.net/ml/7050224-f-7aebd704-c9ff-461b-be98-474d7bc327c6.png?width=214&height=462)
10. Enter APN type
Press APN type.
![](http://wmstatic.global.ssl.fastly.net/ml/7050224-f-9af76461-f158-4652-a7ef-d995069d7cbc.png?width=214&height=462)

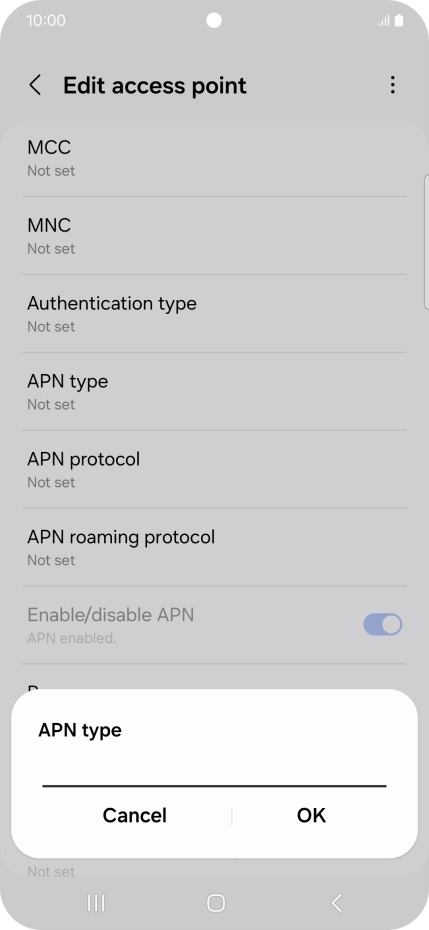

Key in mms and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7050224-f-7e47009e-d3f8-4c7f-a695-2d4e01f5bedf.png?width=214&height=462)
mms
11. Save data connection
Press the menu icon.
![](http://wmstatic.global.ssl.fastly.net/ml/7050224-f-9af76461-f158-4652-a7ef-d995069d7cbc.png?width=214&height=462)

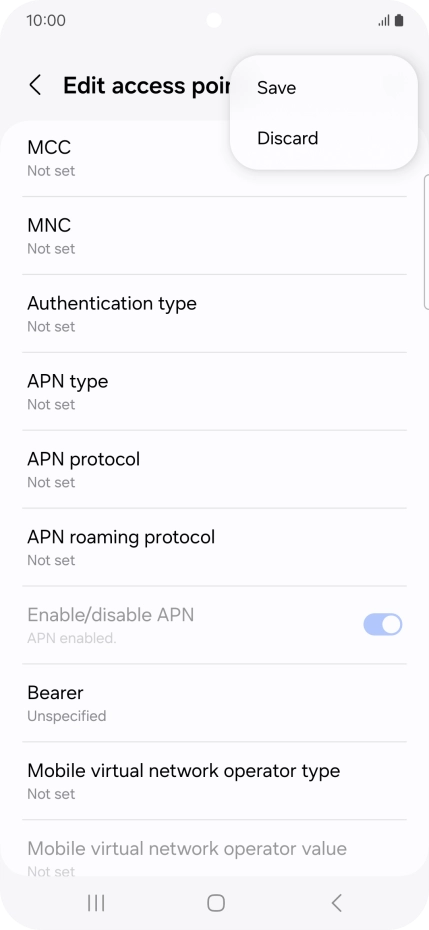

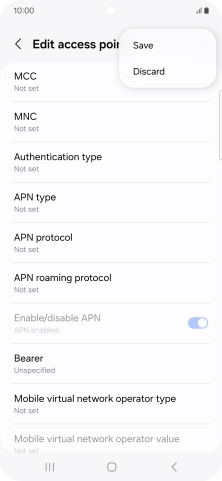

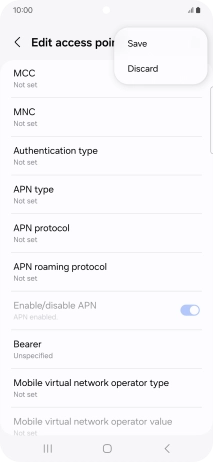

Press Save.
![](http://wmstatic.global.ssl.fastly.net/ml/7050224-f-ae0f4b60-2286-45a2-9fc2-db5d06a4b545.png?width=214&height=462)
12. Return to the home screen

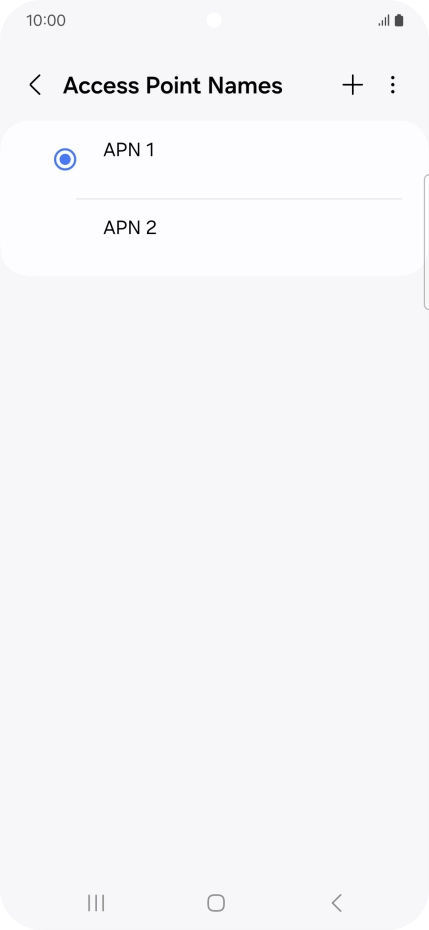

Press the Home key to return to the home screen.
![](http://wmstatic.global.ssl.fastly.net/ml/7050224-f-b8ab9ba4-011e-4faa-abc5-0ab2524f54a7.png?width=214&height=462)
